Makita DUH606 - 500mm Cordless Hedge Trimmer - Power Tool 01 Diagram

Description

Model No. DUH606

500mm Cordless Hedge Trimmer

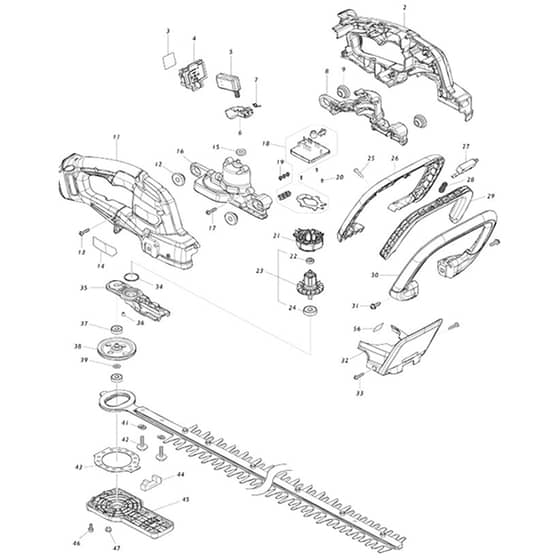

Power Tool 01 Parts Diagrams

	Part No.	Details
2	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
2	MK183V39-1 Available to backorder	Handle Set (INC. 11)	£23.76 £19.80
4	MK644809-6 Available to backorder	Terminal	£4.08 £3.40
5	MK650033-1 Available to backorder	Switch C3xa-3Pspm-1	£29.40 £24.50
6	MK413J41-1 Available to backorder	Switch Lever Re	£0.98 £0.82
7	MK232770-5 Available to backorder	Torsion Spring 6	£0.48 £0.40
8	MK183V95-1 Available to backorder	Motor Housing Set (INC. 16)	£9.84 £8.20
9	MK424394-3 Available to backorder	Rubber Ring 8	£1.22 £1.02
13	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 017 \| 025 \| 033)	£0.48 £0.40
13	MK265B67-9 Available to backorder	Tapping Screw 4x18 (Alt.) (Refs 017 \| 025 \| 033)	£0.48 £0.40
15	MK424195-9 Available to backorder	Rubber Ring 6	£0.70 £0.58
18	MK620J54-7 Available to backorder	Controller	£99.84 £83.20
19	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
20	MK265C47-1 Available to backorder	Tapping Screw Pt 2x6 (Alt.)	£0.48 £0.40
20	MK266490-9 Available to backorder	Tapping Screw Pt 2x6	£0.48 £0.40
21	MK629B24-5 Available to backorder	Stator	£11.88 £9.90
22	MK211157-4 Available to backorder	Ball Bearing 695Zz	£2.21 £1.84
23	MK519764-0 Available to backorder	Rotor Assy (INC. 22 24)	£28.44 £23.70
24	MK210023-2 Available to backorder	Ball Bearing 627Ddw	£3.48 £2.90
26	MK413J39-8 Available to backorder	Front Handle Cover E	£4.44 £3.70
27	MK650034-9 Available to backorder	Switch D2Vw-01L3-3Hs	£11.16 £9.30
28	MK231325-3 Available to backorder	Compression Spring 6	£0.70 £0.58
29	MK413J40-3 Available to backorder	Switch Lever Fe	£4.44 £3.70
30	MK413J38-0 Available to backorder	Front Handle E	£6.24 £5.20
31	MK911223-4 Available to backorder	Pan Head Screw M5x16	£0.48 £0.40
32	MK141K47-2 Available to backorder	Protector Complete	£3.48 £2.90
34	MK213961-7 Available to backorder	O Ring 22 (Alt.)	£0.48 £0.40
35	MK312D09-7 Available to backorder	Bearing Housing E	£7.80 £6.50
36	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
37	MK211016-2 Available to backorder	Ball Bearing 626Llb	£5.88 £4.90
38	MK141K44-8 Available to backorder	Gear Complete	£36.12 £30.10
39	MK253715-0 Available to backorder	Flat Washer 6	£0.48 £0.40
40	MK199450-5 Available to backorder	Grease Vessel Set (C10)	£16.20 £13.50
40	MK1910H9-0 Available to backorder	Shear Blade 600E Set (INC. 48-55 *)	£88.92 £74.10
40	MK1914G5-5 Available to backorder	Shear Blade 600E Set (Alt.) (INC. 48-55)	£73.44 £61.20
40	MK313436-7 Available to backorder	Spacer (C20)	£0.48 £0.40
42	MK265A89-3 Available to backorder	H.S.H.Bolt M5x25 With Wr	£0.65 £0.54
43	MK347A10-5 Available to backorder	Plate	£2.38 £1.98
44	MK422904-0 Available to backorder	Dust Guard	£0.65 £0.54
45	MK413J26-7 Available to backorder	Under Cover	£6.48 £5.40
46	MK922118-6 Available to backorder	Hex. Socket Head Bolt M4x12	£0.89 £0.74
47	MK266559-9 Available to backorder	H.S.Button Head Bolt M6x4	£3.14 £2.62
