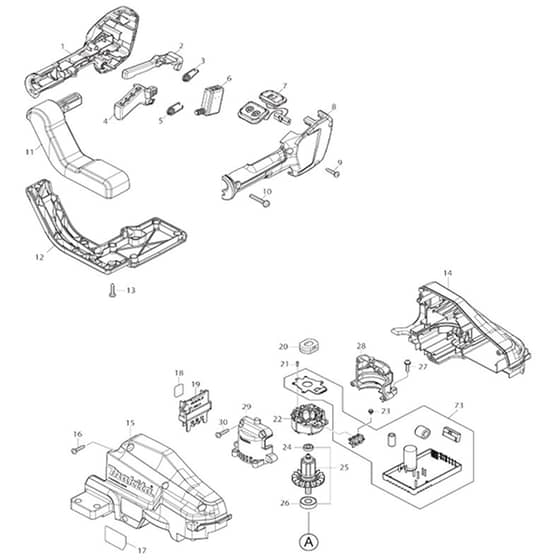

Makita DUH604S - 600mm Cordless Hedge Trimmer - Power Tool 01 Diagram

Description

Model No. DUH604S

600mm Cordless Hedge Trimmer

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK252180-0 Available to backorder	Hex. Lock Nut M5-8 (C10)	£0.65 £0.54
1	MK183N66-0 Available to backorder	Grip Set	£16.92 £14.10
2	MK455629-1 Available to backorder	Lock Off Lever	£2.69 £2.24
3	MK233621-5 Available to backorder	Torsion Spring 9	£0.48 £0.40
4	MK412315-7 Available to backorder	Switch Lever R	£2.56 £2.13
6	MK651083-9 Available to backorder	Switch C3xa-1Pspm	£28.56 £23.80
7	MK140S92-2 Available to backorder	Sub Controller Complete	£35.52 £29.60
7	MK8008M5-7 Available to backorder	Switch Label (C10)	£1.15 £0.96
7	MK8008M7-3 Available to backorder	Indication Label (C20)	£0.84 £0.70
9	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 013 \| 016 \| 030)	£0.48 £0.40
10	MK911253-5 Available to backorder	Pan Head Screw M5x30	£0.70 £0.58
11	MK412311-5 Available to backorder	Grip Joint Cover	£4.20 £3.50
12	MK412310-7 Available to backorder	Grip Joint	£4.44 £3.70
14	MK183N69-4 Available to backorder	Housing Set	£19.32 £16.10
14	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
14	MK424344-8 Available to backorder	Damper (C20)	£0.89 £0.74
19	MK643874-2 Available to backorder	Terminal	£4.32 £3.60
20	MK422261-6 Available to backorder	Rubber Sleeve	£2.56 £2.13
21	MK266490-9 Available to backorder	Tapping Screw Pt 2x6	£0.48 £0.40
22	MK629352-6 In stock	Stator	£32.88 £27.40
23	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
24	MK211157-4 Available to backorder	Ball Bearing 695Zz	£2.21 £1.84
25	MK510448-3 Available to backorder	Rotor Assy	£53.40 £44.50
26	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£8.04 £6.70
27	MK911128-8 In stock	P.H.Screw M4x16 With Wr	£0.54 £0.45
28	MK183L66-8 Available to backorder	Motor Housing Set	£4.44 £3.70
73	MK620B95-5 Available to backorder	Controller	£192.00 £160.00
