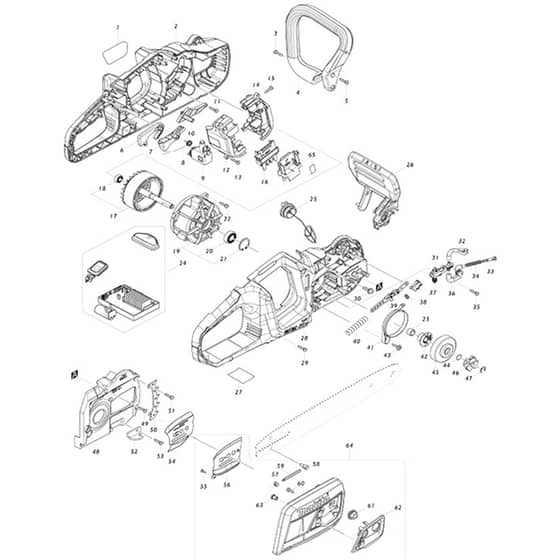

Makita DUC355 - Cordless Chain Saw - Power Tool Diagram

Description

Model No. DUC355

Cordless Chain Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK818F45-8 Available to backorder	Model No. Label Duc355	£0.48 £0.40
1	MK810R17-1 Available to backorder	Model No. Label Duc353 (Alt.)	£0.48 £0.40
2	MK812D15-7 Available to backorder	Caution Label (C10)	£0.48 £0.40
2	MK183K81-6 Available to backorder	Housing Set (INC. 28 *)	£85.80 £71.50
3	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 005 \| 011 \| 013 \| 015 \| 022 \| 029 \| 035 \| 049 \| 051 \| 053)	£0.48 £0.40
4	MK457007-1 Available to backorder	Front Handle	£13.44 £11.20
6	MK457013-6 Available to backorder	Catch Lever	£1.88 £1.57
7	MK457006-3 Available to backorder	Switch Lever	£1.88 £1.57
8	MK232318-3 Available to backorder	Torsion Spring 10	£4.48 £3.73
9	MK650781-2 Available to backorder	Switch C3Jw-6B-P	£20.80 £17.33
10	MK457010-2 Available to backorder	Housing L Cover	£1.60 £1.33
12	MK183F15-9 Available to backorder	Terminal Box Set (INC. 14)	£6.64 £5.53
12	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
16	MK643874-2 Available to backorder	Terminal	£4.20 £3.50
17	MK519411-3 Available to backorder	Rotor Assembly (INC. 18)	£145.60 £121.33
18	MK210028-2 Available to backorder	Ball Bearing 606Zz	£1.16 £0.97
19	MK590094-8 Available to backorder	Stator Assembly (Alt.) (INC. 20 21)	£77.68 £64.73
19	MK592H45-5 Available to backorder	Stator Assembly (INC. 20 21 *)	£135.06 £112.55
20	MK210274-7 Available to backorder	Ball Bearing 6000Ddw (Alt.)	£1.92 £1.60
20	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.04 £4.20
23	MK257402-3 Available to backorder	Sleeve 10	£0.86 £0.72
24	MK141G22-4 Available to backorder	Controller Complete <	£180.88 £150.73
24	MK144254-0 Available to backorder	Controller Complete	£198.70 £165.58
25	MK162A04-7 Available to backorder	Tank Cap Complete (Alt.)	£2.06 £1.72
25	MK168508-1 Available to backorder	Tank Cap Complete	£2.60 £2.17
25	MK213A11-4 Available to backorder	O-Ring 25 (Alt.) (C11)	£0.48 £0.40
25	MK213355-6 Available to backorder	O-Ring 25 (C10)	£1.36 £1.13

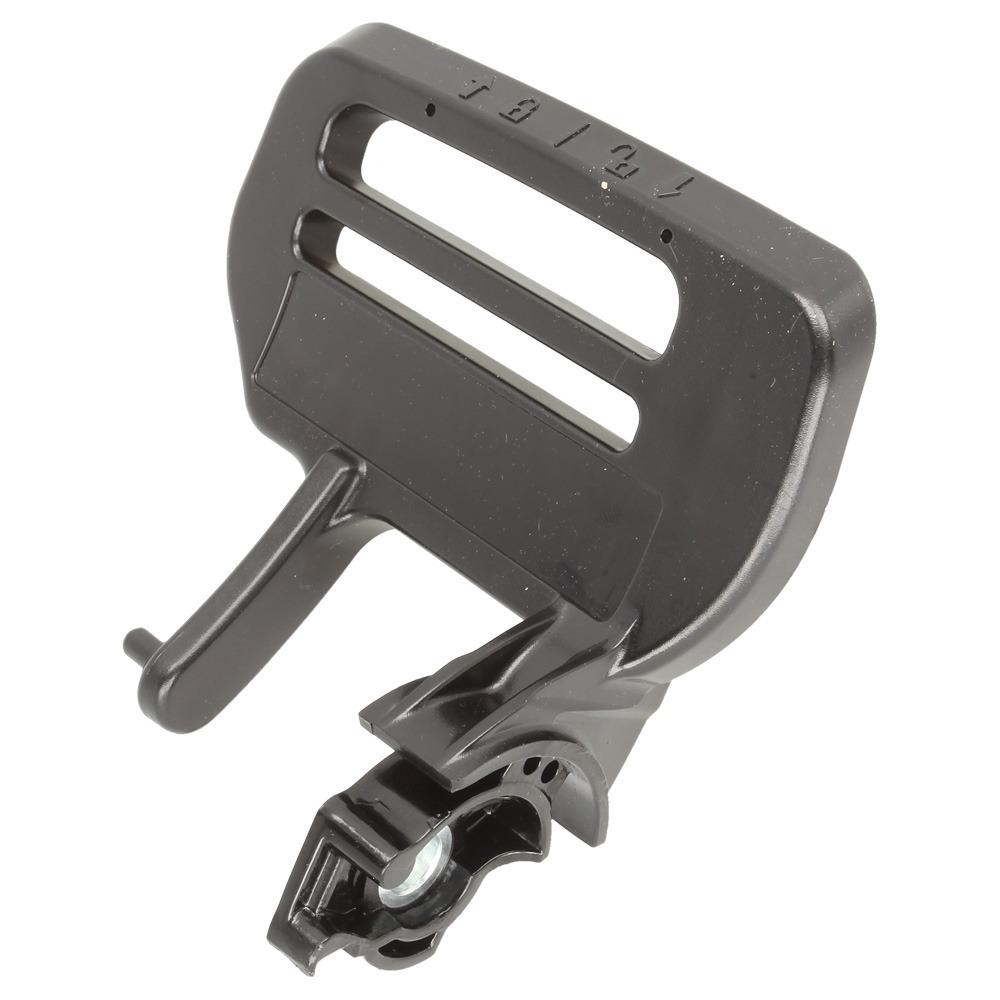

26	MK458418-3 Available to backorder	Front Hand Guard	£12.61 £10.51
27	MK855A12-2 Available to backorder	Name Plate Duc355	£0.48 £0.40
30	MK911233-1 Available to backorder	Pan Head Screw M5x20 Wr	£0.48 £0.40
31	MK142156-4 Available to backorder	Oil Pump Complete	£27.88 £23.23
32	MK424904-6 Available to backorder	Connector B	£4.48 £3.73
33	MK452666-6 Available to backorder	Nipple	£0.54 £0.45
34	MK234207-8 Available to backorder	Compression Spring 6	£0.48 £0.40
34	MK231975-4 Available to backorder	Spring (Alt.)	£0.48 £0.40
36	MK424903-8 Available to backorder	Connector A	£4.62 £3.85
37	MK632H47-0 Available to backorder	Switch Unit	£20.96 £17.47
38	MK231298-0 Available to backorder	Compression Spring 6	£0.48 £0.40
39	MK163448-8 Available to backorder	Link Plate Complete	£4.62 £3.85
40	MK232319-1 Available to backorder	Compression Spring 9	£3.62 £3.02
41	MK345454-7 Available to backorder	Brake Band	£7.66 £6.38
42	MK221427-3 Available to backorder	Worm Gear	£2.60 £2.17
44	MK213060-5 Available to backorder	O-Ring 10	£0.48 £0.40
45	MK313422-8 Available to backorder	Brake Drum (Alt.)	£7.10 £5.92

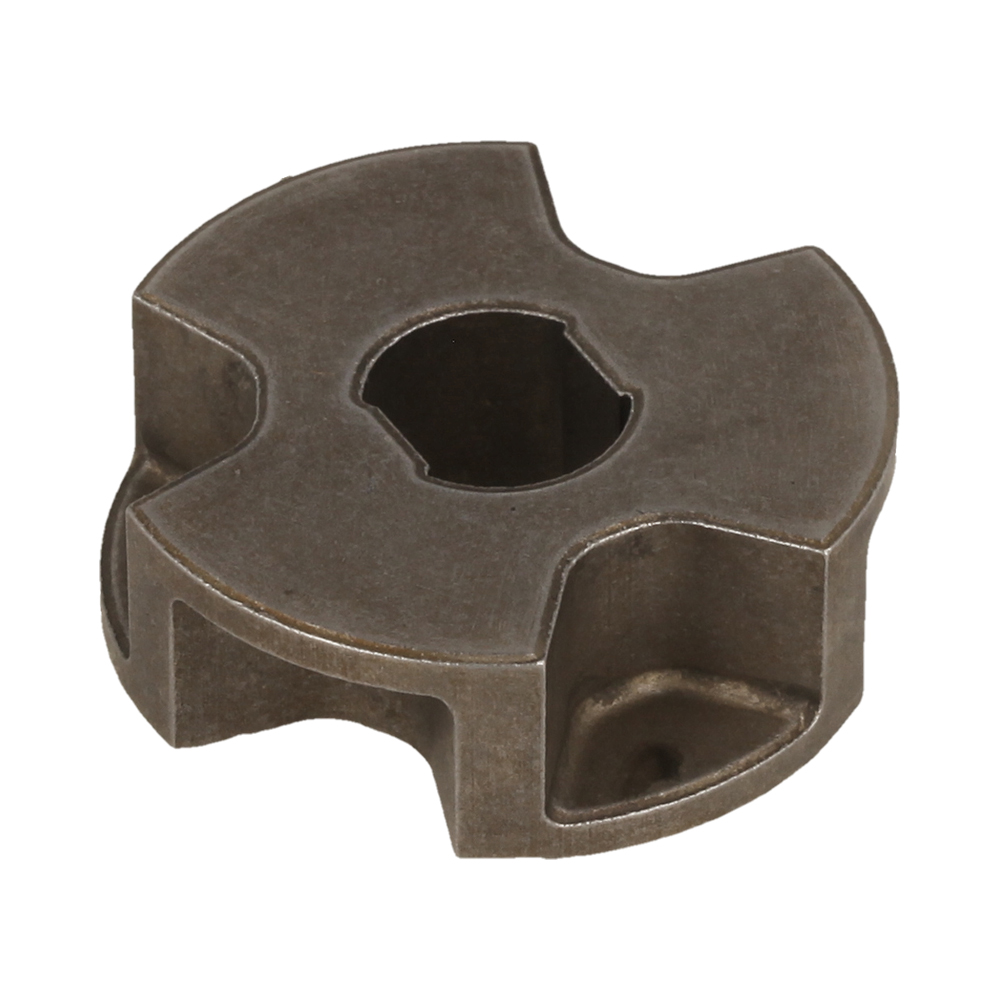

46	MK221464-7 Available to backorder	Sprocket 6	£3.97 £3.31
47	MK961013-5 Available to backorder	Stop Ring (Ext) E-7	£0.47 £0.39
48	MK457004-7 Available to backorder	Housing R Cover	£12.44 £10.37
50	MK347078-5 Available to backorder	Spike Bumper	£7.22 £6.02
52	MK347079-3 Available to backorder	Chain Catcher	£5.64 £4.70
54	MK346694-0 Available to backorder	Guide Plate Es	£1.44 £1.20
55	MK266166-8 Available to backorder	Binding Head Tapping Screw 3x8	£0.48 £0.40
56	MK346699-0 Available to backorder	Guide Plate Cs	£2.02 £1.68

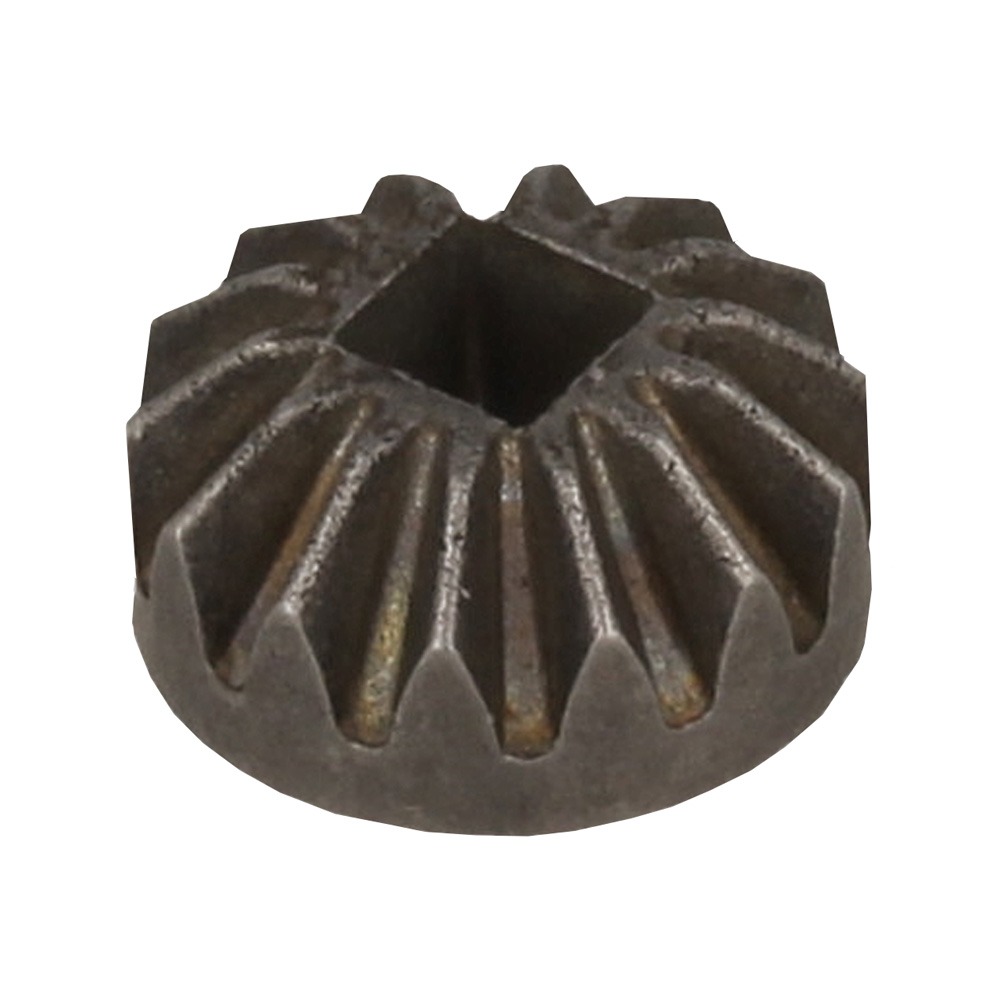

57	MK227496-2 Available to backorder	Straight Bevel Gear 14	£3.46 £2.88
58	MK326311-8 Available to backorder	Adjust Pin	£1.24 £1.03
59	MK326313-4 Available to backorder	Adjust Screw	£1.64 £1.37
60	MK266427-6 Available to backorder	Binding Head Tapping Screw 4x12	£0.48 £0.40
61	MK162493-0 Available to backorder	Flange Nut Complete	£6.22 £5.18
62	MK454620-6 In stock	Nut Cover	£1.90 £1.58

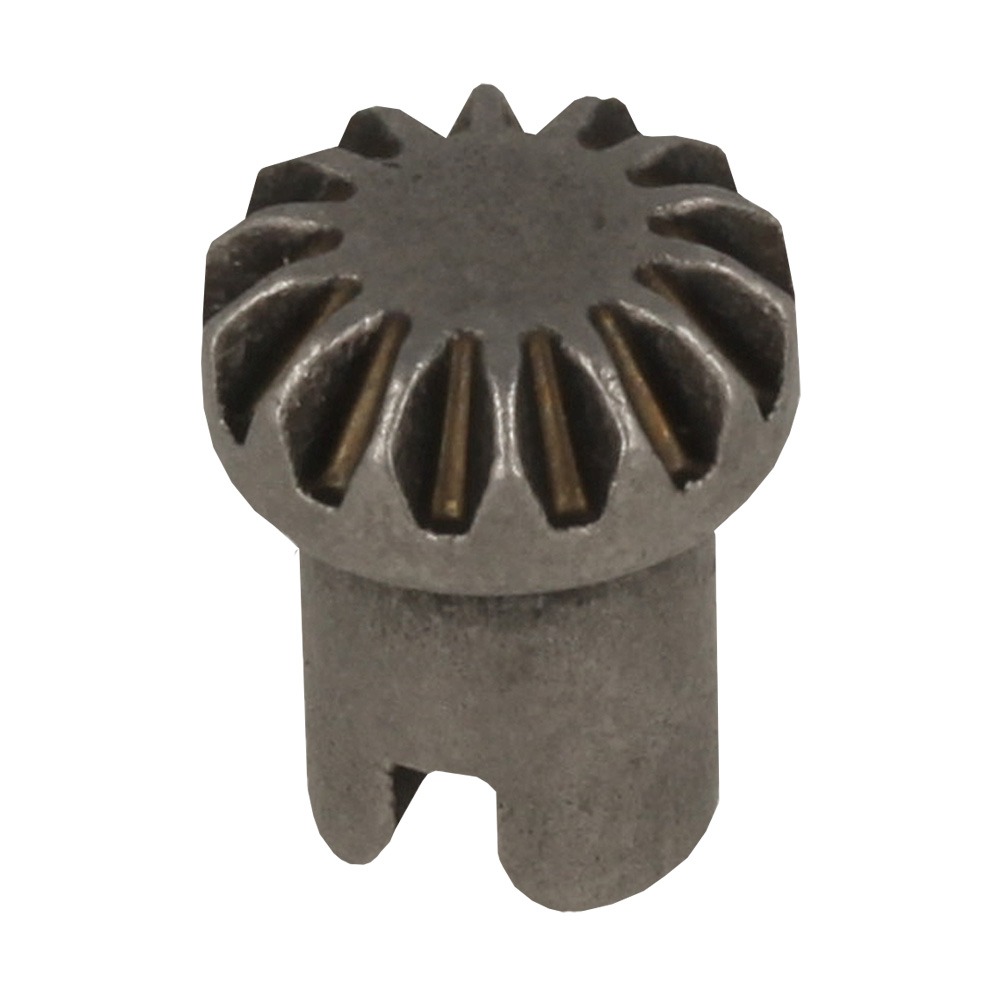

63	MK227620-7 Available to backorder	Drive Gear	£1.44 £1.20
64	MK136071-2 Available to backorder	Sprocket Cover Assembly (INC. 55-63 *)	£27.44 £22.87
65	MK855A18-0 Available to backorder	Serial No. Label Duc355	£0.48 £0.40
66	MK458871-3 Available to backorder	Sprocket Cover	£9.56 £7.97
901	MK782027-9 Available to backorder	Box Wrench (A01)	£4.42 £3.68
903	MK419288-5 Available to backorder	Chain Cover (A03)	£3.86 £3.22
904	MK191H02-6 Available to backorder	Saw Chain 14 Set (Alt.) (A04-1)	£15.08 £12.57
909	MK195092-3 Available to backorder	Chain Oil Set (F09)	£8.28 £6.90
910	MK195093-1 Available to backorder	Chain Oil Set (F10)	£7.88 £6.57
912	MKD-70954 Available to backorder	File Holder Set 4.5mm(11/64") (Alt.) (F12-1)	£10.84 £9.03
913	MK196206-7 Available to backorder	Saw Chain Set (F13)	£15.76 £13.13
922	MK191H01-8 Available to backorder	Saw Chain 12 Set (Alt.) (F22-1)	£24.10 £20.08
922	MK196740-7 Available to backorder	Saw Chain Set (F22)	£20.42 £17.02
927	MK198457-8 Available to backorder	File Set (F27)	£19.38 £16.15
927	MKD-70948 Available to backorder	File Holder Set 4.0mm(5/32") (Alt.) (F27-1)	£10.84 £9.03
928	MK199297-7 Available to backorder	Battery Bag Set (F28)	£19.44 £16.20
