Makita DUC307, 109 - 300mm Cordless Chain Saw - Power Tool Diagram

Description

Model No. DUC307, 109

300mm Cordless Chain Saw

Power Tool Parts Diagrams

	Part No.	Details
1	MK911118-1 Available to backorder	Pan Head Screw M4x12	£0.48 £0.40
2	MK413J87-7 Available to backorder	Front Hand Guard Retainer	£3.12 £2.60
3	MK141K82-0 Available to backorder	Front Hand Guard Complete	£13.44 £11.20
3	MK810R21-0 Available to backorder	Caution Label (C10)	£0.48 £0.40
4	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 007 \| 012 \| 017 \| 023 \| 031 \| 048 \| 054)	£0.48 £0.40
5	MK413J75-4 Available to backorder	Front Handle	£15.96 £13.30
6	MK213A30-0 Available to backorder	O-Ring 29.5 (C10)	£0.48 £0.40
6	MK162C20-1 Available to backorder	Tank Cap Complete	£2.38 £1.98
10	MK183W84-2 Available to backorder	Housing Set	£96.72 £80.60
10	MK8057G1-2 Available to backorder	Makita Logo Label (C20)	£0.48 £0.40
10	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
11	MK413J76-2 Available to backorder	Motor Housing	£3.84 £3.20
13	MK652119-7 Available to backorder	Pan Head Screw M2x6	£0.48 £0.40
15	MK629B62-7 Available to backorder	Stator	£17.40 £14.50
16	MK413J86-9 Available to backorder	Baffle Plate	£1.49 £1.24
18	MK519766-6 Available to backorder	Rotor Ass'y	£51.72 £43.10
19	MK211499-6 Available to backorder	Ball Bearing 626Zz	£1.58 £1.32
20	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£8.28 £6.90
21	MK227989-9 Available to backorder	Spur Gear 16	£4.44 £3.70
22	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
24	MK413J72-0 Available to backorder	Bearing Housing	£4.56 £3.80
25	MK961011-9 Available to backorder	Stop Ring E-4	£0.48 £0.40
26	MK226884-0 Available to backorder	Worm Gear	£1.49 £1.24
27	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.64 £7.20
28	MK327A29-0 Available to backorder	Spindle	£5.28 £4.40
29	MK227990-4 Available to backorder	Spur Gear 73	£6.36 £5.30
30	MK210216-1 Available to backorder	Ball Bearing 6001Ddw	£2.38 £1.98
32	MK422914-7 Available to backorder	Oil Tube 3-60	£1.15 £0.96
33	MK141N25-0 Available to backorder	Oil Pump Complete	£10.68 £8.90
34	MK422913-9 Available to backorder	Oil Tube 3-105	£1.32 £1.10
35	MK231975-4 Available to backorder	Spring	£0.48 £0.40
36	MK452666-6 Available to backorder	Nipple	£0.65 £0.54
37	MK413J88-5 Available to backorder	Lock Off Button	£1.15 £0.96
38	MK231469-9 Available to backorder	Compression Spring 4	£0.48 £0.40
39	MK413J84-3 Available to backorder	Switch Lever	£1.66 £1.38
40	MK233621-5 Available to backorder	Torsion Spring 9	£0.48 £0.40
41	MK651083-9 Available to backorder	Switch C3xa-1Pspm	£28.56 £23.80
42	MK643874-2 Available to backorder	Terminal	£4.32 £3.60
44	MK632L48-2 Available to backorder	Switch Unit	£20.52 £17.10
46	MK313212-9 Available to backorder	Hand Guard Guide	£0.70 £0.58
47	MK234210-9 Available to backorder	Compression Spring 3	£0.48 £0.40
49	MK422915-5 Available to backorder	Grommet	£0.48 £0.40
50	MK141E60-4 Available to backorder	Link Plate Complete	£4.92 £4.10
51	MK232452-9 Available to backorder	Compression Spring 7	£0.89 £0.74
52	MK347864-4 Available to backorder	Brake Band	£3.72 £3.10
53	MK413J85-1 Available to backorder	Housing R Cover	£3.72 £3.10
55	MK162B78-4 Available to backorder	Brake Drum	£12.72 £10.60
56	MK213060-5 Available to backorder	O Ring 10 (Alt.)	£0.48 £0.40
57	MK221464-7 Available to backorder	Sprocket 6	£3.72 £3.10
58	MK961013-5 Available to backorder	Stop Ring E-7	£0.48 £0.40
59	MK422833-7 Available to backorder	Grommet	£0.50 £0.42
60	MK326310-0 Available to backorder	Adjust Pin	£1.39 £1.16
61	MK327958-1 Available to backorder	Adjust Screw	£1.94 £1.62
62	MK227496-2 Available to backorder	Straight Bevel Gear 14	£3.60 £3.00
63	MK266427-6 Available to backorder	Tapping Screw 4x12	£0.48 £0.40
64	MK413F29-7 Available to backorder	Cover	£1.79 £1.49
66	MK413J73-8 Available to backorder	Sprocket Cover	£6.12 £5.10
68	MK142665-3 Available to backorder	Drive Gear Complete	£4.92 £4.10
69	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
70	MK142235-8 Available to backorder	Nut Complete	£5.28 £4.40
71	MK454819-3 Available to backorder	Nut Cover	£1.22 £1.02

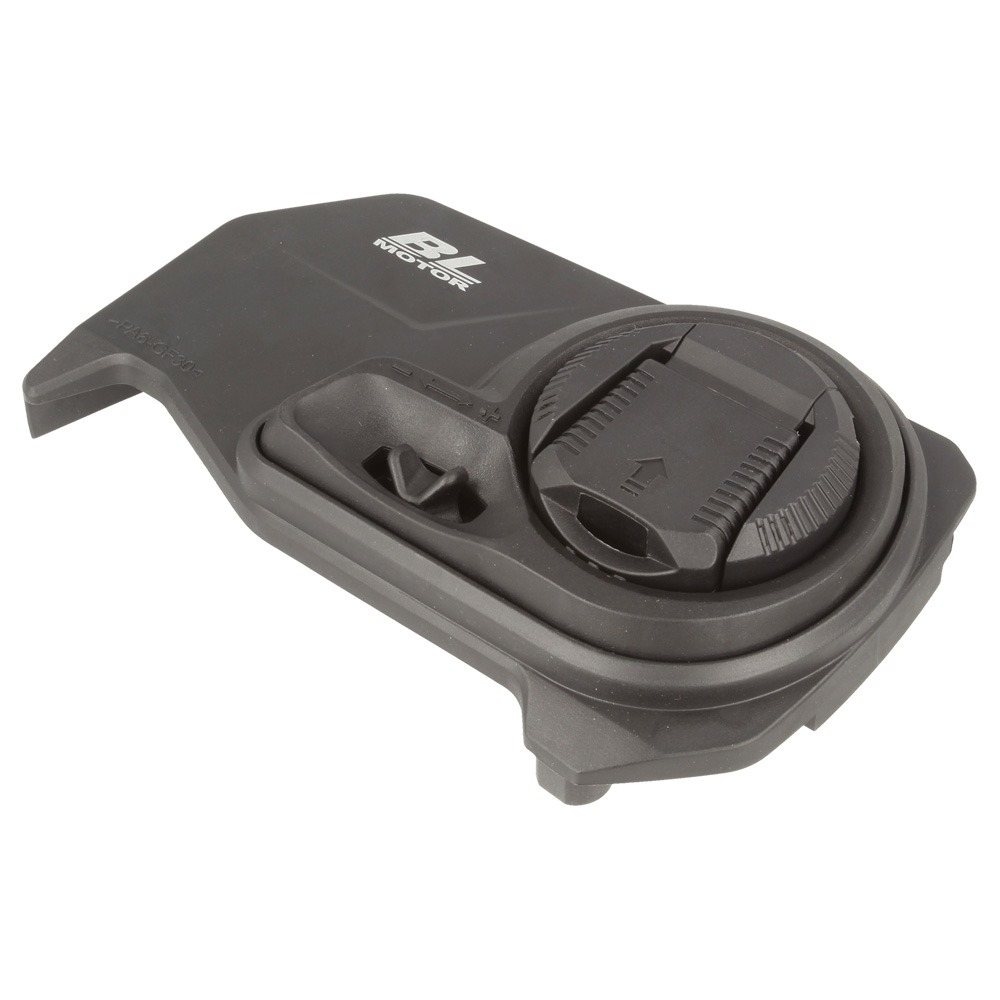

72	MK136784-5 Available to backorder	Sprocket Cover Ass'y	£22.92 £19.10
901	MK191G15-1 Available to backorder	Guide Bar 12 Set (A01)	£20.76 £17.30
902	MK413G23-5 Available to backorder	Guide Bar Case 360 (A02)	£3.84 £3.20

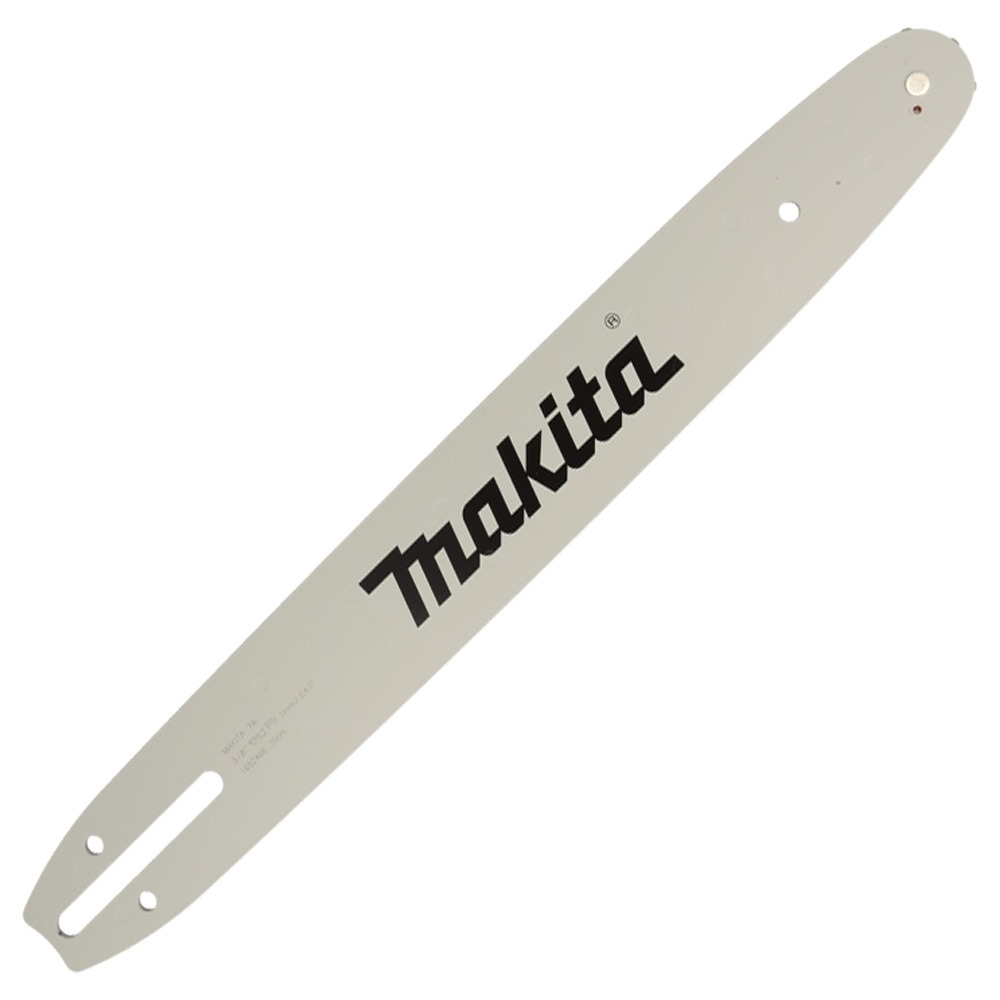

902	MK191G16-9 In stock	Guide Bar 14 Set (F02)	£14.42 £12.02
903	MK191G17-7 Available to backorder	Guide Bar 16 Set (F03)	£21.72 £18.10
903	OR90PX046E In stock	Chain 12"	£13.80 £11.50
904	MK199897-3 Available to backorder	Oil Vessel Set (A04)	£6.36 £5.30
904	MK191G23-2 Available to backorder	Guide Bar 12 Set (F04)	£18.84 £15.70
905	MK195246-2 Available to backorder	Safety Goggle (A05)	£4.32 £3.60
905	MK191G24-0 Available to backorder	Guide Bar 14 Set (F05)	£20.76 £17.30
906	MK191G25-8 Available to backorder	Guide Bar 16 Set (F06)	£21.72 £18.10
907	MK197280-8 In stock	Battery Bl1850B Set (A07)	£76.24 £63.53
908	OR90PX052E In stock	Chain 14"	£15.86 £13.22
909	OR90PX056E In stock	Chain 16"	£17.11 £14.26
911	OR91PX052E In stock	Chain 14"	£14.80 £12.33
912	OR91PXL056E In stock	Chain 16"	£16.82 £14.02
913	MKD-70954 Available to backorder	File Holder Set 4.5mm(11/64") (Alt.) (F13-1)	£11.16 £9.30
914	MKD-70948 Available to backorder	File Holder Set 4.0mm(5/32") (Alt.) (F14-1)	£11.16 £9.30
914	MK198457-8 Available to backorder	Chain Edger Set (F14)	£20.04 £16.70
