Makita DUC101 - Cordless Pruning Saw - Power Tool Diagram

Description

Model No. DUC101

Cordless Pruning Saw

Power Tool Parts Diagrams

	Part No.	Details
1	MK961011-9 Available to backorder	Stop Ring (Ext) E-4	£0.48 £0.40
3	MK413M04-5 Available to backorder	Safety Cover	£3.72 £3.10
4	MK232785-2 Available to backorder	Torsion Spring 14	£0.48 £0.40
5	MK256A31-5 Available to backorder	Shoulder Pin 5	£1.94 £1.62
6	MK413L96-8 Available to backorder	Housing R Cover	£3.12 £2.60
7	MK266429-2 Available to backorder	Binding Head Tapping Screw 3x16	£0.48 £0.40
8	MK213A11-4 Available to backorder	O-Ring 25 (Alt.) (C11)	£0.48 £0.40
8	MK126832-8 Available to backorder	Tank Cap Assembly	£22.56 £18.80
8	MK213894-6 Available to backorder	O-Ring 25 (C10)	£2.38 £1.98
9	MK183Y31-5 Available to backorder	Housing Set (INC. 42 *)	£44.16 £36.80
9	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
11	MK911138-5 Available to backorder	Pan Head Screw M4x20 Wr	£0.48 £0.40
13	MK226884-0 Available to backorder	Worm Gear	£1.49 £1.24
14	MK211166-3 Available to backorder	Ball Bearing 698Ddw	£1.49 £1.24
15	MK227A17-6 Available to backorder	Spiral Bevel Gear 53	£10.68 £8.90
16	MK327A89-2 Available to backorder	Spindle	£3.84 £3.20
17	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.16 £4.30
18	MK141N25-0 Available to backorder	Oil Pump Complete	£10.68 £8.90
19	MK266427-6 Available to backorder	Binding Head Tapping Screw 4x12	£0.48 £0.40
20	MK422968-4 Available to backorder	Oil Tube 3-60	£0.98 £0.82
21	MK422969-2 Available to backorder	Oil Tube 3-25	£0.84 £0.70
22	MK232774-7 Available to backorder	Compression Spring 6	£0.48 £0.40
23	MK413L02-3 Available to backorder	Nipple	£0.50 £0.42
24	MK629B92-8 Available to backorder	Stator	£11.76 £9.80
25	MK620M06-6 Available to backorder	Controller	£111.24 £92.70
26	MK266490-9 Available to backorder	Pan Head Tapping Screw 2x6	£0.48 £0.40
26	MK265C47-1 Available to backorder	Pan Head Tapping Screw 2x6 (Alt.)	£0.48 £0.40
27	MK619791-8 Available to backorder	Rotor	£35.76 £29.80
28	MK213A05-9 Available to backorder	O-Ring 16	£0.48 £0.40
29	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
30	MK643874-2 Available to backorder	Terminal	£4.32 £3.60
31	MK413L98-4 Available to backorder	Lock Off Lever	£1.32 £1.10
32	MK232784-4 Available to backorder	Torsion Spring 6	£0.48 £0.40
33	MK413L97-6 Available to backorder	Switch Lever	£1.32 £1.10
34	MK650033-1 Available to backorder	Switch C3xa-3Pspm-1	£29.40 £24.50
36	MK233211-4 Available to backorder	Compression Spring 2	£0.48 £0.40
37	MK413M02-9 Available to backorder	Stopper	£0.48 £0.40
38	MK347A69-2 Available to backorder	Tension Slide	£1.94 £1.62

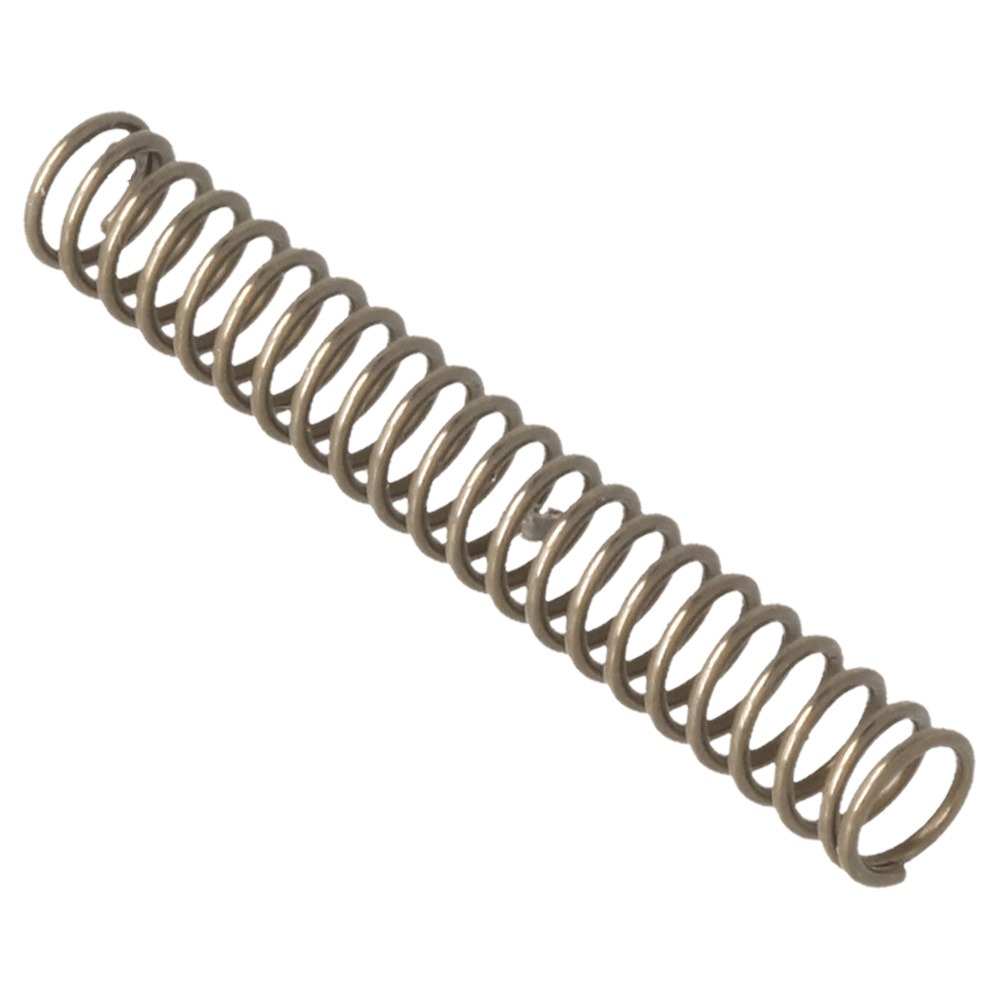

39	MK232787-8 Available to backorder	Compression Spring 4	£0.48 £0.40
40	MK266492-5 Available to backorder	Binding Head Tapping Screw 3x8	£0.48 £0.40
41	MK413M03-7 Available to backorder	Cover	£0.50 £0.42

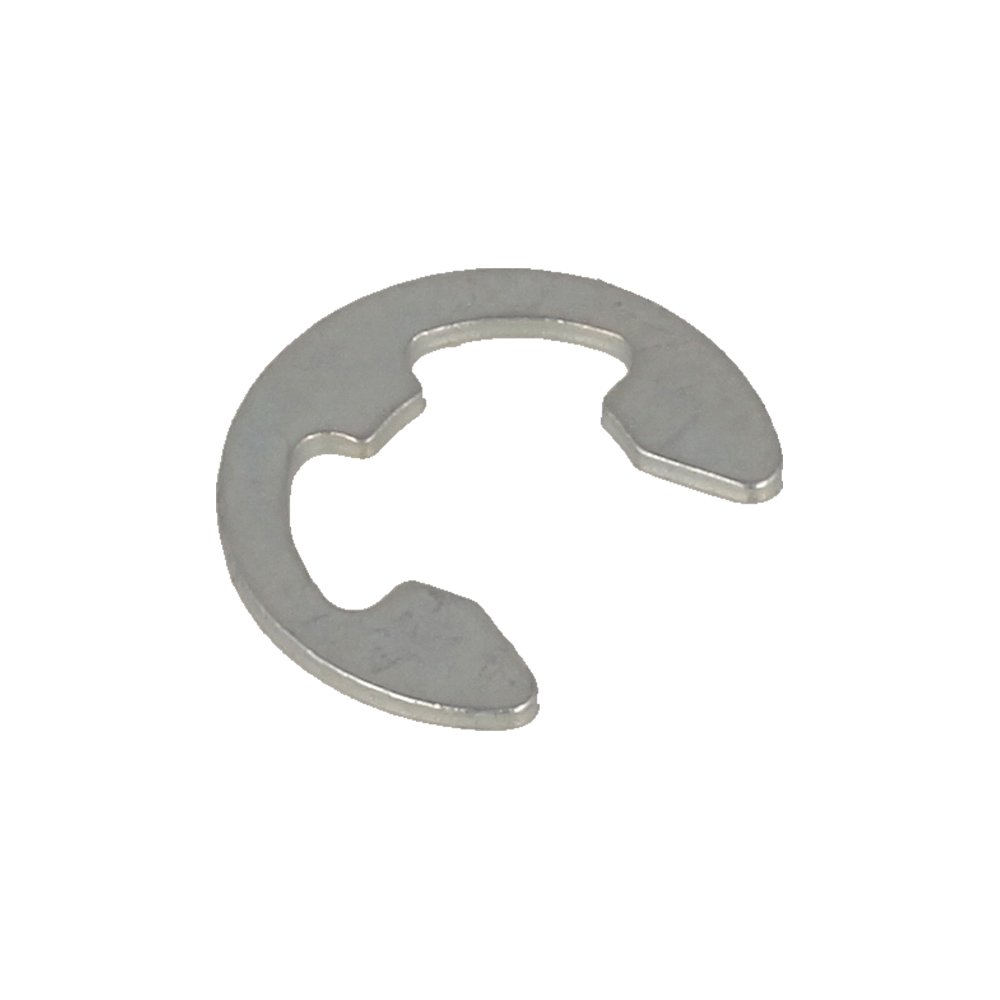

44	MK961013-5 Available to backorder	Stop Ring (Ext) E-7	£0.48 £0.40
47	MK136914-8 Available to backorder	Sprocket Cover Assembly (INC. 45 46 48 *)	£12.36 £10.30
50	MK141M76-7 Available to backorder	Rear Hand Guard Complete	£8.76 £7.30
901	MK807950-8 Available to backorder	Sound 95Db Label (E01)	£0.65 £0.54
901	MK1910W0-3 Available to backorder	Guide Bar 4 Set (A01)	£29.28 £24.40
902	MK198457-8 Available to backorder	File Set (A02)	£20.04 £16.70
902	MKD-70948 Available to backorder	File Holder Set 4.0mm(5/32") (Alt.) (A02-1)	£11.16 £9.30
903	MK199897-3 Available to backorder	Oil Vessel Set (A03)	£6.36 £5.30
903	MK1911R0-4 Available to backorder	Holster Set (F03)	£53.76 £44.80
904	MK413M40-1 Available to backorder	Guide Bar Case 125 (A04)	£3.84 £3.20

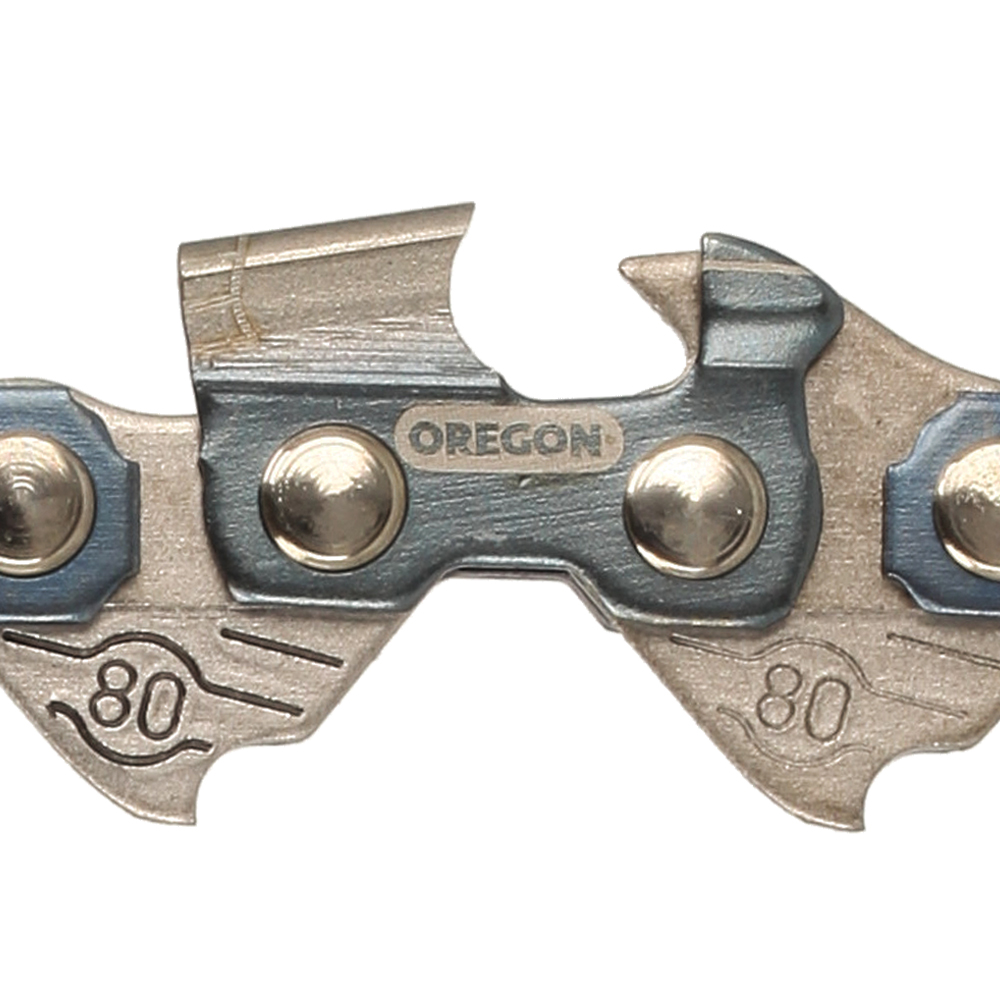

905	OR80TXL026E In stock	4" Chain	£10.40 £8.67
906	MK450128-8 Available to backorder	Battery Cover (A06)	£0.77 £0.64
908	MK197600-6 Available to backorder	Battery Bl1830B Set (A08)	£197.76 £164.80
