Model No. DTW701

Cordless Impact Wrench

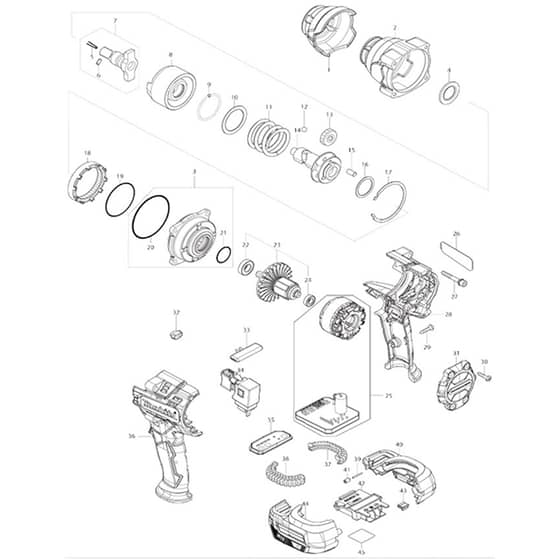

Power Tool Parts Diagrams

	Part No.	Details
1	MK422607-6 Available to backorder	Bumper	£1.79 £1.49
2	MK141U35-9 Available to backorder	Hammer Case Complete <	£38.52 £32.10
3	MK136296-8 Available to backorder	Internal Gear Case Ass'y (INC. 20 21)	£15.96 £13.30
4	MK253481-9 Available to backorder	Flat Washer 20	£1.49 £1.24
5	MK322045-1 Available to backorder	Clip	£1.39 £1.16
6	MK323675-1 Available to backorder	Pin 4	£1.39 £1.16
7	MK136263-3 Available to backorder	Anvil Aass'y (INC. 5 6)	£111.60 £93.00
8	MK327624-0 Available to backorder	Hammer	£39.84 £33.20
9	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
10	MK267340-1 Available to backorder	Flat Washer 32	£1.58 £1.32
11	MK232629-6 Available to backorder	Compression Spring 34	£8.52 £7.10
12	MK216007-8 Available to backorder	Steel Ball 6.4	£0.48 £0.40
13	MK227813-6 Available to backorder	Spur Gear 21	£3.14 £2.62
14	MK327623-2 Available to backorder	Spindle	£17.76 £14.80
15	MK256211-7 Available to backorder	Pin 6	£0.65 £0.54
16	MK267127-1 Available to backorder	Flat Washer 26 (Alt.)	£1.03 £0.86
16	MK267494-4 Available to backorder	Flat Washer 25	£0.70 £0.58
17	MK347722-4 Available to backorder	Retainer	£5.76 £4.80
18	MK227814-4 Available to backorder	Internal Spur Gear 48	£5.52 £4.60
19	MK213624-5 Available to backorder	O Ring 48 (Alt.)	£0.48 £0.40
20	MK213654-6 Available to backorder	O Ring 60 (Alt.)	£2.21 £1.84
21	MK213961-7 Available to backorder	O Ring 22 (Alt.)	£0.48 £0.40
22	MK210069-8 Available to backorder	Ball Bearing 6900Ddw	£6.00 £5.00
23	MK519635-1 Available to backorder	Rotor Ass'y (INC. 22 24)	£27.48 £22.90
24	MK211343-7 Available to backorder	Ball Bearing 688Zz	£2.10 £1.75
25	MK629A06-1 Available to backorder	Stator Complete	£143.64 £119.70
26	MK857M22-7 Available to backorder	Dtw701 Name Plate	£0.48 £0.40
27	MK251476-6 Available to backorder	H.S.H.Bolt M5x35 With Wr	£7.68 £6.40
27	MK265D13-4 Available to backorder	H.S.H.Bolt M5x35 With Wrm <	£0.84 £0.70
28	MK183P88-2 Available to backorder	Housing Set (INC. 36)	£17.76 £14.80
29	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
31	MK412673-1 Available to backorder	Rear Cover	£3.72 £3.10
32	MK620549-0 Available to backorder	Led Circuit	£4.44 £3.70
33	MK456268-0 Available to backorder	F/R Change Lever	£1.39 £1.16
34	MK424774-3 Available to backorder	Switch Cover (C10)	£0.98 £0.82
34	MK140U03-9 Available to backorder	Switch Complete	£43.68 £36.40
35	MK8012S9-8 Available to backorder	Switch Label (C10)	£1.32 £1.10
35	MK140U53-4 Available to backorder	Switch Plate Complete	£2.24 £1.87
37	MK422A56-3 Available to backorder	Cushion Rubber <	£1.32 £1.10
39	MK268284-8 Available to backorder	Pin 1.5	£0.48 £0.40
40	MK252126-6 Available to backorder	Hex. Lock Nut M4-7 (C20)	£1.03 £0.86
40	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43

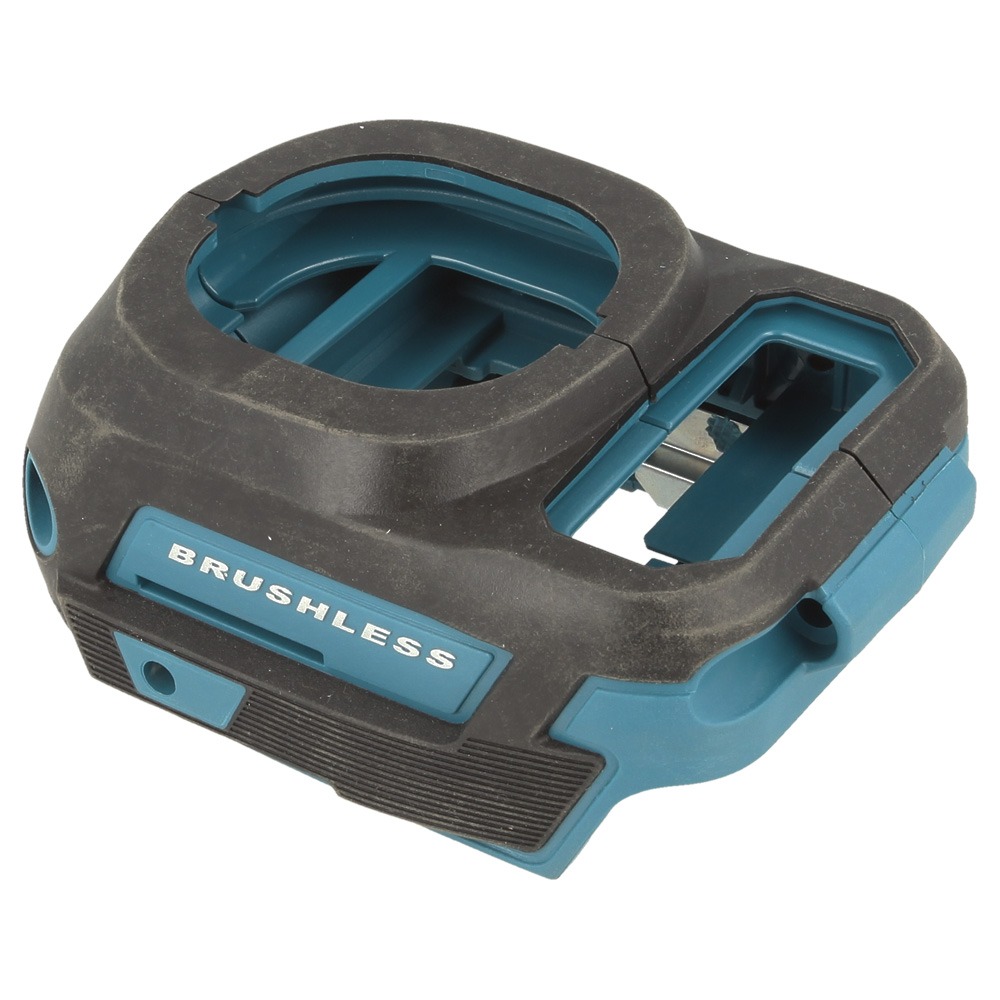

40	MK183P89-0 Available to backorder	Battery Housing Set (INC. 44)	£11.52 £9.60
41	MK263036-2 Available to backorder	Rubber Pin 5	£1.58 £1.32
42	MK643874-2 Available to backorder	Terminal	£4.32 £3.60
43	MK424517-3 Available to backorder	Cushion	£0.70 £0.58
45	MK857M28-5 Available to backorder	Dtw701 Serial No. Label	£0.48 £0.40
901	MK191G67-2 Available to backorder	Extension Handle Set (F01)	£274.32 £228.60
901	MK251314-2 Available to backorder	+ Truss Head Screw M4x12 (A01)	£0.70 £0.58
902	MK347723-2 Available to backorder	Hook (A02)	£3.72 £3.10
904	MK450128-8 Available to backorder	Battery Cover (A04B)	£0.77 £0.64
905	MK197280-8 In stock	Battery Bl1850B Set (A05B)	£76.24 £63.53
906	MK821551-8 Available to backorder	Connector Plastic Case (A06B)	£64.68 £53.90
906	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
907	MK837645-9 Available to backorder	Inner Tray (A07B)	£11.52 £9.60
908	MK8019V1-7 Available to backorder	Dtw701Rtj Plastic Case Label (A08B)	£0.48 £0.40
909	MK8019V0-9 Available to backorder	Dtw701Rtj Indication Label (A09B)	£0.50 £0.42
