Makita DTW301 - Cordless Impact Wrench - Power Tool Diagram

Description

Model No. DTW301

Cordless Impact Wrench

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK266130-9 Available to backorder	Binding Head Tapping Screw 3x16	£0.48 £0.40
2	MK183P27-2 Available to backorder	Housing Set (INC. 38)	£16.38 £13.65
2	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
2	MK252126-6 Available to backorder	Hex. Lock Nut M4-7 (C20)	£0.86 £0.72
3	MK268284-8 Available to backorder	Pin 1.5	£0.48 £0.40
4	MK263036-2 Available to backorder	Rubber Pin 5	£1.32 £1.10
6	MK422584-2 Available to backorder	Bumper	£1.78 £1.48
7	MK412556-5 Available to backorder	Hammer Case Cover	£1.64 £1.37
8	MK140T36-8 Available to backorder	Hammer Case Complete	£14.34 £11.95
9	MK265472-8 Available to backorder	Hex. Socket Head Bolt M4x25	£0.96 £0.80
10	MK261154-0 Available to backorder	Nylon Washer 28	£0.58 £0.48
11	MK322045-1 Available to backorder	Clip	£1.16 £0.97
12	MK323675-1 Available to backorder	Pin 4	£1.16 £0.97
14	MK327572-3 Available to backorder	Hammer	£31.00 £25.83
15	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
16	MK267175-0 Available to backorder	Flat Washer 24	£0.74 £0.62
17	MK232615-7 Available to backorder	Compression Spring 25	£3.16 £2.63
18	MK216011-7 Available to backorder	Steel Ball 5.6	£0.48 £0.40
19	MK227338-0 Available to backorder	Spur Gear 22	£7.22 £6.02
20	MK327573-1 Available to backorder	Spindle	£46.42 £38.68
21	MK268311-1 Available to backorder	Pin 5	£1.26 £1.05
22	MK233910-8 Available to backorder	Ring Spring 43	£0.48 £0.40
23	MK227337-2 Available to backorder	Internal Gear 51	£3.76 £3.13
24	MK213785-1 Available to backorder	O-Ring 49	£0.48 £0.40
25	MK140T37-6 Available to backorder	Internal Gear Case Complete	£9.98 £8.32
26	MK266490-9 Available to backorder	Pan Head Tapping Screw 2x6	£0.48 £0.40
27	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
28	MK620C64-2 Available to backorder	Controller	£149.36 £124.47
29	MK629477-6 Available to backorder	Stator	£11.14 £9.28
29	MK629A98-0 Available to backorder	Stator (Alt.)	£9.42 £7.85
30	MK619626-3 Available to backorder	Rotor	£25.86 £21.55
31	MK412555-7 Available to backorder	Rear Cover	£2.06 £1.72
33	MK620521-2 Available to backorder	Led Circuit	£8.66 £7.22
34	MK455053-8 Available to backorder	F/R Change Lever	£0.86 £0.72
35	MK651443-5 Available to backorder	Switch C3Jr-4B	£27.73 £23.11
36	MK643874-2 Available to backorder	Terminal	£4.20 £3.50
37	MK8012S9-8 Available to backorder	Switch Label (C10)	£1.10 £0.92

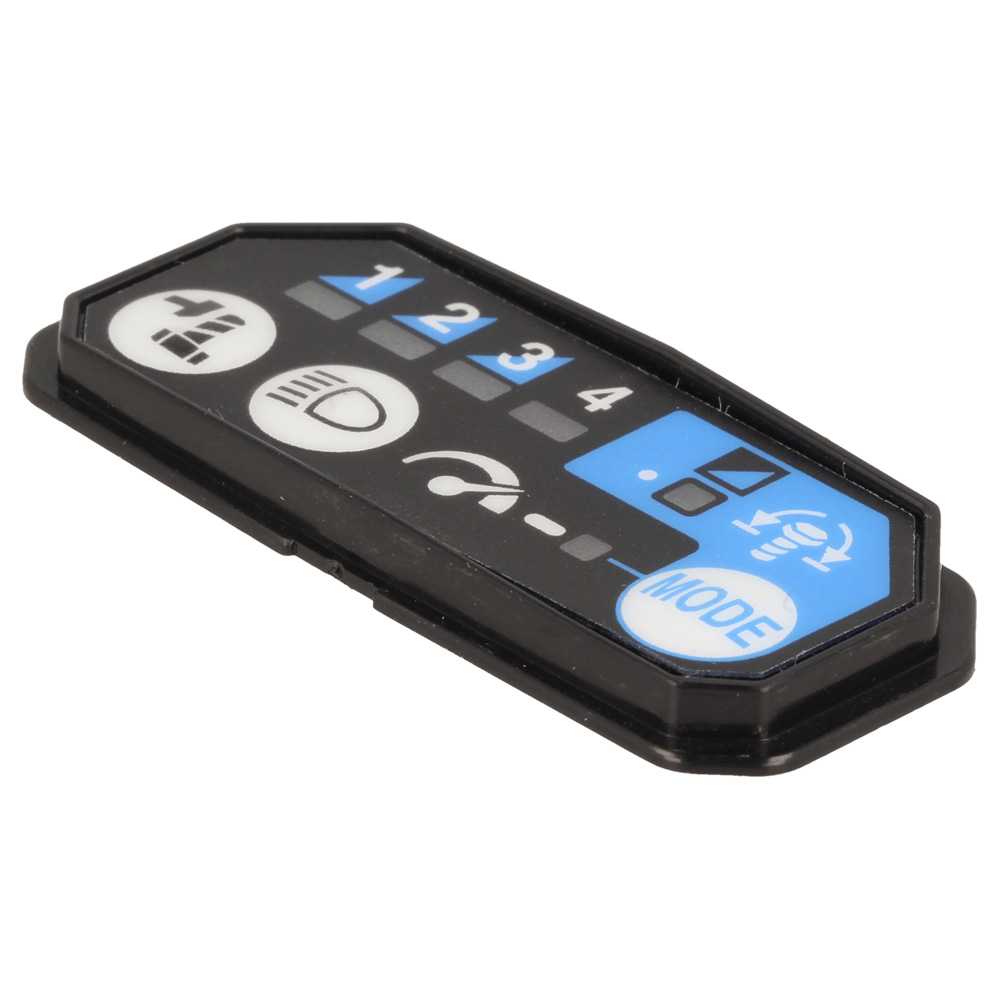

37	MK140T43-1 Available to backorder	Switch Plate Complete	£2.21 £1.84
39	MK424517-3 Available to backorder	Cushion	£0.58 £0.48
901	MK266622-8 Available to backorder	Truss Head Screw M4x12 (A01)	£0.48 £0.40
902	MK346317-0 Available to backorder	Hook (A02)	£1.84 £1.53
902	MK197941-0 Available to backorder	Tool Catcher Set (With Strap) (F02)	£17.76 £14.80
