Makita DTW285 - Cordless Impact Wrench - Power Tool Diagram

Description

Model No. DTW285

Cordless Impact Wrench

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK183D46-6 Available to backorder	Housing Set	£20.38 £16.98
1	MK252126-6 Available to backorder	Hex. Lock Nut M4-7 (C20)	£0.86 £0.72
1	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
2	MK852T92-3 Available to backorder	Dtw285 Name Plate	£0.48 £0.40
3	MK266130-9 Available to backorder	Tapping Screw Bind Pt 3x16	£0.48 £0.40
4	MK419041-9 Available to backorder	F/R Change Lever	£0.86 £0.72
5	MK650673-5 Available to backorder	Switch C3Jw-1A	£22.98 £19.15
6	MK268184-2 Available to backorder	Pin 1.5	£0.48 £0.40
7	MK263036-2 Available to backorder	Rubber Pin 5	£1.32 £1.10
8	MK424568-6 Available to backorder	Bumper	£3.76 £3.13
9	MK454851-7 Available to backorder	Hammer Case Cover	£1.88 £1.57
10	MK143911-7 Available to backorder	Hammer Case Complete	£12.14 £10.12
11	MK261154-0 Available to backorder	Nylon Washer 28	£0.58 £0.48
12	MK231907-1 In stock	Ring Spring 10	£0.48 £0.40
15	MK135824-6 Available to backorder	Anvil E Ass'y	£49.12 £40.93
16	MK326384-1 Available to backorder	Hammer	£35.40 £29.50
17	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
17	MK216040-0 Available to backorder	Steel Ball 3.5 (Alt.)	£0.48 £0.40
18	MK267175-0 Available to backorder	Flat Washer 24	£0.74 £0.62
19	MK234322-8 Available to backorder	Compression Spring 25	£5.36 £4.47
20	MK267766-7 Available to backorder	Cup Washer 14	£0.74 £0.62
21	MK216011-7 Available to backorder	Steel Ball 5.6	£0.48 £0.40
22	MK227338-0 Available to backorder	Spur Gear 22	£7.22 £6.02
23	MK326385-9 Available to backorder	Spindle	£24.56 £20.47

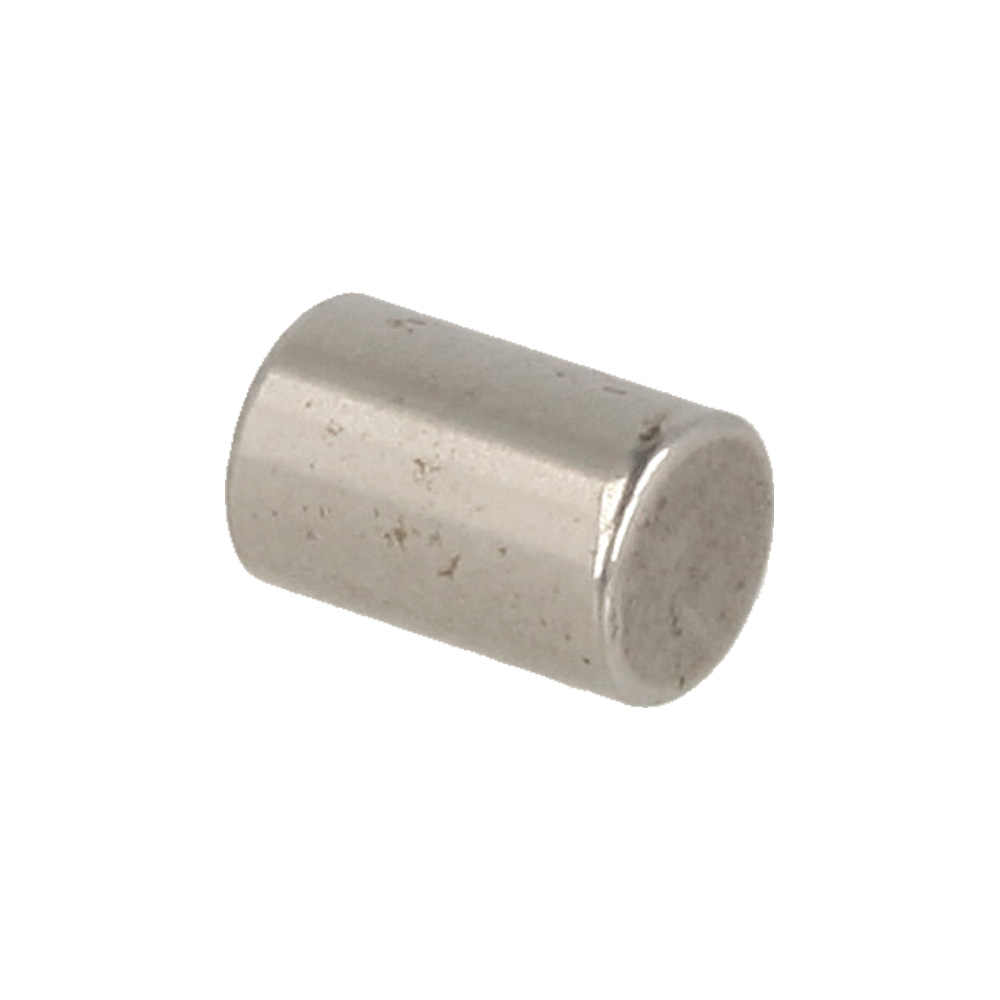

24	MK268311-1 Available to backorder	Pin 5	£1.26 £1.05
25	MK253147-1 Available to backorder	Flat Washer 15	£0.48 £0.40
26	MK922146-1 Available to backorder	Hex. Socket Head Bolt M4x25 S	£0.58 £0.48
27	MK233910-8 Available to backorder	Ring Spring 43	£0.48 £0.40
28	MK227337-2 Available to backorder	Internal Gear 51	£3.76 £3.13
29	MK213785-1 Available to backorder	O-Ring 49	£0.48 £0.40
30	MK142389-1 Available to backorder	Internal Gear Case Complete	£22.98 £19.15
31	MK632J07-4 Available to backorder	Stator Unit	£147.78 £123.15
32	MK619341-9 Available to backorder	Rotor	£54.18 £45.15
33	MK454850-9 Available to backorder	Rear Cover	£2.46 £2.05
36	MK643860-3 Available to backorder	Terminal	£5.06 £4.22
37	MK424517-3 Available to backorder	Cushion	£0.58 £0.48
39	MK620295-5 Available to backorder	Led Circuit	£10.40 £8.67
40	MK144217-6 Available to backorder	Switch Plate Complete	£3.04 £2.53
901	MK266622-8 Available to backorder	+ Truss Head Screw M4x12 (A01)	£0.48 £0.40
901	MK197265-4 Available to backorder	Battery Bl1840B Set (Alt.) (F01-1)	£273.12 £227.60
902	MK346317-0 Available to backorder	Hook (A02)	£1.84 £1.53
903	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
903	MK821550-0 Available to backorder	Connector Plastic Case (A03)	£54.34 £45.28
904	MK837670-0 Available to backorder	Inner Tray (A04)	£11.16 £9.30
906	MK810U45-4 Available to backorder	Dtw285Rmj Plastic Case Label (A06)	£0.48 £0.40
908	MK197280-8 In stock	Battery Bl1850B Set (A08)	£105.88 £88.23
909	MK450128-8 Available to backorder	Battery Cover (A09)	£0.64 £0.53
909	MK197599-5 Available to backorder	Battery Bl1830B Set (Alt.) (F09-2)	£83.46 £69.55
910	MK197600-6 Available to backorder	Battery Bl1830B Set (Alt.) (F10-1)	£197.72 £164.77
913	MK197606-4 Available to backorder	Battery Bl1830B Set (2Pieces) (Alt.) (F13-1)	£468.53 £390.44
