Makita DTW251 - Cordless Impact Wrench - Power Tool Diagram

Description

Model No. DTW251

Cordless Impact Wrench

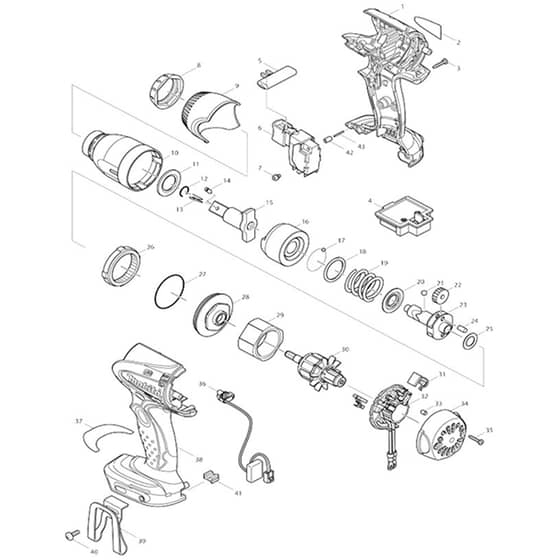

Power Tool Parts Diagrams

	Part No.	Details
1	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
1	MK188243-5 Available to backorder	Housing Set (INC. 38)	£47.52 £39.60
2	MK815E48-7 Available to backorder	Dtw251 Name Plate	£0.89 £0.74
3	MK266130-9 Available to backorder	Tapping Screw Bind Pt 3x16	£0.48 £0.40
4	MK643852-2 Available to backorder	Terminal	£3.72 £3.10
5	MK419041-9 Available to backorder	F/R Change Lever	£1.03 £0.86
6	MK650652-3 Available to backorder	Switch Tg553Fsb-1B	£51.72 £43.10
7	MK652045-0 Available to backorder	+Pan Head Screw M3.5x5	£0.48 £0.40
8	MK424375-7 Available to backorder	Bumper	£6.48 £5.40
9	MK452439-7 Available to backorder	Hammer Case Cover	£11.40 £9.50
10	MK140171-2 Available to backorder	Hammer Case Complete	£44.04 £36.70
11	MK261116-8 Available to backorder	Nylon Washer 18	£1.73 £1.44
12	MK231907-1 In stock	Ring Spring 10	£0.52 £0.43
15	MK324706-9 Available to backorder	Anvil	£48.96 £40.80
16	MK324703-5 Available to backorder	Hammer	£22.68 £18.90
17	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
17	MK216040-0 Available to backorder	Steel Ball 3.5 (Alt.)	£0.48 £0.40
18	MK267175-0 Available to backorder	Flat Washer 24	£0.89 £0.74
19	MK234337-5 Available to backorder	Compression Spring 25	£3.72 £3.10
20	MK267766-7 Available to backorder	Cup Washer 14	£0.89 £0.74
21	MK216011-7 Available to backorder	Steel Ball 5.6	£0.48 £0.40
22	MK227233-4 Available to backorder	Spur Gear 22	£2.83 £2.36
23	MK324220-5 Available to backorder	Spindle	£23.76 £19.80
24	MK256253-1 Available to backorder	Pin 5	£0.70 £0.58
25	MK267212-0 Available to backorder	Flat Washer 12	£0.48 £0.40
26	MK227150-8 Available to backorder	Internal Gear 51	£3.72 £3.10
27	MK213507-9 Available to backorder	O Ring 40 (Alt.)	£3.60 £3.00
28	MK143035-9 Available to backorder	Bearing Box Complete (Alt.)	£8.52 £7.10
29	MK638495-3 Available to backorder	York Unit	£22.68 £18.90
30	MK619375-2 Available to backorder	Armature <	£25.56 £21.30
31	MK196855-0 Available to backorder	Carbon Brush Cb-448	£5.04 £4.20
31	MK198887-3 Available to backorder	Carbon Brush Cb-5 S	£5.64 £4.70
32	MK689181-9 Available to backorder	Spacer (C10)	£0.70 £0.58
32	MK632L19-9 Available to backorder	Brush Holder Complete < (INC. 31)	£9.60 £8.00
33	MK263032-0 Available to backorder	Rubber Pin 4	£0.48 £0.40
34	MK418981-8 Available to backorder	Rear Cover	£7.44 £6.20
36	MK631693-8 Available to backorder	Light Circuit	£18.48 £15.40
39	MK346317-0 Available to backorder	Hook	£2.00 £1.67
39	MK346449-3 Available to backorder	Hook	£2.05 £1.71
40	MK251314-2 Available to backorder	+ Truss Head Screw M4x12	£0.70 £0.58
41	MK424476-1 Available to backorder	Cushion (Alt.)	£0.70 £0.58
42	MK263036-2 Available to backorder	Rubber Pin 5	£1.58 £1.32
43	MK268184-2 Available to backorder	Pin 1.5	£0.48 £0.40
902	MK197280-8 In stock	Battery Bl1850B Set (A02-2O)	£76.24 £63.53
902	MK197600-6 Available to backorder	Battery Bl1830B Set < (A02-2)	£197.76 £164.80
902	MK196235-0 Available to backorder	Battery Bl1815N Set (A02N) (Refs A02 \| F42)	£179.88 £149.90
902	MK197265-4 Available to backorder	Battery Bl1840B Set < (A02-2M)	£229.42 £191.18
903	MK413098-2 Available to backorder	Plate (C20)	£0.70 £0.58
903	MK141205-4 Available to backorder	Plastic Carrying Case (A03G)	£54.60 £45.50
903	MK417724-5 Available to backorder	Latch (C30)	£0.82 £0.68
903	MK419215-2 Available to backorder	Plastic Case Lid (C40)	£6.84 £5.70
903	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
903	MK324207-7 Available to backorder	Shaft (C10)	£2.21 £1.84
903	MK821550-0 Available to backorder	Connector Plastic Case (A03)	£56.16 £46.80
903	MK419216-0 Available to backorder	Handle (C50)	£1.74 £1.45
904	MK837670-0 Available to backorder	Inner Tray (A04)	£11.52 £9.60
904	MK804M50-3 Available to backorder	Dtw251Rfe Model No. Label < (A04-1G)	£0.48 £0.40
905	MK450128-8 Available to backorder	Battery Cover (A05)	£0.77 £0.64
906	MK802V85-2 Available to backorder	Dtw251Rmj Indication Label (A06M)	£0.48 £0.40
907	MK805V40-3 Available to backorder	Dtw251Rmj Plastic Case Label (A07-1M)	£0.48 £0.40
935	MK194654-4 Available to backorder	Hook Set (F35)	£8.40 £7.00
935	MK324705-1 Available to backorder	Hook (C20)	£2.05 £1.71
936	MK194649-7 Available to backorder	Battery Protector (F36)	£18.48 £15.40
937	MK197606-4 Available to backorder	Battery Bl1830B Set (2Pieces) (Alt.) (F37-3)	£421.68 £351.40
952	MK197941-0 Available to backorder	Tool Hanger Set(With Strap) (F52)	£18.36 £15.30
