Makita DTW1001 - Cordless Impact Wrench - Power Tool Diagram

Description

Model No. DTW1001

Cordless Impact Wrench

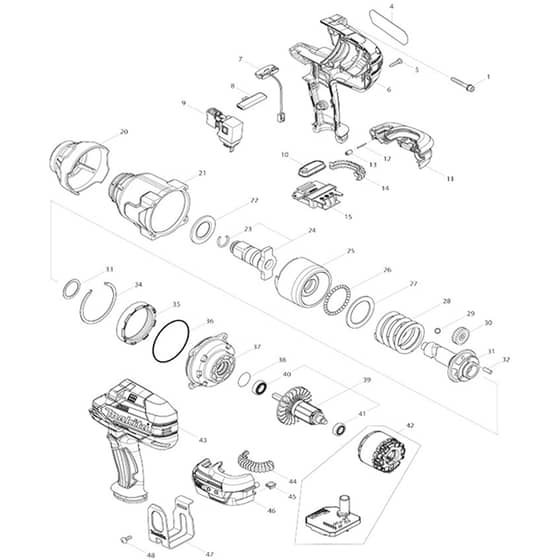

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK251476-6 Available to backorder	Hex. Socket Head Bolt M5x35 Wr	£7.38 £6.15
1	MK265D13-4 Available to backorder	Hex. Socket Head Bolt M5x35	£0.70 £0.58
4	MK851K74-8 Available to backorder	Name Plate Dtw1001	£0.70 £0.58
5	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
5	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
6	MK1830A6-1 Available to backorder	Housing Set < (INC. 43)	£17.20 £14.33
7	MK620351-1 Available to backorder	Led Circuit	£18.20 £15.17
8	MK456268-0 Available to backorder	F/R Change Lever	£1.16 £0.97
9	MK143416-7 Available to backorder	Switch Complete	£33.66 £28.05
10	MK143417-5 Available to backorder	Switch Plate Complete	£3.62 £3.02
11	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
11	MK183C12-7 Available to backorder	Battery Housing Set (INC. 46)	£5.94 £4.95
12	MK268284-8 Available to backorder	Pin 1.5	£0.48 £0.40
13	MK263036-2 Available to backorder	Rubber Pin 5	£1.32 £1.10
14	MK422A56-3 Available to backorder	Cushion Rubber <	£1.10 £0.92
15	MK643899-6 Available to backorder	Terminal	£4.04 £3.37
20	MK424978-7 Available to backorder	Bumper <	£4.20 £3.50
21	MK144473-8 Available to backorder	Hammer Case Complete S	£49.12 £40.93
22	MK346948-5 Available to backorder	Washer 25	£3.34 £2.78
23	MK231920-9 Available to backorder	Ring Spring 16	£0.58 £0.48
23	MK232334-5 Available to backorder	Ring Spring 16 <	£1.78 £1.48
24	MK135803-4 Available to backorder	Anvil E Assembly < (INC. 23)	£113.68 £94.73
25	MK326612-4 Available to backorder	Hammer	£79.60 £66.33
26	MK216002-8 Available to backorder	Steel Ball 4.8	£0.48 £0.40
27	MK267493-6 Available to backorder	Flat Washer 38	£1.60 £1.33
28	MK234383-8 Available to backorder	Compression Spring 38	£16.92 £14.10
29	MK216009-4 Available to backorder	Steel Ball 7.1	£0.48 £0.40
30	MK226880-8 Available to backorder	Spur Gear 24 (Alt.)	£2.46 £2.05
31	MK326611-6 Available to backorder	Spindle	£130.28 £108.57
32	MK268079-9 Available to backorder	Pin 5	£0.86 £0.72
33	MK267494-4 Available to backorder	Flat Washer 25	£0.58 £0.48
33	MK267127-1 Available to backorder	Flat Washer 26 (Alt.)	£0.86 £0.72
34	MK346947-7 Available to backorder	Retainer	£1.60 £1.33
35	MK227392-4 Available to backorder	Internal Spur Gear 54	£5.94 £4.95
36	MK213720-9 Available to backorder	O-Ring 67	£1.74 £1.45
37	MK135718-5 Available to backorder	Internal Gear Case Assembly (INC. 36 38 *)	£37.42 £31.18
38	MK213961-7 Available to backorder	O-Ring 22	£0.48 £0.40
39	MK519592-3 Available to backorder	Rotor Assembly (Alt.) (INC. 40 41)	£122.36 £101.97
39	MK519593-1 Available to backorder	Rotor Assembly (Alt.) (INC. 40 41 *)	£110.44 £92.03
39	MK519384-0 Available to backorder	Rotor Assembly (INC. 40 41 *)	£116.86 £97.38
40	MK210069-8 Available to backorder	Ball Bearing 6900Ddw	£6.30 £5.25
41	MK211022-7 Available to backorder	Ball Bearing 607Zz	£10.56 £8.80
42	MK629B59-6 Available to backorder	Stator S	£16.38 £13.65
42	MK629330-6 Available to backorder	Stator Complete <	£211.86 £176.55
45	MK424517-3 Available to backorder	Cushion	£0.58 £0.48
47	MK346949-3 Available to backorder	Hook	£4.34 £3.62
48	MK251314-2 Available to backorder	Truss Head Screw M4x12	£0.58 £0.48
50	MK620N12-7 Available to backorder	Controller (Alt.)	£196.98 £164.15
51	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
902	MK197280-8 In stock	Battery Bl1850B Set (A02D)	£105.88 £88.23
902	MK197265-4 Available to backorder	Battery Bl1840B Set (A02B)	£273.12 £227.60
902	MK196235-0 Available to backorder	Battery Bl1815N Set (A02E)	£187.42 £156.18
902	MK197600-6 Available to backorder	Battery Bl1830B Set < (A02-1C)	£197.72 £164.77
903	MK450128-8 Available to backorder	Battery Cover (A03)	£0.64 £0.53
904	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
904	MK821551-8 Available to backorder	Connector Plastic Case (Type 3) (A04)	£62.48 £52.07
905	MK837645-9 Available to backorder	Inner Tray (A05)	£11.16 £9.30
906	MK808B99-9 Available to backorder	Indication Label Dtw1001Rtj (A06D)	£0.48 £0.40
930	MK197606-4 Available to backorder	Battery Bl1830B Set (2 Pcs) (Alt.) (F30-2)	£468.53 £390.44
934	MK197599-5 Available to backorder	Battery Bl1830B Set (Alt.) (F34-3)	£83.46 £69.55
940	MK191G67-2 Available to backorder	Extension Handle Set (F40)	£274.36 £228.63
