Makita DST221 - Cordless Stapler - Power Tool Diagram

Description

Model No. DST221

Cordless Stapler

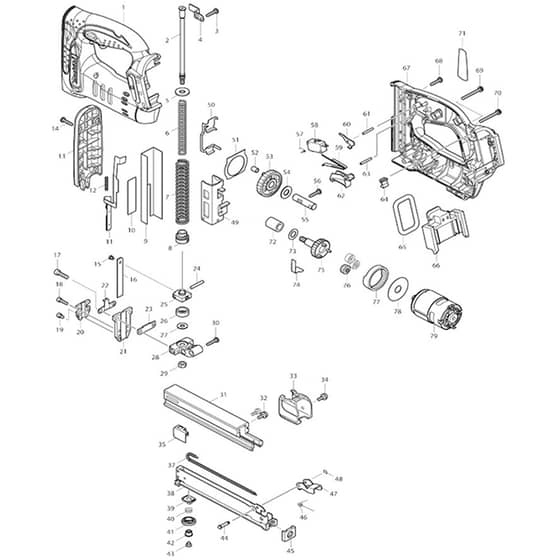

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK187938-7 Available to backorder	Housing Set (INC. 67)	£70.94 £59.12
1	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
2	MK325635-9 Available to backorder	Guide Bolt	£13.44 £11.20
3	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 014 \| 030 \| 056 \| 068)	£0.48 £0.40
4	MK345907-6 Available to backorder	Fix Plate	£2.46 £2.05
5	MK253762-1 Available to backorder	Flat Washer 8	£1.44 £1.20
6	MK234060-2 Available to backorder	Compression Spring 9	£4.62 £3.85
7	MK234101-4 Available to backorder	Compression Spring 13	£6.52 £5.43
8	MK424135-7 Available to backorder	Spring Holder	£4.48 £3.73
9	MK345978-3 Available to backorder	Guide Plate	£3.76 £3.13
10	MK345906-8 Available to backorder	Upper Plate	£2.18 £1.82
11	MK161468-6 Available to backorder	Safety Lever S	£18.94 £15.78
12	MK234078-3 Available to backorder	Compression Spring 4	£0.74 £0.62
13	MK450539-7 Available to backorder	Front Cover	£4.48 £3.73
16	MK345996-1 Available to backorder	Driver	£14.16 £11.80
17	MK922227-1 Available to backorder	Hex. Socket Head Bolt M5x18	£0.48 £0.40
18	MK266201-2 Available to backorder	Hex. Socket Head Bolt M4x14	£0.58 £0.48
19	MK266199-3 Available to backorder	Hex. Socket Head Bolt M4x6	£0.58 £0.48
20	MK451801-3 Available to backorder	Safety Lever Guide	£3.92 £3.27
20	MK456800-0 Available to backorder	Safety Lever Guide S	£2.18 £1.82
21	MK158759-4 Available to backorder	Driver Guide Complete	£27.74 £23.12
22	MK345910-7 Available to backorder	Spring Base	£2.32 £1.93
23	MK344670-8 Available to backorder	Set Plate	£1.16 £0.97
24	MK256206-0 Available to backorder	Pin 4	£0.74 £0.62
25	MK313150-5 Available to backorder	Driver Lock	£17.20 £14.33
26	MK424099-5 Available to backorder	Cushion	£1.16 £0.97
27	MK253804-1 Available to backorder	Flat Washer 6	£0.48 £0.40
28	MK318267-9 Available to backorder	Holder	£10.12 £8.43
29	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
31	MK331842-4 Available to backorder	Main Magazine	£95.04 £79.20
32	MK911113-1 Available to backorder	Pan Head Screw M4x10 Wr	£0.48 £0.40
33	MK450540-2 Available to backorder	End Cap	£3.46 £2.88
35	MK345997-9 Available to backorder	Pusher	£9.24 £7.70
37	MK231854-6 Available to backorder	Tension Spring 3	£7.22 £6.02
38	MK165532-5 Available to backorder	Sub Magazine	£104.86 £87.38
39	MK450775-5 Available to backorder	Adjuster Base	£1.60 £1.33
40	MK231323-7 Available to backorder	Compression Spring 9	£0.58 £0.48
41	MK450702-2 Available to backorder	Adjuster	£1.44 £1.20
42	MK450774-7 Available to backorder	Lock Sleeve	£1.32 £1.10
43	MK265127-5 Available to backorder	Pan Head Screw M4x4	£0.48 £0.40
44	MK268029-4 Available to backorder	Flat Fillister Hd. Pin 4	£1.44 £1.20
45	MK421637-4 Available to backorder	Magazine End	£2.46 £2.05
46	MK233528-5 Available to backorder	Torsion Spring 5	£1.44 £1.20
47	MK345861-4 Available to backorder	Lever	£7.08 £5.90
48	MK961017-7 Available to backorder	Stop Ring (Ext) E-3	£0.48 £0.40
49	MK165506-6 Available to backorder	Hammer	£23.68 £19.73
50	MK345914-9 Available to backorder	Slide Plate	£5.20 £4.33
51	MK343629-2 Available to backorder	Plate	£2.02 £1.68
52	MK257772-0 Available to backorder	Sleeve 5	£4.62 £3.85
53	MK158646-7 Available to backorder	Spur Gear 55 Complete	£18.78 £15.65
54	MK253171-4 Available to backorder	Flat Washer 10	£0.58 £0.48
55	MK324947-7 Available to backorder	Pin 10	£7.66 £6.38
57	MK233531-6 Available to backorder	Torsion Spring 3	£1.60 £1.33
58	MK651891-8 Available to backorder	Switch V-15-3A6	£3.34 £2.78
59	MK232240-4 Available to backorder	Leaf Spring	£5.94 £4.95
60	MK345908-4 Available to backorder	Release Plate	£3.04 £2.53
61	MK256221-4 Available to backorder	Pin 3	£0.48 £0.40
62	MK450536-3 Available to backorder	Trigger	£2.32 £1.93
65	MK424030-1 Available to backorder	Cushion	£1.16 £0.97
66	MK644812-7 Available to backorder	Terminal	£19.22 £16.02
69	MK911163-6 Available to backorder	Pan Head Screw M4x35 Wr	£0.48 £0.40
71	MK815X68-5 Available to backorder	Name Plate Dst221	£0.58 £0.48
72	MK214058-5 Available to backorder	Plane Bearing 10	£1.74 £1.45
73	MK253758-2 Available to backorder	Flat Washer 10	£0.48 £0.40
74	MK232241-2 Available to backorder	Leaf Spring	£3.34 £2.78
75	MK158647-5 Available to backorder	Spur Gear 7 Complete	£7.08 £5.90
76	MK221961-3 Available to backorder	Spur Gear 27	£3.46 £2.88
77	MK221999-8 Available to backorder	Internal Gear 69	£17.92 £14.93
78	MK267053-4 Available to backorder	Flat Washer 12	£0.86 £0.72
79	MK629125-7 Available to backorder	Dc Motor	£37.14 £30.95
901	MK195246-2 Available to backorder	Safety Goggle Set (A01)	£4.18 £3.48
902	MK251314-2 Available to backorder	Truss Head Screw M4x12 (A02)	£0.58 £0.48
903	MK346449-3 Available to backorder	Hook (A03J)	£1.88 £1.57
903	MK346317-0 Available to backorder	Hook (A03)	£1.84 £1.53
904	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
904	MK417724-5 Available to backorder	Latch (C30)	£0.68 £0.57
904	MK141074-3 Available to backorder	Plastic Case Complete (A04E)	£123.18 £102.65
904	MK821550-0 Available to backorder	Connector Plastic Case (Type 2) (A04)	£54.34 £45.28
904	MK324667-3 Available to backorder	Shaft (C10)	£2.02 £1.68
904	MK419216-0 Available to backorder	Handle (C50)	£1.60 £1.33
904	MK413098-2 Available to backorder	Plate (C20)	£0.58 £0.48
904	MK419215-2 Available to backorder	Plastic Case Lid (C40)	£6.64 £5.53
905	MK837640-9 Available to backorder	Inner Tray (A05)	£11.16 £9.30
906	MK196235-0 Available to backorder	Battery Bl1815N Set (A06J)	£187.42 £156.18
906	MK197265-4 Available to backorder	Battery Bl1840B Set < (A06-2I)	£273.12 £227.60
906	MK197600-6 Available to backorder	Battery Bl1830B Set < (A06-2)	£197.72 £164.77
906	MK197280-8 In stock	Battery Bl1850B Set (A06-2K)	£105.88 £88.23
907	MK450128-8 Available to backorder	Battery Cover (A07)	£0.64 £0.53
