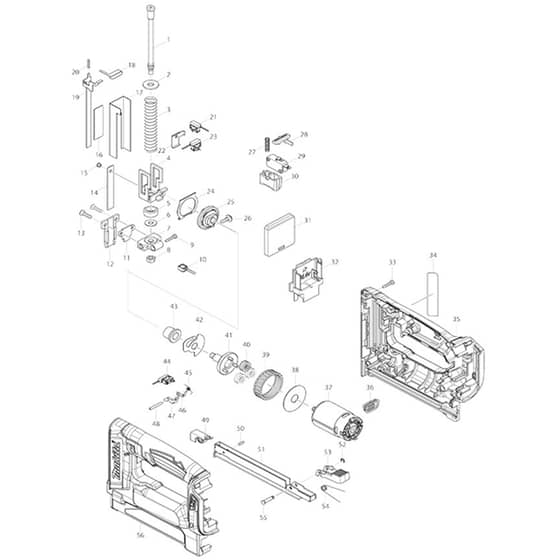

Makita DST111 - Cordless Stapler - Power Tool Diagram

Description

Model No. DST111

Cordless Stapler

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK326731-6 Available to backorder	Guide Bolt	£11.56 £9.63
2	MK253762-1 Available to backorder	Flat Washer 8	£1.44 £1.20
3	MK232297-5 Available to backorder	Compression Spring 13	£3.62 £3.02
4	MK347023-0 Available to backorder	Hammer	£28.46 £23.72
5	MK424099-5 Available to backorder	Cushion	£1.16 £0.97
6	MK253804-1 Available to backorder	Flat Washer 6	£0.48 £0.40
7	MK319425-0 Available to backorder	Holder	£14.88 £12.40
8	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
9	MK266130-9 Available to backorder	Binding Head Tapping Screw 3x16	£0.48 £0.40
10	MK620507-6 Available to backorder	Led Circuit	£8.66 £7.22
11	MK347037-9 Available to backorder	Set Plate	£1.88 £1.57
12	MK326738-2 Available to backorder	Driver Guide	£20.08 £16.73
13	MK251487-1 Available to backorder	Hex. Socket Countersunk Head Screw M4x16	£0.48 £0.40
14	MK347034-5 Available to backorder	Driver	£18.78 £15.65
15	MK256318-9 Available to backorder	Flat Fillister Hd. Pin 4	£2.46 £2.05
16	MK347038-7 Available to backorder	Upper Plate	£1.60 £1.33
17	MK347036-1 Available to backorder	Guide Plate	£5.48 £4.57
18	MK232300-2 Available to backorder	Leaf Spring	£7.66 £6.38
19	MK347316-5 Available to backorder	Contact Arm <	£19.92 £16.60
19	MK347042-6 Available to backorder	Contact Arm	£17.78 £14.82
20	MK232337-9 Available to backorder	Compression Spring 3 <	£0.86 £0.72
21	MK632G60-2 Available to backorder	Switch Unit	£12.58 £10.48
22	MK347121-0 Available to backorder	Slide Plate <	£5.20 £4.33
23	MK632G61-0 Available to backorder	Switch Unit	£13.44 £11.20
24	MK347040-0 Available to backorder	Gear Plate	£3.92 £3.27
25	MK143770-9 Available to backorder	Spur Gear 43 Complete	£27.74 £23.12
26	MK266901-4 Available to backorder	Binding Head Tapping Screw 4x14	£1.02 £0.85
27	MK232299-1 Available to backorder	Compression Spring 5	£1.02 £0.85
28	MK456799-9 Available to backorder	Trigger Lock	£2.60 £2.17
29	MK650681-6 Available to backorder	Switch D3V-16-3A5	£3.82 £3.18
29	MK632J09-0 Available to backorder	Switch Unit S	£12.28 £10.23
30	MK457303-7 Available to backorder	Trigger S	£3.04 £2.53
31	MK620505-0 Available to backorder	Controller	£77.86 £64.88
32	MK643850-6 Available to backorder	Terminal	£5.36 £4.47
34	MK852D77-3 Available to backorder	Name Plate Dst111	£0.48 £0.40
35	MK183D96-1 Available to backorder	Housing Set (INC. 56 *)	£66.32 £55.27
35	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
36	MK143778-3 Available to backorder	Indicator Panel Complete	£4.20 £3.50
37	MK629207-5 Available to backorder	Dc Motor	£20.08 £16.73
38	MK267053-4 Available to backorder	Flat Washer 12	£0.86 £0.72
39	MK227166-3 Available to backorder	Internal Gear 69	£3.04 £2.53
40	MK221961-3 Available to backorder	Spur Gear 27	£3.46 £2.88
41	MK143777-5 Available to backorder	Spur Gear 7 Complete	£12.42 £10.35
42	MK345773-1 Available to backorder	Anti Back Plate	£3.04 £2.53
43	MK214059-3 Available to backorder	Plane Bearing 10	£3.76 £3.13
45	MK232298-3 Available to backorder	Torsion Spring 3	£1.60 £1.33
46	MK347041-8 Available to backorder	Slip Plate	£2.76 £2.30
47	MK456796-5 Available to backorder	Switch Plate	£2.60 £2.17
48	MK256221-4 Available to backorder	Pin 3	£0.48 £0.40
49	MK143780-6 Available to backorder	Spiral Spring Complete	£31.36 £26.13
50	MK951051-5 Available to backorder	Spring Pin 3-8	£0.48 £0.40
51	MK161467-8 Available to backorder	Sub Magazine	£95.34 £79.45
52	MK961017-7 Available to backorder	Stop Ring (Ext) E-3	£0.48 £0.40
53	MK456798-1 Available to backorder	Lever	£2.60 £2.17
54	MK232301-0 Available to backorder	Torsion Spring 7	£1.60 £1.33
55	MK268029-4 Available to backorder	Flat Fillister Hd. Pin 4	£1.44 £1.20
901	MK450775-5 Available to backorder	Adjuster Base (C50)	£1.60 £1.33
901	MK231323-7 Available to backorder	Compression Spring 9 (C10)	£0.58 £0.48
901	MK450702-2 Available to backorder	Adjuster (C30)	£1.44 £1.20
901	MK195246-2 Available to backorder	Safety Goggle Set (A01)	£4.18 £3.48
901	MK265127-5 Available to backorder	Pan Head Screw M4x4 (C20)	£0.48 £0.40
901	MK450774-7 Available to backorder	Lock Sleeve (C40)	£1.32 £1.10
902	MK251314-2 Available to backorder	Truss Head Screw M4x12 (A02)	£0.58 £0.48
903	MK346317-0 Available to backorder	Hook (A03)	£1.84 £1.53
904	MK821550-0 Available to backorder	Connector Plastic Case (Type 2) (A04)	£54.34 £45.28
904	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
905	MK838582-0 Available to backorder	Inner Tray (A05)	£11.16 £9.30
906	MK809E20-9 Available to backorder	Indication Label Dst111Rfj (A06C)	£0.48 £0.40
907	MK809E21-7 Available to backorder	Plastic Case Label Dst111Rfj (A07C)	£0.48 £0.40
909	MK450128-8 Available to backorder	Battery Cover (A09C)	£0.64 £0.53
