Makita DSS610 - Cordless Circular Saw 165mm - Power Tool Diagram

Description

Model No. DSS610

Cordless Circular Saw 165mm

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
1	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
2	MK141470-5 Available to backorder	Handle Cover Complete	£12.86 £10.72
3	MK650631-1 Available to backorder	Switch	£21.24 £17.70
4	MK231469-9 Available to backorder	Compression Spring 4	£0.48 £0.40
5	MK419322-1 Available to backorder	Lock Off Lever	£1.44 £1.20
6	MK620088-0 Available to backorder	Power Supply Circuit	£17.92 £14.93
9	MK644808-8 In stock	Terminal	£3.76 £3.13
10	MK419176-6 Available to backorder	Switch Lever	£1.44 £1.20
12	MK419281-9 Available to backorder	Rear Cover	£3.46 £2.88
14	MK195022-4 In stock	Carbon Brush Set (Alt.)	£6.98 £5.82
15	MK911263-2 Available to backorder	Pan Head Screw M5x40 Wr	£0.58 £0.48
16	MK643882-3 Available to backorder	Brush Holder	£4.78 £3.98
17	MK643883-1 Available to backorder	Brush Holder	£5.36 £4.47
18	MK815E89-3 Available to backorder	Name Plate Dss610	£0.48 £0.40
19	MK141471-3 Available to backorder	Motor Housing Complete	£21.96 £18.30

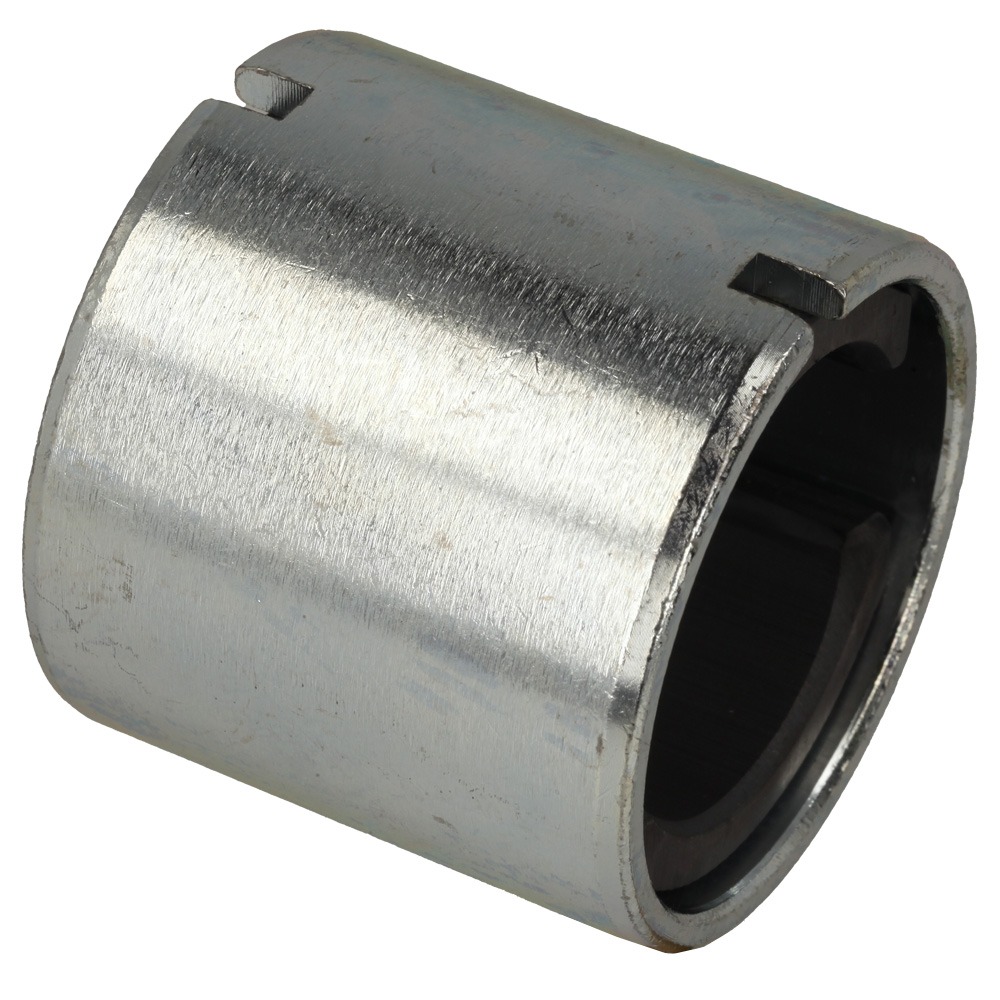

20	MK638107-8 Available to backorder	Yoke Unit	£29.46 £24.55
21	MK419285-1 Available to backorder	Baffle Plate	£1.32 £1.10
22	MK266292-3 Available to backorder	Binding Head Tapping Screw 4x65	£1.16 £0.97
23	MK210023-2 Available to backorder	Ball Bearing 627Ddw	£3.34 £2.78
23	MK210193-7 Available to backorder	Ball Bearing 627Ddw >	£1.36 £1.13
24	MK519173-3 Available to backorder	Armature Assembly 18V (INC. 23 25 26 *)	£54.76 £45.63
25	MK241869-5 Available to backorder	Fan 55	£4.20 £3.50
26	MK211061-7 Available to backorder	Ball Bearing 6000Llb	£8.08 £6.73
26	MK210192-9 Available to backorder	Ball Bearing 6000Llb (Alt.)	£1.92 £1.60
27	MK346059-6 Available to backorder	Shaft Lock	£1.44 £1.20
28	MK233092-6 Available to backorder	Compression Spring 5	£0.48 £0.40
29	MK911118-1 Available to backorder	Pan Head Screw M4x12 Wr	£0.48 £0.40
30	MK419284-3 Available to backorder	Blower Nozzle	£1.60 £1.33
31	MK213434-0 Available to backorder	O-Ring 26 (C10)	£0.58 £0.48
31	MK188045-9 Available to backorder	Blade Case Set (INC. 32)	£58.06 £48.38
32	MK819217-2 Available to backorder	Makita Logo Plate	£4.34 £3.62
33	MK262049-0 Available to backorder	Rubber Ring 6	£0.48 £0.40
34	MK251368-9 Available to backorder	Countersunk Head Screw M6	£0.74 £0.62
34	MK265694-0 Available to backorder	Countersunk Head Shoulder Screw M6x14.7	£0.48 £0.40
35	MK210028-2 Available to backorder	Ball Bearing 606Zz	£1.16 £0.97
36	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
37	MK227156-6 Available to backorder	Spur Gear 52	£8.66 £7.22
38	MK257173-2 Available to backorder	Ring 12	£0.48 £0.40
39	MK213512-6 Available to backorder	O-Ring 39	£2.18 £1.82
40	MK265034-2 Available to backorder	Countersunk Head Screw M5x16	£0.58 £0.48
41	MK318009-1 Available to backorder	Bearing Box	£2.32 £1.93
42	MK210216-1 Available to backorder	Ball Bearing 6001Ddw >	£2.18 £1.82
42	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
43	MK327A37-1 Available to backorder	Spindle <	£3.28 £2.73
44	MK285845-9 Available to backorder	Bearing Retainer 19-29	£2.32 £1.93
45	MK345469-4 Available to backorder	Thickness Ring	£1.32 £1.10
46	MK231821-1 Available to backorder	Tension Spring 3	£2.32 £1.93
47	MK419286-9 Available to backorder	Safety Cover	£7.08 £5.90
48	MK961152-1 Available to backorder	Retaining Ring (Ext) S-34	£0.86 £0.72
50	MK224282-2 Available to backorder	Outer Flange 40	£5.34 £4.45

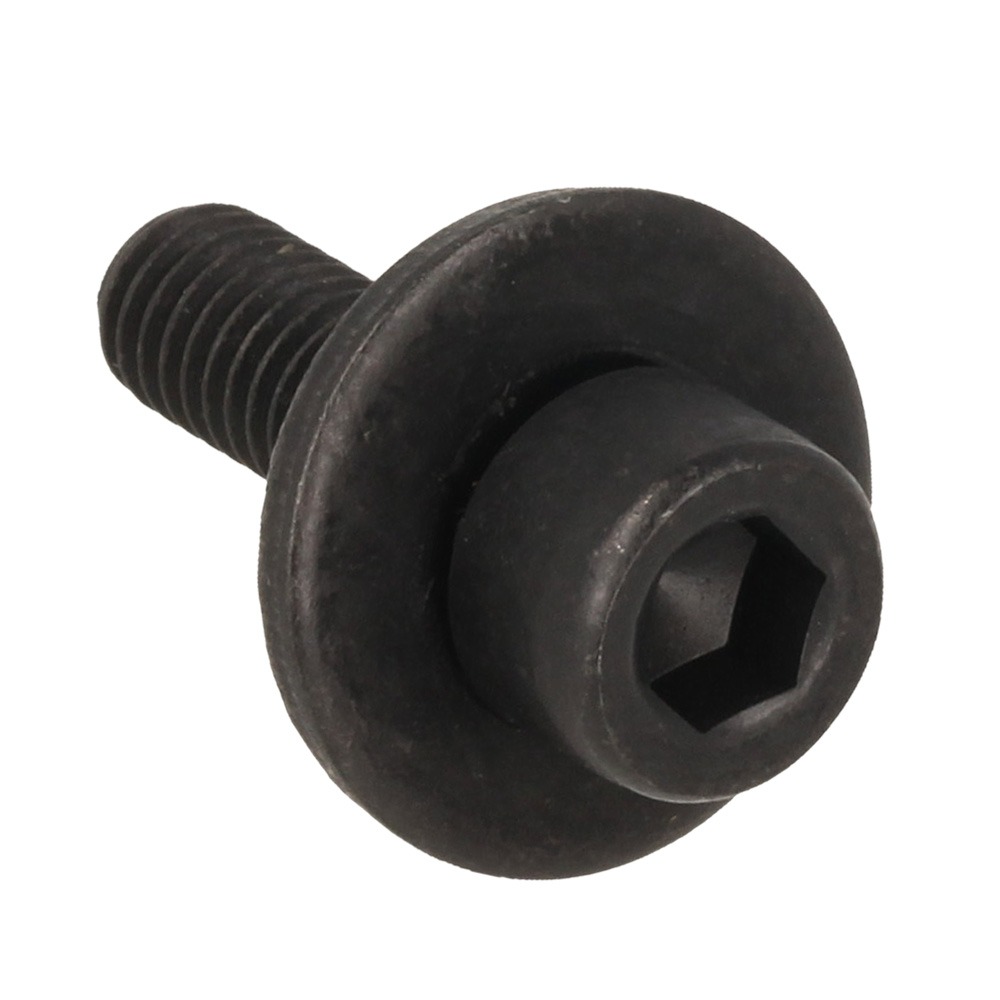

51	MK266133-3 In stock	Hex. Socket Head Bolt M6x20	£0.74 £0.62
52	MK631694-6 Available to backorder	Led Circuit	£19.64 £16.37
53	MK419341-7 Available to backorder	Connector Box	£1.16 £0.97
54	MK419282-7 Available to backorder	Light Cover	£1.60 £1.33
55	MK266026-4 Available to backorder	Binding Head Tapping Screw 4x12	£0.48 £0.40
56	MK961014-3 Available to backorder	Stop Ring (Ext) E-8	£0.48 £0.40
57	MK272229-0 Available to backorder	Lever 40	£4.20 £3.50
58	MK252158-3 Available to backorder	Hex. Nut M6	£2.46 £2.05
59	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
60	MK345658-1 Available to backorder	Depth Guide	£1.74 £1.45
61	MK252103-8 Available to backorder	Hex. Lock Nut M5-8	£0.48 £0.40
62	MK345657-3 Available to backorder	Angular Guide	£2.32 £1.93
63	MK317986-4 Available to backorder	Stopper	£3.34 £2.78
64	MK213062-1 Available to backorder	O-Ring 9	£0.48 £0.40
65	MK265084-7 Available to backorder	Truss Head Shoulder Screw M5x45.6	£1.32 £1.10
66	MK266194-3 Available to backorder	Flat Head Square Neck Bolt M6x90	£3.04 £2.53
67	MK256480-0 Available to backorder	Shoulder Pin 6-7	£0.48 £0.40
69	MK266264-8 Available to backorder	Hex. Socket Set Screw (Flat Point) M5x6	£0.74 £0.62
70	MK251919-8 Available to backorder	Flat Head Square Neck Bolt M6x20	£0.74 £0.62
71	MK231007-7 Available to backorder	Compression Spring 6	£0.48 £0.40
72	MK251896-4 Available to backorder	Thumb Screw M5x20	£2.18 £1.82
76	MK252133-9 Available to backorder	Hex. Nut M6	£3.76 £3.13
78	MK272251-7 Available to backorder	Lever 30	£1.16 £0.97
80	MK266229-0 Available to backorder	Hex. Socket Set Screw (Cup Point) M5x8	£0.74 £0.62
81	MK154832-8 Available to backorder	Base Complete	£62.98 £52.48
81	MK816851-9 Available to backorder	Scale Plate (C10)	£1.44 £1.20
83	MK419283-5 Available to backorder	Dust Nozzle	£2.02 £1.68
85	MK253186-1 Available to backorder	Flat Washer 7	£0.58 £0.48
901	MK620258-1 Available to backorder	Controller (E01)	£30.48 £25.40
901	MK164095-8 In stock	Guide Rule (A01)	£4.32 £3.60
902	MK783217-7 Available to backorder	Hex. Wrench 5 (Alt.) (A02-1)	£0.56 £0.47
902	MK688163-8 Available to backorder	Line Filter (E02)	£1.32 £1.10
902	MK783203-8 Available to backorder	Hex. Wrench 5 (A02)	£0.72 £0.60
904	MK163455-1 Available to backorder	Latch (C10)	£1.60 £1.33
904	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
904	MK141353-9 Available to backorder	Plastic Case Complete (A04)	£33.14 £27.62
904	MK419360-3 Available to backorder	Handle (C20)	£1.16 £0.97
904	MK821551-8 Available to backorder	Connector Plastic Case (Type 3) (A04)	£62.48 £52.07
905	MK837642-5 Available to backorder	Inner Tray (A05)	£11.16 £9.30
906	MK802U10-7 Available to backorder	Indication Label Dss610Zj (A06I)	£1.60 £1.33
906	MK197265-4 Available to backorder	Battery Bl1840B Set < (A06-2J)	£273.12 £227.60
906	MK197600-6 Available to backorder	Battery Bl1830B Set < (A06-2)	£197.72 £164.77
906	MK197280-8 In stock	Battery Bl1850B Set (A06-2L)	£105.88 £88.23
907	MK802U23-8 Available to backorder	Plastic Case Label Dss610Rfe (A07D)	£1.60 £1.33
907	MK802U17-3 Available to backorder	Plastic Case Label Dss610Zj (A07I)	£1.60 £1.33
907	MK802U28-8 Available to backorder	Plastic Case Label Dss610Rfe3 (A07F)	£1.60 £1.33
908	MK450128-8 Available to backorder	Battery Cover (A08)	£0.64 £0.53
908	MK197606-4 Available to backorder	Battery Bl1830B Set (2 Pcs) (Alt.) (F08-3)	£468.53 £390.44
908	MK196235-0 Available to backorder	Battery Bl1815N Set (A08K) (Refs A08 \| F11)	£187.42 £156.18
909	MK802U09-2 Available to backorder	Indication Label Dss610Rfj (A09H)	£1.60 £1.33
910	MK802U22-0 Available to backorder	Plastic Case Label Dss610Rfj (A10H)	£1.60 £1.33
