Makita DSS501 - Cordless Circular Saw 136mm - Power Tool Diagram

Description

Model No. DSS501

Cordless Circular Saw 136mm

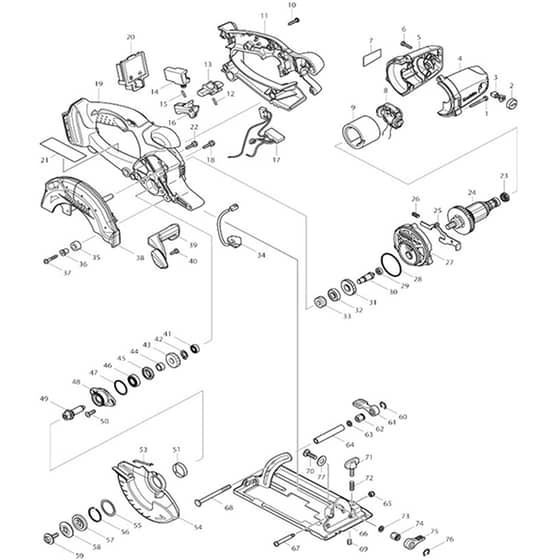

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK266351-3 Available to backorder	Binding Head Tapping Screw 4x35	£0.48 £0.40
1	MK266053-1 Available to backorder	Binding Head Tapping Screw 4x35	£0.58 £0.48
2	MK643807-7 Available to backorder	Holder Cap	£0.74 £0.62
3	MK191971-3 In stock	Carbon Brush Set Cb-430	£5.57 £4.64
4	MK188209-5 Available to backorder	Housing Set (INC. 5 *)	£10.98 £9.15
6	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
7	MK815T90-8 Available to backorder	Name Plate Dss501	£0.48 £0.40
8	MK638925-4 Available to backorder	End Bell Complete	£4.20 £3.50
9	MK638420-4 Available to backorder	Yoke Unit	£31.06 £25.88
11	MK140F58-4 Available to backorder	Handle L Complete S	£12.44 £10.37
11	MK453426-9 Available to backorder	Handle L	£21.66 £18.05
12	MK231469-9 Available to backorder	Compression Spring 4	£0.48 £0.40
13	MK419664-3 Available to backorder	Lock Off Lever	£1.16 £0.97
14	MK651956-6 Available to backorder	Switch Tg72Bd	£13.44 £11.20
16	MK419665-1 Available to backorder	Switch Lever	£1.16 £0.97
18	MK911133-5 Available to backorder	Pan Head Screw M4x18 Wr	£0.48 £0.40
19	MK140F53-4 Available to backorder	Handle R Complete S	£15.56 £12.97
19	MK453154-6 Available to backorder	Handle R	£25.14 £20.95
20	MK644808-8 In stock	Terminal	£3.76 £3.13
23	MK421977-0 Available to backorder	Rubber Ring 13	£0.86 £0.72
24	MK619202-3 Available to backorder	Armature	£23.56 £19.63
25	MK345643-4 Available to backorder	Shaft Lock	£0.86 £0.72
26	MK233117-6 Available to backorder	Compression Spring 6	£0.58 £0.48
27	MK419656-2 Available to backorder	Gear Housing	£3.62 £3.02
28	MK213560-5 Available to backorder	O-Ring 44	£1.44 £1.20
29	MK210036-3 Available to backorder	Ball Bearing 604Zz	£3.46 £2.88
30	MK324729-7 Available to backorder	Gear Shaft	£1.74 £1.45
31	MK226643-2 Available to backorder	Helical Gear 35	£4.62 £3.85
32	MK210080-0 Available to backorder	Ball Bearing 6900Zz	£5.64 £4.70
33	MK226635-1 Available to backorder	Helical Gear 15	£5.06 £4.22
34	MK631550-0 Available to backorder	Led Circuit	£9.40 £7.83
35	MK262566-0 Available to backorder	Rubber Sleeve 6	£0.58 £0.48
36	MK262563-6 Available to backorder	Sleeve 4	£0.58 £0.48
37	MK265999-8 Available to backorder	Binding Head Tapping Screw 4x25	£0.48 £0.40
38	MK318152-6 Available to backorder	Blade Case	£10.56 £8.80
39	MK419935-8 Available to backorder	Blower Nozzle	£2.60 £2.17
40	MK266026-4 Available to backorder	Binding Head Tapping Screw 4x12	£0.48 £0.40
41	MK210006-2 Available to backorder	Ball Bearing 696Zz	£3.04 £2.53
42	MK961006-2 Available to backorder	Retaining Ring (Ext) S-10	£0.48 £0.40
43	MK226640-8 Available to backorder	Helical Gear 23	£5.06 £4.22
44	MK257760-7 Available to backorder	Sleeve 10	£0.86 £0.72
45	MK285847-5 Available to backorder	Bearing Retainer 14-23	£4.34 £3.62
46	MK210069-8 Available to backorder	Ball Bearing 6900Ddw	£6.30 £5.25
46	MK210258-5 Available to backorder	Ball Bearing 6900Ddw >	£2.34 £1.95
47	MK213435-8 Available to backorder	O-Ring 26	£0.48 £0.40
48	MK318087-1 Available to backorder	Bearing Box	£3.34 £2.78
49	MK324730-2 Available to backorder	Spindle	£3.34 £2.78
50	MK265034-2 Available to backorder	Countersunk Head Screw M5x16	£0.58 £0.48
51	MK345470-9 Available to backorder	Thickness Ring	£0.74 £0.62
53	MK231835-0 Available to backorder	Tension Spring 4	£2.02 £1.68
54	MK419933-2 Available to backorder	Safety Cover	£4.20 £3.50
55	MK267127-1 Available to backorder	Flat Washer 26	£0.86 £0.72
56	MK257938-2 Available to backorder	Retaining Ring (Ext) Wr-26	£0.74 £0.62
57	MK224391-7 Available to backorder	Inner Flange 30	£1.44 £1.20
58	MK224404-4 Available to backorder	Outer Flange 30	£3.04 £2.53
59	MK266458-5 Available to backorder	Hex. Socket Hex. Head Flange Bolt M6x18	£0.58 £0.48
60	MK961014-3 Available to backorder	Stop Ring (Ext) E-8	£0.48 £0.40
61	MK272229-0 Available to backorder	Lever 40	£4.20 £3.50
62	MK252159-1 Available to backorder	Hex. Nut M6	£2.18 £1.82
63	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
64	MK331733-9 Available to backorder	Pipe 6	£1.16 £0.97
65	MK252103-8 Available to backorder	Hex. Lock Nut M5-8	£0.48 £0.40
66	MK158252-8 Available to backorder	Base Complete	£21.96 £18.30
67	MK265056-2 Available to backorder	Pan Head Shoulder Screw M5	£1.02 £0.85
68	MK266405-6 Available to backorder	Flat Head Square Neck Bolt M6x75	£0.58 £0.48
69	MK266225-8 Available to backorder	Hex. Socket Set Screw (Flat Point) M6x8	£0.58 £0.48
70	MK251919-8 Available to backorder	Flat Head Square Neck Bolt M6x20	£0.74 £0.62
71	MK251896-4 Available to backorder	Thumb Screw M5x20	£2.18 £1.82
72	MK231007-7 Available to backorder	Compression Spring 6	£0.48 £0.40
74	MK252133-9 Available to backorder	Hex. Nut M6	£3.76 £3.13
75	MK272251-7 Available to backorder	Lever 30	£1.16 £0.97
77	MK267231-6 Available to backorder	Flat Washer 9	£0.48 £0.40
78	MK620260-4 Available to backorder	Controller	£49.26 £41.05
901	MK164095-8 In stock	Guide Rule (A01)	£4.32 £3.60
901	MK688131-1 Available to backorder	Line Filter (E01)	£0.58 £0.48
902	MK688161-2 Available to backorder	Line Filter (E02)	£0.58 £0.48
902	MK911128-8 Available to backorder	Pan Head Screw M4x16 Wr (C10)	£0.47 £0.39
902	MK194415-2 Available to backorder	Dust Nozzle Set (A02)	£3.52 £2.93
904	MK197280-8 In stock	Battery Bl1850B Set < (A04-2P)	£105.88 £88.23
904	MK197600-6 Available to backorder	Battery Bl1830B Set < (A04-2)	£197.72 £164.77
904	MK196235-0 Available to backorder	Battery Bl1815N Set (A04N) (Refs A04 \| F02)	£187.42 £156.18
904	MK197265-4 Available to backorder	Battery Bl1840B Set < (A04-2O)	£273.12 £227.60
905	MK783203-8 Available to backorder	Hex. Wrench 5 (A05)	£0.72 £0.60
905	MK783217-7 Available to backorder	Hex. Wrench 5 (Alt.) (A05-1)	£0.56 £0.47
906	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
906	MK821551-8 Available to backorder	Connector Plastic Case (Type 3) (A06)	£62.48 £52.07
906	MK163455-1 Available to backorder	Latch (C10)	£1.60 £1.33
906	MK824802-8 Available to backorder	Plastic Case (A06K)	£24.44 £20.37
906	MK141485-2 Available to backorder	Plastic Case Complete (A06I)	£38.26 £31.88
906	MK419360-3 Available to backorder	Handle (C20)	£1.16 £0.97
907	MK837628-9 Available to backorder	Inner Tray (A07)	£11.16 £9.30
908	MKB-09949 Available to backorder	T.C.T.Saw Blade 136x16T (A08)	£46.34 £38.62
908	MKE-12120 Available to backorder	Efficut For Wood Cutting (A08-1)	£32.56 £27.13
909	MK450128-8 Available to backorder	Battery Cover (A09)	£0.64 £0.53
