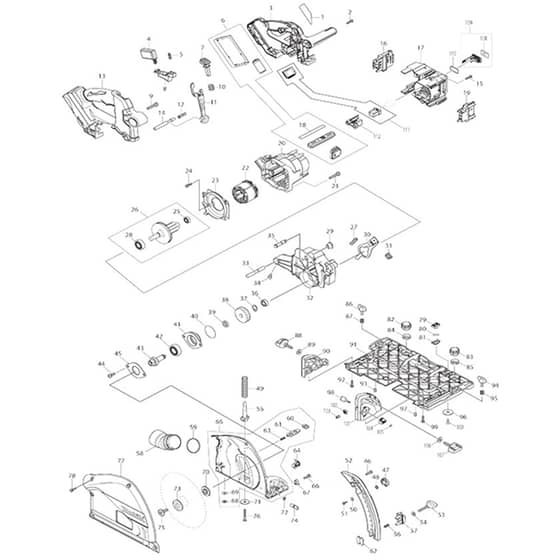

Makita DSP601 - 165mm Cordless Plunge Cut Saw - Power Tool Diagram

Name: Makita DSP601 - 165mm Cordless Plunge Cut Saw - Power Tool Diagram
SKU: dsp601_165mm_cordless_plunge_cut_saw_power_tool-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita DSP601 - 165mm Cordless Plunge Cut Saw - Power Tool Diagram

Description

Model No. DSP601

165mm Cordless Plunge Cut Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK853V15-6 Available to backorder	Name Plate Dsp601	£0.48 £0.40
2	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 015 \| 024 \| 092 \| 099)	£0.48 £0.40
3	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
3	MK183H79-5 Available to backorder	Handle Rear Cover Set (INC. 13 17 *) (Refs 013 \| 017)	£64.58 £53.82
4	MK651083-9 Available to backorder	Switch C3xa-1Pspm	£27.60 £23.00
5	MK234173-9 Available to backorder	Compression Spring 4	£1.64 £1.37
6	MK620691-7 Available to backorder	Sub Controller (C10)	£23.20 £19.33
6	MK135915-3 Available to backorder	Controller Assembly (INC. 18 *)	£199.48 £166.23
6	MK135974-7 Available to backorder	Controller Assembly < (INC. 18 *)	£220.80 £184.00
6	MK136857-4 Available to backorder	Controller Assembly S (INC. 18)	£252.26 £210.22
7	MK419629-5 Available to backorder	Lock Off Button	£2.18 £1.82
8	MK457748-9 Available to backorder	Switch Lever	£1.36 £1.13
9	MK911253-5 Available to backorder	Pan Head Screw M5x30 Wr	£0.58 £0.48
10	MK233089-5 Available to backorder	Compression Spring 12	£0.54 £0.45
11	MK457749-7 Available to backorder	Lock Plate	£1.52 £1.27
12	MK233267-7 Available to backorder	Compression Spring 7	£1.32 £1.10
14	MK324709-3 Available to backorder	Lock Pin 8	£5.48 £4.57
16	MK643874-2 Available to backorder	Terminal	£4.20 £3.50
18	MK813D03-7 Available to backorder	Indication Label	£2.32 £1.93
20	MK457750-2 Available to backorder	Motor Housing	£8.06 £6.72
22	MK629275-8 Available to backorder	Stator	£54.18 £45.15
22	MK629B69-3 Available to backorder	Stator S	£19.26 £16.05
23	MK457751-0 Available to backorder	Baffle Plate	£2.06 £1.72
25	MK210022-4 Available to backorder	Ball Bearing 626Ddw	£3.34 £2.78
26	MK519448-0 Available to backorder	Rotor Assembly (INC. 25 28 *)	£36.04 £30.03
27	MK233084-5 Available to backorder	Compression Spring 6	£0.48 £0.40
28	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
29	MK286040-4 Available to backorder	Cap	£0.74 £0.62
30	MK345742-2 Available to backorder	Shaft Lock	£7.66 £6.38
31	MK286039-9 Available to backorder	Cap	£0.58 £0.48
32	MK144586-5 Available to backorder	Gear Housing Complete	£53.02 £44.18
32	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
33	MK327B66-0 Available to backorder	Pin 8 (Alt.)	£2.18 £1.82
33	MK326960-1 Available to backorder	Pin 8	£2.18 £1.82
34	MK265907-9 Available to backorder	Hex. Socket Head Bolt M5x10	£0.74 £0.62
35	MK324708-5 Available to backorder	Stopper Pin 8	£4.20 £3.50
36	MK211021-9 Available to backorder	Ball Bearing 607Llb	£7.80 £6.50
37	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
38	MK221548-1 Available to backorder	Helical Gear 41	£5.06 £4.22
39	MK257010-0 Available to backorder	Ring 12	£0.58 £0.48
40	MK213512-6 Available to backorder	O-Ring 39	£2.18 £1.82
41	MK318088-9 Available to backorder	Bearing Box	£7.66 £6.38
42	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
43	MK324707-7 Available to backorder	Spindle	£22.98 £19.15
44	MK911221-8 Available to backorder	Pan Head Screw M5x16 W	£0.48 £0.40
45	MK285689-7 Available to backorder	Bearing Retainer 55	£1.74 £1.45
46	MK266034-5 Available to backorder	Binding Head Tapping Screw 4x16 (Refs 066 \| 078)	£0.48 £0.40
47	MK419630-0 Available to backorder	Lock Lever	£2.46 £2.05
48	MK231665-9 Available to backorder	Torsion Spring 7	£0.58 £0.48
49	MK233479-2 Available to backorder	Compression Spring 11	£1.60 £1.33
50	MK253821-1 Available to backorder	Flat Washer 3	£0.48 £0.40
51	MK266007-8 Available to backorder	Binding Head Tapping Screw 3x10	£0.48 £0.40
52	MK457756-0 Available to backorder	Depth Guide	£2.60 £2.17
53	MK251867-1 Available to backorder	Thumb Screw M5x30	£0.74 £0.62
54	MK941101-4 Available to backorder	Flat Washer 5	£0.48 £0.40
55	MK419624-5 Available to backorder	Spring Holder	£2.32 £1.93
56	MK231372-4 Available to backorder	Compression Spring 5	£0.48 £0.40
57	MK419623-7 Available to backorder	Stopper Block	£3.34 £2.78
58	MK457752-8 Available to backorder	Dust Nozzle	£1.88 £1.57
59	MK213460-9 Available to backorder	O-Ring 35	£2.02 £1.68
60	MK286041-2 Available to backorder	Cap 14	£0.70 £0.58
61	MK345747-2 Available to backorder	Spacer Plate	£4.20 £3.50
62	MK345744-8 Available to backorder	Nut Plate	£2.18 £1.82
63	MK233025-1 Available to backorder	Compression Spring 2	£0.58 £0.48
64	MK144867-7 Available to backorder	Lever 20 Complete	£0.96 £0.80
65	MK140D56-6 Available to backorder	Blade Case Complete (Alt.) (INC. 60 61 63 68 69)	£72.12 £60.10
67	MK419632-6 Available to backorder	Pointer	£1.44 £1.20
68	MK259008-3 Available to backorder	Push Nut 4	£0.48 £0.40
69	MK347392-9 Available to backorder	Plate (Alt.)	£0.48 £0.40
69	MK253874-0 Available to backorder	Flat Washer 4	£0.48 £0.40
70	MK224593-5 Available to backorder	Inner Flange 35	£1.88 £1.57
71	MK253010-8 Available to backorder	Flat Washer 6	£0.48 £0.40
72	MK213021-5 Available to backorder	O-Ring 5	£0.48 £0.40
73	MK224409-4 In stock	Outer Flange 35	£2.18 £1.82
74	MK324710-8 Available to backorder	Pin 8	£2.18 £1.82
75	MK266403-0 Available to backorder	Hex. Socket Head Bolt M6x20	£2.46 £2.05
76	MK266053-1 Available to backorder	Binding Head Tapping Screw 4x35	£0.58 £0.48
77	MK319702-0 Available to backorder	Blade Case Cover S	£44.38 £36.98
79	MK458092-7 Available to backorder	Slide Lever	£1.36 £1.13
80	MK253932-2 Available to backorder	Wave Washer 10	£0.48 £0.40
81	MK345977-5 Available to backorder	Plate	£0.48 £0.40
82	MK265775-0 Available to backorder	Thumb Screw M4x3	£0.86 £0.72
84	MK419627-9 In stock	Holder	£1.60 £1.33
86	MK265701-9 In stock	Thumb Screw M6x14	£2.02 £1.68
87	MK231240-1 Available to backorder	Compression Spring 7 (Alt.)	£0.48 £0.40
87	MK231316-4 Available to backorder	Compression Spring 7	£0.58 £0.48
88	MK265776-8 Available to backorder	Thumb Screw M6x26	£1.16 £0.97
89	MK253111-2 Available to backorder	Flat Washer 6	£0.48 £0.40
90	MK419596-4 Available to backorder	Rear Angular Guide	£6.94 £5.78
91	MK319604-0 Available to backorder	Base	£47.54 £39.62
93	MK266225-8 Available to backorder	Hex. Socket Set Screw (Flat Point) M6x8 (Refs 097 \| 103)	£0.58 £0.48
96	MK345748-0 Available to backorder	Lock Washer	£2.60 £2.17
98	MK324731-0 Available to backorder	Stopper Pin	£6.22 £5.18
100	MK912112-6 In stock	Countersunk Head Screw M4x10	£0.48 £0.40
101	MK419595-6 Available to backorder	Front Angular Guide	£9.12 £7.60
101	MK413A11-6 Available to backorder	Front Angular Guide S	£5.74 £4.78
102	MK252157-5 Available to backorder	Square Nut M6	£0.48 £0.40
104	MK457963-5 Available to backorder	Dial 22	£0.58 £0.48
105	MK961017-7 Available to backorder	Stop Ring (Ext) E-3	£0.48 £0.40
108	MK818H48-4 Available to backorder	Cap Label <	£0.82 £0.68
109	MK140G30-2 Available to backorder	Cap Complete < (INC. 108 *)	£2.88 £2.40
110	MK213218-6 Available to backorder	O-Ring 16	£0.74 £0.62
110	MK213275-4 Available to backorder	O-Ring 18	£0.58 £0.48
111	MK620753-1 Available to backorder	Sub Controller	£36.72 £30.60
112	MK458038-3 Available to backorder	Holder	£6.70 £5.58
113	MK213045-1 Available to backorder	O-Ring 6 S	£0.48 £0.40
114	MK620L68-8 Available to backorder	Controller B S	£23.62 £19.68
115	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
901	MKB-57336 Available to backorder	Tct Blade165x20x56Twood/Mdf Db (A01-2)	£71.00 £59.17
902	MK783203-8 Available to backorder	Hex. Wrench 5 (A02)	£0.72 £0.60
903	MK198900-7 Available to backorder	Wireless Unit Set (A03-1)	£67.06 £55.88
904	MK821552-6 Available to backorder	Connector Plastic Case (Type 4) (A04)	£74.82 £62.35
904	MK194368-5 Available to backorder	Guide Rail 1400 Set (F04)	£78.76 £65.63
904	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
906	MK194416-0 Available to backorder	Sheet 10000 Set (F06)	£39.90 £33.25
907	MK839290-6 Available to backorder	Inner Tray (A07)	£11.16 £9.30
907	MK194417-8 Available to backorder	Rubber Sheet 10000 Set (F07)	£58.88 £49.07
914	MK195546-0 Available to backorder	Front Cuff 24 Set (F14)	£3.36 £2.80
915	MK196664-7 Available to backorder	Bevel Guide Set (F15)	£44.48 £37.07
919	MK199140-0 Available to backorder	Guide Rail 1000 Set (F19)	£53.02 £44.18
920	MK199141-8 Available to backorder	Guide Rail 1500 Set (F20)	£104.38 £86.98
921	MK199826-6 Available to backorder	Ratchet Clamp Set (F21)	£83.52 £69.60
927	MK1913J9-2 Available to backorder	Limit Stop Set (F27)	£5.92 £4.93
928	MK1913K7-3 Available to backorder	Parallel Guide Set (mm) (F28)	£105.48 £87.90
949	MK1913K5-7 Available to backorder	Push Clamp Set (G49)	£45.22 £37.68
