Description

Model No. DRC200

Robotic Cleaner

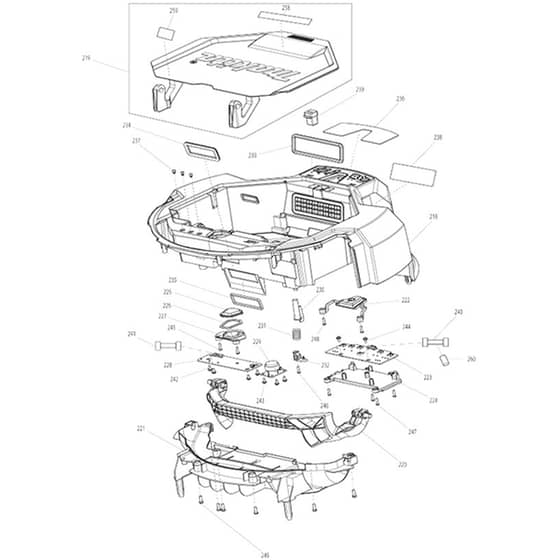

Power Tool 10 Parts Diagrams

Ref. Img. Part No. Details
  220 Handle
Handle
MKSH00000187
Available to backorder
Handle
£12.84 £10.70

  221 Handle Cover
Handle Cover
MKSH00000188
Available to backorder
Handle Cover
£14.28 £11.90

  222 Ui Button
Ui Button
MKSH00000189
Available to backorder
Ui Button
£6.24 £5.20

  223 Ui Pwb Assy <
Ui Pwb Assy <
MKSH00000302
Available to backorder
Ui Pwb Assy <
£85.68 £71.40

  223 Ui Pwb Assy
Ui Pwb Assy
MKSH00000190
Available to backorder
Ui Pwb Assy
£80.88 £67.40

  224 Ui Pwb Holder
Ui Pwb Holder
MKSH00000191
Available to backorder
Ui Pwb Holder
£6.24 £5.20

  225 Led Lens L
Led Lens L
MKSH00000192
Available to backorder
Led Lens L
£6.24 £5.20

  226 Led Lens Seal
Led Lens Seal
MKSH00000193
Available to backorder
Led Lens Seal
£6.24 £5.20

  227 Led Reflector
Led Reflector
MKSH00000194
Available to backorder
Led Reflector
£10.56 £8.80

  228 Led Pwb Assy
Led Pwb Assy
MKSH00000195
Available to backorder
Led Pwb Assy
£44.40 £37.00

  229 Buzzer Pwb Assy
Buzzer Pwb Assy
MKSH00000196
Available to backorder
Buzzer Pwb Assy
£23.88 £19.90

  230 Filter Button
Filter Button
MKSH00000197
Available to backorder
Filter Button
£6.24 £5.20

  231 Filter Button Sp
Filter Button Sp
MKSH00000198
Available to backorder
Filter Button Sp
£6.24 £5.20

  232 Filter Button Holder
Filter Button Holder
MKSH00000199
Available to backorder
Filter Button Holder
£6.24 £5.20

  233 Intake Packing
Intake Packing
MKSH00000200
Available to backorder
Intake Packing
£10.56 £8.80

  234 Nozzle Packing
Nozzle Packing
MKSH00000201
Available to backorder
Nozzle Packing
£8.40 £7.00

  235 Nozzle Seal
Nozzle Seal
MKSH00000202
Available to backorder
Nozzle Seal
£6.24 £5.20

  236 Ui Key Sheet
Ui Key Sheet
MKSH00000248
Available to backorder
Ui Key Sheet
£10.56 £8.80

  237 Led Lens S
Led Lens S
MKSH00000204
Available to backorder
Led Lens S
£6.24 £5.20

  238 Exhaust Filter Assy
Exhaust Filter Assy
MKSH00000205
Available to backorder
Exhaust Filter Assy
£6.24 £5.20

  239 Catch Latch
Catch Latch
MKSH00000206
Available to backorder
Catch Latch
£12.84 £10.70

  240 Ui Cable
Ui Cable
MKSH00000249
Available to backorder
Ui Cable
£10.32 £8.60

  241 Led Cable
Led Cable
MKSH00000208
Available to backorder
Led Cable
£14.28 £11.90

  242 Screw(M3x8xwasher8) (Refs 243 | 244)
Screw(M3x8xwasher8) (Refs 243 | 244)
MKSH00000110
Available to backorder
Screw(M3x8xwasher8) (Refs 243 | 244)
£2.53 £2.11

  245 Screw(M3x6)
Screw(M3x6)
MKSH00000184
Available to backorder
Screw(M3x6)
£3.48 £2.90

  246 Screw(M3x10) (Refs 247 | 248)
Screw(M3x10) (Refs 247 | 248)
MKSH00000071
Available to backorder
Screw(M3x10) (Refs 247 | 248)
£3.72 £3.10

  249 Screw(M4x10)
Screw(M4x10)
MKSH00000111
Available to backorder
Screw(M4x10)
£1.74 £1.45

  250 Dust Box Lower
Dust Box Lower
MKSH00000209
Available to backorder
Dust Box Lower
£23.88 £19.90

  251 Dust Case
Dust Case
MKSH00000210
Available to backorder
Dust Case
£20.28 £16.90

  252 Dust Seal Ring
Dust Seal Ring
MKSH00000211
Available to backorder
Dust Seal Ring
£12.84 £10.70

  253 Dust Box Upper
Dust Box Upper
MKSH00000212
Available to backorder
Dust Box Upper
£14.28 £11.90

  254 Filter Unit'S Assy
Filter Unit'S Assy
MKSH00000213
Available to backorder
Filter Unit'S Assy
£117.96 £98.30

  255 Dust Box Cover
Dust Box Cover
MKSH00000214
Available to backorder
Dust Box Cover
£17.28 £14.40

  256 Dust Slide Lever
Dust Slide Lever
MKSH00000215
Available to backorder
Dust Slide Lever
£6.24 £5.20

  257 Dust Box Pin
Dust Box Pin
MKSH00000216
Available to backorder
Dust Box Pin
£14.28 £11.90

  258 Caution Label
Caution Label
MKSH00000252
Available to backorder
Caution Label
£5.52 £4.60

  259 Robopro Label
Robopro Label
MKSH00000253
Available to backorder
Robopro Label
£5.28 £4.40

  260 Ferrite Core
Ferrite Core
MKSH00000244
Available to backorder
Ferrite Core
£9.00 £7.50


Description

Model No. DRC200

Robotic Cleaner

Power Tool 10 Parts Diagrams
