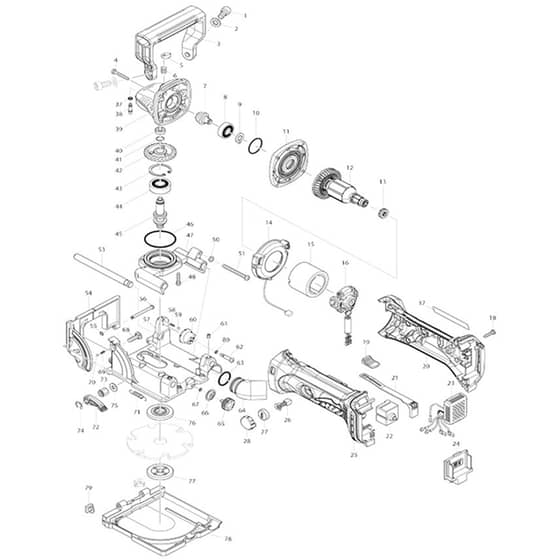

Makita DPJ180 - Cordless Plate Joiner - Power Tool Diagram

Description

Model No. DPJ180

Cordless Plate Joiner

Power Tool Parts Diagrams

	Part No.	Details
1	MK922422-3 Available to backorder	Hex. Socket Head Bolt M8x16	£0.70 £0.58
2	MK941202-8 Available to backorder	Flat Washer 8	£0.48 £0.40
3	MK453219-4 Available to backorder	Grip	£3.72 £3.10
4	MK266361-0 Available to backorder	Tapping Screw 4x30	£0.48 £0.40
5	MK417771-6 In stock	Pin Cap	£0.52 £0.43
6	MK233072-2 Available to backorder	Compression Spring 8	£0.48 £0.40
7	MK227597-6 Available to backorder	Spiral Bevel Gear 11	£9.36 £7.80
8	MK210042-8 Available to backorder	Ball Bearing 629Llb	£3.12 £2.60
9	MK961005-4 Available to backorder	Retaining Ring S-9	£0.48 £0.40
10	MK213407-3 Available to backorder	O Ring 26 (Alt.)	£1.03 £0.86
10	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
11	MK317821-6 Available to backorder	Gear Housing Cover	£3.60 £3.00
12	MK619295-0 Available to backorder	Armature (INC. 7-11)	£38.16 £31.80
13	MK421977-0 Available to backorder	Rubber Ring 13	£1.03 £0.86
14	MK631714-6 Available to backorder	Led Circuit	£9.84 £8.20
15	MK638627-2 Available to backorder	Yoke Unit	£27.12 £22.60
16	MK688165-4 Available to backorder	Line Filter (C10)	£1.03 £0.86
16	MK638979-1 Available to backorder	Endbell Complete	£4.56 £3.80
18	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
19	MK419566-3 Available to backorder	Switch Knob	£0.48 £0.40
20	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
20	MK187839-9 Available to backorder	Housing Set (INC. 25)	£20.52 £17.10
21	MK419519-2 Available to backorder	Switch Lever	£1.73 £1.44
22	MK650579-7 Available to backorder	Switch 1246.3223	£9.72 £8.10
23	MK620243-4 Available to backorder	Controller	£51.72 £43.10
24	MK644808-8 In stock	Terminal	£3.98 £3.32
26	MK191971-3 In stock	Carbon Brush Cb-430	£5.72 £4.77
27	MK643954-4 In stock	Brush Holder Cap	£1.39 £1.16
38	MK256496-5 Available to backorder	Shoulder Pin 4	£2.21 £1.84
39	MK141400-6 Available to backorder	Gear Houging Complete	£6.12 £5.10
39	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
40	MK210033-9 Available to backorder	Ball Bearing 696Zz	£1.73 £1.44
41	MK233950-6 Available to backorder	Ring Spring 11	£1.03 £0.86
42	MK227598-4 Available to backorder	Spiral Bevel Gear 36	£5.76 £4.80
43	MK962151-6 Available to backorder	Retaining Ring R-32	£0.70 £0.58
44	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.72 £8.10
45	MK326120-5 Available to backorder	Spindle	£5.52 £4.60
46	MK213622-9 Available to backorder	O Ring 45 (Alt.)	£0.48 £0.40
47	MK318812-0 Available to backorder	Bearing Box	£27.96 £23.30
48	MK911136-9 Available to backorder	Pan Head Screw M4x20	£0.48 £0.40
50	MK931203-4 Available to backorder	Hex. Nut M5	£0.48 £0.40
51	MK266741-0 Available to backorder	Pan Head Screw M5x50	£0.48 £0.40
53	MK326145-9 Available to backorder	Rod 10	£2.38 £1.98
54	MK141247-8 Available to backorder	Fence Complete	£15.24 £12.70
55	MK961017-7 Available to backorder	Stop Ring E-3	£0.48 £0.40
56	MK256689-4 Available to backorder	Pin 4	£2.69 £2.24
57	MK318813-8 Available to backorder	Base	£29.64 £24.70
58	MK231282-5 Available to backorder	Compression Spring 2.4	£0.48 £0.40
59	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
60	MK318814-6 Available to backorder	Stopper	£6.72 £5.60
61	MK266264-8 Available to backorder	H.S.Set Screw (Flat Point) M5x6	£0.89 £0.74
62	MK266738-9 Available to backorder	+Pan Head Screw M4	£0.70 £0.58
63	MK213008-7 Available to backorder	O Ring 22.4 (Alt.)	£0.89 £0.74
64	MK415252-4 Available to backorder	Dust Nozzle	£2.83 £2.36
65	MK265785-7 Available to backorder	Thumb Screw M5x10	£1.03 £0.86
66	MK232131-9 Available to backorder	Leaf Spring	£2.53 £2.11
67	MK213023-1 Available to backorder	O Ring 4 (Alt.)	£0.48 £0.40
68	MK266737-1 Available to backorder	Flat Head Sq. Neck Bolt M6x20	£0.48 £0.40
71	MK231795-6 Available to backorder	Tension Spring 8	£2.21 £1.84
72	MK272263-0 Available to backorder	Lever 40	£3.01 £2.51
73	MK252159-1 Available to backorder	Hex. Nut M6	£2.38 £1.98
74	MK961014-3 Available to backorder	Stop Ring E-8	£0.48 £0.40
75	MK253804-1 Available to backorder	Flat Washer 6	£0.48 £0.40
76	MK224280-6 Available to backorder	Inner Flange 40	£8.88 £7.40
77	MK224505-8 Available to backorder	Lock Nut 10-40	£8.04 £6.70
78	MK318845-5 Available to backorder	Blade Cover	£26.16 £21.80
79	MK424479-5 Available to backorder	Rubber Spike	£0.48 £0.40
901	MK123149-0 Available to backorder	Angle Guide Ass'y (A01)	£28.80 £24.00
902	MK410602-8 Available to backorder	Fastener (C10)	£0.70 £0.58
902	MK123150-5 Available to backorder	Dust Bag Assembly (A02)	£7.32 £6.10
903	MK415579-2 Available to backorder	Set Plate 4 (A03)	£6.24 £5.20
904	MK197606-4 Available to backorder	Battery Bl1830B Set (2Pieces) (Alt.) (F04-3)	£421.68 £351.40
904	MKB-20644 Available to backorder	Cutter 100mmx6T (A04)	£56.04 £46.70
905	MK782401-1 Available to backorder	Lock Nut Wrench 20 (A05)	£4.92 £4.10
907	MK197600-6 Available to backorder	Battery Bl1830B Set < (A07-2)	£197.76 £164.80
907	MK197265-4 Available to backorder	Battery Bl1840B Set < (A07-2)	£229.42 £191.18
907	MK197280-8 In stock	Battery Bl1850B Set (A07-2)	£76.24 £63.53
907	MK196235-0 Available to backorder	Battery Bl1815N Set (A07)	£179.88 £149.90
908	MK450128-8 Available to backorder	Battery Cover (A08)	£0.77 £0.64
909	MK453489-5 Available to backorder	Inside Lid (C40)	£6.60 £5.50
909	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
909	MK452143-8 Available to backorder	Shaft (C30)	£0.48 £0.40
909	MK452137-3 Available to backorder	Handle (C20)	£2.05 £1.71
909	MK141533-7 Available to backorder	Plastic Carrying Case Complete (A09)	£65.40 £54.50
909	MK821551-8 Available to backorder	Connector Plastic Case (A09)	£64.68 £53.90
909	MK162315-4 Available to backorder	Latch (C10)	£2.56 £2.13
910	MK837648-3 Available to backorder	Inner Tray (A10)	£11.52 £9.60
