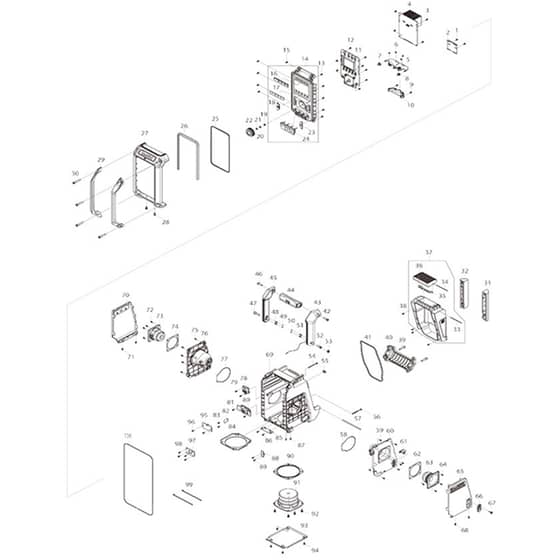

Makita DMR115 - Job Site Radio - Power Tool Diagram

Name: Makita DMR115 - Job Site Radio - Power Tool Diagram
SKU: dmr115_job_site_radio_power_tool-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita DMR115 - Job Site Radio - Power Tool Diagram

Description

Model No. DMR115

Job Site Radio

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MKSE00000521 Available to backorder	Screw Ptb 3x8 (Refs 003 \| 009 \| 012 \| 013 \| 015 \| 038 \| 059 \| 064 \| 068 \| 071 \| 072 \| 075 \| 079 \| 081 \| 086 \| 089 \| 094 \| 096 \| 098)	£0.48 £0.40
2	MKSE00000683 Available to backorder	Pcb H Ass'y	£29.62 £24.68
4	MKSE00000831 Available to backorder	Pcb A Ass'y (Alt.)	£173.36 £144.47
5	MKSE00000775 Available to backorder	Pcb P Ass'y	£17.48 £14.57
6	MKSE00000685 Available to backorder	Screw Ptb 2.6x5 Zk	£0.48 £0.40
7	MKSE00000750 Available to backorder	Led Rubber L	£0.74 £0.62
8	MKSE00000751 Available to backorder	Led Rubber R	£0.74 £0.62
10	MKSE00000752 Available to backorder	Jack Pcb Holder	£2.18 £1.82
11	MKSE00000776 Available to backorder	Pcb C Ass'y	£191.12 £159.27
16	MKSE00000779 Available to backorder	Power Key	£8.96 £7.47
17	MKSE00000695 Available to backorder	Preset Key	£9.12 £7.60
18	MKSE00000780 Available to backorder	Auto Tune	£2.32 £1.93
19	MKSE00000754 Available to backorder	En/Sw Washer	£0.48 £0.40
20	MKSE00000755 Available to backorder	En/Sw Nut	£0.48 £0.40
21	MKSE21B1110A Available to backorder	Rotary Knob Ring	£0.48 £0.40
22	MKSE00000698 Available to backorder	Rotary Knob	£2.32 £1.93
23	MKSE00000697 Available to backorder	Eq Key	£2.32 £1.93
24	MKSE00000699 Available to backorder	Jack Rubber Cover	£4.78 £3.98
25	MKSE00000700 Available to backorder	Front Cabinet Packing	£1.74 £1.45
26	MKSE00000756 Available to backorder	Front Lens	£6.64 £5.53
27	MKSE00000701 Available to backorder	Front Bumper	£33.96 £28.30
28	MKSE09064161 Available to backorder	Screw M4x16	£0.48 £0.40
29	MKSE00000703 Available to backorder	Front Bar	£20.80 £17.33
30	MKSE00000709 Available to backorder	Screw Pthe 6x33(Cr)	£1.02 £0.85
31	MKSE00000704 Available to backorder	Battery Bumper R	£8.96 £7.47
32	MKSE00000705 Available to backorder	Battery Bumper L	£8.96 £7.47
33	MKSE00000539 Available to backorder	Pin D2x77 2100B300200	£0.86 £0.72
34	MKSE00000533 Available to backorder	Pin D2x88 2100B300100	£1.02 £0.85
35	MKSE00000536 Available to backorder	Locker Hinge 3300B30000010	£1.02 £0.85
36	MKSE00000706 Available to backorder	Locker Cover	£5.64 £4.70
37	MKSE00000757 Available to backorder	Battery Cover	£36.98 £30.82
40	MKSE00000710 Available to backorder	Rear Bumper	£8.38 £6.98
41	MKSE00000711 Available to backorder	Battery Cover Packing	£7.80 £6.50
42	MKSE00000176 Available to backorder	Screw Pthe6x20(Cr)	£0.58 £0.48
43	MKSE00000781 Available to backorder	Right Handle Ass'y	£12.28 £10.23
44	MKSE00000713 Available to backorder	Handle Bar	£12.00 £10.00
45	MKSE00000714 Available to backorder	Left Handle Ass'y	£5.06 £4.22
47	MKSE00000715 Available to backorder	Screw Pthe 6x17(Cr)	£1.02 £0.85
48	MKSE00000759 Available to backorder	Spring	£0.48 £0.40
49	MKSE09994007 Available to backorder	Steel Ball	£0.48 £0.40
52	MKSE00000716 Available to backorder	Screw Pthe 7x16(Cr)	£1.32 £1.10
53	MKSE00000717 Available to backorder	Screw Pthe 10.8x4.5(Cr)	£1.88 £1.57
54	MKSE00000445 Available to backorder	Screw Ptb 3x45(Ni)	£0.48 £0.40
55	MKSE00000721 Available to backorder	Update Rubber	£0.74 £0.62
57	MKSE021PC030 Available to backorder	Battery Cover Locker	£0.86 £0.72
58	MKSE00000730 Available to backorder	Speaker Holder Packing	£0.74 £0.62
60	MKSE00000782 Available to backorder	Speaker Holder R	£8.96 £7.47
61	MKSE00000724 Available to backorder	Pcb F Ass'y	£11.26 £9.38
62	MKSE00000729 Available to backorder	Speaker 2.5" Packing	£2.18 £1.82
63	MKSE00000728 Available to backorder	Speaker Ass'y 2.5"	£19.06 £15.88
65	MKSE00000725 Available to backorder	Right Speaker Net Ass'y	£25.86 £21.55
66	MKSE00000726 Available to backorder	Dc Jack Cover	£2.32 £1.93
70	MKSE00000727 Available to backorder	Left Speaker Net Ass'y	£25.86 £21.55
76	MKSE00000731 Available to backorder	Speaker Holder L	£9.12 £7.60
78	MKSE00000732 Available to backorder	Terminal 10.8V-A-3Pin	£5.36 £4.47
80	MKSE00000733 Available to backorder	Terminal E Ass'y	£5.20 £4.33
82	MKSE00000785 Available to backorder	Pcb G Ass'y	£10.26 £8.55
83	MKSE00000193 Available to backorder	Screw 3x10	£0.48 £0.40
84	MKSE00000734 Available to backorder	Speaker Plate	£6.22 £5.18
85	MKSE00000735 Available to backorder	Rear Plate	£1.60 £1.33
87	MKSE00000736 Available to backorder	Screw Jmf 3x10 Zk	£0.48 £0.40
88	MKSE00000737 Available to backorder	Pcb B Ass'y	£10.40 £8.67
90	MKSE00000738 Available to backorder	Speaker 4" Packing	£3.62 £3.02
91	MKSE00000739 Available to backorder	Speaker Ass'y 4"	£29.46 £24.55
93	MKSE00000761 Available to backorder	Speaker Grill B	£9.12 £7.60
95	MKSE00000786 Available to backorder	Pcb D Ass'y	£11.56 £9.63
97	MKSE00001098 Available to backorder	Pcb J Ass'y x	£8.62 £7.18
97	MKSE00000743 Available to backorder	Pcb J Ass'y	£10.40 £8.67
99	MKSE00000195 Available to backorder	W/Ties 100mm	£0.48 £0.40
100	MKSE00000744 Available to backorder	Rear Cabinet Packing	£1.88 £1.57
