Makita DMR114 - Job Site Radio - Power Tool Diagram

Description

Model No. DMR114

Job Site Radio

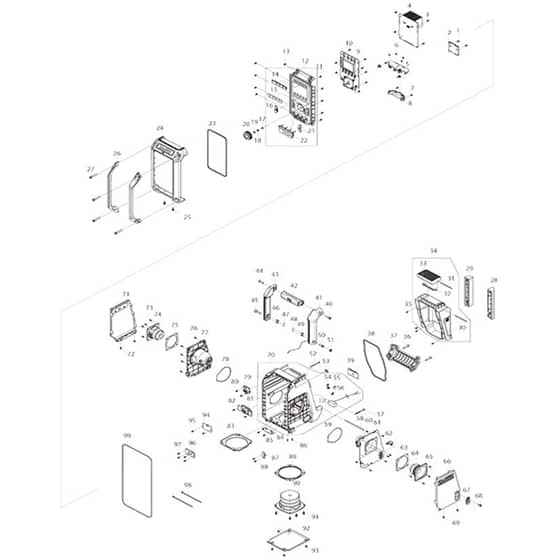

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MKSE00000521 Available to backorder	Screw Ptb 3x8(Zk) (Refs 003 \| 007 \| 010 \| 011 \| 013 \| 035 \| 060 \| 065 \| 069 \| 072 \| 073 \| 076 \| 080 \| 082 \| 085 \| 088 \| 095 \| 097)	£0.48 £0.40
2	MKSE00000683 Available to backorder	Pcb H Ass'y	£29.62 £24.68
6	MKSE00000685 Available to backorder	Screw Ptb 2.6x5 Zk	£0.48 £0.40
8	MKSE00000752 Available to backorder	Jack Pcb Holder	£2.18 £1.82
15	MKSE00000695 Available to backorder	Preset Key	£9.12 £7.60
17	MKSE00000754 Available to backorder	En/Sw Washer	£0.48 £0.40
18	MKSE00000755 Available to backorder	En/Sw Nut	£0.48 £0.40
19	MKSE21B1110A Available to backorder	Rotary Knob Ring	£0.48 £0.40
20	MKSE00000698 Available to backorder	Rotary Knob	£2.32 £1.93
21	MKSE00000697 Available to backorder	Eq Key	£2.32 £1.93
22	MKSE00000699 Available to backorder	Jack Rubber Cover	£4.78 £3.98
23	MKSE00000700 Available to backorder	Front Cabinet Packing	£1.74 £1.45
24	MKSE00000701 Available to backorder	Front Bumper	£33.96 £28.30
25	MKSE09064161 Available to backorder	Screw M4x16	£0.48 £0.40
26	MKSE00000703 Available to backorder	Front Bar	£20.80 £17.33
27	MKSE00000709 Available to backorder	Screw Pthe 6x33(Cr)	£1.02 £0.85
28	MKSE00000704 Available to backorder	Battery Bumper R	£8.96 £7.47
29	MKSE00000705 Available to backorder	Battery Bumper L	£8.96 £7.47
30	MKSE00000539 Available to backorder	Pin D2x77 2100B300200	£0.86 £0.72
31	MKSE00000533 Available to backorder	Pin D2x88 2100B300100	£1.02 £0.85
32	MKSE00000536 Available to backorder	Locker Hinge 3300B30000010	£1.02 £0.85
33	MKSE00000706 Available to backorder	Locker Cover	£5.64 £4.70
34	MKSE00000757 Available to backorder	Battery Cover	£36.98 £30.82
37	MKSE00000710 Available to backorder	Rear Bumper	£8.38 £6.98
38	MKSE00000711 Available to backorder	Battery Cover Packing	£7.80 £6.50
39	MKSE0307PC5Z Available to backorder	Back Up Battery Cover	£0.86 £0.72
40	MKSE00000176 Available to backorder	Screw Pthe6x20(Cr)	£0.58 £0.48
42	MKSE00000713 Available to backorder	Handle Bar	£12.00 £10.00
43	MKSE00000714 Available to backorder	Left Handle Ass'y	£5.06 £4.22
45	MKSE00000715 Available to backorder	Screw Pthe 6x17(Cr)	£1.02 £0.85
46	MKSE00000759 Available to backorder	Spring	£0.48 £0.40
47	MKSE09994007 Available to backorder	Steel Ball	£0.48 £0.40
50	MKSE00000716 Available to backorder	Screw Pthe 7x16(Cr)	£1.32 £1.10
51	MKSE00000717 Available to backorder	Screw Pthe 10.8x4.5(Cr)	£1.88 £1.57
52	MKSE00000445 Available to backorder	Screw Ptb 3x45(Ni)	£0.48 £0.40
53	MKSE00000721 Available to backorder	Update Rubber	£0.74 £0.62
54	MKSE021E9030 Available to backorder	+/- Battery Contact Ass'y	£0.58 £0.48
55	MKSE00000467 Available to backorder	Battery Contact (-)	£5.94 £4.95
56	MKSE00000466 Available to backorder	Battery Contact(+)	£43.78 £36.48
58	MKSE021PC030 Available to backorder	Battery Cover Locker	£0.86 £0.72
59	MKSE00000730 Available to backorder	Speaker Holder Packing	£0.74 £0.62
62	MKSE00000724 Available to backorder	Pcb F Ass'y	£11.26 £9.38
63	MKSE00000729 Available to backorder	Speaker 2.5" Packing	£2.18 £1.82
64	MKSE00000728 Available to backorder	Speaker Ass'y 2.5"	£19.06 £15.88
66	MKSE00000725 Available to backorder	Right Speaker Net Ass'y	£25.86 £21.55
67	MKSE00000726 Available to backorder	Dc Jack Cover	£2.32 £1.93
68	MKSE00000404 Available to backorder	Screw Pthe 3x14(Cr)	£0.74 £0.62
71	MKSE00000727 Available to backorder	Left Speaker Net Ass'y	£25.86 £21.55
77	MKSE00000731 Available to backorder	Speaker Holder L	£9.12 £7.60
79	MKSE00000732 Available to backorder	Terminal 10.8V-A-3Pin	£5.36 £4.47
81	MKSE00000733 Available to backorder	Terminal E Ass'y	£5.20 £4.33
83	MKSE00000734 Available to backorder	Speaker Plate	£6.22 £5.18
84	MKSE00000735 Available to backorder	Rear Plate	£1.60 £1.33
86	MKSE00000736 Available to backorder	Screw Jmf 3x10 Zk	£0.48 £0.40
87	MKSE00000737 Available to backorder	Pcb B Ass'y	£10.40 £8.67
89	MKSE00000738 Available to backorder	Speaker 4" Packing	£3.62 £3.02
90	MKSE00000739 Available to backorder	Speaker Ass'y 4"	£29.46 £24.55
92	MKSE00000761 Available to backorder	Speaker Grill B	£9.12 £7.60
96	MKSE00000743 Available to backorder	Pcb J Ass'y	£10.40 £8.67
98	MKSE00000195 Available to backorder	W/Ties 100mm	£0.48 £0.40
99	MKSE00000744 Available to backorder	Rear Cabinet Packing	£1.88 £1.57
