Makita DMR108B - Job Site Radio - Power Tool Diagram

Description

Model No. DMR108B

Job Site Radio

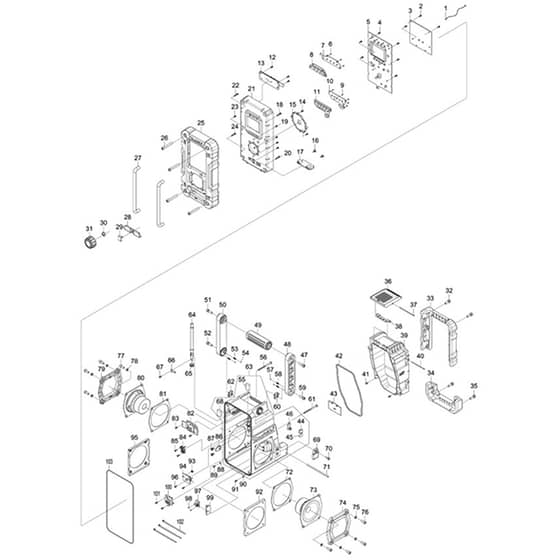

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MKSE00000437 Available to backorder	Wire	£1.10 £0.92
2	MKSE00000325 Available to backorder	Screw Ptb 3x8(Ni) (Refs 004 \| 012 \| 014 \| 019 \| 023 \| 041 \| 067 \| 083 \| 085 \| 089 \| 091 \| 096 \| 101)	£0.48 £0.40
3	MKSE00000822 Available to backorder	Pcb A Assembly (Alt.)	£103.34 £86.12
6	MKSE09090011 Available to backorder	Screw 1.7 (Refs 009 \| 098)	£0.48 £0.40
7	MKSE00000333 Available to backorder	Power Button Holder	£1.74 £1.45
8	MKSE00000334 Available to backorder	Power Button	£2.46 £2.05
10	MKSE00000336 Available to backorder	Preset Button Holder	£1.74 £1.45
11	MKSE00000337 Available to backorder	Preset Button	£2.60 £2.17
13	MKSE00000339 Available to backorder	Pcb P Ant Bar Ass'y	£11.26 £9.38
15	MKSE00000239 Available to backorder	Knob Lens Holder	£1.44 £1.20
15	MKSE00000656 Available to backorder	Knob Lens Holder <	£1.52 £1.27
16	MKSE00000193 Available to backorder	Screw 3x10	£0.48 £0.40
17	MKSE00000343 Available to backorder	Pcb P Usb Ass'y	£10.26 £8.55
18	MKSE09064161 Available to backorder	Screw M4x16 (Refs 020 \| 022 \| 024)	£0.48 £0.40
21	MKSE00000347 Available to backorder	Front Cabinet Ass'y	£25.72 £21.43
25	MKSE00000351 Available to backorder	Front Bumper	£35.24 £29.37
26	MKSE00000160 Available to backorder	Screw Pthe6x47(Cr)	£0.74 £0.62
27	MKSE0338PC5Z Available to backorder	Front Bar	£9.40 £7.83
28	MKSE00000355 Available to backorder	Jack Rubber Cover	£2.32 £1.93
29	MKSE00000356 Available to backorder	Jack Cover	£1.44 £1.20
30	MKSE21B1110A Available to backorder	Rotary Knob Ring	£0.48 £0.40
31	MKSE00000482 Available to backorder	Rotary Knob (Blk)	£7.80 £6.50
32	MKSE09176166 Available to backorder	Hex Screw M6x16 (Refs 035 \| 052 \| 059)	£0.74 £0.62
33	MKSE00000357 Available to backorder	Battery Bumper	£22.54 £18.78
34	MKSE00000359 Available to backorder	Rear Bumper	£11.84 £9.87
36	MKSE00000362 Available to backorder	Locker Cover	£5.36 £4.47
37	MKSE00000364 Available to backorder	Locker Fixer Pin 73.5mm	£0.74 £0.62
38	MKSE00000365 Available to backorder	Lock Hinger	£0.86 £0.72
39	MKSE00000483 Available to backorder	Battery Cover	£7.22 £6.02
40	MKSE00000369 Available to backorder	Locker Fixer Pin 64.5mm	£0.74 £0.62
42	MKSE00000371 Available to backorder	Battery Cover Packing	£7.80 £6.50
43	MKSE0307PC5Z Available to backorder	Back Up Battery Cover	£0.86 £0.72
44	MKSE00000466 Available to backorder	Battery Contact	£43.78 £36.48
45	MKSE00000467 Available to backorder	Battery Contact	£5.94 £4.95
46	MKSE021E9030 Available to backorder	Battery Contact Assy	£0.58 £0.48
47	MKSE00000176 Available to backorder	Screw Pthe6x20(Cr)	£0.58 £0.48
48	MKSE00000177 Available to backorder	Handle Holder(R)	£2.46 £2.05
49	MKSE00000179 Available to backorder	Handle	£4.48 £3.73
50	MKSE00000180 Available to backorder	Handle Holder (L)	£2.46 £2.05
53	MKSE00000184 Available to backorder	Spring	£0.48 £0.40
54	MKSE09994007 Available to backorder	Steel Ball	£0.48 £0.40
55	MKSE023PC020 Available to backorder	Eva 25x18x5.5	£0.48 £0.40
56	MKSE00000445 Available to backorder	Screw Ptb 3x45(Ni)	£0.48 £0.40
60	MKSE00000187 Available to backorder	Handle Sus-Plate (R)	£1.02 £0.85
62	MKSE00000192 Available to backorder	Handle Sus-Plate(L)	£1.02 £0.85
63	MKSE00000485 Available to backorder	Rear Cabinet(Blue) Ass'y	£23.68 £19.73
64	MKSE00000395 Available to backorder	Rubber Ant 88-108(Blk)	£10.12 £8.43
65	MKSE00000398 Available to backorder	Rod Ant Packing	£0.48 £0.40
66	MKSE00000396 Available to backorder	Rod Ant Terminal	£0.86 £0.72
69	MKSE00000403 Available to backorder	Dc Rubber Cover	£2.18 £1.82
70	MKSE00000404 Available to backorder	Screw Pthe 3x14(Cr)	£0.74 £0.62
71	MKSE021PC030 Available to backorder	Battery Cover Locker	£0.86 £0.72
72	MKSE00000406 Available to backorder	Speaker Packing	£1.74 £1.45
73	MKSE00000407 Available to backorder	Speaker(R)	£25.14 £20.95
74	MKSE00000408 Available to backorder	Speaker Panel Ass'y	£7.80 £6.50
75	MKSE024J9040 Available to backorder	Packing	£0.48 £0.40
76	MKSE9076146A Available to backorder	Hex Screw M6x14	£0.58 £0.48
80	MKSE00000438 Available to backorder	Speaker (L)	£25.14 £20.95
82	MKSE00000416 Available to backorder	Terminal E (B)	£5.20 £4.33
84	MKSE00000200 Available to backorder	Terminal C	£1.16 £0.97
86	MKSE00000423 Available to backorder	Pcb B Aux In 2 Ass'y	£9.12 £7.60
88	MKSE00000199 Available to backorder	Silicon Rubber Washer	£0.48 £0.40
92	MKSE00000422 Available to backorder	Speaker Holder	£2.60 £2.17
93	MKSE00000430 Available to backorder	Switch Knob	£0.74 £0.62
94	MKSE00000488 Available to backorder	Pcb D Battery Switch Ass'y	£1.44 £1.20
97	MKSE00000433 Available to backorder	Pcb B Dc Jack Ass'y	£9.12 £7.60
99	MKSE00000435 Available to backorder	Dc Jack Holder	£0.86 £0.72
100	MKSE00000473 Available to backorder	Terminal 10.8V Assy	£40.60 £33.83
102	MKSE00000195 Available to backorder	W/Ties 100mm	£0.48 £0.40
103	MKSE024PC040 Available to backorder	Packing	£1.60 £1.33
