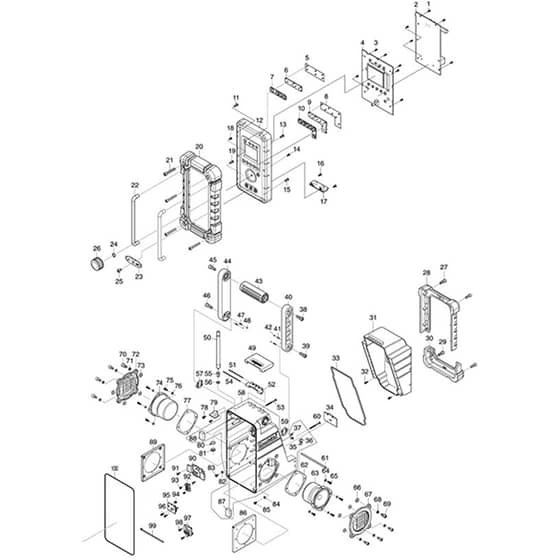

Makita DMR107 - Job Site Radio - Power Tool Diagram

Description

Model No. DMR107

Job Site Radio

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MKSE00000325 Available to backorder	Screw Ptb 3x8(Ni) (Refs 003 \| 032 \| 091 \| 093 \| 096 \| 098)	£0.48 £0.40
2	MKSE00000459 Available to backorder	Circuit Board A Assy	£107.76 £89.80
2	MKSE00000826 Available to backorder	Pcb A Assembly (Alt.)	£99.52 £82.93
5	MKSE09090011 Available to backorder	Screw 1.7	£0.48 £0.40
6	MKSE020PC020 Available to backorder	Power Button Holder	£1.02 £0.85
7	MKSE00000157 Available to backorder	Power Button (Gry)	£2.18 £1.82
9	MKSE020PC030 Available to backorder	Preset Button Holder	£1.02 £0.85
10	MKSE00000158 Available to backorder	Preset Button (Gry)	£1.44 £1.20
11	MKSE09064161 Available to backorder	Screw M4x16 (Refs 013 \| 015 \| 019)	£0.48 £0.40
12	MKSE00000204 Available to backorder	Front Cabinet Assy	£16.34 £13.62
14	MKSE09163102 Available to backorder	Screw M3x10	£0.48 £0.40
16	MKSE00000193 Available to backorder	Screw 3x10 (Refs 078 \| 083 \| 085)	£0.48 £0.40
17	MKSE00000464 Available to backorder	Pcb-P Dc Jack Assy	£38.42 £32.02
20	MKSE00000159 Available to backorder	Front Bumper	£30.78 £25.65
21	MKSE00000160 Available to backorder	Screw Pthe6x47(Cr)	£0.74 £0.62
22	MKSE0338PC5Z Available to backorder	Front Bar	£9.40 £7.83
24	MKSE21B1110A Available to backorder	Rotary Knob Ring	£0.48 £0.40
25	MKSE09173106 Available to backorder	Hex Screw M3x10	£0.58 £0.48
26	MKSE00000465 Available to backorder	Rotary Knob Blk	£5.94 £4.95
27	MKSE09176166 Available to backorder	Hex Screw M6x16 (Refs 029 \| 039 \| 046)	£0.74 £0.62
28	MKSE00000162 Available to backorder	Battery Cover Bumper	£16.76 £13.97
30	MKSE00000165 Available to backorder	Rear Bumper	£12.28 £10.23
31	MKSE00000166 Available to backorder	Battery Cover	£18.20 £15.17
33	MKSE00000168 Available to backorder	Packing	£7.66 £6.38
34	MKSE0307PC5Z Available to backorder	Back Up Battery Cover	£0.86 £0.72
35	MKSE00000466 Available to backorder	Battery Contact	£43.78 £36.48
36	MKSE00000467 Available to backorder	Battery Contact	£5.94 £4.95
37	MKSE021E9030 Available to backorder	Battery Contact Assy	£0.58 £0.48
38	MKSE00000176 Available to backorder	Screw Pthe6x20(Cr)	£0.58 £0.48
40	MKSE00000177 Available to backorder	Handle Holder(R)	£2.46 £2.05
41	MKSE00000184 Available to backorder	Spring	£0.48 £0.40
42	MKSE09994007 Available to backorder	Steel Ball	£0.48 £0.40
43	MKSE00000179 Available to backorder	Handle	£4.48 £3.73
44	MKSE00000180 Available to backorder	Handle Holder (L)	£2.46 £2.05
49	MKSE00000190 Available to backorder	Battery Cover Locker	£1.32 £1.10
50	MKSE00000191 Available to backorder	Rod Ant (Blk)	£5.64 £4.70
51	MKSE021PC050 Available to backorder	Locker Fixer Pin 62.8	£0.74 £0.62
52	MKSE00000067 Available to backorder	Locker Hinger	£0.74 £0.62
53	MKSE09163452 Available to backorder	Screw M3x45	£0.48 £0.40
54	MKSE021PC040 Available to backorder	Locker Fixer Pin 79.5	£0.74 £0.62
55	MKSE021J9032 Available to backorder	Rod Ant Holder	£1.02 £0.85
56	MKSE024J9050 Available to backorder	Packing	£0.48 £0.40
57	MKSE00000192 Available to backorder	Handle Sus-Plate(L)	£1.02 £0.85
58	MKSE00000468 Available to backorder	Rear Cabinet(Blue)Assy	£3.04 £2.53
59	MKSE00000187 Available to backorder	Handle Sus-Plate (R)	£1.02 £0.85
61	MKSE021PC030 Available to backorder	Battery Cover Locker	£0.86 £0.72
62	MKSE024J9030 Available to backorder	Packing	£1.74 £1.45
63	MKSE01620771 Available to backorder	Speaker	£19.80 £16.50
64	MKSE024J9070 Available to backorder	Packing	£0.48 £0.40
65	MKSE09090023 Available to backorder	Screw M4x12	£0.48 £0.40
66	MKSE024J9090 Available to backorder	Packing	£0.48 £0.40
67	MKSE00000205 Available to backorder	Speaker Net Assy	£4.04 £3.37
68	MKSE024J9040 Available to backorder	Packing	£0.48 £0.40
69	MKSE9076146A Available to backorder	Hex Screw M6x14	£0.58 £0.48
79	MKSE00000470 Available to backorder	Pcb F Aux-2 Ass'y 07Fy301	£44.36 £36.97
80	MKSE021PC100 Available to backorder	Rod Ant Terminal	£1.16 £0.97
81	MKSE021P0020 Available to backorder	Nut	£0.58 £0.48
82	MKSE00000199 Available to backorder	Silicon Rubber Washer	£0.48 £0.40
86	MKSE021J9010 Available to backorder	Speaker Holder	£1.88 £1.57
87	MKSE023PC020 Available to backorder	Eva 25x18x5.5	£0.48 £0.40
90	MKSE00000416 Available to backorder	Terminal E (B)	£5.20 £4.33
92	MKSE00000200 Available to backorder	Terminal C	£1.16 £0.97
94	MKSE00000430 Available to backorder	Switch Knob	£0.74 £0.62
95	MKSE00000472 Available to backorder	Pcb Battery Switch Assy	£5.94 £4.95
97	MKSE00000473 Available to backorder	Terminal 10.8V Assy	£40.60 £33.83
99	MKSE00000195 Available to backorder	W/Ties 100mm	£0.48 £0.40
100	MKSE024PC040 Available to backorder	Packing	£1.60 £1.33
