Model No. DML809

Cordless Worklight

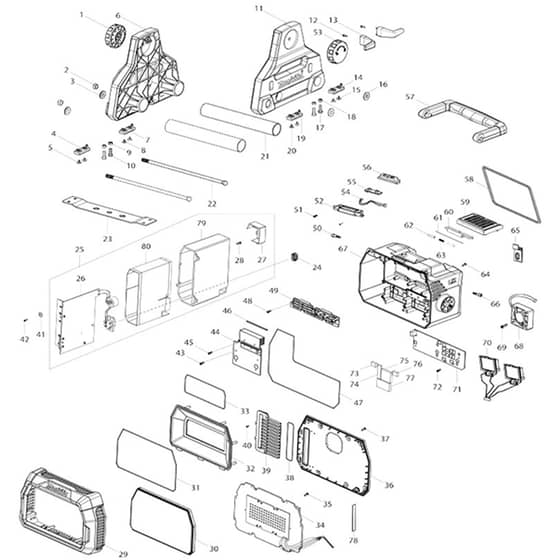

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MKGM00002160 Available to backorder	Latch Knob Assy	£5.20 £4.33
2	MKGM00002158 Available to backorder	Nut M8	£1.02 £0.85
3	MKGM00002157 Available to backorder	Metal Od20xid8.5x2mm	£1.02 £0.85
4	MKGM00002154 Available to backorder	Rubber Foot (Refs 007 \| 014 \| 019)	£1.44 £1.20
5	MKGM00002164 Available to backorder	Screw 3x6 Pwb (Refs 008 \| 015 \| 020)	£0.48 £0.40
6	MKGM00002162 Available to backorder	Stand Left Assy	£20.66 £17.22
9	MKGM00002155 Available to backorder	Nut M5	£0.58 £0.48
10	MKGM00002156 Available to backorder	Screw 5x15 Pm	£0.86 £0.72
11	MKGM00002161 Available to backorder	Stand Right Assy	£20.66 £17.22
12	MKGM00002165 Available to backorder	Screw 3x18 Pt (Refs 035 \| 037 \| 043 \| 045 \| 048 \| 064 \| 072)	£0.58 £0.48
13	MKGM00002159 Available to backorder	Ac Power Cord Hooks	£3.04 £2.53
21	MKGM00002192 Available to backorder	Metal Stand Holding Tube	£11.06 £9.22
22	MKGM00002191 Available to backorder	Metal M8 Bolt	£9.82 £8.18
23	MKGM00002190 Available to backorder	Metal Base Holding Plate	£18.30 £15.25
24	MKGM00002150 Available to backorder	Ac Socket Holder O-Ring	£1.16 £0.97
25	MKGM00002264 Available to backorder	Ac Power Complete Eu (INC. 26-28 79 80)	£193.70 £161.42
26	MKGM00002262 Available to backorder	Ac Power Assy Eu	£172.00 £143.33
27	MKGM00002187 Available to backorder	Ferrite Ring Holder	£0.96 £0.80
28	MKGM00001332 Available to backorder	Screw 3 x 8 Pb	£0.58 £0.48
29	MKGM00002167 Available to backorder	Front Cover Assy	£36.30 £30.25
30	MKGM00002168 Available to backorder	Lens Ass'y	£19.54 £16.28
31	MKGM00002169 Available to backorder	Lens O-Ring	£2.46 £2.05
32	MKGM00002170 Available to backorder	Reflector Ass'y	£17.20 £14.33
33	MKGM00002171 Available to backorder	Heat Sink O-Ring	£2.06 £1.72
34	MKGM00002172 Available to backorder	Led Pcba Ass'y	£159.70 £133.08
36	MKGM00002173 Available to backorder	Mid-Body Cover	£22.54 £18.78
38	MKGM00002175 Available to backorder	Rubber Heat Sink	£1.92 £1.60
39	MKGM00002174 Available to backorder	Ac Power Heat Sink	£12.56 £10.47
41	MKGM00002254 Available to backorder	Nylon Washer	£0.54 £0.45
42	MKGM00002260 Available to backorder	Screw 3x13 Pwb	£0.48 £0.40
44	MKGM00002253 Available to backorder	Heat Sink Assy	£8.88 £7.40
46	MKGM00002178 Available to backorder	Mid Body O-Ring	£1.24 £1.03
47	MKGM00002176 Available to backorder	Mid-Body O-Ring	£1.36 £1.13
49	MKGM00002180 Available to backorder	Terminal Holding Plate Assy	£2.46 £2.05
50	MKGM00002137 Available to backorder	Inside-Hex Screw	£1.60 £1.33
51	MKGM00001333 Available to backorder	Screw 3 x 12Pb B0130120702	£0.58 £0.48
52	MKGM00002138 Available to backorder	Switch Holder	£1.16 £0.97
54	MKGM00002181 Available to backorder	4P Wafer	£2.34 £1.95
55	MKGM00002182 Available to backorder	Switch Pcba Assy	£3.54 £2.95
56	MKGM00002141 Available to backorder	Switch Assy	£3.04 £2.53
57	MKGM00002185 Available to backorder	Handle Assy	£15.02 £12.52
58	MKGM00002183 Available to backorder	O-Ring Mid Body	£2.34 £1.95
59	MKGM00002258 Available to backorder	Latch A	£1.64 £1.37
60	MKGM00002257 Available to backorder	Latch B	£1.24 £1.03
61	MKGM00002256 Available to backorder	Shaft B	£0.96 £0.80
62	MKGM00002255 Available to backorder	Shaft A	£0.96 £0.80
63	MKGM00002259 Available to backorder	Spring	£0.48 £0.40
65	MKGM00002142 Available to backorder	Ac Socket O-Ring	£2.02 £1.68
67	MKGM00002184 Available to backorder	Mid Body Assy	£57.06 £47.55
68	MKGM00002194 Available to backorder	Cooling Fan	£58.14 £48.45
69	MKGM00002193 Available to backorder	Screw 4x30 Pa	£0.48 £0.40
70	MKGM00002200 Available to backorder	Battery Holder Assy	£21.84 £18.20
71	MKGM00002202 Available to backorder	Main Pcba Assy	£125.86 £104.88
73	MKGM00002195 Available to backorder	Silicon Rubber 15x10x5.7	£1.36 £1.13
74	MKGM00002196 Available to backorder	Silicon Rubber 38x10x3.5	£1.64 £1.37
75	MKGM00002197 Available to backorder	Silicon Rubber 30x30x5.7	£3.28 £2.73
77	MKGM00002198 Available to backorder	Silicon Rubber 40x23x7.1	£3.96 £3.30
78	MKGM00002134 Available to backorder	Eva-B	£0.54 £0.45
79	MKGM00002186 Available to backorder	Ac Power Case Assy	£14.88 £12.40
80	MKGM00002201 Available to backorder	Ac Case Isolated Sheet Assy	£6.82 £5.68
901	MKGM00002378 Available to backorder	Tripod (F01)	£208.63 £173.86
901	MKGM00002127 Available to backorder	Vde Ac Power Cord (A01)	£16.26 £13.55
904	MKGM00002286 Available to backorder	Lamp Shade (F04)	£30.28 £25.23
