Makita DLS714 - Dc Slide Compound Miter Saw - Power Tool 02 Diagram

Name: Makita DLS714 - Dc Slide Compound Miter Saw - Power Tool 02 Diagram
SKU: dls714_dc_slide_compound_miter_saw_power_tool_02-group
Price: 0.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita DLS714 - Dc Slide Compound Miter Saw - Power Tool 02 Diagram

Description

Model No. DLS714

Dc Slide Compound Miter Saw

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
113	MK231325-3 Available to backorder	Compression Spring 6 (Refs 121 \| 182)	£0.58 £0.48
114	MK319193-5 Available to backorder	Guide Fence	£44.20 £36.83
115	MK922344-7 Available to backorder	Hex. Socket Head Bolt M6x25 Wg	£0.74 £0.62

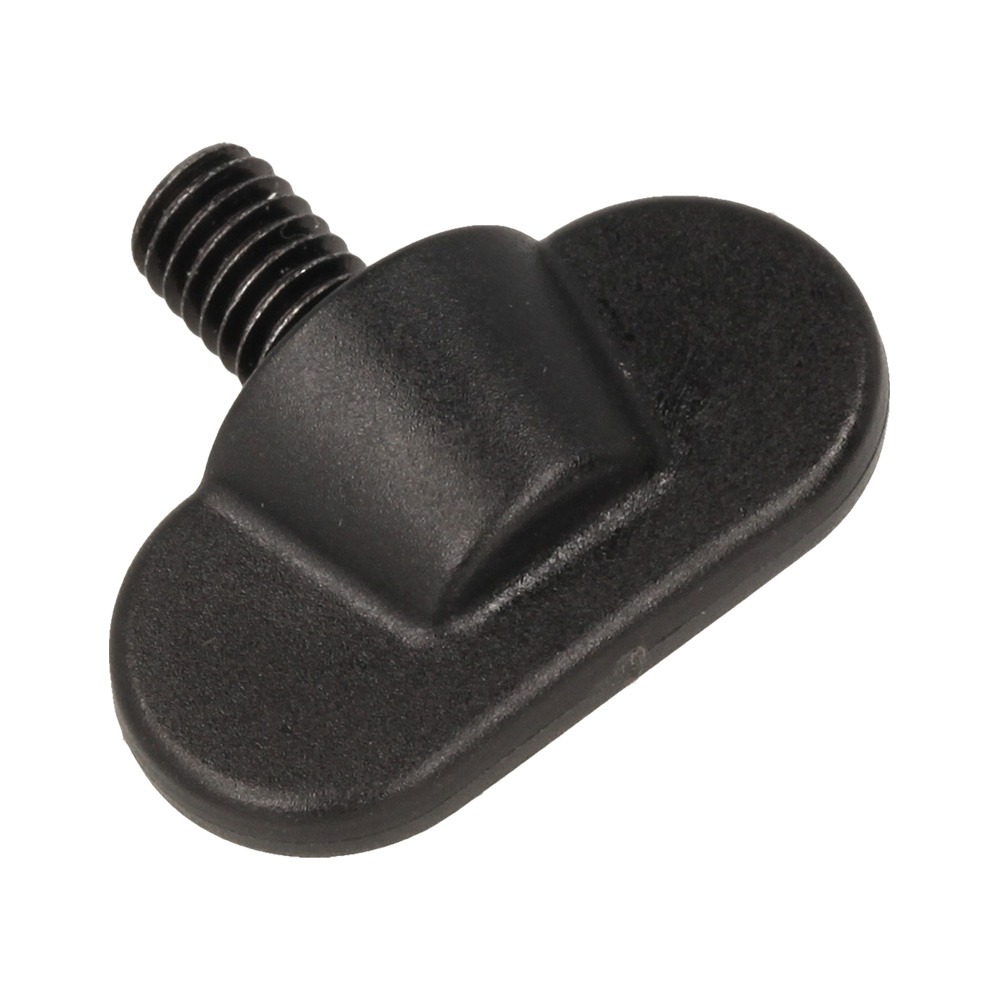

116	MK251887-5 In stock	Thumb Screw M6x10 (Refs 193 \| C20)	£2.18 £1.82
117	MK416535-5 Available to backorder	Sleeve 17	£1.32 £1.10
118	MK233520-1 Available to backorder	Torsion Spring 28	£5.48 £4.57
120	MK265790-4 Available to backorder	Thumb Screw M6x28	£0.74 £0.62
122	MK257214-4 Available to backorder	Ring 26	£8.54 £7.12
123	MK318651-8 Available to backorder	Pipe Holder	£10.84 £9.03
124	MK266208-8 Available to backorder	Hex. Socket Set Screw (Cup Point) M6x8	£0.74 £0.62
127	MK687045-1 Available to backorder	Strain Relief	£0.86 £0.72
128	MK266026-4 Available to backorder	Binding Head Tapping Screw 4x1 (Refs 144 \| 168 \| 169 \| 170)	£0.48 £0.40
129	MK911113-1 Available to backorder	Pan Head Screw M4x10 Wr	£0.48 £0.40

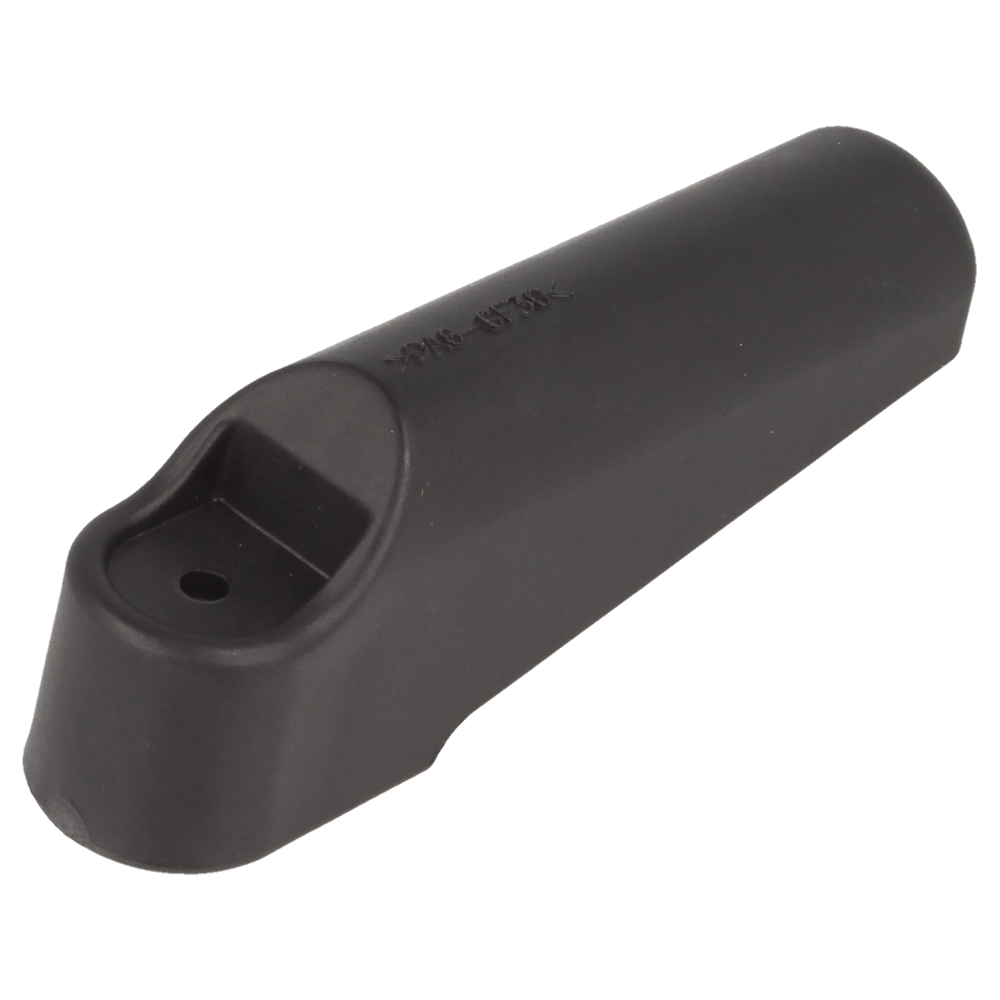

130	MK416006-2 Available to backorder	Lever 100	£5.36 £4.47
131	MK913106-4 Available to backorder	Hex. Socket Set Screw (Cup Point) M4x8	£0.58 £0.48

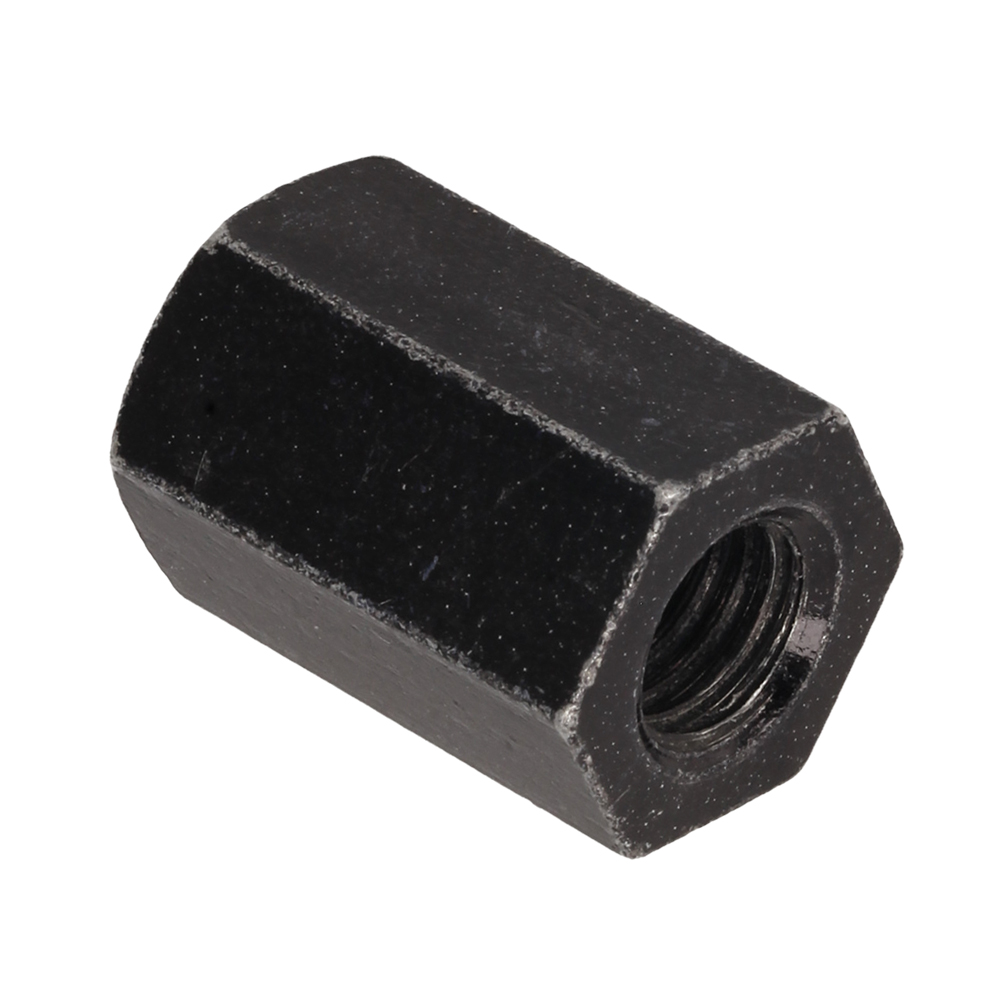

132	MK252144-4 Available to backorder	Hex. Nut M10-17	£4.34 £3.62

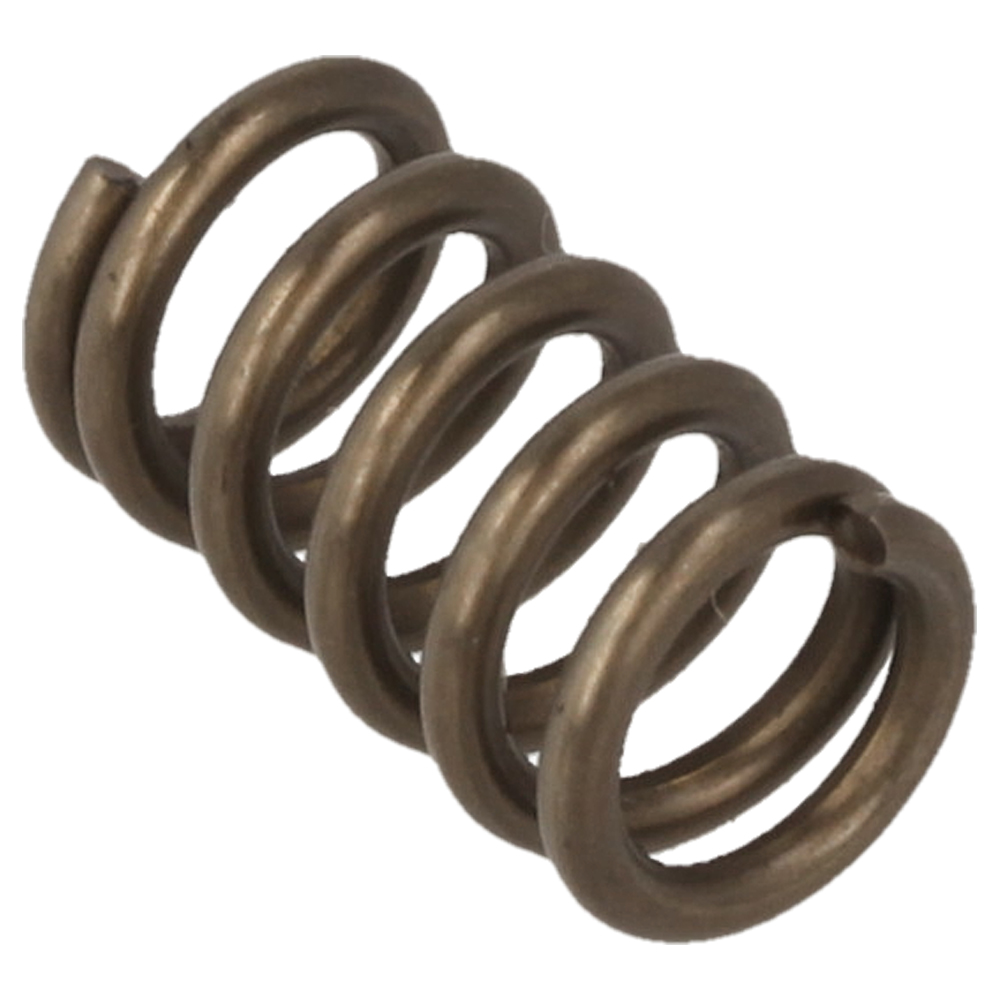

133	MK231266-3 In stock	Compression Spring 5	Was £0.44 £0.37 Special Price £0.20 £0.17
134	MK253024-7 Available to backorder	Flat Washer 10 (Refs 159 \| 161)	£0.74 £0.62
135	MK286236-7 Available to backorder	Cap 16	£0.74 £0.62
136	MK211376-2 Available to backorder	Linear Ball Bearing 2560 (C10)	£29.46 £24.55
136	MK263005-3 In stock	Rubber Pin 6 (C30)	£0.47 £0.39
136	MK344638-4 Available to backorder	Cap 35 (C40)	£1.16 £0.97
136	MK262077-5 Available to backorder	Felt Ring 25 (C20)	£2.02 £1.68
136	MK140609-7 Available to backorder	Arm Complete	£134.34 £111.95
137	MK324295-4 Available to backorder	Release Pin	£2.18 £1.82
138	MK266757-5 Available to backorder	Hex. Socket Head Bolt M6x16	£0.48 £0.40
139	MK345299-3 Available to backorder	Stopper Plate	£1.44 £1.20
140	MK253726-5 Available to backorder	Flat Washer 6	£0.48 £0.40
141	MK231663-3 Available to backorder	Torsion Spring 8	£0.74 £0.62
142	MK265113-6 Available to backorder	Pan Head Shoulder Screw M5x12	£0.74 £0.62
143	MK343678-9 Available to backorder	Pointer	£1.16 £0.97
145	MK140608-9 Available to backorder	Front Arm Complete	£108.04 £90.03
146	MK344643-1 Available to backorder	Stopper Arm	£1.74 £1.45
147	MK253948-7 Available to backorder	Wave Washer 8	£0.48 £0.40
148	MK253835-0 Available to backorder	Flat Washer 8	£0.58 £0.48
149	MK251267-5 Available to backorder	Pan Head Shoulder Screw M6	£1.16 £0.97
150	MK251961-9 Available to backorder	Hex. Socket Set Screw (Flat Point) M6x10	£0.48 £0.40
152	MK271601-3 Available to backorder	Knob 20	£0.58 £0.48
153	MK213021-5 Available to backorder	O-Ring 5	£0.48 £0.40
154	MK324183-5 Available to backorder	Stopper Pin	£1.16 £0.97
155	MK331350-5 Available to backorder	Pin 16-90	£5.94 £4.95
156	MK140610-2 Available to backorder	Arm Holder Complete	£101.56 £84.63
156	MK816392-5 Available to backorder	Bevel Scale Label (C10)	£1.32 £1.10
157	MK256123-4 Available to backorder	Pin 5	£1.32 £1.10
158	MK266320-4 Available to backorder	Screw M10	£4.04 £3.37
160	MK216413-7 Available to backorder	Thrust Needle Cage 1024	£2.18 £1.82
162	MK252130-5 Available to backorder	Hex. Lock Nut M10-17	£1.60 £1.33
165	MK252105-4 Available to backorder	Hex. Lock Nut M8-13	£1.02 £0.85
166	MK253731-2 Available to backorder	Flat Washer 8	£0.48 £0.40
167	MK416355-7 Available to backorder	Pointer	£1.74 £1.45
171	MK419103-3 Available to backorder	Kerf Board	£1.88 £1.57
173	MK140614-4 Available to backorder	Turn Base Complete	£168.58 £140.48
173	MK810495-7 Available to backorder	Caution Label (C50)	£0.48 £0.40
173	MK813L22-1 Available to backorder	Caution Label < (C61)	£0.48 £0.40
173	MK817283-3 Available to backorder	Caution Label (C60)	£0.74 £0.62
174	MK922111-0 Available to backorder	Hex. Socket Head Bolt M4x10 W	£0.58 £0.48
175	MK153580-6 Available to backorder	Square Rod Complete	£11.42 £9.52
176	MK925251-3 Available to backorder	Hex. Head Bolt M5x30 W	£0.58 £0.48
177	MK266034-5 Available to backorder	Binding Head Tapping Screw 4x16	£0.48 £0.40
178	MK344601-7 Available to backorder	Lock Plate	£1.16 £0.97
179	MK317616-7 Available to backorder	Pin Holder	£8.08 £6.73
180	MK256158-5 Available to backorder	Pin 3	£0.74 £0.62
181	MK324288-1 Available to backorder	Lock Pin	£3.34 £2.78

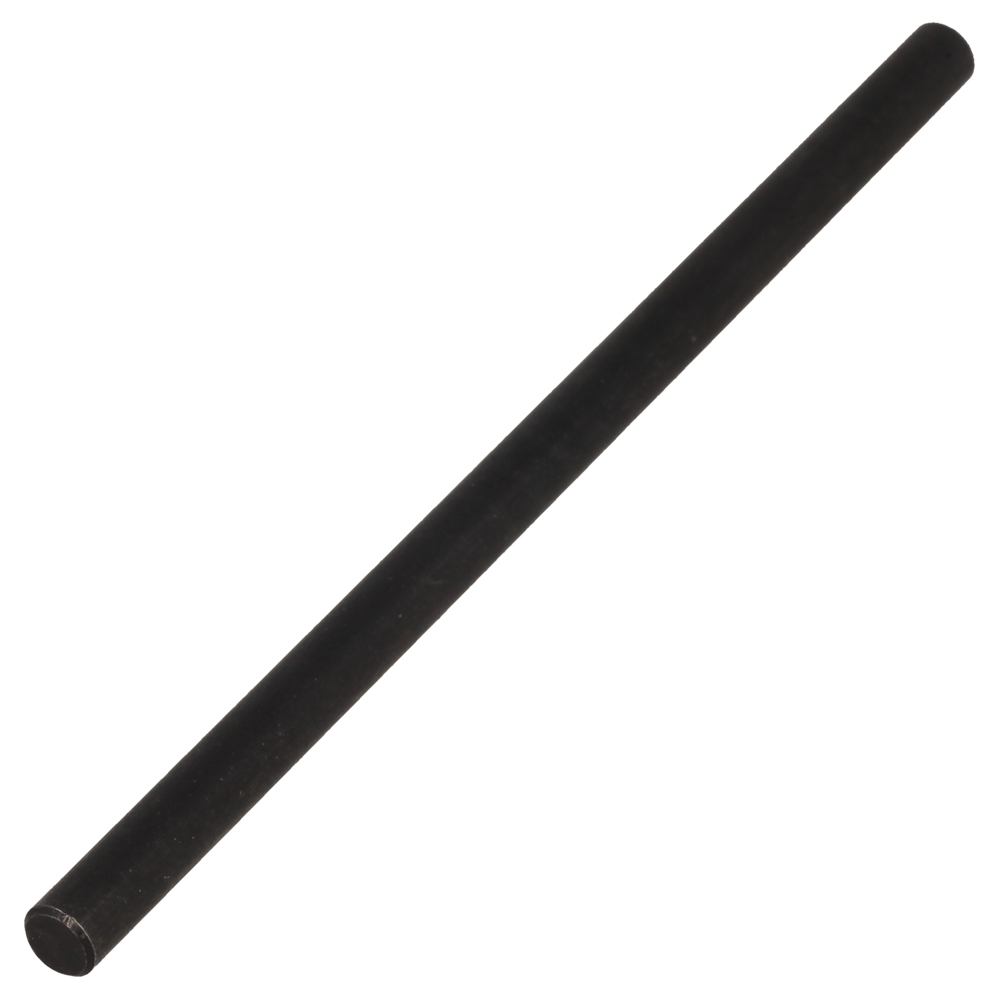

183	MK324289-9 Available to backorder	Rod 6	£1.16 £0.97

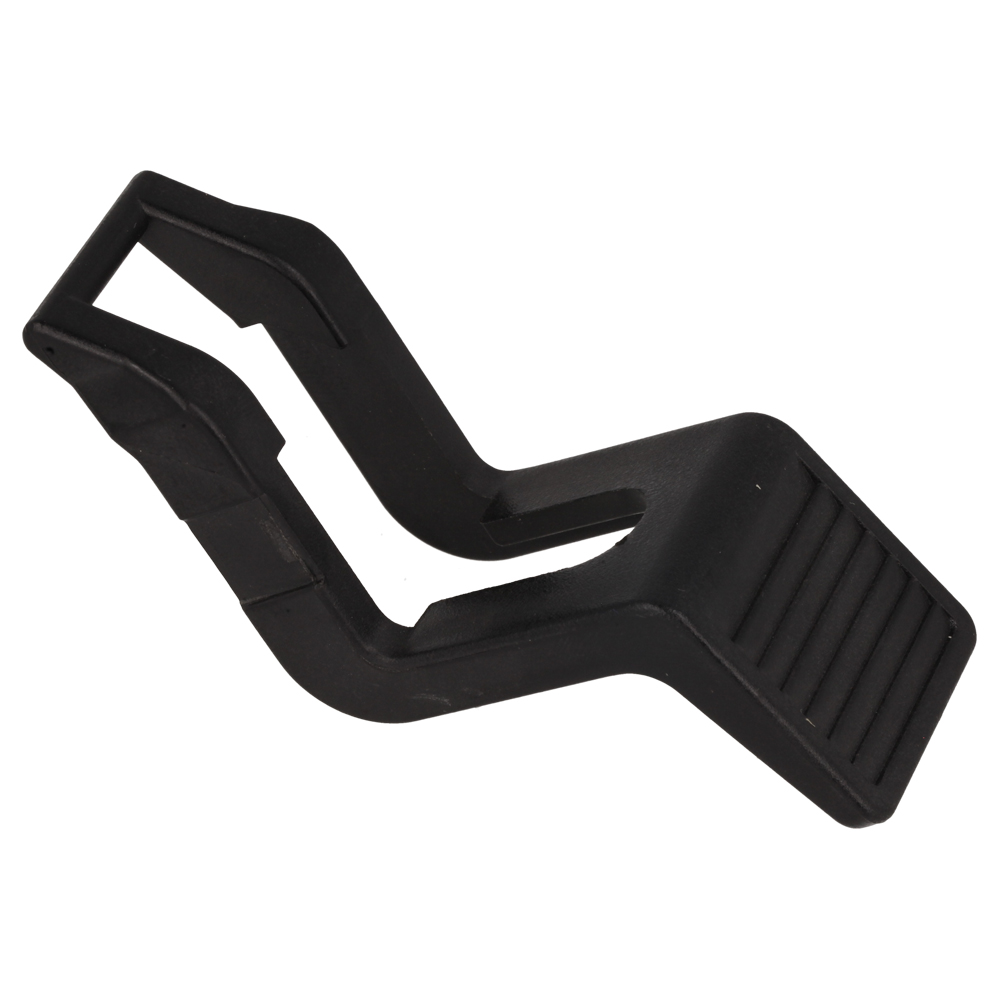

184	MK416450-3 Available to backorder	Lock Lever	£2.18 £1.82
185	MK345272-3 Available to backorder	Lock Lever Plate	£1.32 £1.10
187	MK231418-6 Available to backorder	Compression Spring 9	£0.48 £0.40
189	MK266432-3 Available to backorder	Adjust Bolt M8x27	£2.02 £1.68

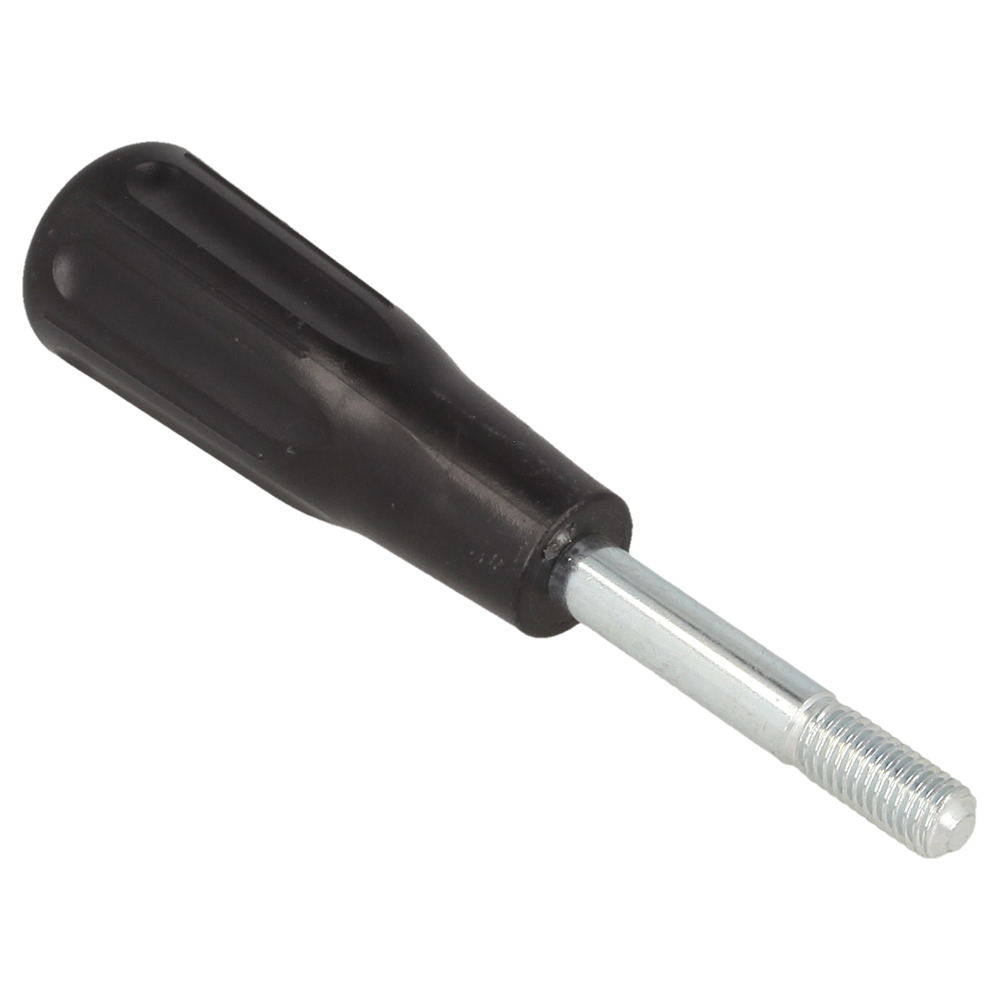

190	MK273658-0 Available to backorder	Grip 32	£13.00 £10.83
191	MK286212-1 Available to backorder	Cap 20	£0.58 £0.48
192	MK921472-5 Available to backorder	Hex. Head Bolt M8x50	£0.74 £0.62
193	MK911318-3 Available to backorder	Pan Head Screw M6x14 Wr <	£0.48 £0.40
194	MK816339-9 Available to backorder	Miter Scale Plate (C10)	£4.34 £3.62
194	MK810486-8 Available to backorder	Caution Label (C20)	£0.48 £0.40
194	MK140612-8 Available to backorder	Base Complete	£119.46 £99.55
195	MK344646-5 Available to backorder	Slide Plate	£2.32 £1.93
197	MK240033-5 Available to backorder	Fan 57	£4.34 £3.62
198	MK142811-8 Available to backorder	Sub Fence Complete	£22.24 £18.53
198	MK805R08-5 Available to backorder	Caution Label (C10)	£3.04 £2.53
199	MK252014-7 Available to backorder	Hex. Lock Nut M6-10	£0.74 £0.62
200	MK266061-2 Available to backorder	Binding Head Tapping Screw 4x8	£0.48 £0.40
201	MK345359-1 Available to backorder	Sub Fence Plate	£1.32 £1.10
202	MK253804-1 Available to backorder	Flat Washer 6	£0.48 £0.40
203	MK912357-6 Available to backorder	Countersunk Head Screw M6x35	£0.58 £0.48
204	MK620K96-7 Available to backorder	Controller B S	£21.56 £17.97
205	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
901	MK316938-2 Available to backorder	Vise Arm (C10)	£25.28 £21.07
901	MK251370-2 Available to backorder	Pan Head Shoulder Screw M5x15.5 (C70)	£0.58 £0.48
901	MK265733-6 Available to backorder	Thumb Screw M10x60 (C40)	£5.94 £4.95
901	MK343651-9 Available to backorder	Vise Plate (C60)	£1.32 £1.10
901	MK322313-2 Available to backorder	Vise Rod (C30)	£8.08 £6.73
901	MK122571-8 Available to backorder	Vise Assembly (A01)	£20.08 £16.73
902	MK410602-8 Available to backorder	Fastener (C10)	£0.58 £0.48

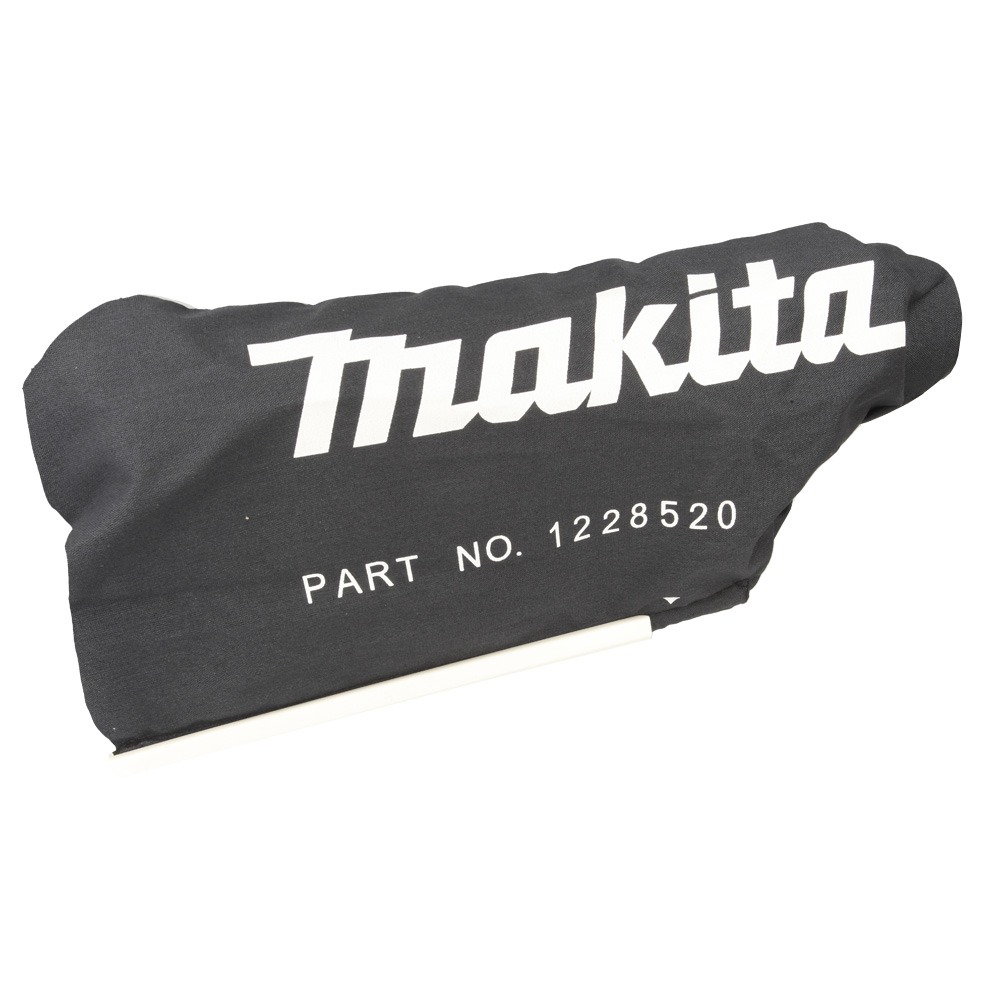

902	MK122852-0 In stock	Dust Bag Assembly (A02)	£4.66 £3.88
903	MK762001-3 Available to backorder	Triangular Rule (A03)	£1.22 £1.02
904	MK322312-4 Available to backorder	Holder (A04)	£9.24 £7.70
904	MK198688-9 Available to backorder	Stand Set < (F04-1)	£183.76 £153.13
905	MK783217-7 Available to backorder	Hex. Wrench 5 (Alt.) (A05-1B)	£0.56 £0.47
905	MK783203-8 Available to backorder	Hex. Wrench 5 (A05A)	£0.72 £0.60
906	MKB-03850 Available to backorder	T.C.T.Saw Blade 190x20x24 < (A06-1)	£32.02 £26.68
907	MK127056-9 Available to backorder	Holder Assembly (A07B)	£17.34 £14.45
934	MK198687-1 Available to backorder	Stand Set < (F34-2)	£511.82 £426.52
939	MK197265-4 Available to backorder	Battery Bl1840B Set (Alt.) (F39-2)	£273.12 £227.60
