Model No. DLS713

190mm Slide Compound Saw

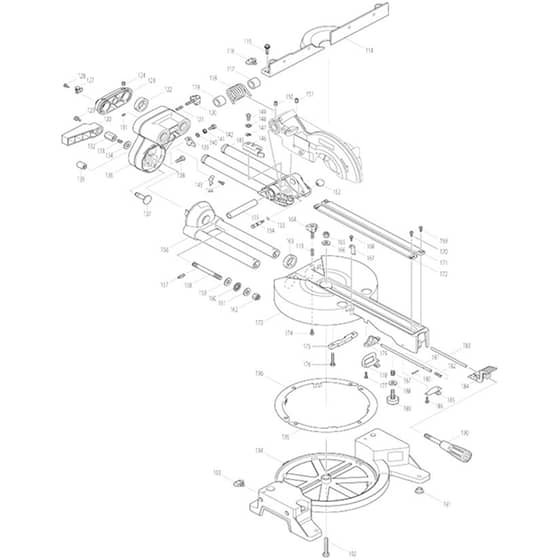

Power Tool 02 Parts Diagrams

	Part No.	Details
113	MK231325-3 Available to backorder	Compression Spring 6 (Refs 121 \| 182)	£0.70 £0.58
114	MK319193-5 Available to backorder	Guide Fence <	£45.72 £38.10
114	MK318655-0 Available to backorder	Guide Fence	£22.32 £18.60
115	MK922344-7 Available to backorder	Hex. Socket Head Bolt M6x25 Wg	£0.89 £0.74
116	MK251887-5 In stock	Thumb Screw M6x10 (Refs 193 \| C20)	£2.47 £2.06
117	MK416535-5 Available to backorder	Sleeve 17	£1.58 £1.32
118	MK231638-2 Available to backorder	Torsion Spring 28	£5.88 £4.90
120	MK265790-4 Available to backorder	Thumb Screw M6x28	£0.89 £0.74
122	MK257214-4 Available to backorder	Ring 26	£8.88 £7.40
123	MK318651-8 Available to backorder	Pipe Holder	£11.16 £9.30
124	MK266208-8 Available to backorder	Hex. Socket Set Screw (Cup Point) M6x8	£0.89 £0.74
127	MK687045-1 Available to backorder	Strain Relief	£1.03 £0.86
128	MK266026-4 Available to backorder	Binding Head Tapping Screw 4x12 (Refs 144 \| 168 \| 169 \| 170)	£0.48 £0.40
129	MK911113-1 Available to backorder	Pan Head Screw M4x10 Wr	£0.48 £0.40
130	MK416006-2 Available to backorder	Lever 100	£5.52 £4.60
131	MK913106-4 Available to backorder	Hex. Socket Set Screw (Cup Point) M4x8	£0.70 £0.58
132	MK252144-4 Available to backorder	Hex. Nut M10-17	£4.44 £3.70
133	MK231266-3 In stock	Compression Spring 5	Was £0.48 £0.40 Special Price £0.20 £0.17
134	MK253024-7 Available to backorder	Flat Washer 10 (Refs 159 \| 161)	£0.89 £0.74
135	MK286236-7 Available to backorder	Cap 16	£0.89 £0.74
136	MK140609-7 Available to backorder	Arm Complete	£129.00 £107.50
136	MK211376-2 Available to backorder	Linear Ball Bearing 2560 (C10)	£30.48 £25.40
136	MK262077-5 Available to backorder	Felt Ring 25 (C20)	£2.21 £1.84
136	MK263005-3 In stock	Rubber Pin 6 (C30)	£0.52 £0.43
136	MK344638-4 Available to backorder	Cap 35 (C40)	£1.39 £1.16
137	MK324295-4 Available to backorder	Release Pin	£2.38 £1.98
138	MK266757-5 Available to backorder	Hex. Socket Head Bolt M6x16	£0.48 £0.40
139	MK345299-3 Available to backorder	Stopper Plate	£1.73 £1.44
140	MK253726-5 Available to backorder	Flat Washer 6	£0.48 £0.40
141	MK231663-3 Available to backorder	Torsion Spring 8	£0.89 £0.74
142	MK265113-6 Available to backorder	Pan Head Shoulder Screw M5x12	£0.89 £0.74
143	MK343678-9 Available to backorder	Pointer	£1.39 £1.16
145	MK140608-9 Available to backorder	Front Arm Complete	£103.68 £86.40
146	MK344643-1 Available to backorder	Stopper Arm	£1.90 £1.58
147	MK253948-7 Available to backorder	Wave Washer 8	£0.48 £0.40
148	MK253835-0 Available to backorder	Flat Washer 8	£0.70 £0.58
149	MK251267-5 Available to backorder	Pan Head Shoulder Screw M6	£1.39 £1.16
150	MK251961-9 Available to backorder	Hex. Socket Set Screw (Flat Point) M6x10	£0.48 £0.40
152	MK271601-3 Available to backorder	Knob 20	£0.70 £0.58
153	MK213021-5 Available to backorder	O-Ring 5	£0.48 £0.40
154	MK324183-5 Available to backorder	Stopper Pin	£1.39 £1.16
155	MK331350-5 Available to backorder	Pin 16-90	£6.12 £5.10
156	MK816392-5 Available to backorder	Bevel Scale Label (C10)	£1.58 £1.32
156	MK140610-2 Available to backorder	Arm Holder Complete	£97.44 £81.20
157	MK256123-4 Available to backorder	Pin 5	£1.58 £1.32
158	MK266320-4 Available to backorder	Screw M10	£4.20 £3.50
160	MK216413-7 Available to backorder	Thrust Needle Cage 1024	£2.38 £1.98
162	MK252130-5 Available to backorder	Hex. Lock Nut M10-17	£1.74 £1.45
165	MK252105-4 Available to backorder	Hex. Lock Nut M8-13	£1.22 £1.02
166	MK253731-2 Available to backorder	Flat Washer 8	£0.48 £0.40
167	MK416355-7 Available to backorder	Pointer	£1.90 £1.58
171	MK419103-3 Available to backorder	Kerf Board	£2.05 £1.71
173	MK140614-4 Available to backorder	Turn Base Complete	£161.88 £134.90
173	MK813L22-1 Available to backorder	Caution Label < (C51)	£0.48 £0.40
173	MK810495-7 Available to backorder	Caution Label (C60)	£0.48 £0.40
173	MK817283-3 Available to backorder	Caution Label (C50)	£0.89 £0.74
174	MK922111-0 Available to backorder	Hex. Socket Head Bolt M4x10 W	£0.70 £0.58
175	MK153580-6 Available to backorder	Square Rod Complete	£11.76 £9.80
176	MK925251-3 Available to backorder	Hex. Head Bolt M5x30 W	£0.70 £0.58
177	MK266034-5 Available to backorder	Binding Head Tapping Screw 4x16	£0.48 £0.40
178	MK344601-7 Available to backorder	Lock Plate	£1.39 £1.16
179	MK317616-7 Available to backorder	Pin Holder	£8.40 £7.00
180	MK256158-5 Available to backorder	Pin 3	£0.89 £0.74
181	MK324288-1 Available to backorder	Lock Pin	£3.48 £2.90
183	MK324289-9 Available to backorder	Rod 6	£1.39 £1.16
184	MK416450-3 Available to backorder	Lock Lever	£2.38 £1.98
185	MK345272-3 Available to backorder	Lock Lever Plate	£1.58 £1.32
187	MK231418-6 Available to backorder	Compression Spring 9	£0.48 £0.40
189	MK266432-3 Available to backorder	Adjust Bolt M8x27	£2.21 £1.84
190	MK273658-0 Available to backorder	Grip 32	£13.44 £11.20
191	MK286212-1 Available to backorder	Cap 20	£0.70 £0.58
192	MK921472-5 Available to backorder	Hex. Head Bolt M8x50	£0.89 £0.74
193	MK911318-3 Available to backorder	Pan Head Screw M6x14 Wr <	£0.48 £0.40
194	MK816339-9 Available to backorder	Miter Scale Plate (C10)	£4.44 £3.70
194	MK810486-8 Available to backorder	Caution Label (C20)	£0.48 £0.40
194	MK140612-8 Available to backorder	Base Complete	£114.72 £95.60
195	MK344646-5 Available to backorder	Slide Plate	£2.53 £2.11
197	MK241873-4 Available to backorder	Fan 55	£2.69 £2.24
901	MK265733-6 Available to backorder	Thumb Screw M10x60 (C40)	£6.12 £5.10
901	MK122571-8 Available to backorder	Vise Assembly (A01)	£20.76 £17.30
901	MK343651-9 Available to backorder	Vise Plate (C60)	£1.58 £1.32
901	MK142811-8 Available to backorder	Sub Fence Complete (E01)	£23.04 £19.20
901	MK251370-2 Available to backorder	Pan Head Shoulder Screw M5x15.5 (C70)	£0.70 £0.58
901	MK316938-2 Available to backorder	Vise Arm (C10)	£26.16 £21.80
901	MK322313-2 Available to backorder	Vise Rod (C30)	£8.40 £7.00
901	MK253804-1 Available to backorder	Flat Washer 6 (C50)	£0.48 £0.40
902	MK122852-0 In stock	Dust Bag Assembly (A02)	£4.80 £4.00
902	MK410602-8 Available to backorder	Fastener (C10)	£0.70 £0.58
902	MK252014-7 Available to backorder	Hex. Lock Nut M6-10 (E02)	£0.89 £0.74
903	MK266061-2 Available to backorder	Binding Head Tapping Screw 4x8 (E03)	£0.48 £0.40
903	MK762001-3 Available to backorder	Triangular Rule (A03)	£1.46 £1.22
904	MK198688-9 Available to backorder	Stand Set < (F04-1)	£176.40 £147.00
904	MK322312-4 Available to backorder	Holder (A04)	£9.60 £8.00
904	MK345359-1 Available to backorder	Sub Fence Plate (E04)	£1.58 £1.32
905	MK912357-6 Available to backorder	Countersunk Head Screw M6x35 (E05)	£0.70 £0.58
905	MK783203-8 Available to backorder	Hex. Wrench 5 (A05)	£0.86 £0.72
905	MK783217-7 Available to backorder	Hex. Wrench 5 (Alt.) (A05-1)	£0.67 £0.56
906	MKA-86147 Available to backorder	T.C.T.Saw Blade 190x20x40T (A06)	£76.44 £63.70
907	MK127056-9 Available to backorder	Holder Assembly (A07G)	£17.88 £14.90
908	MK197280-8 In stock	Battery Bl1850B Set (A08-1)	£76.24 £63.53
908	MK197600-6 Available to backorder	Battery Bl1830B Set < (A08-2D)	£197.76 £164.80
908	MK197265-4 Available to backorder	Battery Bl1840B Set < (A08-2E)	£229.42 £191.18
909	MK450128-8 Available to backorder	Battery Cover (A09)	£0.77 £0.64
934	MK198687-1 Available to backorder	Stand Set < (F34-2)	£460.64 £383.87
