Makita DLS600 - 165mm Cordless Miter Saw - Power Tool 02 Diagram

Description

Model No. DLS600

165mm Cordless Miter Saw

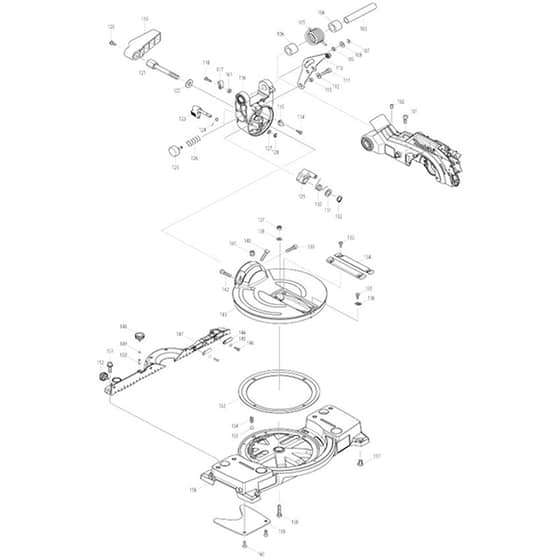

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
101	MK266757-5 Available to backorder	Hex. Socket Head Bolt M6x16	£0.48 £0.40
102	MK251961-9 Available to backorder	Hex. Socket Set Screw (Flat Point) M6x10	£0.48 £0.40
103	MK331350-5 Available to backorder	Pin 16-90	£5.94 £4.95
104	MK416535-5 Available to backorder	Sleeve 17	£1.32 £1.10
105	MK232310-9 Available to backorder	Torsion Spring 28	£8.06 £6.72
107	MK961018-5 Available to backorder	Stop Ring (Ext) E-5	£0.48 £0.40
108	MK253804-1 Available to backorder	Flat Washer 6 (Refs 112 \| C50)	£0.48 £0.40
110	MK144791-4 Available to backorder	Link Plate Complete	£16.66 £13.88
111	MK922331-6 Available to backorder	Hex. Socket Head Bolt M6x20 W	£0.74 £0.62
114	MK266026-4 Available to backorder	Binding Head Tapping Screw 4x12 (Refs 133 \| 135)	£0.48 £0.40
115	MK347058-1 Available to backorder	Pointer	£6.70 £5.58
115	MK458646-0 Available to backorder	Pointer (Alt.)	£1.92 £1.60
116	MK144795-6 Available to backorder	Arm Complete	£54.60 £45.50
116	MK816438-7 Available to backorder	Operation Label (C10)	£0.48 £0.40
117	MK687045-1 Available to backorder	Strain Relief	£0.86 £0.72
118	MK266034-5 Available to backorder	Binding Head Tapping Screw 4x16	£0.48 £0.40
119	MK416006-2 Available to backorder	Lever 100	£5.36 £4.47
120	MK911113-1 Available to backorder	Pan Head Screw M4x10 Wr	£0.48 £0.40
121	MK251495-2 Available to backorder	Hex. Head Bolt M10	£3.96 £3.30
122	MK253024-7 Available to backorder	Flat Washer 10	£0.74 £0.62
123	MK272266-4 Available to backorder	Lever 25	£9.70 £8.08
124	MK233563-3 Available to backorder	Torsion Spring 8	£0.96 £0.80
125	MK415208-7 Available to backorder	Release Button	£1.16 £0.97
126	MK233031-6 Available to backorder	Compression Spring 12	£0.48 £0.40
127	MK253726-5 Available to backorder	Flat Washer 6	£0.48 £0.40
129	MK318533-4 Available to backorder	Stopper	£7.10 £5.92
130	MK231646-3 Available to backorder	Torsion Spring 14	£0.58 £0.48
131	MK253744-3 Available to backorder	Flat Washer 12	£0.58 £0.48
132	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
134	MK456907-2 Available to backorder	Kerf Board	£3.16 £2.63
136	MK816128-2 Available to backorder	Pointer	£0.86 £0.72
137	MK252014-7 Available to backorder	Hex. Lock Nut M6-10	£0.74 £0.62
138	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
139	MK251582-7 Available to backorder	Hex. Socket Head Bolt M6x25 (Refs 140 \| 142)	£0.70 £0.58
141	MK251966-9 Available to backorder	Hex. Socket Set Screw (Flat Point) M10x12	£0.58 £0.48
143	MK144028-9 Available to backorder	Turn Base Complete	£96.24 £80.20
144	MK346169-9 Available to backorder	Fence Plate	£2.76 £2.30
145	MK213021-5 Available to backorder	O-Ring 5	£0.48 £0.40
147	MK319646-4 Available to backorder	Guide Fence	£36.26 £30.22
148	MK265785-7 Available to backorder	Thumb Screw M5x10	£0.86 £0.72
149	MK216008-6 Available to backorder	Steel Ball 4	£0.48 £0.40
151	MK922344-7 Available to backorder	Hex. Socket Head Bolt M6x25 Wg	£0.74 £0.62
153	MK450138-5 Available to backorder	Slide Plate	£6.98 £5.82
154	MK231038-6 Available to backorder	Compression Spring 6	£0.48 £0.40
155	MK216004-4 Available to backorder	Steel Ball 7.9	£0.48 £0.40
156	MK809V03-1 Available to backorder	Miter Scale Plate (C10)	£7.24 £6.03
156	MK810064-4 Available to backorder	Caution Label (C40)	£1.60 £1.33
156	MK810486-8 Available to backorder	Caution Label (C30)	£0.48 £0.40
156	MK144792-2 Available to backorder	Base Complete	£140.32 £116.93
156	MK813L22-1 Available to backorder	Caution Label (C20)	£0.48 £0.40
157	MK286044-6 Available to backorder	Cap 13 (Alt.)	£0.54 £0.45
157	MK286255-3 Available to backorder	Cap 13	£0.48 £0.40
158	MK921352-5 Available to backorder	Hex. Head Bolt M6x30	£0.48 £0.40
159	MK144034-4 Available to backorder	Sub Plate Complete	£19.80 £16.50
160	MK912222-9 Available to backorder	Countersunk Head Screw M5x16	£0.48 £0.40
162	MK620K37-3 Available to backorder	Controller B S	£14.46 £12.05
163	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
901	MK251887-5 In stock	Thumb Screw M6x10 (C10)	£2.18 £1.82
901	MK122940-3 Available to backorder	Vise Assembly (A01)	£13.12 £10.93
901	MK265733-6 Available to backorder	Thumb Screw M10x60 (C30)	£5.94 £4.95
901	MK251370-2 Available to backorder	Pan Head Shoulder Screw M5x15.5 (C70)	£0.58 £0.48
901	MK343651-9 Available to backorder	Vise Plate (C60)	£1.32 £1.10
901	MK316938-2 Available to backorder	Vise Arm (C40)	£25.28 £21.07
901	MK326006-3 Available to backorder	Vise Rod (C20)	£2.62 £2.18
902	MK122884-7 Available to backorder	Dust Bag Assembly (A02)	£10.68 £8.90
902	MK410602-8 Available to backorder	Fastener (C10)	£0.58 £0.48
903	MK762001-3 Available to backorder	Triangular Rule (A03)	£1.22 £1.02
904	MK783208-8 Available to backorder	Hex. Wrench 2.5 (A04)	£0.72 £0.60
905	MK783203-8 Available to backorder	Hex. Wrench 5 (A05)	£0.72 £0.60
906	MK126695-2 Available to backorder	Sub Fence Assembly (A06)	£21.24 £17.70
907	MKB-56487 Available to backorder	Tct Saw Blade 165x20x64T Wood (A07)	£56.46 £47.05
