Makita DLM539 - 530mm Cordless Lawn Mower - Power Tool 04 Diagram

Description

Model No. DLM539

530mm Cordless Lawn Mower

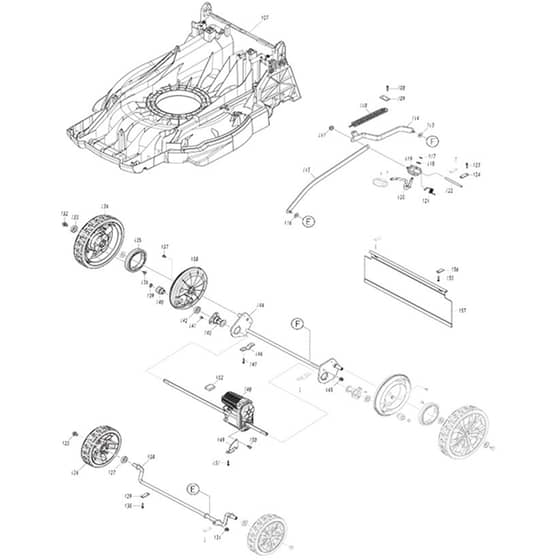

Power Tool 04 Parts Diagrams

	Part No.	Details
107	MK413A63-7 Available to backorder	Deck	£85.68 £71.40
108	MK266424-2 Available to backorder	Binding Head Tapping Screw 4x2 (Refs 123 \| 130)	£0.48 £0.40
109	MK347870-9 Available to backorder	Hook Plate	£0.48 £0.40
110	MK232717-9 Available to backorder	Tension Spring 17	£3.36 £2.80
111	MK252301-4 Available to backorder	Hex. Flange Lock Nut M6-10 (Refs 131 \| 145)	£0.48 £0.40
113	MK253731-2 Available to backorder	Flat Washer 8	£0.48 £0.40
114	MK347873-3 Available to backorder	Connecting Rod R	£11.64 £9.70
115	MK347871-7 Available to backorder	Connecting Rod F	£8.76 £7.30
117	MK961012-7 Available to backorder	Stop Ring (Ext) E-6	£0.48 £0.40
117	MK259085-5 Available to backorder	Stop Ring (Ext) E-6 (Alt.)	£0.48 £0.40
118	MK267281-1 Available to backorder	Flat Washer 8	£0.48 £0.40
119	MK313389-0 Available to backorder	Rod Holder	£11.16 £9.30
120	MK327872-1 Available to backorder	Height Adjust Lever	£4.20 £3.50
121	MK232715-3 Available to backorder	Torsion Spring 9	£0.98 £0.82
122	MK327873-9 Available to backorder	Rod 7	£1.15 £0.96
124	MK347869-4 Available to backorder	Plate	£0.65 £0.54
125	MK265324-3 Available to backorder	Hex. Head Flange Bolt M8x12	£1.73 £1.44
126	MK141E34-5 Available to backorder	Tire 180 Complete	£14.52 £12.10
127	MK210163-6 Available to backorder	Ball Bearing 6001Ddw (Refs 133 \| 142)	£1.63 £1.36
128	MK162989-1 Available to backorder	Front Shaft	£12.24 £10.20
134	MK141F63-4 Available to backorder	Tire 230 Complete	£20.88 £17.40
135	MK227913-2 Available to backorder	Spur Gear 49	£8.52 £7.10
136	MK265B00-1 Available to backorder	Flange Tapping Screw 4x12	£0.48 £0.40
137	MK911208-0 Available to backorder	Pan Head Screw M5x10 Wr	£0.48 £0.40
138	MK413B06-5 Available to backorder	Wheel Cap	£4.92 £4.10
139	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
140	MK227912-4 Available to backorder	Spur Gear 11	£3.14 £2.62
141	MK251951-2 Available to backorder	Hex. Socket Countersunk Head Screw M5x10	£0.48 £0.40
143	MK313390-5 Available to backorder	Rear Shaft Holder	£3.12 £2.60
144	MK162990-6 Available to backorder	Rear Shaft	£21.24 £17.70
146	MK347865-2 Available to backorder	Clamp 19	£0.98 £0.82
147	MK266553-1 Available to backorder	Binding Head Tapping Screw 5x30	£0.48 £0.40
148	MK122B05-3 Available to backorder	Drive Unit	£140.16 £116.80
149	MK347887-2 Available to backorder	Bracket	£1.49 £1.24
152	MK683A20-1 Available to backorder	Tube Complete	£0.48 £0.40
153	MK162C45-5 Available to backorder	Grass Catcher Bracket <	£22.80 £19.00
154	MK162B25-5 Available to backorder	Grass Catcher	£24.72 £20.60
154	MK162C13-8 Available to backorder	Grass Catcher <	£35.88 £29.90
158	MK911163-6 Available to backorder	Pan Head Screw M4x35 Wr	£0.48 £0.40
159	MK413944-9 Available to backorder	Clamp	£1.15 £0.96
159	MK931102-0 Available to backorder	Hex. Nut M4 (C10)	£0.70 £0.58
901	MK327589-6 Available to backorder	Rod 6 (A01)	£1.15 £0.96
901	MK191V96-5 Available to backorder	Blade 530 Set (F01)	£44.40 £37.00
901	MK688238-3 Available to backorder	Line Filter (E01)	£3.48 £2.90
902	MK191W87-2 Available to backorder	Blade 530 Set (F02)	£53.64 £44.70
902	MK688162-0 Available to backorder	Line Filter (E02)	£1.73 £1.44
902	MK413945-7 Available to backorder	Mulching Plug 530 (A02)	£6.96 £5.80
903	MK688164-6 Available to backorder	Line Filter (E03)	£0.89 £0.74
903	MK782210-8 Available to backorder	Box Wrench (A03)	£6.12 £5.10
904	MK819V87-1 Available to backorder	Sound 96Db Label (E04)	£0.48 £0.40
904	MKDC18RD Available to backorder	Dc18Rd Two Port Fast Charger (A04B)	£184.80 £154.00
905	MK197280-8 In stock	Battery Bl1850B Set (A05B)	£76.24 £63.53
