Model No. DLM532

530mm Cordless Lawn Mower

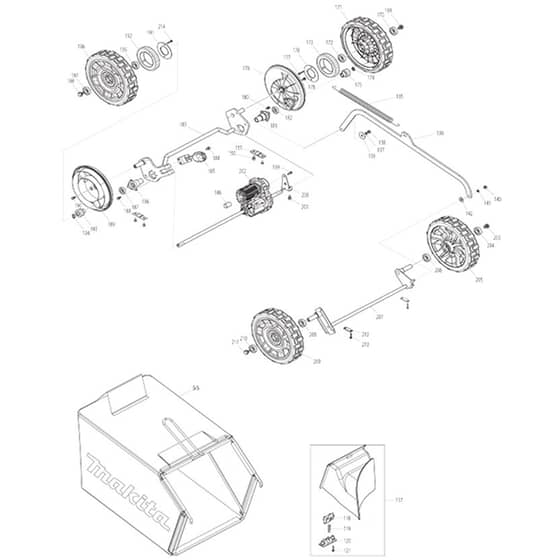

Power Tool 04 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
55	MK162976-0 Available to backorder	Grass Catcher (C10)	£32.76 £27.30
55	MK327866-6 Available to backorder	Grass Catcher Bracket (C20)	£15.84 £13.20
55	MK122B20-7 Available to backorder	Grass Catcher Assembly (Alt.)	£56.66 £47.22
117	MK127516-1 Available to backorder	Mulching Plug Assembly (INC. 118-121)	£15.44 £12.87
118	MK459884-7 Available to backorder	Lock Lever	£0.96 £0.80
119	MK231401-3 Available to backorder	Compression Spring 7	£0.48 £0.40
120	MK459885-5 Available to backorder	Lock Lever Support	£0.96 £0.80
121	MK266424-2 Available to backorder	Binding Head Tapping Screw 4x20 (Refs 168 \| 177 \| 213 \| 214)	£0.48 £0.40
123	MK140R96-8 Available to backorder	Rear Flap Complete	£11.74 £9.78
123	MK8007P8-6 Available to backorder	Caution Label (C10)	£0.48 £0.40
124	MK265B20-5 Available to backorder	Hex. Socket Button Head Bolt M8x14 (Refs 134 \| 149)	£0.48 £0.40
125	MK347579-3 Available to backorder	Handle Bracket L	£9.56 £7.97
126	MK233597-6 Available to backorder	Torsion Spring 8	£0.74 £0.62
127	MK961018-5 Available to backorder	Stop Ring (Ext) E-5	£0.48 £0.40
128	MK327418-3 Available to backorder	Rod 6	£1.92 £1.60
129	MK922213-2 Available to backorder	Hex. Socket Head Bolt M5x12 Wr (Refs 144 \| 157)	£0.58 £0.48
130	MK459877-4 Available to backorder	Rear Flap Holder Plate	£2.88 £2.40
131	MK162692-4 Available to backorder	Rear Grip	£10.92 £9.10
132	MK347578-5 Available to backorder	Handle Bracket R	£9.56 £7.97
133	MK451825-9 Available to backorder	Clamp	£0.58 £0.48
135	MK232628-8 Available to backorder	Tension Spring 16	£5.34 £4.45
136	MK347580-8 Available to backorder	Connecting Rod	£30.72 £25.60
137	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
138	MK252014-7 Available to backorder	Hex. Lock Nut M6-10	£0.74 £0.62
139	MK267216-2 Available to backorder	Flat Washer 8	£0.74 £0.62
142	MK253762-1 Available to backorder	Flat Washer 8	£1.44 £1.20
143	MK422526-6 Available to backorder	Grommet	£0.82 £0.68
145	MK459880-5 Available to backorder	Lead Cover	£1.10 £0.92
146	MK683A20-1 Available to backorder	Tube Complete	£0.48 £0.40
147	MK347559-9 Available to backorder	Deck	£199.02 £165.85
148	MK347582-4 Available to backorder	Height Adjust Plate	£5.46 £4.55
150	MK922311-2 Available to backorder	Hex. Socket Head Bolt M6x12 W (Refs 184 \| 201)	£0.74 £0.62
151	MK313290-9 Available to backorder	Rear Shaft Holder Cover	£2.46 £2.05
159	MK232567-2 Available to backorder	Torsion Spring 9	£1.36 £1.13
160	MK347584-0 Available to backorder	Side Discharge Plate	£1.64 £1.37
161	MK327420-6 Available to backorder	Rod 8	£1.24 £1.03
162	MK961013-5 Available to backorder	Stop Ring (Ext) E-7	£0.47 £0.39
163	MK459886-3 Available to backorder	Side Discharge Cover	£4.10 £3.42
164	MK922441-9 Available to backorder	Hex. Socket Head Bolt M8x25 W	£0.48 £0.40
165	MK459870-8 Available to backorder	Front Grip	£6.28 £5.23
166	MK459871-6 Available to backorder	Front Cover	£12.70 £10.58
167	MK459872-4 Available to backorder	Deck Under Cover	£17.20 £14.33
169	MK265324-3 Available to backorder	Hex. Head Flange Bolt M8x12 (Refs 198 \| 203 \| 211)	£1.44 £1.20
170	MK211247-3 Available to backorder	Ball Bearing 6002Ddw (Refs 172 \| 195 \| 197 \| 204 \| 206 \| 208 \| 210)	£1.88 £1.57
171	MK127513-7 Available to backorder	Rear Wheel Assembly	£31.26 £26.05
173	MK226941-4 Available to backorder	Spur Gear 49	£18.84 £15.70
174	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
175	MK226940-6 Available to backorder	Spur Gear 12	£4.78 £3.98
176	MK347586-6 Available to backorder	Gear Holder Plate	£0.70 £0.58
178	MK911213-7 Available to backorder	Pan Head Screw M5x12 Wr (Refs 180 \| 188 \| 190)	£0.48 £0.40
179	MK459867-7 Available to backorder	Wheel Cap	£6.56 £5.47
181	MK327426-4 Available to backorder	Rear Shaft Holder	£9.00 £7.50
182	MK210163-6 Available to backorder	Ball Bearing 6001Ddw	£1.36 £1.13
183	MK162689-3 Available to backorder	Rear Shaft	£36.72 £30.60
185	MK162694-0 Available to backorder	Height Adjust Lever Complete	£11.06 £9.22
186	MK313369-6 Available to backorder	Rear Shaft Holder R S	£7.38 £6.15
200	MK347585-8 Available to backorder	Bracket	£1.64 £1.37
202	MK127510-3 Available to backorder	Drive Unit Assembly	£172.54 £143.78
205	MK127514-5 Available to backorder	Front Wheel Assembly	£33.04 £27.53
207	MK162688-5 Available to backorder	Front Shaft	£27.84 £23.20
212	MK341462-6 Available to backorder	Plate	£0.74 £0.62
224	MK961059-1 Available to backorder	Retaining Ring (Ext) S-19 S	£0.48 £0.40
901	MK191D48-8 Available to backorder	Swing Back Blade 530 Set (F01)	£58.66 £48.88
901	MK8018P2-7 Available to backorder	Sound 93Db Label (E01)	£0.48 £0.40
901	MK819V88-9 Available to backorder	Sound 95Db Label < (E01-2)	£0.48 £0.40
901	MK327589-6 Available to backorder	Rod 6 (A01)	£0.96 £0.80
901	MK800A17-7 Available to backorder	Sound 94Db Label < (E01-1)	£0.48 £0.40
902	MK191D50-1 Available to backorder	Swing Back Blade 530 Complete Set (F02)	£72.32 £60.27
902	MK782210-8 Available to backorder	Box Wrench (A02)	£5.94 £4.95
903	MK782212-4 Available to backorder	Box Wrench 13 (A03)	£6.38 £5.32
903	MK191D52-7 Available to backorder	Blade 530 Set (F03)	£37.52 £31.27
904	MK459887-1 Available to backorder	Side Discharge Mouth (A04)	£6.56 £5.47
905	MKDC18RD Available to backorder	Dc18Rd Two Port Fast Charger (A05)	£192.50 £160.42
906	MK197280-8 In stock	Battery Bl1850B Set (A06)	£105.88 £88.23
