Makita DLM481 - 480mm Cordless Lawn Mower - Power Tool 03 Diagram

Description

Model No. DLM481

480mm Cordless Lawn Mower

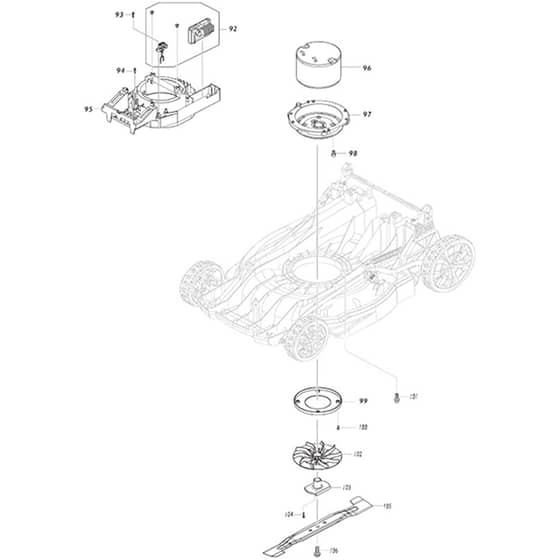

Power Tool 03 Parts Diagrams

	Part No.	Details
93	MK266424-2 Available to backorder	Tapping Screw 4x20 (Refs 094 \| 104)	£0.48 £0.40
95	MK413B05-7 Available to backorder	Motor Cover	£9.60 £8.00
96	MK629A90-6 Available to backorder	Dc Motor	£270.00 £225.00
97	MK141H61-0 Available to backorder	Motor Bracket Complete	£18.36 £15.30
98	MK922422-3 Available to backorder	Hex. Socket Head Bolt M8x16	£0.70 £0.58
99	MK459853-8 Available to backorder	Baffle Plate	£2.56 £2.13
100	MK266385-6 Available to backorder	Tapping Screw 4x14	£0.48 £0.40
101	MK265C22-7 Available to backorder	H.S.H.Bolt M8x30 With Wg	£0.84 £0.70
102	MK240229-8 Available to backorder	Fan 170	£4.44 £3.70
103	MK313393-9 Available to backorder	Blade Support 480	£6.12 £5.10
105	MK191V97-3 Available to backorder	Blade 480 Set	£49.08 £40.90
106	MK265A69-9 Available to backorder	Hex. Bolt M10x35 With Wg	£1.58 £1.32
