Makita DLM432 - 430mm Cordless Lawn Mower - Power Tool 01 Diagram

Description

Model No. DLM432

430mm Cordless Lawn Mower

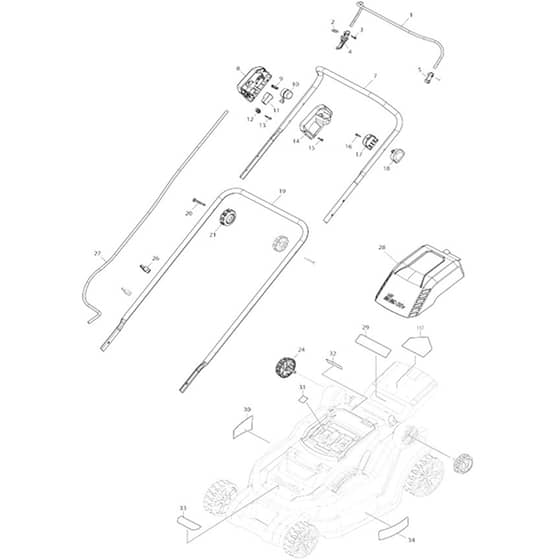

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK326636-0 Available to backorder	Switch Lever	£5.76 £4.80
2	MK231876-6 Available to backorder	Tension Spring 9	£0.48 £0.40
3	MK911138-5 Available to backorder	Pan Head Screw M4x20 Wr	£0.48 £0.40
4	MK455075-8 Available to backorder	Lever	£1.03 £0.86
5	MK455078-2 Available to backorder	Arm	£0.89 £0.74
7	MK143510-5 Available to backorder	Upper Pipe Complete	£18.72 £15.60
8	MK459804-1 Available to backorder	Switch Box	£2.56 £2.13
9	MK233068-3 Available to backorder	Compression Spring 6	£1.39 £1.16
10	MK455074-0 Available to backorder	Switch Button	£1.22 £1.02
11	MK650730-9 Available to backorder	Switch	£20.04 £16.70
12	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
13	MK265B73-4 Available to backorder	Binding Head Tapping Screw 4x25	£0.48 £0.40
13	MK265999-8 Available to backorder	Binding Head Tapping Screw 4x25	£0.48 £0.40
14	MK140N15-0 Available to backorder	Switch Box Cover Complete K	£2.69 £2.24
14	MK890374-5 Available to backorder	Operation Label (C10)	£0.48 £0.40
15	MK265B67-9 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
15	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
17	MK456352-1 Available to backorder	Switch Lever Case Cover	£2.05 £1.71
18	MK456351-3 Available to backorder	Switch Lever Case	£1.94 £1.62
19	MK326635-2 Available to backorder	Lower Pipe	£17.28 £14.40
20	MK265A14-4 In stock	Round Head Square Neck Bolt M6x50	£0.94 £0.78
21	MK264070-5 Available to backorder	Thumb Nut M6	£2.53 £2.11
24	MK266729-0 Available to backorder	Thumb Screw M8x35	£3.60 £3.00
26	MK459809-1 Available to backorder	Holder	£0.48 £0.40
27	MK660393-3 Available to backorder	Power Supply Cord	£4.68 £3.90
28	MK8005W1-7 Available to backorder	Caution Label (C10)	£0.48 £0.40
28	MK140N21-5 Available to backorder	Battery Cover Complete E	£15.36 £12.80
29	MK890375-3 Available to backorder	Caution Label	£0.48 £0.40
30	MK856L50-3 Available to backorder	Name Plate Dlm432	£0.48 £0.40
31	MK856L57-9 Available to backorder	Serial No. Label Dlm432	£0.48 £0.40
32	MK8005W9-1 Available to backorder	Indication Label	£1.15 £0.96
33	MK8005W4-1 Available to backorder	Indication Label	£0.48 £0.40
34	MK8005W5-9 Available to backorder	Indication Label	£0.65 £0.54
