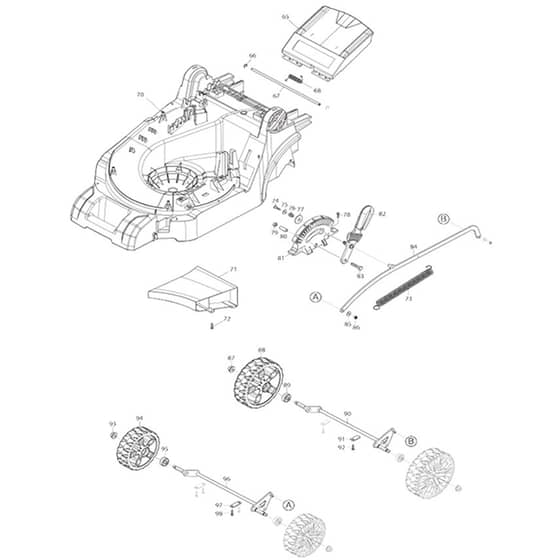

Makita DLM382 - 380mm Cordless Lawn Mower - Power Tool 03 Diagram

Description

Model No. DLM382

380mm Cordless Lawn Mower

Power Tool 03 Parts Diagrams

	Part No.	Details
65	MK140S15-0 Available to backorder	Rear Flap Complete (INC. 29 *)	£8.52 £7.10
66	MK961018-5 Available to backorder	Stop Ring (Ext) E-5 (Alt.)	£0.48 £0.40
66	MKLC961018-5 Available to backorder	Stop Ring (Ext) E-5	£0.48 £0.40
67	MK259068-5 Available to backorder	Rod 6	£2.24 £1.87
68	MKLC233597-6 Available to backorder	Torsion Spring 8	£0.98 £0.82
68	MK233597-6 Available to backorder	Torsion Spring 8 (Alt.)	£0.89 £0.74
70	MK931302-2 Available to backorder	Hex. Nut M6 (C20)	£0.48 £0.40
70	MK346544-9 Available to backorder	Plate Nut M8 (C10)	£0.98 £0.82
70	MK459777-8 Available to backorder	Deck	£72.84 £60.70
71	MK412272-9 Available to backorder	Under Cover	£4.56 £3.80
72	MK265B67-9 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 074 \| 078 \| 092 \| 098)	£0.48 £0.40
72	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 074 \| 078 \| 092 \| 098)	£0.48 £0.40
73	MKLC231875-8 Available to backorder	Tension Spring 16	£1.63 £1.36
73	MK231875-8 Available to backorder	Tension Spring 16 (Alt.)	£2.21 £1.84
75	MKLC267102A7 Available to backorder	Flat Washer 4	£0.48 £0.40
75	MK267102-7 Available to backorder	Flat Washer 4 (Alt.)	£0.48 £0.40
76	MKLC231297-2 Available to backorder	Compression Spring 9	£0.48 £0.40
76	MK231297-2 Available to backorder	Compression Spring 9 (Alt.)	£0.89 £0.74
77	MK253808-3 Available to backorder	Flat Washer 9 (Alt.)	£1.03 £0.86
77	MKLC253808A3 Available to backorder	Flat Washer 9	£0.48 £0.40
80	MKLC257670A8 Available to backorder	Sleeve 6	£0.48 £0.40
80	MK257670-8 Available to backorder	Sleeve 6 (Alt.)	£0.65 £0.54
81	MK453255-0 Available to backorder	Adjust Plate	£5.76 £4.80
82	MK459099-6 Available to backorder	Change Lever	£2.86 £2.38
83	MKLC921352-5 Available to backorder	Hex.Bolt M6x30	£0.48 £0.40
83	MK921352-5 Available to backorder	Hex. Head Bolt M6x30 (Alt.)	£0.48 £0.40
84	MK347571-9 Available to backorder	Connecting Rod	£7.20 £6.00
85	MKLC941101-4 Available to backorder	Flat Washer 5	£0.48 £0.40
85	MK941101-4 Available to backorder	Flat Washer 5 (Alt.)	£0.48 £0.40
86	MK252103-8 Available to backorder	Hex. Lock Nut M5-8	£0.48 £0.40
87	MK252145-2 Available to backorder	Collared Hex. Nut M8 (Alt.)	£0.89 £0.74
87	MKLC252145-2 Available to backorder	Collared Hex. Nut M8	£0.48 £0.40
88	MK459101-5 Available to backorder	Rear Wheel	£18.24 £15.20
89	MKLC210070-3 Available to backorder	Ball Bearing 6200Zz	£1.63 £1.36
89	MK210070-3 Available to backorder	Ball Bearing 6200Zz (Alt.)	£1.74 £1.45
90	MK162C98-4 Available to backorder	Rear Shaft <	£23.28 £19.40
91	MK346545-7 Available to backorder	Plate (Alt.)	£0.48 £0.40
91	MKLC346545-7 Available to backorder	Plate	£0.48 £0.40
94	MK459100-7 Available to backorder	Front Wheel	£15.36 £12.80

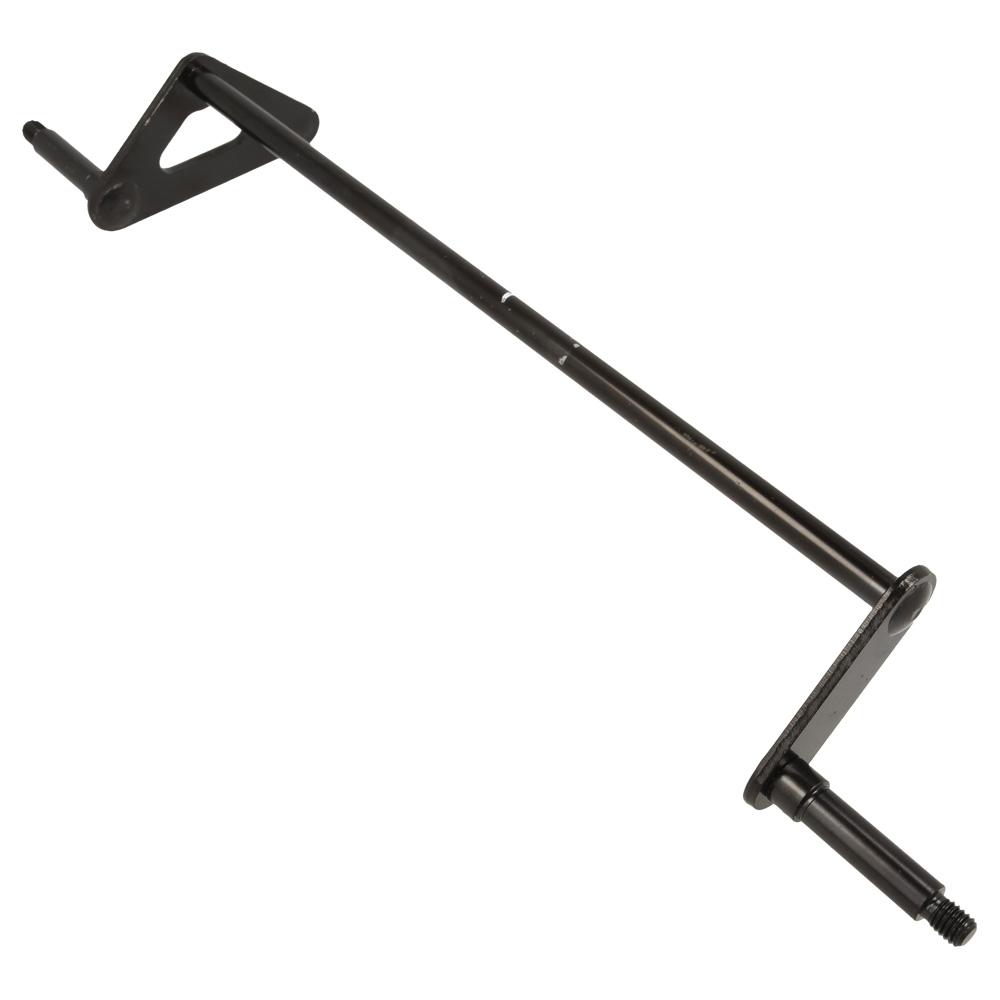

96	MK162C69-1 In stock	Front Shaft (Alt.)	£20.27 £16.89
97	MK341462-6 Available to backorder	Plate	£0.89 £0.74
