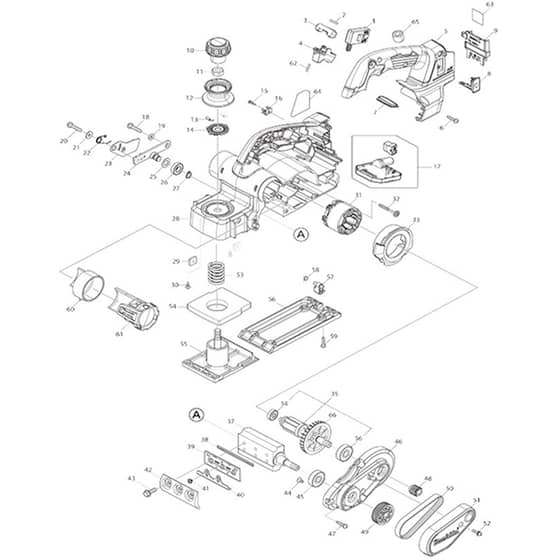

Makita DKP181 - 82mm Cordless Planer - Power Tool Diagram

Name: Makita DKP181 - 82mm Cordless Planer - Power Tool Diagram
SKU: dkp181_82mm_cordless_planer_power_tool-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita DKP181 - 82mm Cordless Planer - Power Tool Diagram

Description

Model No. DKP181

82mm Cordless Planer

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK651083-9 Available to backorder	Switch C3xa-1Pspm	£27.60 £23.00
2	MK231433-0 Available to backorder	Compression Spring 4	£0.48 £0.40
3	MK419704-7 Available to backorder	Lock Off Button	£1.32 £1.10
4	MK457432-6 Available to backorder	Switch Lever	£1.24 £1.03
5	MK136568-1 Available to backorder	Handle Cover Assembly (Alt.)	£14.88 £12.40
5	MK140V73-4 Available to backorder	Handle Cover Complete (Alt.)	£14.62 £12.18
5	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
6	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 047 \| 059)	£0.48 £0.40
7	MK142948-1 Available to backorder	Indication Plate Complete	£1.32 £1.10
8	MK140F99-0 Available to backorder	Cap Complete	£2.60 £2.17
8	MK213218-6 Available to backorder	O-Ring 16 (C10)	£0.74 £0.62
8	MK213A05-9 Available to backorder	O-Ring 16 (Alt.) (C11)	£0.48 £0.40
8	MK818H07-8 Available to backorder	Cap Label (C20)	£0.70 £0.58
9	MK643874-2 Available to backorder	Terminal	£4.20 £3.50
10	MK451328-3 Available to backorder	Knob Cover	£1.88 £1.57
11	MK252276-7 Available to backorder	Hex. Nut M10	£1.88 £1.57
12	MK459894-4 Available to backorder	Knob	£5.74 £4.78
13	MK232185-6 Available to backorder	Leaf Spring	£1.74 £1.45
14	MK347588-2 Available to backorder	Cam Plate	£1.32 £1.10
15	MK266556-5 Available to backorder	Pan Head Tapping Screw 3x12	£0.48 £0.40
16	MK232570-3 Available to backorder	Leaf Spring	£0.86 £0.72
17	MK620B79-3 Available to backorder	Controller	£145.92 £121.60
17	MK620J24-6 Available to backorder	Controller S	£154.24 £128.53
18	MK266041-8 Available to backorder	Binding Head Tapping Screw 5x25	£0.58 £0.48
19	MK267012-8 Available to backorder	Flat Washer 5	£0.74 £0.62
21	MK253194-2 Available to backorder	Flat Washer 5	£0.58 £0.48
22	MK233521-9 Available to backorder	Torsion Spring 10	£1.60 £1.33
23	MK345765-0 Available to backorder	Drum Cover	£2.32 £1.93
24	MK158184-9 Available to backorder	Drum Holder Complete	£27.02 £22.52
25	MK253758-2 Available to backorder	Flat Washer 10	£0.48 £0.40
26	MK210057-5 Available to backorder	Ball Bearing 6900Llb	£7.08 £5.90
27	MK961006-2 Available to backorder	Retaining Ring (Ext) S-10	£0.48 £0.40
28	MK136534-8 Available to backorder	Main Frame Assembly (Alt.)	£48.20 £40.17
28	MK140N51-6 Available to backorder	Main Frame Complete	£45.94 £38.28
29	MK264002-2 Available to backorder	Square Nut M5	£0.58 £0.48
30	MK265A77-0 Available to backorder	Tapping Screw 3x10	£0.48 £0.40
31	MK629453-0 Available to backorder	Stator	£48.60 £40.50
31	MK629B61-9 Available to backorder	Stator S	£15.84 £13.20
32	MK265679-6 Available to backorder	Tapping Screw 4x40	£0.48 £0.40
33	MK459891-0 Available to backorder	Baffle Plate	£2.46 £2.05
34	MK210034-7 In stock	Ball Bearing 607Llb	£1.44 £1.20
35	MK519742-0 Available to backorder	Rotor Assembly (Alt.) (INC. 34 36 66)	£42.18 £35.15
35	MK519590-7 Available to backorder	Rotor Assembly (INC. 34 36 66 *)	£34.54 £28.78
36	MK211087-9 Available to backorder	Ball Bearing 6200Ddw	£8.96 £7.47
37	MK158156-4 Available to backorder	Drum Complete	£42.62 £35.52
38	MKD-07945 Available to backorder	82mm Tct Mini Planer Blade (Alt.)	£21.78 £18.15
39	MK343433-9 Available to backorder	Set Plate	£3.68 £3.07
41	MK251246-3 Available to backorder	Pan Head Screw M4x5	£0.48 £0.40
42	MK187676-1 Available to backorder	Drum Plate Set	£15.46 £12.88
43	MK251609-3 Available to backorder	Hex. Head Flange Bolt M6x17	£0.58 £0.48
44	MK251291-8 Available to backorder	Truss Head Screw M4x8	£0.48 £0.40
46	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
46	MK140N50-8 Available to backorder	Bracket Complete	£18.36 £15.30
48	MK222193-5 Available to backorder	V-Pulley 4-17L	£2.76 £2.30
49	MK222194-3 Available to backorder	V-Pulley 4-39.5	£5.06 £4.22
50	MK225071-8 Available to backorder	Poly V-Belt 4-241	£7.96 £6.63
51	MK459893-6 Available to backorder	Belt Cover	£3.70 £3.08
52	MK911133-5 Available to backorder	Pan Head Screw M4x18 Wr	£0.48 £0.40
53	MK233395-8 Available to backorder	Compression Spring 18 (Alt.)	£0.74 £0.62
53	MK231004-3 Available to backorder	Compression Spring 18	£0.74 £0.62
54	MK422531-3 Available to backorder	Rubber Packing	£0.70 £0.58
55	MK319872-5 Available to backorder	Front Base	£23.26 £19.38
56	MK318499-8 Available to backorder	Base	£7.38 £6.15
56	MK312C89-7 Available to backorder	Base (Alt.)	£11.34 £9.45
57	MK413L64-1 Available to backorder	Foot <	£0.48 £0.40
57	MK451392-4 Available to backorder	Foot	£0.58 £0.48
58	MK231698-4 Available to backorder	Torsion Spring 7	£0.58 £0.48
60	MK459892-8 Available to backorder	Nozzle	£2.88 £2.40
61	MK125353-7 Available to backorder	Duct Assembly	£5.06 £4.22
63	MK856J96-7 Available to backorder	Serial No. Label Dkp181	£0.48 £0.40
64	MK856J88-6 Available to backorder	Name Plate Dkp181	£0.48 £0.40
65	MK688163-8 Available to backorder	Line Filter	£1.32 £1.10
66	MK240079-1 Available to backorder	Fan 62	£2.02 £1.68
67	MK620K37-3 Available to backorder	Controller B S	£14.46 £12.05
68	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
901	MK253807-5 Available to backorder	Flat Washer 5 (C40)	£0.48 £0.40
901	MK122785-9 Available to backorder	Guide Rule Assembly (A01)	£13.28 £11.07
901	MK345768-4 Available to backorder	Guide Holder (C50)	£0.94 £0.78
901	MK213009-5 Available to backorder	O-Ring 4 (C10)	£0.48 £0.40
901	MK251878-6 Available to backorder	Thumb Screw M5x20 (C30)	£0.86 £0.72
901	MK251871-0 Available to backorder	Thumb Screw M5x10 (C20)	£1.32 £1.10
902	MK911228-4 Available to backorder	Pan Head Screw M5x18 Wr (C10)	£1.64 £1.37
902	MK122695-0 Available to backorder	Blade Gauge Assembly (Alt.) (A02-2)	£1.34 £1.12
902	MK123062-2 Available to backorder	Blade Gauge Assembly (A02)	£9.16 £7.63
902	MK127669-6 Available to backorder	Blade Gauge Assembly (Alt.) (A02-1)	£2.32 £1.93
902	MK265131-4 Available to backorder	Pan Head Screw M5x18 (C10)	£0.48 £0.40
902	MK411086-3 Available to backorder	Gauge Plate (C20)	£1.16 £0.97
902	MK418465-6 Available to backorder	Gauge Plate (C20)	£0.48 £0.40
903	MK782209-3 Available to backorder	Box Wrench 9 (A03)	£3.52 £2.93
905	MK191C20-4 Available to backorder	Elbow Set (F05)	£7.26 £6.05
906	MK342390-8 Available to backorder	Depth Guide (A06)	£1.96 £1.63
907	MK193540-6 Available to backorder	Set Plate Set (F07)	£11.14 £9.28
908	MK198900-7 Available to backorder	Wireless Unit Set (A08B) (Refs A08 \| F10)	£67.06 £55.88
911	MK442198-1 Available to backorder	Anti Corrosion Paper (A11)	£0.54 £0.45
