Makita DJR188 - Cordless Recipro Saw - Power Tool Diagram

Description

Model No. DJR188

Cordless Recipro Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK422223-4 Available to backorder	Protector	£0.70 £0.58
2	MK310848-5 Available to backorder	Driving Sleeve	£7.08 £5.90
3	MK257430-8 Available to backorder	Retaining Ring(Ext)18 S	£0.86 £0.72
4	MK268094-3 Available to backorder	Pin 3	£2.32 £1.93
5	MK327043-0 Available to backorder	Guide Sleeve S	£1.32 £1.10
6	MK234381-2 Available to backorder	Compression Spring 6	£0.48 £0.40
7	MK256569-4 Available to backorder	Shoulder Pin 5	£1.02 £0.85
8	MK458968-8 Available to backorder	Connecting Sleeve (Alt.)	£0.54 £0.45
9	MK310912-2 Available to backorder	Push Pin S	£2.60 £2.17
10	MK232472-3 Available to backorder	Compression Spring 2 S	£0.48 £0.40
10	MK233025-1 Available to backorder	Compression Spring 2	£0.58 £0.48
11	MK233594-2 Available to backorder	Torsion Spring 17	£0.48 £0.40
12	MK424762-0 Available to backorder	Rubber Ring	£0.58 £0.48
13	MK144012-4 Available to backorder	Slider Guide Complete	£26.16 £21.80
13	MK213151-2 Available to backorder	Oil Seal 14 (C10)	£2.32 £1.93
13	MK213174-0 Available to backorder	x Ring 14 (C20)	£3.62 £3.02
14	MK161796-9 Available to backorder	Slider	£9.98 £8.32
15	MK310663-7 Available to backorder	Roller	£0.48 £0.40
16	MK268341-2 Available to backorder	Pin 6	£0.58 £0.48
17	MK424902-0 Available to backorder	Felt 16x16	£0.48 £0.40
18	MK620434-7 Available to backorder	Led Circuit	£6.52 £5.43
19	MK911128-8 Available to backorder	P.H.Screw M4x16 With Wr	£0.47 £0.39
20	MK144809-1 Available to backorder	Gear Housing R Complete	£13.28 £11.07
21	MK347303-4 Available to backorder	Rod Guide R	£0.82 £0.68
22	MK265353-6 Available to backorder	Hex. Socket Head Bolt M4x12 (Refs 026 \| 033 \| 035 \| 043)	£0.74 £0.62
23	MK256567-8 Available to backorder	Shoulder Pin 6-8	£1.02 £0.85
24	MK252157-5 Available to backorder	Square Nut M6	£0.48 £0.40
25	MK144806-7 Available to backorder	Gear Complete	£22.80 £19.00
27	MK347302-6 Available to backorder	Rod Guide L	£0.82 £0.68
28	MK422224-2 Available to backorder	Seal Ring	£1.24 £1.03
29	MK267336-2 Available to backorder	Flat Washer 45	£2.18 £1.82
30	MK144808-3 Available to backorder	Gear Housing L Complete	£25.86 £21.55
30	MK213445-5 Available to backorder	O-Ring 26 (C10)	£0.48 £0.40
31	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.04 £4.20
32	MK253400-5 Available to backorder	Flat Washer 4	£0.74 £0.62
34	MK285031-2 Available to backorder	Bearing Retainer 51	£0.96 £0.80
36	MK422221-8 Available to backorder	Insulation Cover	£6.98 £5.82
37	MK161795-1 Available to backorder	Shoe	£6.06 £5.05

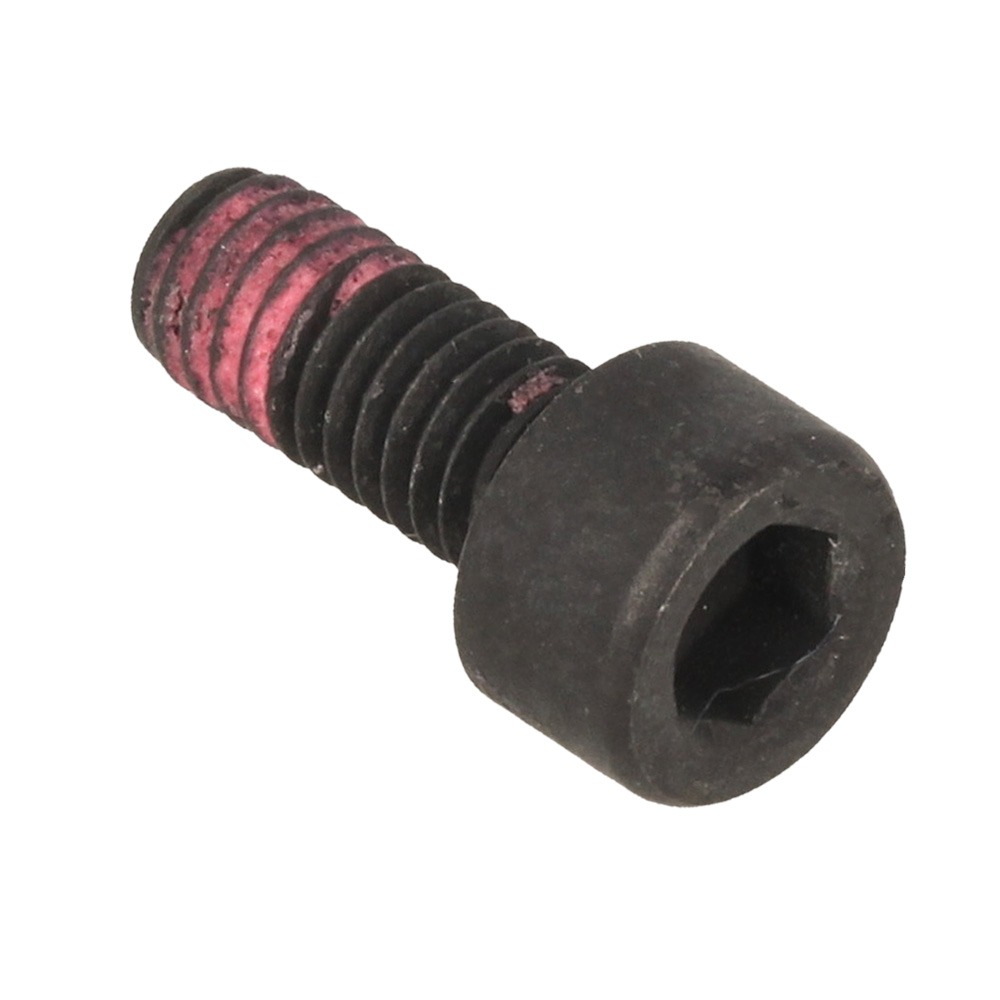

38	MK265531-8 In stock	Hex.Socket Head Bolt M6x14	£0.58 £0.48
39	MK422225-0 Available to backorder	Felt Ring 10	£0.48 £0.40
40	MK961006-2 Available to backorder	Retaining Ring S-10	£0.48 £0.40
42	MK285032-0 Available to backorder	Bearing Retainer 55	£0.82 £0.68
44	MK519457-9 Available to backorder	Rotor Ass'y (INC. 39-42 45)	£35.40 £29.50
45	MK210278-9 Available to backorder	Ball Bearing 695 Ddw (Alt.)	£1.10 £0.92
45	MK210039-7 Available to backorder	Ball Bearing 695Ddw	£2.60 £2.17
46	MK629292-8 Available to backorder	Stator	£14.02 £11.68
47	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
48	MK620760-4 Available to backorder	Controller B	£22.98 £19.15
49	MK266490-9 Available to backorder	Tapping Screw Pt 2x6	£0.48 £0.40
50	MK266429-2 Available to backorder	Tapping Screw 3x16	£0.48 £0.40
51	MK183H44-4 Available to backorder	Motor Housing Set (INC. 53)	£3.92 £3.27
52	MK911531-3 Available to backorder	P.H.Screw M4x18 With Wrm	£0.48 £0.40
54	MK853U83-3 Available to backorder	Djr188 Name Plate	£0.48 £0.40
55	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
56	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
56	MK183H42-8 Available to backorder	Handle Set (INC. 64 *)	£20.08 £16.73
57	MK458114-3 Available to backorder	Lock Off Button	£0.58 £0.48
58	MK424517-3 Available to backorder	Cushion	£0.58 £0.48
59	MK853U91-4 Available to backorder	Djr188 Serial No. Label	£0.48 £0.40
60	MK650710-5 Available to backorder	Switch C3Jw-4B	£20.38 £16.98
61	MK643874-2 Available to backorder	Terminal	£4.20 £3.50
62	MK620759-9 Available to backorder	Controller A	£109.48 £91.23
65	MK127401-8 Available to backorder	Slider Assembly < (INC. 1-14)	£44.20 £36.83
65	MK126722-5 Available to backorder	Slider Assembly (INC. 1-14 *)	£34.26 £28.55
901	MKB-20432 Available to backorder	Reciprosaw Blade 100mm (A01B)	£16.74 £13.95
901	MKB-55572 Available to backorder	Tc Recipro Saw Blade (A01A)	£21.26 £17.72
902	MKB-20404 Available to backorder	Reciprosaw Blade 100mm (A02B)	£14.48 £12.07
906	MK196235-0 Available to backorder	Battery Bl1815N Set (A06B)	£187.42 £156.18
908	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
908	MK821551-8 Available to backorder	Connector Plastic Case (A08B)	£62.48 £52.07
