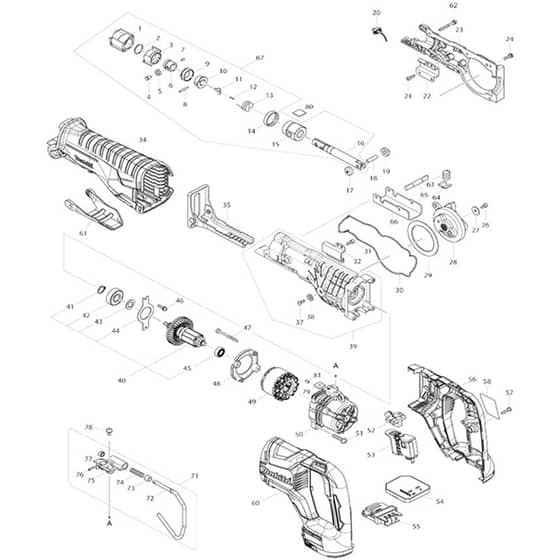

Makita DJR187 - Cordless Recipro Saw - Power Tool Diagram

Description

Model No. DJR187

Cordless Recipro Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK424763-8 Available to backorder	Protector	£0.58 £0.48
2	MK257430-8 Available to backorder	Retaining Ring(Ext)18 S	£0.86 £0.72
3	MK310662-9 Available to backorder	Driving Sleeve	£8.66 £7.22
4	MK256569-4 Available to backorder	Shoulder Pin 5	£1.02 £0.85
5	MK234381-2 Available to backorder	Compression Spring 6	£0.48 £0.40
6	MK327043-0 Available to backorder	Guide Sleeve S	£1.32 £1.10
7	MK268094-3 Available to backorder	Pin 3	£2.32 £1.93
8	MK256158-5 Available to backorder	Pin 3	£0.74 £0.62
9	MK417791-0 Available to backorder	Driving Sleeve Guide	£2.02 £1.68
10	MK418311-3 Available to backorder	Sleeve	£0.86 £0.72
11	MK345214-7 Available to backorder	Push Plate	£0.86 £0.72
12	MK233025-1 Available to backorder	Compression Spring 2	£0.58 £0.48
13	MK231687-9 Available to backorder	Torsion Spring 17	£0.58 £0.48
14	MK424762-0 Available to backorder	Rubber Ring	£0.58 £0.48
15	MK213151-2 Available to backorder	Oil Seal 14 (C10)	£2.32 £1.93
15	MK213174-0 Available to backorder	x Ring 14 (C20)	£3.62 £3.02
15	MK143365-8 Available to backorder	Slider Guide Complete	£12.86 £10.72
16	MK161376-1 Available to backorder	Slider	£15.88 £13.23
17	MK310663-7 Available to backorder	Roller	£0.48 £0.40
18	MK268341-2 Available to backorder	Pin 6	£0.58 £0.48
20	MK620434-7 Available to backorder	Led Circuit	£6.52 £5.43
21	MK922117-8 Available to backorder	Hex. Socket Head Bolt M4x12	£0.48 £0.40
21	MK265353-6 Available to backorder	Hex. Socket Head Bolt M4x12 <	£0.74 £0.62
22	MK346936-2 Available to backorder	Rod Guide R	£1.02 £0.85
23	MK143362-4 Available to backorder	Gear Housing R Complete	£16.92 £14.10
24	MK911128-8 Available to backorder	P.H.Screw M4x16 With Wr	£0.47 £0.39
26	MK922107-1 Available to backorder	Hex. Socket Head Bolt M4x8	£0.48 £0.40
26	MK265911-8 Available to backorder	Hex. Socket Head Bolt M4x8 <	£0.74 £0.62
27	MK267491-0 Available to backorder	Flat Washer 4	£0.48 £0.40
28	MK140D35-4 Available to backorder	Gear Complete S	£27.74 £23.12
28	MK143359-3 Available to backorder	Gear Complete	£25.86 £21.55
29	MK267490-2 Available to backorder	Flat Washer 54	£2.32 £1.93
30	MK424764-6 Available to backorder	Seal Ring	£0.86 £0.72
32	MK346935-4 Available to backorder	Rod Guide L	£1.02 £0.85
34	MK424765-4 Available to backorder	Insulation Cover	£19.06 £15.88
35	MK161809-6 Available to backorder	Shoe (Alt.)	£7.08 £5.90
37	MK265135-6 Available to backorder	+ Countersunk Head Screw M4x10	£0.48 £0.40
37	MK912112-6 In stock	Countersunk Head Screw M4x10	£0.48 £0.40
38	MK253825-3 Available to backorder	Flat Washer 6	£0.58 £0.48
39	MK127462-8 Available to backorder	Gear Housing L Assembly < (INC. 37 38)	£28.46 £23.72
39	MK123509-6 Available to backorder	Gear Housing L Assembly (INC. 37 38 *)	£31.48 £26.23
40	MK519418-9 Available to backorder	Rotor Ass'y (Alt.) (INC. 41-45 *)	£56.78 £47.32
40	MK519529-0 Available to backorder	Rotor Ass'y S (INC. 41-45)	£43.68 £36.40
41	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
42	MK210118-1 Available to backorder	Ball Bearing 6201Ddw	£2.02 £1.68
43	MK253744-3 Available to backorder	Flat Washer 12	£0.58 £0.48
44	MK285740-3 Available to backorder	Bearing Retainer 66	£0.86 £0.72
45	MK210062-2 Available to backorder	Ball Bearing 607Zz	£1.16 £0.97
47	MK266069-6 Available to backorder	Tapping Screw 4x45	£0.74 £0.62
47	MK266425-0 Available to backorder	Tapping Screw 4x45 (Alt.)	£0.48 £0.40
48	MK456178-1 Available to backorder	Baffle Plate	£0.74 £0.62
49	MK629179-4 Available to backorder	Stator	£45.58 £37.98
49	MK629B61-9 Available to backorder	Stator S	£15.84 £13.20
50	MK412476-3 Available to backorder	Motor Housing (Alt.)	£4.52 £3.77
51	MK911243-8 Available to backorder	Pan Head Screw M5x25	£0.48 £0.40
52	MK456177-3 Available to backorder	Change Button	£2.18 £1.82
53	MK650759-5 Available to backorder	Switch C3Jw-6B-2	£21.38 £17.82
54	MK620812-1 Available to backorder	Controller A <	£104.58 £87.15
55	MK643874-2 Available to backorder	Terminal S	£4.20 £3.50
55	MK643899-6 Available to backorder	Terminal	£4.04 £3.37
56	MK183D21-2 Available to backorder	Handle Set S (INC. 60 *)	£30.34 £25.28
56	MK183K23-0 Available to backorder	Handle Set < (INC. 60 *)	£28.66 £23.88
56	MK183C47-8 Available to backorder	Handle Set (INC. 60 *)	£26.58 £22.15
56	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
57	MK265B67-9 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
57	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
58	MK851P12-0 Available to backorder	Djr187 Name Plate	£0.48 £0.40
61	MK456176-5 Available to backorder	Lock Lever	£1.44 £1.20
62	MK266979-7 Available to backorder	Hex.Socket Head Bolt M4x35	£0.48 £0.40
63	MK231231-2 Available to backorder	Compression Spring 12	£0.48 £0.40
64	MK346938-8 Available to backorder	Shoe Lock Plate	£0.48 £0.40
65	MK326599-0 Available to backorder	Lock Pin	£4.78 £3.98
66	MK346937-0 Available to backorder	Shoe Guide Plate	£1.88 £1.57
67	MK123510-1 Available to backorder	Slider Assembly (INC. 1-16 *)	£39.28 £32.73
71	MK123455-3 Available to backorder	Hook Assembly (INC. 72-77)	£7.38 £6.15
72	MK281223-1 Available to backorder	Hook	£2.46 £2.05
73	MK262561-0 Available to backorder	Sleeve 6	£0.58 £0.48
74	MK233455-6 Available to backorder	Compression Spring 7	£0.48 £0.40
75	MK319344-0 Available to backorder	Joint	£4.04 £3.37
76	MK951057-3 Available to backorder	Spring Pin 3-12	£0.48 £0.40
77	MK310661-1 Available to backorder	Lock Sleeve	£0.48 £0.40
78	MK911206-4 Available to backorder	Pan Head Screw M5x10	£0.48 £0.40
79	MK264002-2 Available to backorder	Square Nut M5	£0.58 £0.48
80	MK424858-7 Available to backorder	Felt 16x16	£0.48 £0.40
81	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
82	MK620K37-3 Available to backorder	Controller B S	£14.46 £12.05
83	MK638A31-1 Available to backorder	Lead Unit S	£7.10 £5.92
84	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
901	MKB-05169 Available to backorder	Reciprosawblade For Metal (A01)	£15.32 £12.77
903	MK821620-5 Available to backorder	Plastic Carrying Case (A03)	£48.94 £40.78
903	MK162271-8 In stock	Latch (C10)	£1.98 £1.65
904	MK807X25-7 Available to backorder	Djr187Rte Plastic Case Label (A04E)	£0.48 £0.40
905	MK450128-8 Available to backorder	Battery Cover (A05)	£0.64 £0.53
905	MK196235-0 Available to backorder	Battery Bl1815N Set (A05B)	£187.42 £156.18
907	MK197265-4 Available to backorder	Battery Bl1840B Set (A07C)	£273.12 £227.60
907	MK197280-8 In stock	Battery Bl1850B Set (A07)	£105.88 £88.23
907	MK197600-6 Available to backorder	Battery Bl1830B Set < (A07-1F)	£197.72 £164.77
