Makita DJR186 - Cordless Recipro Saw - Power Tool Diagram

Description

Model No. DJR186

Cordless Recipro Saw

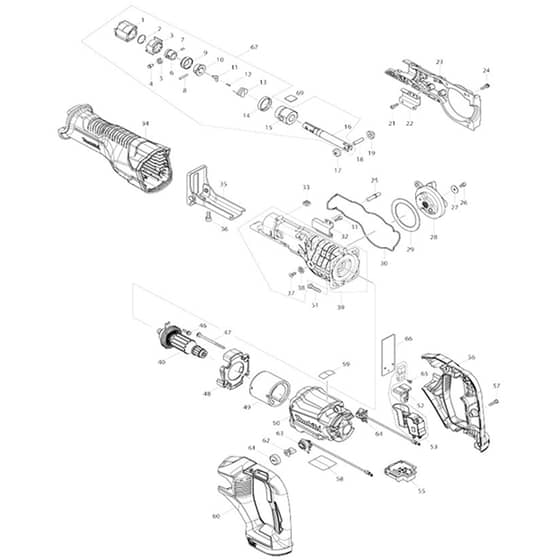

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK424763-8 Available to backorder	Protector	£0.58 £0.48
2	MK257430-8 Available to backorder	Retaining Ring (Ext) 18 S	£0.86 £0.72
3	MK310662-9 Available to backorder	Driving Sleeve	£8.66 £7.22
4	MK256569-4 Available to backorder	Shoulder Pin 5	£1.02 £0.85
5	MK234381-2 Available to backorder	Compression Spring 6	£0.48 £0.40
6	MK327043-0 Available to backorder	Guide Sleeve S	£1.32 £1.10
7	MK268094-3 Available to backorder	Pin 3	£2.32 £1.93
8	MK256158-5 Available to backorder	Pin 3	£0.74 £0.62
9	MK417791-0 Available to backorder	Driving Sleeve Guide	£2.02 £1.68
10	MK418311-3 Available to backorder	Sleeve	£0.86 £0.72
11	MK345214-7 Available to backorder	Push Plate	£0.86 £0.72
12	MK233025-1 Available to backorder	Compression Spring 2	£0.58 £0.48
13	MK231687-9 Available to backorder	Torsion Spring 17	£0.58 £0.48
14	MK424762-0 Available to backorder	Rubber Ring	£0.58 £0.48
15	MK143365-8 Available to backorder	Slider Guide Complete	£12.86 £10.72
15	MK213151-2 Available to backorder	Oil Seal 14 (C10)	£2.32 £1.93
15	MK213174-0 Available to backorder	x-Ring 14 (C20)	£3.62 £3.02
16	MK161376-1 Available to backorder	Slider	£15.88 £13.23
17	MK310663-7 Available to backorder	Roller	£0.48 £0.40
18	MK268341-2 Available to backorder	Pin 6	£0.58 £0.48
21	MK922117-8 Available to backorder	Hex. Socket Head Bolt M4x12	£0.48 £0.40
21	MK265353-6 Available to backorder	Hex. Socket Head Bolt M4x12 <	£0.74 £0.62
22	MK346936-2 Available to backorder	Rod Guide R	£1.02 £0.85
23	MK143381-0 Available to backorder	Gear Housing R Complete	£15.88 £13.23
24	MK911128-8 Available to backorder	Pan Head Screw M4x16 Wr	£0.47 £0.39
25	MK256567-8 Available to backorder	Shoulder Pin 6-8	£1.02 £0.85
26	MK922107-1 Available to backorder	Hex. Socket Head Bolt M4x8	£0.48 £0.40
26	MK265911-8 Available to backorder	Hex. Socket Head Bolt M4x8 <	£0.74 £0.62
27	MK267491-0 Available to backorder	Flat Washer 4	£0.48 £0.40
28	MK141V68-0 Available to backorder	Gear Complete S	£24.18 £20.15
28	MK143377-1 Available to backorder	Gear Complete	£75.28 £62.73
29	MK267490-2 Available to backorder	Flat Washer 54	£2.32 £1.93
30	MK424764-6 Available to backorder	Seal Ring	£0.86 £0.72
32	MK346935-4 Available to backorder	Rod Guide L	£1.02 £0.85
33	MK252157-5 Available to backorder	Square Nut M6	£0.48 £0.40
34	MK424768-8 Available to backorder	Insulation Cover	£18.64 £15.53
35	MK161810-1 Available to backorder	Shoe (Alt.)	£5.78 £4.82
36	MK265531-8 In stock	Hex. Socket Head Bolt M6x14	£0.58 £0.48
37	MK265135-6 Available to backorder	Countersunk Head Screw M4x10 <	£0.48 £0.40
37	MK912112-6 In stock	Countersunk Head Screw M4x10	£0.48 £0.40
38	MK253825-3 Available to backorder	Flat Washer 6	£0.58 £0.48
39	MK126678-2 Available to backorder	Gear Housing L Assembly < (INC. 37 38)	£30.92 £25.77
40	MK961055-9 Available to backorder	Retaining Ring (Ext) S-15 (C10)	£0.48 £0.40
40	MK227A05-3 Available to backorder	Spiral Bevel Gear 7 (C30)	£6.16 £5.13
40	MK510597-6 Available to backorder	Armature Assembly 18V S	£32.90 £27.42
40	MK210062-2 Available to backorder	Ball Bearing 607Zz (C50)	£1.16 £0.97
40	MK211247-3 Available to backorder	Ball Bearing 6002Ddw (C20)	£1.88 £1.57
40	MK227650-8 Available to backorder	Spiral Bevel Gear 7 (C30)	£9.54 £7.95
40	MK285740-3 Available to backorder	Bearing Retainer 66 (C40)	£0.86 £0.72
47	MK266292-3 Available to backorder	Binding Head Tapping Screw 4x65	£1.16 £0.97
48	MK456207-0 Available to backorder	Baffle Plate	£0.86 £0.72
49	MK638571-3 Available to backorder	Yoke Unit	£9.98 £8.32
50	MK456206-2 Available to backorder	Motor Housing	£8.08 £6.73
51	MK266041-8 Available to backorder	Binding Head Tapping Screw 5x25	£0.58 £0.48
52	MK456208-8 Available to backorder	Lock Off Button	£0.86 £0.72
53	MK650760-0 Available to backorder	Switch Tg573Fsb-9V	£44.48 £37.07
55	MK644809-6 Available to backorder	Terminal S	£3.92 £3.27
55	MK644808-8 In stock	Terminal	£3.76 £3.13
56	MK183C48-6 Available to backorder	Handle Set (INC. 60 *)	£15.02 £12.52
56	MK183C49-4 Available to backorder	Handle Set S (INC. 60)	£18.36 £15.30
56	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
57	MK265B67-9 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
57	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
58	MK851R04-1 Available to backorder	Name Plate Djr186	£0.48 £0.40
61	MK643829-7 In stock	Holder Cap	£0.58 £0.48
62	MK195022-4 In stock	Carbon Brush Set Cb-441 (Alt.)	£6.98 £5.82
63	MK643507-9 Available to backorder	Brush Holder	£2.02 £1.68
64	MK643508-7 Available to backorder	Brush Holder	£2.02 £1.68
65	MK911011-9 Available to backorder	Pan Head Screw M3x10 W	£0.48 £0.40
66	MK689204-3 Available to backorder	Heat Sink	£0.86 £0.72
67	MK123510-1 Available to backorder	Slider Assembly (INC. 1-16 *)	£39.28 £32.73
68	MK688131-1 Available to backorder	Line Filter	£0.58 £0.48
69	MK424858-7 Available to backorder	Felt 16x16	£0.48 £0.40
901	MKB-05169 Available to backorder	Reciprosawblade For Metal (A01)	£15.32 £12.77
903	MK162271-8 In stock	Latch (C10)	£1.98 £1.65
903	MK821620-5 Available to backorder	Plastic Case (A03)	£48.94 £40.78
904	MK808A62-6 Available to backorder	Plastic Case Label Djr186Rme (A04B)	£0.48 £0.40
905	MK450128-8 Available to backorder	Battery Cover (A05)	£0.64 £0.53
907	MK197280-8 In stock	Battery Bl1850B Set (A07)	£105.88 £88.23
907	MK197600-6 Available to backorder	Battery Bl1830B Set < (A07-1D)	£197.72 £164.77
907	MK197265-4 Available to backorder	Battery Bl1840B Set (A07)	£273.12 £227.60
