Makita DJR181 - Cordless Recipro Saw - Power Tool Diagram

Description

Model No. DJR181

Cordless Recipro Saw

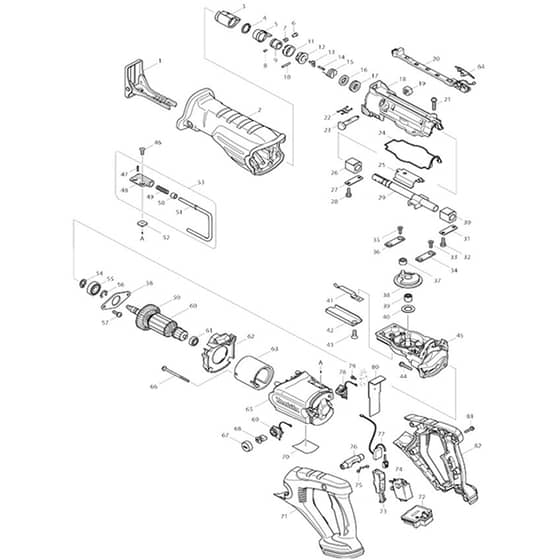

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK163451-9 In stock	Shoe (Alt.)	£5.64 £4.70
2	MK421945-3 Available to backorder	Insulation Cover	£15.02 £12.52
3	MK424147-0 In stock	Protector	£0.74 £0.62
4	MK257430-8 Available to backorder	Retaining Ring(Ext)18 S	£0.86 £0.72
5	MK310285-3 Available to backorder	Driving Sleeve	£6.06 £5.05
6	MK256492-3 Available to backorder	Shoulder Pin 5	£1.16 £0.97
7	MK233345-3 Available to backorder	Compression Spring 6	£0.74 £0.62
8	MK268094-3 Available to backorder	Pin 3	£2.32 £1.93
9	MK327043-0 Available to backorder	Guide Sleeve S	£1.32 £1.10
10	MK256158-5 Available to backorder	Pin 3	£0.74 £0.62
11	MK417791-0 Available to backorder	Driving Sleeve Guide	£2.02 £1.68
12	MK418311-3 Available to backorder	Sleeve	£0.86 £0.72
13	MK345214-7 Available to backorder	Push Plate	£0.86 £0.72
14	MK233025-1 Available to backorder	Compression Spring 2	£0.58 £0.48
15	MK231687-9 Available to backorder	Torsion Spring 17	£0.58 £0.48
16	MK213151-2 Available to backorder	Oil Seal 14	£2.32 £1.93
17	MK213174-0 Available to backorder	x Ring 14	£3.62 £3.02
18	MK154813-2 Available to backorder	Gear Housing Cover Complete	£40.16 £33.47
19	MK418806-6 Available to backorder	Cap	£0.58 £0.48
20	MK631689-9 Available to backorder	Led Circuit	£16.34 £13.62
21	MK911243-8 Available to backorder	Pan Head Screw M5x25	£0.48 £0.40
22	MK232221-8 Available to backorder	Leaf Spring A	£0.48 £0.40
23	MK162236-0 Available to backorder	Shift Button	£2.46 £2.05
24	MK421946-1 Available to backorder	Seal Ring	£0.86 £0.72
25	MK345480-6 Available to backorder	Slide Plate	£0.74 £0.62
26	MK214170-1 Available to backorder	Plane Bearing 14A	£1.16 £0.97
27	MK341462-6 Available to backorder	Plate	£0.74 £0.62
28	MK911225-0 Available to backorder	Pan Head Screw M5x16 (Refs 032 \| 057)	£0.48 £0.40
29	MK168405-1 Available to backorder	Slider	£13.86 £11.55
33	MK265148-7 Available to backorder	Torx Socket Head Screw M5x14	£0.74 £0.62
34	MK344795-8 Available to backorder	Plate C	£1.44 £1.20
37	MK212959-1 Available to backorder	Needle Bearing 708	£4.20 £3.50
38	MK125423-2 Available to backorder	Gear Ass'y	£17.92 £14.93
39	MK212080-6 Available to backorder	Needle Bearing 1012	£1.32 £1.10
40	MK253797-2 Available to backorder	Flat Washer 14	£0.58 £0.48
41	MK232222-6 Available to backorder	Leaf Spring B	£0.58 £0.48
42	MK345479-1 Available to backorder	Shoe Guide	£0.86 £0.72
43	MK265165-7 Available to backorder	Torxsocket C.S.Headscrew M6x16	£0.48 £0.40
44	MK266041-8 Available to backorder	Tapping Screw 5x25	£0.58 £0.48
45	MK154812-4 Available to backorder	Gear Housing Complete	£37.56 £31.30
46	MK912207-5 Available to backorder	Countersunk Head Screw M5x10	£0.48 £0.40
47	MK951057-3 Available to backorder	Spring Pin 3-12	£0.48 £0.40
48	MK313127-0 Available to backorder	Joint	£3.46 £2.88
49	MK233455-6 Available to backorder	Compression Spring 7	£0.48 £0.40
50	MK262561-0 Available to backorder	Sleeve 6	£0.58 £0.48
51	MK281218-4 Available to backorder	Hook	£1.44 £1.20
52	MK264002-2 Available to backorder	Square Nut M5	£0.58 £0.48
53	MK125321-0 Available to backorder	Hook Ass'y	£6.94 £5.78
54	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
55	MK210102-6 Available to backorder	Ball Bearing 6001Ddw	£1.74 £1.45
56	MK961016-9 Available to backorder	Stop Ring E-10	£0.48 £0.40
58	MK285726-7 Available to backorder	Bearing Retainer 63	£0.86 £0.72
59	MK241869-5 Available to backorder	Fan 55	£4.20 £3.50
60	MK519176-7 Available to backorder	Armature Ass'y 18V	£65.58 £54.65
61	MK210062-2 Available to backorder	Ball Bearing 607Zz	£1.16 £0.97
62	MK419333-6 Available to backorder	Baffle Plate	£1.32 £1.10
63	MK638107-8 Available to backorder	Yoke Unit	£29.46 £24.55
64	MK419327-1 Available to backorder	Cover	£0.74 £0.62
65	MK419330-2 Available to backorder	Motor Housing	£17.20 £14.33
66	MK266292-3 Available to backorder	Tapping Screw 4x65	£1.16 £0.97
68	MK195022-4 In stock	Carbon Brush Set Cb-441 <	£6.98 £5.82
70	MK815E72-0 Available to backorder	Djr181 Name Plate	£0.48 £0.40
71	MK187485-8 Available to backorder	Handle Set	£28.60 £23.83
72	MK644808-8 In stock	Terminal	£3.76 £3.13
73	MK419336-0 Available to backorder	Switch Lever	£1.44 £1.20
74	MK650647-6 Available to backorder	Switch C3La-2A-Llms	£42.62 £35.52
75	MK232152-1 Available to backorder	Leaf Spring	£2.02 £1.68
76	MK419334-4 Available to backorder	Lock Off Button	£1.60 £1.33
77	MK631690-4 Available to backorder	Power Supply Circuit	£9.98 £8.32
78	MK643815-8 Available to backorder	Brush Holder	£2.60 £2.17
79	MK911006-2 Available to backorder	Pan Head Screw M3x8	£0.48 £0.40
80	MK689116-0 Available to backorder	Heat Sink	£3.62 £3.02
81	MK266045-0 Available to backorder	Tapping Screw 4x20	£0.48 £0.40
901	MKB-05169 Available to backorder	Reciprosawblade For Metal (A01)	£15.32 £12.77
903	MK141354-7 Available to backorder	Plastic Carrying Case Complete (A03)	£31.82 £26.52
903	MK163455-1 Available to backorder	Latch (C10)	£1.60 £1.33
905	MK197254-9 Available to backorder	Battery Bl1820B Set (A05)	£206.46 £172.05
905	MK197600-6 Available to backorder	Battery Bl1830B Set < (A05-2)	£197.72 £164.77
905	MK197280-8 In stock	Battery Bl1850B Set (A05-1)	£105.88 £88.23
906	MK802T85-0 Available to backorder	Djr181Rfe Plastic Case Label < (A06-2)	£1.60 £1.33
907	MK450128-8 Available to backorder	Battery Cover (A07)	£0.64 £0.53
911	MK197606-4 Available to backorder	Battery Bl1830B Set (2Pieces) (Alt.) (F11-3)	£468.53 £390.44
