Makita DHW080 - Cordless High Pressure Washer - Power Tool 02 Diagram

Description

Model No. DHW080

Cordless High Pressure Washer

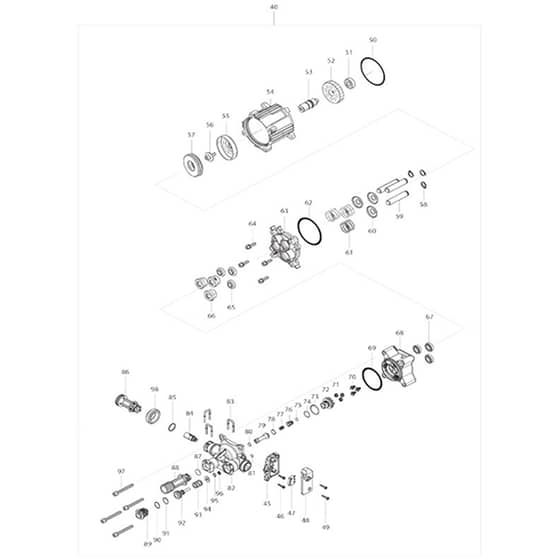

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
40	MK122C03-3 Available to backorder	Pump Assembly <	£298.01 £248.34
41	MK422409-0 Available to backorder	Rubber Cushion	£0.70 £0.58
42	MK809R02-9 Available to backorder	Caution Label (C10)	£0.48 £0.40
42	MK183R51-7 Available to backorder	Housing Set S	£55.42 £46.18
43	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
44	MK855Y66-3 Available to backorder	Dhw080 Name Plate	£0.48 £0.40
45	MK183M00-4 Available to backorder	Switch Box Set	£3.92 £3.27
46	MK911028-2 Available to backorder	Pan Head Screw M3x16	£0.48 £0.40
47	MK632N61-2 Available to backorder	Switch Unit	£14.74 £12.28
49	MK266130-9 Available to backorder	Tapping Screw Bind Pt 3x16	£0.48 £0.40
50	MK213706-3 Available to backorder	O Ring 67 (Alt.)	£0.74 £0.62
51	MK210032-1 Available to backorder	Ball Bearing 628Ddw	£5.64 £4.70
52	MK221597-8 Available to backorder	Helical Gear 47	£10.84 £9.03
53	MK327076-5 Available to backorder	Spindle	£3.92 £3.27
54	MK161821-6 Available to backorder	Pump Housing Complete	£35.50 £29.58
55	MK347341-6 Available to backorder	Wobble Plate 8.5	£27.88 £23.23
56	MK265A34-8 Available to backorder	H.S.H.Bolt M6x20 With Wr	£0.58 £0.48
57	MK210176-7 Available to backorder	Thrust Ball Bearing 2454	£65.16 £54.30
58	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
59	MK327075-7 Available to backorder	Piston Pin 12	£34.38 £28.65
60	MK347340-8 Available to backorder	Spring Retainer C	£0.86 £0.72
61	MK232434-1 Available to backorder	Compression Spring 22	£0.58 £0.48
63	MK319670-7 Available to backorder	Piston Sylinder	£14.32 £11.93
64	MK922233-6 Available to backorder	H.S.H.Bolt M5x20 With Wr	£0.86 £0.72
65	MK213861-1 Available to backorder	Oil Seal 12	£5.20 £4.33
66	MK458323-4 Available to backorder	Seal Holder 12	£0.82 £0.68
67	MK422254-3 Available to backorder	Packing 12	£4.52 £3.77
68	MK162994-8 Available to backorder	Piston Housing Complete <	£19.26 £16.05
69	MK213656-2 Available to backorder	O Ring 53 (Alt.)	£1.74 £1.45
70	MK458320-0 Available to backorder	Outflow Valve	£0.54 £0.45
71	MK232432-5 Available to backorder	Compression Spring 7	£0.48 £0.40
72	MK458321-8 Available to backorder	Valve Holder	£2.06 £1.72
73	MK213379-2 Available to backorder	O Ring 21 (Alt.)	£0.58 £0.48
74	MK213238-0 Available to backorder	O-Ring 13	£0.48 £0.40
75	MK213005-3 Available to backorder	O Ring 5 (Alt.) (Refs 081 \| 095)	£0.48 £0.40
76	MK458322-6 Available to backorder	Spring Retainer A	£0.96 £0.80
77	MK232433-3 Available to backorder	Compression Spring 6	£0.48 £0.40
78	MK213055-8 Available to backorder	O Ring 10 (Alt.)	£0.48 £0.40
79	MK458309-8 Available to backorder	Adjust Holder	£1.52 £1.27
80	MK213011-8 Available to backorder	O Ring 7 (Alt.)	£0.58 £0.48
82	MK319784-2 Available to backorder	Pump Head	£36.68 £30.57
82	MK313420-2 Available to backorder	Pump Head <	£35.22 £29.35
83	MK327074-9 Available to backorder	U Type Pin 3	£0.86 £0.72
84	MK126765-7 Available to backorder	Relief Valve Assembly	£5.74 £4.78
85	MK213176-6 Available to backorder	O Ring 14 (Alt.)	£0.48 £0.40
86	MK458316-1 Available to backorder	Inflow Joint	£2.34 £1.95
88	MK412804-2 Available to backorder	Outflow Joint <	£2.34 £1.95
89	MK458310-3 Available to backorder	Pump Head Cap	£1.36 £1.13
90	MK213223-3 Available to backorder	O Ring 16 (Alt.)	£0.58 £0.48
91	MK213154-6 Available to backorder	O Ring 14 (Alt.)	£0.58 £0.48
91	MK213922-7 Available to backorder	O-Ring 14 <	£0.48 £0.40
92	MK458311-1 Available to backorder	Pressure Pin	£2.06 £1.72
93	MK232429-4 Available to backorder	Compression Spring 11	£0.48 £0.40
94	MK253407-1 Available to backorder	Flat Washer 5A	£0.86 £0.72
96	MK253408-9 Available to backorder	Flat Washer 5B	£0.86 £0.72
97	MK265A33-0 Available to backorder	H.S.H.Bolt M5x50 With Wr	£0.58 £0.48
100	MK286212-1 Available to backorder	Cap 20	£0.58 £0.48
102	MK620K96-7 Available to backorder	Controller B S	£21.56 £17.97
103	MK638A35-3 Available to backorder	Lead Unit S	£7.80 £6.50
104	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
901	MK197842-2 Available to backorder	Trigger Gun Set (A01)	£31.82 £26.52
901	MK819S90-4 Available to backorder	Sound 87Db Label (E01)	£0.48 £0.40
902	MK197822-8 Available to backorder	Variable Nozzle Set (A02)	£17.84 £14.87
903	MK1910R1-6 Available to backorder	Hose Assembly Set S (A03-2)	£31.64 £26.37
903	MK197873-1 Available to backorder	Self-Suction Hose Set (A03)	£50.22 £41.85
904	MK197831-7 Available to backorder	Rotating Brush Set (F04)	£27.88 £23.23
904	MK197883-8 Available to backorder	One Touch Joint Set (A04)	£7.54 £6.28
905	MK197881-2 Available to backorder	Absorption Connector Set (A05)	£7.54 £6.28
905	MK197837-5 Available to backorder	Pipe Cleaning Hose 10M Set (Alt.) (F05-1)	£38.40 £32.00
906	MK197840-6 Available to backorder	Pipe Cleaning Hose 15M Set (Alt.) (F06-1)	£52.76 £43.97

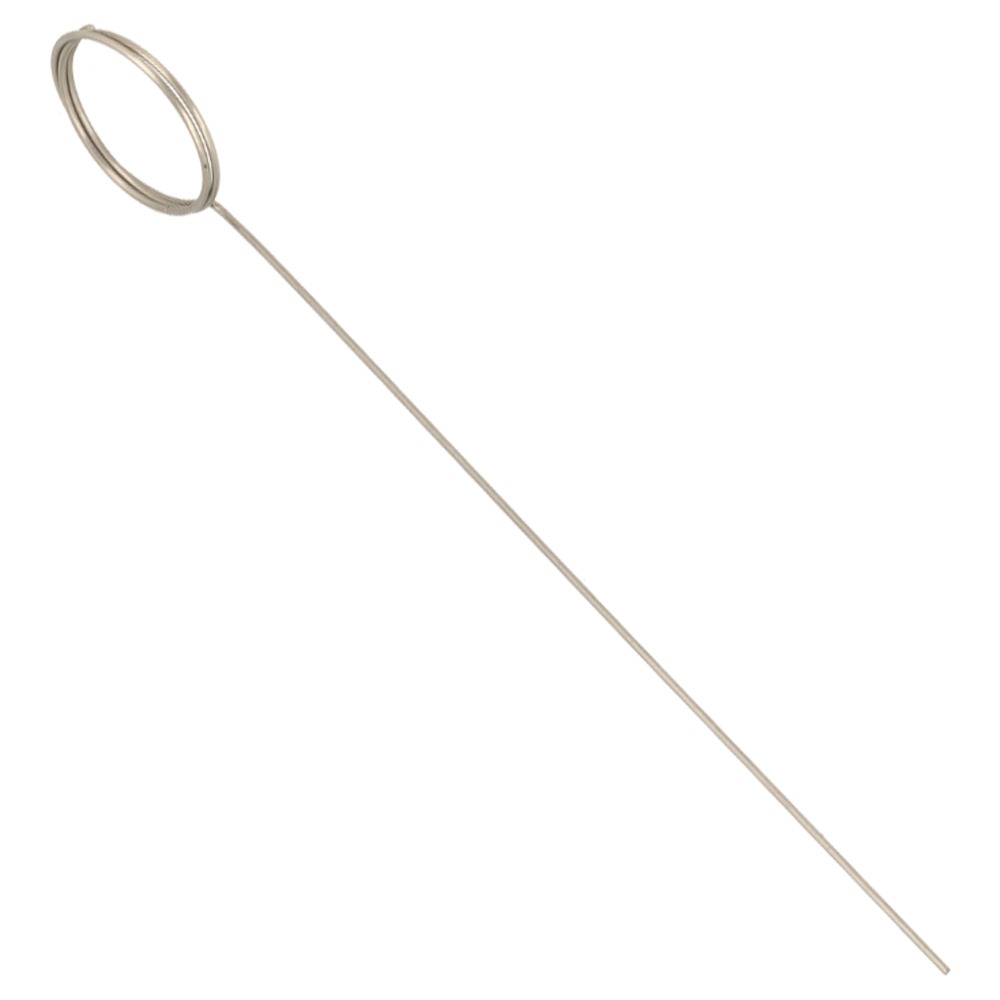

906	MK197879-9 Available to backorder	Cleaner Pin Set (A06)	£0.94 £0.78
907	MK126766-5 Available to backorder	High Pressure Hose 5M (A07)	£24.86 £20.72
908	MK127104-4 Available to backorder	Storage Box Assembly (A08)	£129.42 £107.85
908	MK197845-6 Available to backorder	Extended High P. Hose 5M Set (F08)	£42.34 £35.28
909	MK197824-4 Available to backorder	Cyclone Jet Nozzle Set (A09)	£19.26 £16.05
909	MK197847-2 Available to backorder	Extended High P. Hose 8M Set (F09)	£57.64 £48.03
910	MK197280-8 In stock	Battery Bl1850B Set (A10)	£105.88 £88.23
910	MK197850-3 Available to backorder	Extended High P. Hose 10M Set (F10)	£67.94 £56.62
911	MKDC18RD Available to backorder	Dc18Rd Two Port Fast Charger (A11)	£192.50 £160.42
911	MK197853-7 Available to backorder	Accessory Joint Set (F11)	£10.32 £8.60
915	MK197870-7 Available to backorder	Extension Pipe Set (F15)	£73.92 £61.60
917	MK1910R2-4 Available to backorder	Strainer Assembly Set S (A17)	£45.22 £37.68
923	MK191U86-2 Available to backorder	Vario Spray Nozzle Set (F23)	£31.64 £26.37
924	MK191U88-8 Available to backorder	Vario Spray Lance Set (F24)	£44.64 £37.20
