Model No. DHR243

24mm Cordless Combi. Hammer

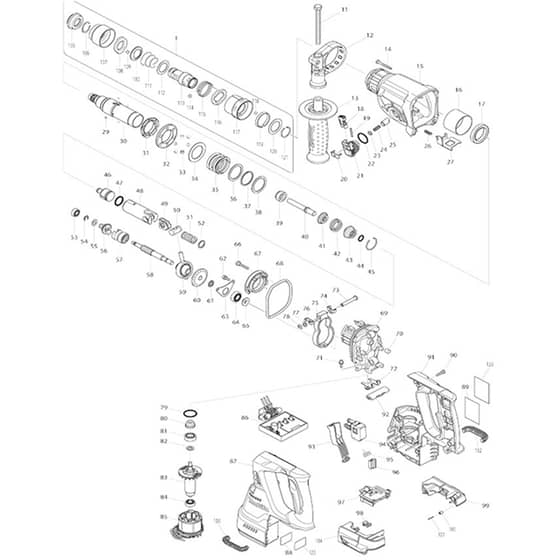

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK194080-7 Available to backorder	Tool Holder Set (INC. 105-121)	£42.00 £35.00
11	MK266745-2 Available to backorder	Hex. Head Bolt M8x90	£1.16 £0.97
12	MK453129-5 Available to backorder	Grip Base	£1.60 £1.33
13	MK158057-6 Available to backorder	Grip 36 Complete	£6.34 £5.28
14	MK266351-3 Available to backorder	Binding Head Tapping Screw 4x35	£0.48 £0.40
14	MK265B69-5 Available to backorder	Binding Head Tapping Screw 4x35	£0.48 £0.40
15	MK810X86-8 Available to backorder	Operation Label < (C20)	£0.48 £0.40
15	MK144354-6 Available to backorder	Gear Housing Complete <	£7.96 £6.63
15	MK213345-9 Available to backorder	Oil Seal 25 (C10)	£1.74 £1.45
15	MK890903-4 Available to backorder	Operation Label (C20)	£0.48 £0.40
16	MK331890-3 Available to backorder	Cup Sleeve	£3.46 £2.88
17	MK211294-4 Available to backorder	Ball Bearing 6806Llu	£11.56 £9.63
18	MK454112-5 Available to backorder	Lock Button	£0.58 £0.48
19	MK234264-6 Available to backorder	Compression Spring 3	£0.48 £0.40
20	MK453131-8 Available to backorder	Change Lever Cover	£0.58 £0.48
21	MK453125-3 Available to backorder	Change Lever	£1.32 £1.10
22	MK213381-5 Available to backorder	O-Ring 21	£3.46 £2.88
23	MK253308-3 In stock	Thin Washer 6	£0.47 £0.39
24	MK234147-0 Available to backorder	Compression Spring 5	£0.48 £0.40
25	MK326850-8 Available to backorder	Push Cone S	£0.86 £0.72
25	MK325785-0 Available to backorder	Push Cone	£1.12 £0.93
26	MK233360-7 Available to backorder	Compression Spring 4	£0.48 £0.40
27	MK346537-6 Available to backorder	Lock Plate	£1.44 £1.20
29	MK216019-1 Available to backorder	Steel Ball 3	£0.47 £0.39
30	MK140266-1 Available to backorder	Tool Holder Guide Complete	£34.38 £28.65
31	MK332139-4 Available to backorder	Driving Flange S	£5.20 £4.33
32	MK227360-7 Available to backorder	Spur Gear 51 S	£6.52 £5.43
33	MK268226-2 Available to backorder	Pin 6	£5.06 £4.22
34	MK267414-8 Available to backorder	Flat Washer 30	£1.16 £0.97
35	MK234148-8 Available to backorder	Compression Spring 31	£1.88 £1.57
36	MK267153-0 Available to backorder	Flat Washer 30	£0.74 £0.62
37	MK257932-4 Available to backorder	Spiro Lock Washer 30	£4.48 £3.73
39	MK325783-4 Available to backorder	Sleeve 9B	£1.32 £1.10
40	MK325791-5 Available to backorder	Impact Bolt B	£2.02 £1.68
41	MK325792-3 Available to backorder	Washer 10	£2.18 £1.82
42	MK234149-6 Available to backorder	Compression Spring 20	£0.74 £0.62
43	MK325793-1 Available to backorder	O-Ring Case B	£2.46 £2.05
44	MK213073-6 Available to backorder	O-Ring 9	£1.16 £0.97
45	MK233979-2 Available to backorder	Ring Spring 28	£0.48 £0.40
46	MK326139-4 Available to backorder	Striker	£4.48 £3.73
47	MK213258-4 Available to backorder	O-Ring 17.5	£2.18 £1.82
48	MK310345-1 Available to backorder	Piston Cylinder	£9.54 £7.95
49	MK346036-8 Available to backorder	Guide Plate	£0.74 £0.62
50	MK324215-8 Available to backorder	Piston Joint	£1.60 £1.33
51	MK234098-7 Available to backorder	Compression Spring 14	£0.58 £0.48
52	MK267447-3 Available to backorder	Flat Washer 14	£0.58 £0.48
53	MK211012-0 Available to backorder	Ball Bearing 606Zz	£12.86 £10.72
54	MK257336-0 Available to backorder	Stop Ring (Ext) U-6	£0.48 £0.40
55	MK253186-1 Available to backorder	Flat Washer 7	£0.58 £0.48
56	MK227231-8 Available to backorder	Spur Gear 10	£27.02 £22.52
57	MK331814-9 Available to backorder	Clutch Cam A	£5.36 £4.47
57	MK326849-3 Available to backorder	Clutch Cam A S	£5.48 £4.57
58	MK326140-9 Available to backorder	Cam Shaft	£6.64 £5.53
59	MK219020-5 Available to backorder	Swash Bearing 10	£35.12 £29.27
60	MK227588-7 Available to backorder	Spiral Bevel Gear 32	£7.38 £6.15
61	MK257323-9 Available to backorder	Ring 8	£0.86 £0.72
62	MK922118-6 Available to backorder	Hex. Socket Head Bolt M4x12 Wr	£0.74 £0.62
63	MK346038-4 Available to backorder	Bearing Retainer B	£0.74 £0.62
64	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.38 £6.98
65	MK324212-4 Available to backorder	Ring 8	£5.48 £4.57
67	MK141230-5 Available to backorder	Inner Support Complete	£4.04 £3.37
68	MK213767-3 Available to backorder	O-Ring 75	£1.44 £1.20
69	MK318810-4 Available to backorder	Inner Housing	£21.96 £18.30
70	MK443153-6 Available to backorder	Felt	£0.74 £0.62
72	MK346536-8 Available to backorder	Bearing Retainer A	£1.32 £1.10
73	MK256536-9 Available to backorder	Flat Fillister Hd. Pin 6	£1.32 £1.10
74	MK346538-4 Available to backorder	Weight Holder Guide	£0.48 £0.40
75	MK313224-2 Available to backorder	Counter Weight	£3.92 £3.27
77	MK253726-5 Available to backorder	Flat Washer 6	£0.48 £0.40
78	MK961018-5 Available to backorder	Stop Ring (Ext) E-5	£0.48 £0.40
79	MK213008-7 Available to backorder	O-Ring 22.4	£0.74 £0.62
80	MK141458-5 Available to backorder	Spiral Bevel Gear 11 Complete	£5.78 £4.82
81	MK210024-0 Available to backorder	Ball Bearing 608 Llu	£3.04 £2.53
82	MK253835-0 Available to backorder	Flat Washer 8	£0.58 £0.48
83	MK619737-4 Available to backorder	Rotor < (INC. 80-82 84)	£44.22 £36.85
84	MK210022-4 Available to backorder	Ball Bearing 626Ddw	£3.34 £2.78
85	MK529187-4 Available to backorder	Stator Assembly S	£18.20 £15.17
86	MK620241-8 Available to backorder	Controller	£181.00 £150.83
87	MK187687-6 Available to backorder	Housing Set (INC. 91 *)	£21.54 £17.95
87	MK183A34-5 Available to backorder	Housing Set < (INC. 91 *)	£22.24 £18.53
90	MK265B67-9 Available to backorder	Binding Head Tapping Screw 4x18.	£0.48 £0.40
90	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
92	MK453124-5 Available to backorder	F/R Change Lever	£0.74 £0.62
93	MK453123-7 Available to backorder	Switch Lever	£0.86 £0.72
94	MK650709-0 Available to backorder	Switch C3Jw-1A-P	£17.04 £14.20
95	MK233598-4 Available to backorder	Torsion Spring 6	£0.48 £0.40
96	MK313226-8 Available to backorder	Opener	£0.86 £0.72
97	MK644808-8 In stock	Terminal	£3.76 £3.13
98	MK424476-1 Available to backorder	Cushion	£0.58 £0.48
99	MK187377-1 Available to backorder	Battery Housing Set (INC. 104)	£8.66 £7.22
99	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
100	MK263036-2 Available to backorder	Rubber Pin 5	£1.32 £1.10
101	MK268184-2 Available to backorder	Pin 1.5	£0.48 £0.40
102	MK424473-7 Available to backorder	Cushion Rubber	£2.18 £1.82
105	MK286263-4 Available to backorder	Cap 35	£0.86 £0.72
106	MK233940-9 In stock	Ring Spring 19	£0.48 £0.40
107	MK418217-5 Available to backorder	Chuck Cover	£1.16 £0.97
108	MK345333-9 Available to backorder	Stopper	£0.74 £0.62
109	MK216022-2 Available to backorder	Steel Ball 7.0	£0.48 £0.40
110	MK345187-4 Available to backorder	Guide Washer	£0.86 £0.72
111	MK233916-6 In stock	Conical Compression Spring	£0.48 £0.40
112	MK267279-8 Available to backorder	Flat Washer 21	£0.48 £0.40
113	MK324355-2 Available to backorder	Tool Holder	£56.48 £47.07
114	MK216013-3 Available to backorder	Steel Ball 6	£0.48 £0.40
115	MK231669-1 Available to backorder	Torsion Spring 31	£0.58 £0.48
116	MK345334-7 Available to backorder	Change Ring	£1.44 £1.20
117	MK418218-3 Available to backorder	Change Cover	£1.16 £0.97
118	MK216018-3 Available to backorder	Steel Ball 5.0	£0.48 £0.40
119	MK345335-5 Available to backorder	Leaf Spring	£0.58 £0.48
120	MK267270-6 Available to backorder	Flat Washer 24	£0.74 £0.62
121	MK233924-7 Available to backorder	Ring Spring 21	£0.58 £0.48
122	MK893072-0 Available to backorder	Clear Label	£0.48 £0.40
123	MK890994-5 Available to backorder	Clear Label	£0.48 £0.40
124	MK424734-5 Available to backorder	Sponge S	£0.48 £0.40
901	MK195834-5 Available to backorder	Hammer Service Kit (B01)	£18.36 £15.30
901	MK324219-0 Available to backorder	Depth Gauge (A01)	£0.74 £0.62
901	MK195127-0 Available to backorder	Oil Vessel Set (C10)	£3.44 £2.87
902	MK194079-2 Available to backorder	Drill Chuck Set (A02)	£106.92 £89.10
902	MK251425-3 Available to backorder	Slotted Flat Head Screw M6x22 (C10)	£0.58 £0.48
902	MK418216-7 Available to backorder	Spacer (C30)	£1.60 £1.33
902	MK324353-6 Available to backorder	Chuck Holder (C20)	£0.74 £0.62
903	MK821552-6 Available to backorder	Connector Plastic Case (Type 4) (A03)	£74.82 £62.35
903	MK194254-0 Available to backorder	Keyless Drill Chuck Set (F03)	£105.48 £87.90
903	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
904	MK424474-5 Available to backorder	Sealing Cap (A04S) (Refs A09J \| A11)	£1.02 £0.85
904	MK837649-1 Available to backorder	Inner Tray (A04)	£11.16 £9.30
904	MK197280-8 In stock	Battery Bl1850B Set < (A04-2)	£105.88 £88.23
904	MK197265-4 Available to backorder	Battery Bl1840B Set < (A04-2)	£273.12 £227.60
904	MK197600-6 Available to backorder	Battery Bl1830B Set < (A04-2)	£197.72 £164.77
905	MK450128-8 Available to backorder	Battery Cover (A05)	£0.64 £0.53
906	MK890904-2 Available to backorder	Operation Label (C20)	£0.82 £0.68
906	MK140H96-8 Available to backorder	Plastic Case Complete < (A06-1J)	£61.98 £51.65
906	MK141401-4 Available to backorder	Plastic Case Complete (A06)	£49.00 £40.83
906	MK141402-2 Available to backorder	Plastic Case Complete (A06J)	£46.66 £38.88
906	MK162271-8 In stock	Latch (C10)	£1.98 £1.65
907	MK196235-0 Available to backorder	Battery Bl1815N Set (A07Q) (Refs A07 \| F56)	£187.42 £156.18
907	MK835A31-4 Available to backorder	Inner Tray (A07W)	£11.16 £9.30
912	MK198993-4 In stock	Grease Vessel Set (A12)	£8.74 £7.28
913	MK837349-3 Available to backorder	Sponge 50-50 S (A13)	£0.74 £0.62
937	MK197606-4 Available to backorder	Battery Bl1830B Set (2 Pcs) (Alt.) (F37-3)	£468.53 £390.44
948	MK199977-5 Available to backorder	Dust Case Set (Alt.) (F48-1)	£30.28 £25.23
950	MK199557-7 Available to backorder	Filter Set (Alt.) (F50-1)	£13.76 £11.47
963	MK199570-5 Available to backorder	Dust Collection System Set Dx07 (F63)	£154.26 £128.55
