Makita DHR182 - 18mm Crdls Combination Hammer - Power Tool Diagram

Description

Model No. DHR182

18mm Crdls Combination Hammer

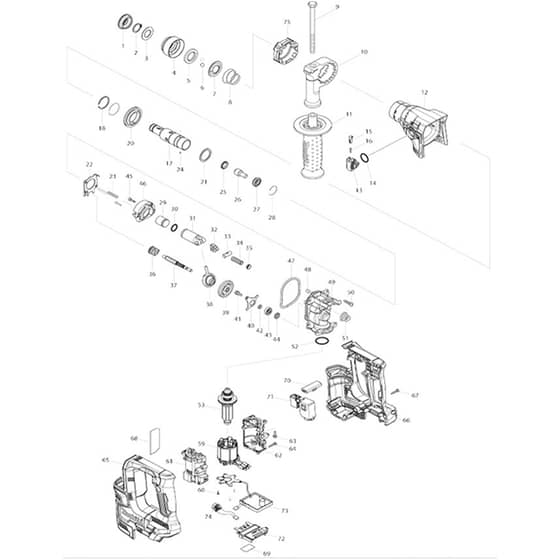

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK286037-3 Available to backorder	Cap 34	£1.02 £0.85
2	MK961057-5 Available to backorder	Retaining Ring S-17	£0.48 £0.40
3	MK253377-4 Available to backorder	Flat Washer 17	£0.58 £0.48
4	MK458845-4 Available to backorder	Chuck Cover	£0.96 £0.80
5	MK257416-2 Available to backorder	Ring 21	£1.74 £1.45
6	MK216022-2 Available to backorder	Steel Ball 7.0	£0.48 £0.40
7	MK346177-0 In stock	Guide Washer	£0.64 £0.53
8	MK232347-6 Available to backorder	Conical Comp. Spring 21-29	£0.48 £0.40
9	MK921923-8 Available to backorder	Hex. Bolt M8x120	£1.10 £0.92
10	MK417911-6 Available to backorder	Grip Base	£2.02 £1.68
11	MK266053-1 Available to backorder	Tapping Screw 4x35	£0.58 £0.48
12	MK213874-2 Available to backorder	Oil Seal 25 (C20)	£3.28 £2.73
12	MK211375-4 Available to backorder	Ball Bearing 6805Llb (C10)	£19.64 £16.37
12	MK136043-7 Available to backorder	Gear Housing Assy	£32.36 £26.97
13	MK213278-8 Available to backorder	O Ring 17 (Alt.)	£0.48 £0.40
14	MK458851-9 Available to backorder	Lock Button	£0.70 £0.58
15	MK234264-6 Available to backorder	Compression Spring 3	£0.48 £0.40
16	MK136040-3 Available to backorder	Change Lever Assy	£1.92 £1.60
17	MK931402-8 Available to backorder	Hex. Nut M8 (C10)	£0.58 £0.48
17	MK158057-6 Available to backorder	Grip 36 Complete	£6.34 £5.28
18	MK232473-1 Available to backorder	Compression Spring 8	£0.48 £0.40
19	MK347463-2 Available to backorder	Change Plate B	£1.10 £0.92
20	MK347555-7 Available to backorder	Spiral Retaining Ring 25 (Alt.)	£0.70 £0.58
20	MK961135-1 Available to backorder	Retaining(Ext) Wr-25	£0.70 £0.58
21	MK267304-5 Available to backorder	Flat Washer 25	£0.74 £0.62
22	MK232360-4 Available to backorder	Compression Spring 25	£0.96 £0.80
23	MK226854-9 Available to backorder	Spur Gear 44	£5.60 £4.67
24	MK327039-1 Available to backorder	Driving Flange	£2.76 £2.30
25	MK216019-1 Available to backorder	Steel Ball 3	£0.47 £0.39
26	MK326886-7 Available to backorder	Tool Holder	£14.62 £12.18
27	MK326887-5 Available to backorder	Impact Bolt	£1.36 £1.13
28	MK213117-2 Available to backorder	O Ring 11 (Alt.)	£2.02 £1.68
29	MK253380-5 Available to backorder	Flat Washer 13	£0.48 £0.40
30	MK326888-3 Available to backorder	Ring 10	£1.24 £1.03
31	MK232357-3 Available to backorder	Compression Spring 10A	£0.54 £0.45
32	MK327038-3 Available to backorder	Cup Sleeve	£2.18 £1.82
33	MK233942-5 Available to backorder	Ring Spring 22	£0.86 £0.72
34	MK267175-0 Available to backorder	Flat Washer 24	£0.74 £0.62
35	MK345681-6 Available to backorder	Joint Plate	£0.74 £0.62
36	MK347462-4 Available to backorder	Change Plate A	£1.24 £1.03
37	MK233458-0 Available to backorder	Compression Spring 32	£0.74 £0.62
38	MK327215-7 Available to backorder	Striker	£2.06 £1.72
39	MK213832-8 Available to backorder	O-Ring 13	£0.96 £0.80
40	MK326890-6 Available to backorder	Piston Cylinder	£5.46 £4.55
41	MK347127-8 Available to backorder	Guide Plate	£0.48 £0.40
42	MK324612-8 Available to backorder	Piston Joint	£1.16 £0.97
43	MK232361-2 Available to backorder	Conical Comp. Spring 6-13	£0.48 £0.40
44	MK347130-9 Available to backorder	Spring Guide	£0.48 £0.40
45	MK961008-8 Available to backorder	Retaining Ring S-5	£0.48 £0.40
46	MK226853-1 Available to backorder	Spur Gear 12	£4.78 £3.98
47	MK327216-5 Available to backorder	Cam Shaft	£4.52 £3.77
48	MK327217-3 Available to backorder	Clutch Cam	£3.28 £2.73
49	MK219029-7 Available to backorder	Swash Bearing 9	£14.46 £12.05
50	MK253733-8 Available to backorder	Flat Washer 9	£0.58 £0.48
51	MK251510-2 Available to backorder	H. S. Head Bolt M3x12 With Wrm	£0.86 £0.72
52	MK253381-3 Available to backorder	Flat Washer 3	£0.48 £0.40
53	MK347129-4 Available to backorder	Spring Plate	£1.24 £1.03
54	MK221496-4 Available to backorder	Helical Gear 23	£3.92 £3.27
54	MK226906-6 Available to backorder	Helical Gear 23 <	£3.82 £3.18
55	MK211016-2 Available to backorder	Ball Bearing 626Llb	£5.64 £4.70
56	MK232359-9 Available to backorder	Compression Spring 7	£0.48 £0.40
57	MK213833-6 Available to backorder	O-Ring 60	£0.82 £0.68
58	MK140F85-1 Available to backorder	Inner Housing Complete	£20.62 £17.18
59	MK213641-5 Available to backorder	O Ring 51 (Alt.)	£0.48 £0.40
60	MK443138-2 Available to backorder	Filter	£0.48 £0.40
61	MK458848-8 Available to backorder	Air Duct	£1.10 £0.92
63	MK519549-4 Available to backorder	Rotor Assy	£39.32 £32.77
64	MK213118-0 Available to backorder	O Ring 12 (Alt.)	£0.48 £0.40
65	MK327227-0 Available to backorder	Ring 9	£1.24 £1.03
66	MK210162-8 Available to backorder	Ball Bearing 609Llu	£4.92 £4.10
67	MK267231-6 Available to backorder	Flat Washer 9	£0.48 £0.40
68	MK458841-2 Available to backorder	Sleeve 12	£0.54 £0.45
69	MK210035-5 Available to backorder	Ball Bearing 625Ddw	£1.78 £1.48
71	MK232474-9 Available to backorder	Compression Spring 4	£0.48 £0.40
72	MK310913-0 Available to backorder	Lock Plate	£6.16 £5.13
73	MK458846-2 Available to backorder	Stopper Plate	£0.70 £0.58
74	MK266130-9 Available to backorder	Tapping Screw Bind Pt 3x16 (Refs 078 \| 090)	£0.48 £0.40
75	MK629393-2 Available to backorder	Stator	£14.08 £11.73
76	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
77	MK183L14-7 Available to backorder	Motor Housing Set	£5.06 £4.22
79	MK268076-5 Available to backorder	Pin 6	£0.58 £0.48
80	MK266490-9 Available to backorder	Tapping Screw Pt 2x6	£0.48 £0.40
80	MK265C47-1 Available to backorder	Tapping Screw Pt 2x6 (Alt.)	£0.48 £0.40
81	MK458847-0 Available to backorder	Spring Support	£0.70 £0.58
82	MK232358-1 Available to backorder	Compression Spring 10B	£0.48 £0.40
83	MK422354-9 Available to backorder	Bellows	£1.78 £1.48
84	MK620995-7 Available to backorder	Controller	£140.74 £117.28
85	MK458844-6 Available to backorder	F/R Change Lever	£0.70 £0.58
86	MK651380-3 Available to backorder	Switch C3Jw-6B-25	£26.48 £22.07
87	MK855F52-0 Available to backorder	Dhr182 Name Plate	£0.48 £0.40
88	MK818N47-2 Available to backorder	Clear Label	£0.48 £0.40
89	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
89	MK183L12-1 Available to backorder	Handle Set	£15.16 £12.63
89	MK252126-6 Available to backorder	Hex. Lock Nut M4-7 (C20)	£0.86 £0.72
91	MK213218-6 Available to backorder	O Ring 16 (Alt.) (C10)	£0.74 £0.62
91	MK140F99-0 Available to backorder	Cap Complete	£2.60 £2.17
91	MK818H07-8 Available to backorder	Cap Label (C20)	£0.70 £0.58
91	MK213A05-9 Available to backorder	O-Ring16 (Alt.) (C11)	£0.48 £0.40
92	MK643874-2 Available to backorder	Terminal	£4.20 £3.50
93	MK855F59-6 Available to backorder	Dhr182 Serial No. Label	£0.48 £0.40
94	MK620549-0 Available to backorder	Led Circuit	£4.34 £3.62
96	MK256586-4 Available to backorder	Flat Fillister Head Pin 2.5	£1.10 £0.92
97	MK458850-1 Available to backorder	Guide Plate	£0.70 £0.58
98	MK232475-7 Available to backorder	Compression Spring 3	£0.48 £0.40
99	MK458849-6 Available to backorder	Shatter	£0.82 £0.68
100	MK256585-6 Available to backorder	Rod 4	£0.48 £0.40
102	MK136154-8 Available to backorder	Tool Holder Ass'y (Alt.)	£38.36 £31.97
103	MK136042-9 Available to backorder	Cam Shaft Assy	£37.54 £31.28
901	MK195127-0 Available to backorder	Oil Vessel Set (C10)	£3.44 £2.87
901	MK199544-6 Available to backorder	Hammer Service Kit (B01)	£10.50 £8.75
901	MK415486-9 Available to backorder	Depth Gauge (A01)	£1.22 £1.02
902	MK821552-6 Available to backorder	Connector Plastic Case (A02)	£74.82 £62.35
902	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
904	MK450128-8 Available to backorder	Battery Cover (A04)	£0.64 £0.53
906	MK197280-8 In stock	Battery Bl1850B Set (A06)	£105.88 £88.23
908	MK839891-0 Available to backorder	Inner Tray (A08)	£10.54 £8.78
910	MK198900-7 Available to backorder	Wireless Unit Set < (F10-2)	£67.06 £55.88
912	MK424474-5 Available to backorder	Sealing Cap (A12)	£1.02 £0.85
914	MK199593-3 Available to backorder	Tool Hanger Set (F14)	£26.26 £21.88
