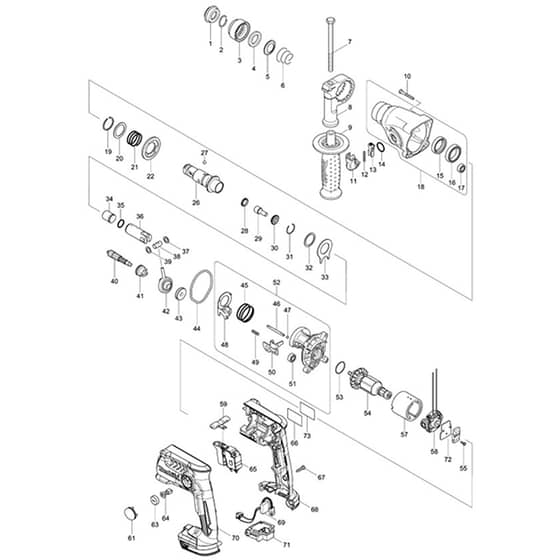

Makita DHR165 - Cordless Rotary Hammer 16mm - Power Tool Diagram

Description

Model No. DHR165

Cordless Rotary Hammer 16mm

Power Tool Parts Diagrams

	Part No.	Details
1	MK286263-4 Available to backorder	Cap 35	£1.03 £0.86
2	MK233940-9 In stock	Ring Spring 19	£0.48 £0.40
3	MK419220-9 Available to backorder	Chuck Cover	£1.74 £1.45
4	MK257241-1 Available to backorder	Ring 21	£1.58 £1.32
5	MK345187-4 Available to backorder	Guide Washer	£1.03 £0.86
6	MK233916-6 In stock	Conical Comp. Spring	£0.48 £0.40
7	MK921923-8 Available to backorder	Hex. Bolt M8x120	£1.32 £1.10
8	MK417911-6 Available to backorder	Grip Base	£2.21 £1.84
9	MK158057-6 Available to backorder	Grip 36 Complete	£6.60 £5.50
10	MK266053-1 Available to backorder	Tapping Screw 4x35	£0.70 £0.58
11	MK162242-5 Available to backorder	Change Lever Complete	£1.39 £1.16
12	MK233459-8 Available to backorder	Compression Spring 3	£0.48 £0.40
13	MK455413-4 Available to backorder	Lock Button	£6.00 £5.00
14	MK213278-8 Available to backorder	O Ring 17 (Alt.)	£0.48 £0.40
15	MK213535-4 Available to backorder	Oil Seal 25	£1.90 £1.58
16	MK211375-4 Available to backorder	Ball Bearing 6805Llb	£20.28 £16.90
17	MK211012-0 Available to backorder	Ball Bearing 606Zz	£13.32 £11.10
18	MK154840-9 Available to backorder	Gear Housing Complete	£22.68 £18.90
19	MK961135-1 Available to backorder	Retaining(Ext) Wr-25	£0.84 £0.70
20	MK267304-5 Available to backorder	Flat Washer 25	£0.89 £0.74
21	MK233457-2 Available to backorder	Compression Spring 25	£1.39 £1.16
22	MK331707-0 Available to backorder	Spur Gear 46	£12.36 £10.30
26	MK154843-3 Available to backorder	Tool Holder Complete	£21.12 £17.60
27	MK216022-2 In stock	Steel Ball 7.0	£0.48 £0.40
28	MK213183-9 Available to backorder	x Ring 13	£1.39 £1.16
29	MK324611-0 Available to backorder	Impact Bolt	£2.38 £1.98
30	MK257275-4 Available to backorder	Ring 11	£2.53 £2.11
31	MK233942-5 Available to backorder	Ring Spring 22	£1.03 £0.86
32	MK267175-0 Available to backorder	Flat Washer 24	£0.89 £0.74
33	MK345681-6 Available to backorder	Joint Plate	£0.89 £0.74
34	MK324613-6 Available to backorder	Striker	£1.90 £1.58
35	MK213182-1 Available to backorder	O Ring 14 (Alt.)	£1.39 £1.16
36	MK331708-8 Available to backorder	Piston Cylinder	£13.92 £11.60
37	MK267130-2 Available to backorder	Flat Washer 9	£0.48 £0.40
38	MK324612-8 Available to backorder	Piston Joint	£1.39 £1.16
40	MK227152-4 Available to backorder	Spur Gear 10	£6.84 £5.70
41	MK331706-2 Available to backorder	Clutch Cam	£4.80 £4.00
42	MK219019-0 Available to backorder	Swash Bearing 9	£48.96 £40.80
43	MK226623-8 Available to backorder	Helical Gear 22	£14.16 £11.80
44	MK423346-1 Available to backorder	Seal Ring	£0.89 £0.74
45	MK233458-0 Available to backorder	Compression Spring 32	£0.89 £0.74
46	MK268147-8 Available to backorder	Pin 4	£1.39 £1.16
47	MK443123-5 Available to backorder	Felt 4x3	£0.48 £0.40
48	MK345645-0 Available to backorder	Change Plate	£7.20 £6.00
49	MK233460-3 Available to backorder	Compression Spring 3	£0.48 £0.40
50	MK345654-9 Available to backorder	Stopper Plate	£4.20 £3.50
52	MK154841-7 Available to backorder	Inner Housing Complete	£24.48 £20.40
53	MK213953-6 Available to backorder	O Ring 24 (Alt.)	£1.22 £1.02
54	MK619334-6 Available to backorder	Armature	£33.12 £27.60
55	MK911011-9 Available to backorder	Pan Head Screw M3x10	£0.48 £0.40
57	MK638446-6 Available to backorder	Yoke Unit	£8.28 £6.90
58	MK654037-5 Available to backorder	Insulated Term. Ft1.25-M3 (C20)	£0.70 £0.58
58	MK688172-7 Available to backorder	Line Filter (C10)	£1.03 £0.86
58	MK632D97-1 Available to backorder	Endbell Complete	£5.52 £4.60
58	MK654409-4 Available to backorder	Terminal Vr1.25-3.5Lb (Alt.) (C21)	£0.48 £0.40
59	MK419457-8 Available to backorder	F/R Change Lever	£2.53 £2.11
61	MK424128-4 Available to backorder	Holder Cap Cover	£0.70 £0.58
63	MK643929-3 Available to backorder	Brush Holder Cap	£0.89 £0.74
64	MK191971-3 In stock	Carbon Brush Cb-430	£5.72 £4.77
65	MK632D93-9 Available to backorder	Switch Unit	£43.68 £36.40
65	MK654199-9 Available to backorder	Receptacle (C20)	£0.48 £0.40
66	MK850K43-6 Available to backorder	Dhr165 Name Plate	£0.48 £0.40
67	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
68	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
68	MK183A41-8 Available to backorder	Housing Set	£20.04 £16.70
69	MK620367-6 Available to backorder	Light Circuit	£9.24 £7.70
71	MK644808-8 In stock	Terminal	£3.98 £3.32
72	MK689098-6 Available to backorder	Heat Sink	£1.39 £1.16
73	MK805F02-5 Available to backorder	Clear Label	£0.48 £0.40
901	MK1914D1-2 Available to backorder	Grease Set (Alt.) (C11)	£5.04 £4.20
901	MK183477-5 Available to backorder	Hammer Grease 30G (C10)	£4.20 £3.50
901	MK415486-9 Available to backorder	Depth Gauge (A01)	£1.46 £1.22
901	MK195208-0 Available to backorder	Hammer Service Kit Set (B01)	£21.12 £17.60
902	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
902	MK821551-8 Available to backorder	Connector Plastic Case (A02B) (Refs A05C \| A05D \| A05E)	£64.68 £53.90
903	MK197280-8 In stock	Battery Bl1850B Set (A03-2E)	£76.24 £63.53
903	MK838109-6 Available to backorder	Inner Tray (A03B) (Refs A06C \| A06D \| A06E)	£11.52 £9.60
903	MK197265-4 Available to backorder	Battery Bl1840B Set < (A03-2C) (Refs F12 \| F13)	£229.42 £191.18
903	MK196235-0 Available to backorder	Battery Bl1815N Set (A03D)	£179.88 £149.90
904	MK450128-8 Available to backorder	Battery Cover (A04C)	£0.77 £0.64
904	MK805L52-6 Available to backorder	Dhr165Zj Indication Label (A04B)	£0.70 £0.58
905	MK805L53-4 Available to backorder	Dhr165Zj Plastic Case Label (A05B)	£0.48 £0.40
907	MK197606-4 Available to backorder	Battery Bl1830B Set (2Pieces) (F07-3)	£421.68 £351.40
908	MK197600-6 Available to backorder	Battery Bl1830B Set (Alt.) (F08-3)	£197.76 £164.80
909	MK197599-5 Available to backorder	Battery Bl1830B Set (Alt.) (F09-4)	£86.28 £71.90
