Makita DHR164 - Cordless Rotary Hammer 16mm - Power Tool Diagram

Description

Model No. DHR164

Cordless Rotary Hammer 16mm

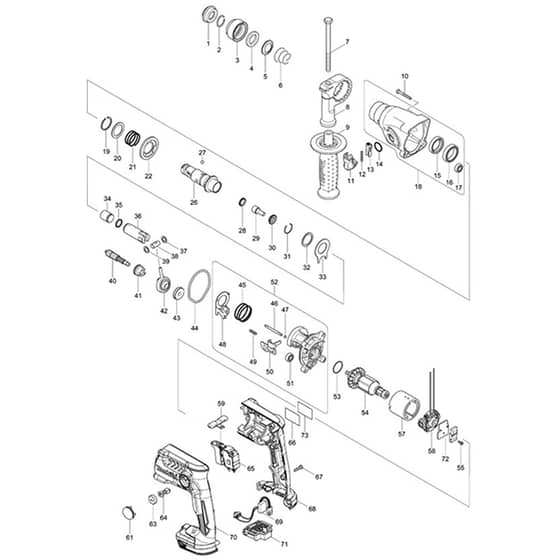

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK286263-4 Available to backorder	Cap 35	£0.86 £0.72
2	MK233940-9 In stock	Ring Spring 19	£0.48 £0.40
3	MK419220-9 Available to backorder	Chuck Cover	£1.60 £1.33
4	MK257241-1 Available to backorder	Ring 21	£1.32 £1.10
5	MK345187-4 Available to backorder	Guide Washer	£0.86 £0.72
6	MK233916-6 In stock	Conical Comp. Spring	£0.48 £0.40
7	MK921923-8 Available to backorder	Hex. Bolt M8x120	£1.10 £0.92
8	MK417911-6 Available to backorder	Grip Base	£2.02 £1.68
9	MK158057-6 Available to backorder	Grip 36 Complete	£6.34 £5.28
10	MK266053-1 Available to backorder	Tapping Screw 4x35	£0.58 £0.48
11	MK162242-5 Available to backorder	Change Lever Complete	£1.16 £0.97
12	MK233459-8 Available to backorder	Compression Spring 3	£0.48 £0.40
13	MK455413-4 Available to backorder	Lock Button	£5.78 £4.82
14	MK213278-8 Available to backorder	O Ring 17 (Alt.)	£0.48 £0.40
15	MK213535-4 Available to backorder	Oil Seal 25	£1.74 £1.45
16	MK211375-4 Available to backorder	Ball Bearing 6805Llb	£19.64 £16.37
17	MK211012-0 Available to backorder	Ball Bearing 606Zz	£12.86 £10.72
18	MK154840-9 Available to backorder	Gear Housing Complete	£21.96 £18.30
19	MK961135-1 Available to backorder	Retaining(Ext) Wr-25	£0.70 £0.58
20	MK267304-5 Available to backorder	Flat Washer 25	£0.74 £0.62
21	MK233457-2 Available to backorder	Compression Spring 25	£1.16 £0.97
22	MK331707-0 Available to backorder	Spur Gear 46	£12.00 £10.00
26	MK154843-3 Available to backorder	Tool Holder Complete	£20.38 £16.98
27	MK216022-2 Available to backorder	Steel Ball 7.0	£0.48 £0.40
28	MK213183-9 Available to backorder	x Ring 13	£1.16 £0.97
29	MK324611-0 Available to backorder	Impact Bolt	£2.18 £1.82
30	MK257275-4 Available to backorder	Ring 11	£2.32 £1.93
31	MK233942-5 Available to backorder	Ring Spring 22	£0.86 £0.72
32	MK267175-0 Available to backorder	Flat Washer 24	£0.74 £0.62
33	MK345681-6 Available to backorder	Joint Plate	£0.74 £0.62
34	MK324613-6 Available to backorder	Striker	£1.74 £1.45
35	MK213182-1 Available to backorder	O Ring 14 (Alt.)	£1.16 £0.97
36	MK331708-8 Available to backorder	Piston Cylinder	£13.44 £11.20
37	MK267130-2 Available to backorder	Flat Washer 9	£0.48 £0.40
38	MK324612-8 Available to backorder	Piston Joint	£1.16 £0.97
40	MK227152-4 Available to backorder	Spur Gear 10	£6.64 £5.53
41	MK331706-2 Available to backorder	Clutch Cam	£4.62 £3.85
42	MK219019-0 Available to backorder	Swash Bearing 9	£47.38 £39.48
43	MK226623-8 Available to backorder	Helical Gear 22	£13.74 £11.45
44	MK423346-1 Available to backorder	Seal Ring	£0.74 £0.62
45	MK233458-0 Available to backorder	Compression Spring 32	£0.74 £0.62
46	MK268147-8 Available to backorder	Pin 4	£1.16 £0.97
47	MK443123-5 Available to backorder	Felt 4x3	£0.48 £0.40
48	MK345645-0 Available to backorder	Change Plate	£6.94 £5.78
49	MK233460-3 Available to backorder	Compression Spring 3	£0.48 £0.40
50	MK345654-9 Available to backorder	Stopper Plate	£4.04 £3.37
52	MK154841-7 Available to backorder	Inner Housing Complete	£23.68 £19.73
53	MK213953-6 Available to backorder	O Ring 24 (Alt.)	£1.02 £0.85
54	MK619182-3 Available to backorder	Armature	£59.80 £49.83
55	MK911011-9 Available to backorder	Pan Head Screw M3x10	£0.48 £0.40
57	MK638446-6 Available to backorder	Yoke Unit	£7.96 £6.63
58	MK654409-4 Available to backorder	Terminal Vr1.25-3.5Lb (Alt.) (C21)	£0.48 £0.40
58	MK632D97-1 Available to backorder	Endbell Complete	£5.36 £4.47
58	MK654037-5 Available to backorder	Insulated Term. Ft1.25-M3 (C20)	£0.58 £0.48
58	MK688172-7 Available to backorder	Line Filter (C10)	£0.86 £0.72
59	MK419457-8 Available to backorder	F/R Change Lever	£2.32 £1.93
61	MK424128-4 Available to backorder	Holder Cap Cover	£0.58 £0.48
63	MK643929-3 Available to backorder	Brush Holder Cap	£0.74 £0.62
64	MK191971-3 In stock	Carbon Brush Cb-430	£5.57 £4.64
65	MK632D93-9 Available to backorder	Switch Unit	£42.18 £35.15
65	MK654199-9 Available to backorder	Receptacle (C20)	£0.48 £0.40
66	MK850K29-0 Available to backorder	Dhr164 Name Plate	£0.48 £0.40
67	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
68	MK183A24-8 Available to backorder	Housing Set	£19.36 £16.13
68	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
69	MK620366-8 Available to backorder	Light Circuit	£8.96 £7.47
71	MK643867-9 Available to backorder	Terminal	£5.64 £4.70
72	MK689098-6 Available to backorder	Heat Sink	£1.16 £0.97
73	MK805F02-5 Available to backorder	Clear Label	£0.48 £0.40
901	MK1914D1-2 Available to backorder	Grease Set (Alt.) (C11)	£4.86 £4.05
901	MK183477-5 Available to backorder	Hammer Grease 30G (C10)	£4.08 £3.40
901	MK195208-0 Available to backorder	Hammer Service Kit Set (B01)	£20.38 £16.98
901	MK415486-9 Available to backorder	Depth Gauge (A01)	£1.22 £1.02
902	MK821551-8 Available to backorder	Connector Plastic Case (A02A) (Refs A05B \| A05C \| A05D)	£62.48 £52.07
902	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
903	MK838109-6 Available to backorder	Inner Tray (A03A) (Refs A06B \| A06C \| A06D)	£11.16 £9.30
903	MK196388-5 Available to backorder	Battery Bl1440 Set (A03B) (Refs A03 \| F10)	£134.40 £112.00
904	MK450128-8 Available to backorder	Battery Cover (A04B)	£0.64 £0.53
906	MK197615-3 Available to backorder	Battery Bl1430B Set (Alt.) (F06-3)	£246.62 £205.52
