Makita DHP486 - Cordless Hammer Driver Drill - Power Tool Diagram

Description

Model No. DHP486

Cordless Hammer Driver Drill

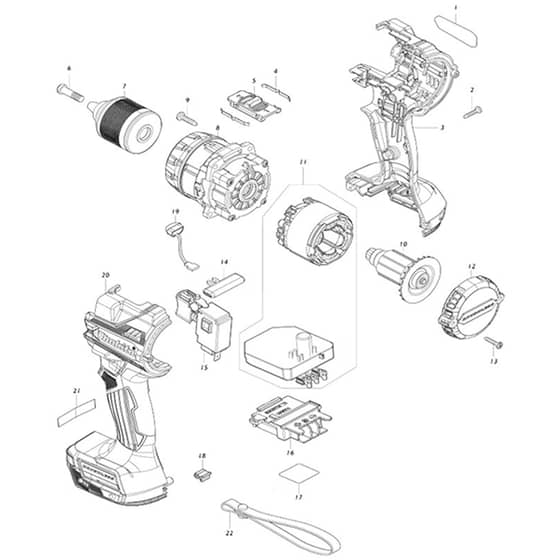

Power Tool Parts Diagrams

	Part No.	Details
1	MK811B29-1 Available to backorder	Name Plate Dhp486	£0.48 £0.40
2	MK266130-9 Available to backorder	Binding Head Tapping Screw 3x16	£0.48 £0.40
3	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
3	MK183R83-4 Available to backorder	Housing Set (INC. 20 *)	£13.08 £10.90
3	MK252126-6 Available to backorder	Hex. Lock Nut M4-7 (C20)	£1.03 £0.86
4	MK232493-5 Available to backorder	Leaf Spring <	£0.48 £0.40
4	MK232220-0 Available to backorder	Leaf Spring	£0.48 £0.40
5	MK233438-6 Available to backorder	Compression Spring 4 (C10)	£0.70 £0.58
5	MK127494-5 Available to backorder	Speed Change Lever Assembly	£1.15 £0.96
6	MK251468-5 In stock	Slotted Flat Head Screw M6x22	£0.70 £0.58
8	MK122D48-7 Available to backorder	Gear Assembly (Alt.)	£104.16 £86.80
8	MK122B68-9 Available to backorder	Gear Assembly <	£103.80 £86.50
9	MK265B67-9 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
9	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
10	MK619656-4 Available to backorder	Rotor	£30.96 £25.80
11	MK629C05-5 Available to backorder	Stator Complete <	£167.04 £139.20
12	MK413405-9 Available to backorder	Rear Cover	£1.94 £1.62
14	MK419041-9 Available to backorder	F/R Change Lever	£1.03 £0.86
15	MK651443-5 Available to backorder	Switch C3Jr-4B	£26.28 £21.90
16	MK643874-2 Available to backorder	Terminal	£4.32 £3.60
18	MK424517-3 Available to backorder	Cushion	£0.70 £0.58
19	MK620549-0 Available to backorder	Led Circuit	£4.44 £3.70
901	MK122576-8 Available to backorder	Stopper Pole Assembly (A01)	£3.36 £2.80
902	MK931202-6 Available to backorder	Hex. Nut M5 (C60)	£0.48 £0.40
902	MK122D10-2 Available to backorder	Grip Assembly (Alt.) (A02-2)	£39.72 £33.10
902	MK266886-4 Available to backorder	Hex. Head Bolt M8x65 (C40)	£1.39 £1.16
902	MK962055-2 Available to backorder	Retaining Ring (Int) R-15 (C70)	£0.48 £0.40
902	MK265785-7 Available to backorder	Thumb Screw M5x10 (C30)	£1.03 £0.86
902	MK312C73-2 Available to backorder	Arm L (C50)	£6.24 £5.20
903	MK251314-2 Available to backorder	Truss Head Screw M4x12 (A03)	£0.70 £0.58
904	MK346317-0 Available to backorder	Hook (A04)	£2.00 £1.67
905	MK452947-8 Available to backorder	Bit Holder (A05)	£0.98 £0.82
906	MK784637-8 Available to backorder	Phillips Slotted Bit 2-45 (A06)	£4.44 £3.70
907	MK821550-0 Available to backorder	Connector Plastic Case (Type 2) (A07B)	£56.16 £46.80
907	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
908	MK837916-4 Available to backorder	Inner Tray (A08B)	£11.52 £9.60
911	MK450128-8 Available to backorder	Battery Cover (A11B)	£0.77 £0.64
912	MK197280-8 In stock	Battery Bl1850B Set (A12B)	£76.24 £63.53
