Model No. DGA901

230mm Cordless Angle Grinder

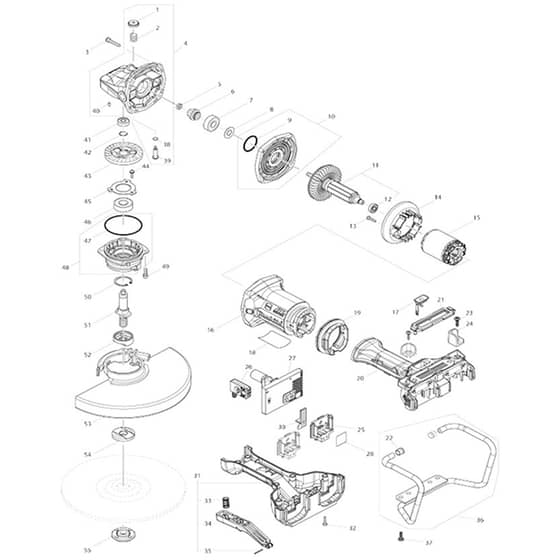

Power Tool Parts Diagrams

	Part No.	Details
1	MK451485-7 Available to backorder	Pin Cap	£0.70 £0.58
2	MK233089-5 Available to backorder	Compression Spring 12	£0.65 £0.54
3	MK266553-1 Available to backorder	Binding Head Tapping Screw 5x30	£0.48 £0.40
3	MK266173-1 Available to backorder	Binding Head Tapping Screw 5x30	£0.89 £0.74
4	MK135918-7 Available to backorder	Gear Housing Assembly (INC. 1 2 38-40)	£23.64 £19.70
5	MK264010-3 Available to backorder	Hex. Nut M7	£0.48 £0.40
6	MK227563-3 Available to backorder	Spiral Bevel Gear 10B	£5.88 £4.90
7	MK211137-0 Available to backorder	Ball Bearing 6201Llu	£4.80 £4.00
8	MK253759-0 Available to backorder	Flat Washer 12	£0.89 £0.74
9	MK213459-4 Available to backorder	O-Ring 32	£2.21 £1.84
10	MK135916-1 Available to backorder	Gear Housing Cover Assembly (INC. 9)	£9.24 £7.70
11	MK519436-7 Available to backorder	Rotor Assembly (INC. 12 *)	£44.88 £37.40
12	MK211166-3 Available to backorder	Ball Bearing 698Ddw	£1.49 £1.24
13	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
14	MK457618-2 Available to backorder	Baffle Plate	£1.32 £1.10
15	MK629B80-5 Available to backorder	Stator S	£31.92 £26.60
15	MK629376-2 Available to backorder	Stator	£53.04 £44.20
16	MK457615-8 Available to backorder	Motor Housing	£10.03 £8.36
17	MK213A05-9 Available to backorder	O-Ring 16 (Alt.) (C11)	£0.48 £0.40
17	MK818H07-8 Available to backorder	Cap Label (C20)	£0.84 £0.70
17	MK213218-6 Available to backorder	O-Ring 16 (C10)	£0.89 £0.74
17	MK140F99-0 Available to backorder	Cap Complete	£2.83 £2.36
18	MK854U99-1 Available to backorder	Name Plate Dga901	£0.48 £0.40
19	MK457619-0 Available to backorder	Vibration Proof Rubber	£2.69 £2.24
20	MK136110-8 Available to backorder	Handle Switch Lever Assembly < (INC. 31 33-35)	£34.20 £28.50
20	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
20	MK136022-5 Available to backorder	Handle Switch Lever Assembly (INC. 31 33-35 *)	£32.28 £26.90
21	MK457620-5 Available to backorder	Dust Cover	£3.72 £3.10
22	MK422230-7 Available to backorder	Cap	£0.48 £0.40
23	MK251587-7 Available to backorder	Hexalobular Socket Tapping Screw 5x18	£0.48 £0.40
24	MK347482-8 Available to backorder	Protection Block (Alt.)	£2.38 £1.98
25	MK644809-6 Available to backorder	Terminal	£4.08 £3.40
26	MK651083-9 Available to backorder	Switch C3xa-1Pspm	£28.56 £23.80
27	MK620L83-2 Available to backorder	Controller Complete <	£235.32 £196.10
27	MK620987-6 Available to backorder	Controller Complete	£201.12 £167.60
27	MK801H41-5 Available to backorder	Indication Label (C10)	£0.98 £0.82
28	MK854V05-2 Available to backorder	Serial No. Label Dga901	£0.48 £0.40
30	MK457621-3 Available to backorder	Lens	£0.84 £0.70
32	MK265999-8 Available to backorder	Binding Head Tapping Screw 4x25	£0.48 £0.40
33	MK234357-9 Available to backorder	Compression Spring 11	£0.48 £0.40
34	MK144584-9 Available to backorder	Switch Lever Complete	£4.32 £3.60
35	MK951019-1 Available to backorder	Spring Pin 2-20	£2.38 £1.98
36	MK135919-5 Available to backorder	Guard Pipe Assembly (INC. 22)	£27.24 £22.70
38	MK213026-5 Available to backorder	O-Ring 7	£0.48 £0.40
39	MK256516-5 Available to backorder	Shoulder Pin 11	£1.58 £1.32
40	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
41	MK210029-0 Available to backorder	Ball Bearing 608Zz	£1.39 £1.16
42	MK233925-5 Available to backorder	Ring Spring 13	£0.48 £0.40
43	MK227561-7 Available to backorder	Spiral Bevel Gear 49	£14.76 £12.30
44	MK911128-8 In stock	Pan Head Screw M4x16 Wr	£0.54 £0.45
45	MK285851-4 Available to backorder	Bearing Retainer	£0.70 £0.58
46	MK211241-5 Available to backorder	Ball Bearing 6202Ddw	£2.21 £1.84
47	MK213720-9 Available to backorder	O-Ring 67	£1.90 £1.58
48	MK135917-9 Available to backorder	Bearing Box Assembly (INC. 47)	£10.20 £8.50
49	MK922221-3 Available to backorder	Hex. Socket Head Bolt M5x16 W	£0.70 £0.58
50	MK962151-6 Available to backorder	Retaining Ring (Int) R-32	£0.70 £0.58
51	MK326963-5 Available to backorder	Spindle	£6.84 £5.70
52	MK310800-3 Available to backorder	Lead Flange	£12.60 £10.50
53	MK122847-3 Available to backorder	Toolless Wheel Cover 230K Assembly	£17.76 £14.80
53	MK8050A1-8 Available to backorder	Caution Label (C10)	£1.49 £1.24
54	MK224447-6 Available to backorder	Inner Flange 42B	£7.68 £6.40
55	MK224485-8 Available to backorder	Lock Nut 14-45	£4.20 £3.50
56	MK620L22-2 Available to backorder	Controller B S	£21.00 £17.50
57	MK638A37-9 Available to backorder	Lead Unit S	£7.44 £6.20
58	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
901	MK162264-5 Available to backorder	Vibration Proof Grip (A01)	£16.56 £13.80
903	MK821717-0 Available to backorder	Plastic Case (A03B)	£77.52 £64.60
903	MK198900-7 Available to backorder	Wireless Unit Set (A03)	£69.36 £57.80
903	MK162271-8 In stock	Latch (C10)	£2.16 £1.80
904	MK195354-9 Available to backorder	Toolless Lock Nut Set (Alt.) (A04-1B)	£66.96 £55.80
904	MK122864-3 Available to backorder	Toolless Lock Nut Assembly M14 (A04B)	£76.80 £64.00
910	MK122913-6 Available to backorder	Wheel Cover 230Ck Assembly (A10C)	£21.96 £18.30
910	MK265198-2 Available to backorder	Pan Head Screw M8x25 (C20)	£1.03 £0.86
910	MK213017-6 Available to backorder	O-Ring 6 (C10)	£0.48 £0.40
