Model No. DGA505

125mm Cordless Angle Grinder

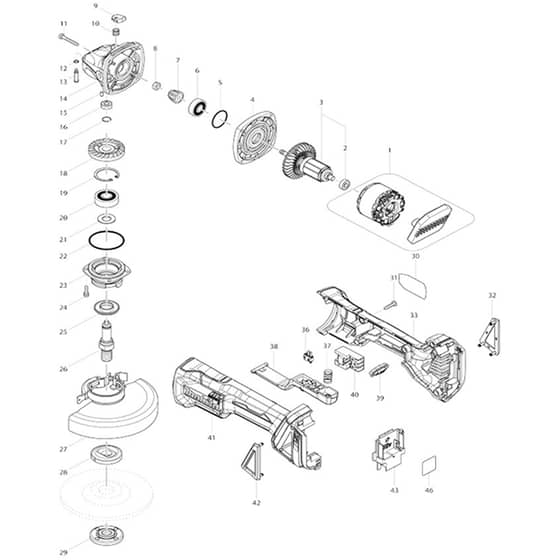

Power Tool Parts Diagrams

	Part No.	Details
1	MK629B61-9 Available to backorder	Stator S	£16.44 £13.70
1	MK629142-7 Available to backorder	Stator Complete	£158.64 £132.20
1	MK688131-1 Available to backorder	Line Filter (C10)	£0.70 £0.58
1	MK629174-4 Available to backorder	Stator Complete (Alt.)	£152.40 £127.00
2	MK210034-7 In stock	Ball Bearing 607Llb	£1.73 £1.44
3	MK519378-5 Available to backorder	Rotor Ass'y (Alt.) (INC. 2 *)	£43.08 £35.90
3	MK510329-1 Available to backorder	Rotor Ass'y < (INC. 2 *)	£26.28 £21.90
3	MK519354-9 Available to backorder	Rotor Ass'y (INC. 2 *)	£85.20 £71.00
4	MK319214-3 Available to backorder	Gear Housing Cover	£6.48 £5.40
5	MK213407-3 Available to backorder	O Ring 26 (Alt.)	£1.03 £0.86
5	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
6	MK210042-8 Available to backorder	Ball Bearing 629Llb	£3.12 £2.60
7	MK226861-2 Available to backorder	Spiral Bevel Gear 10 S	£2.83 £2.36
8	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
9	MK417771-6 In stock	Pin Cap	£0.52 £0.43
10	MK233072-2 Available to backorder	Compression Spring 8	£0.48 £0.40
10	MK233376-2 Available to backorder	Compression Spring 8 (Alt.)	£0.48 £0.40
11	MK266361-0 Available to backorder	Tapping Screw 4x30	£0.48 £0.40
11	MK265B70-0 Available to backorder	Tapping Screw 4x30 (Alt.)	£0.48 £0.40
13	MK256546-6 Available to backorder	Shoulder Pin 4	£0.70 £0.58
14	MK319213-5 Available to backorder	Gear Housing	£10.44 £8.70
15	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
16	MK210033-9 Available to backorder	Ball Bearing 696Zz	£1.73 £1.44
17	MK233950-6 Available to backorder	Ring Spring 11	£1.03 £0.86
18	MK226862-0 Available to backorder	Spiral Bevel Gear 37 S	£5.52 £4.60
19	MK962151-6 Available to backorder	Retaining Ring R-32	£0.70 £0.58
20	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.72 £8.10
21	MK267113-2 Available to backorder	Flat Washer 12	£1.03 £0.86
21	MK267238-2 Available to backorder	Flat Washer 12 (Alt.)	£0.48 £0.40
22	MK213622-9 Available to backorder	O Ring 45 (Alt.)	£0.48 £0.40
23	MK318331-6 Available to backorder	Bearing Box	£3.48 £2.90
24	MK911121-2 Available to backorder	Pan Head Screw M4x14	£0.48 £0.40
25	MK345464-4 Available to backorder	Labyrinth Ring	£0.70 £0.58
26	MK324954-0 Available to backorder	Spindle	£3.84 £3.20
27	MK213009-5 Available to backorder	O Ring 4 (Alt.) (C10)	£0.48 £0.40
27	MK8050A1-8 Available to backorder	Caution Label (C30)	£1.49 £1.24
27	MK123145-8 Available to backorder	Toolless Wheelcover	£12.36 £10.30
28	MK224490-5 In stock	Inner Flange 14-45 (Alt.)	£1.97 £1.64
29	MK224554-5 In stock	Lock Nut 14-45	£5.47 £4.56
30	MK850L12-3 Available to backorder	Dga505 Name Plate	£0.48 £0.40
31	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
31	MK265B67-9 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
32	MK455450-8 Available to backorder	Dust Cover R	£4.32 £3.60
33	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
33	MK183A52-3 Available to backorder	Motor Housing Set (INC. 41 *)	£25.44 £21.20
37	MK234357-9 Available to backorder	Compression Spring 11	£0.48 £0.40
38	MK142976-6 Available to backorder	Switch Lever Complete	£6.24 £5.20
39	MK142901-7 Available to backorder	Indicator Panel Complete	£1.22 £1.02
40	MK650734-1 Available to backorder	Switch Tg73Bds-2	£17.28 £14.40
42	MK455449-3 Available to backorder	Dust Cover L	£4.32 £3.60
43	MK643899-6 Available to backorder	Terminal	£4.20 £3.50
43	MK643874-2 Available to backorder	Terminal S	£4.32 £3.60
46	MK850L20-4 Available to backorder	Dga505 Serial No. Label	£0.48 £0.40
47	MK620K13-7 Available to backorder	Controller S	£122.52 £102.10
48	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
901	MKA-80656 Available to backorder	Grinding Wheel 125 Wa36N (A01)	£3.60 £3.00
902	MK194514-0 Available to backorder	Vibration Proof Grip Set (Alt.) (F02-1)	£24.24 £20.20
902	MK158237-4 Available to backorder	Grip 36 Complete (A02)	£5.04 £4.20
903	MK782423-1 In stock	Lock Nut Wrench 35 (A03)	£1.94 £1.62
904	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
904	MK192227-7 Available to backorder	Super Flange (F04)	£23.40 £19.50
904	MK821551-8 Available to backorder	Connector Plastic Case (A04)	£64.68 £53.90
905	MK838175-3 Available to backorder	Inner Tray (A05)	£11.52 £9.60
906	MK197600-6 Available to backorder	Battery Bl1830B Set (Alt.) (F06-3)	£197.76 £164.80
907	MK197599-5 Available to backorder	Battery Bl1830B Set (Alt.) (F07-4)	£86.28 £71.90
908	MK196235-0 Available to backorder	Battery Bl1815N Set (A08)	£179.88 £149.90
909	MK197265-4 Available to backorder	Battery Bl1840B Set (Alt.) (F09-3)	£229.42 £191.18
913	MK199710-5 Available to backorder	Cutting W.C.A. 125 Set (A13)	£12.24 £10.20
926	MK743130-1 Available to backorder	Brush B (C20)	£24.84 £20.70
926	MK743129-6 Available to backorder	Brush A (C10)	£26.28 £21.90
