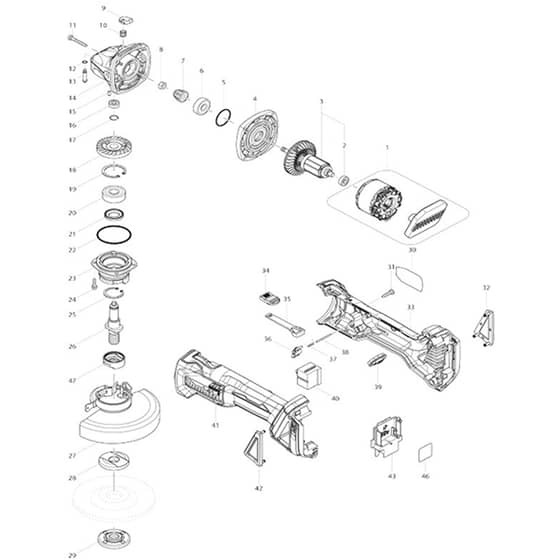

Makita DGA456 - 115mm Cordless Angle Grinder - Power Tool Diagram

Description

Model No. DGA456

115mm Cordless Angle Grinder

Power Tool Parts Diagrams

	Part No.	Details
1	MK629201-7 Available to backorder	Stator Complete	£151.80 £126.50
1	MK629B61-9 Available to backorder	Stator S	£16.44 £13.70
2	MK211021-9 Available to backorder	Ball Bearing 607Llb	£8.04 £6.70
4	MK319214-3 Available to backorder	Gear Housing Cover	£6.48 £5.40
5	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
5	MK213407-3 Available to backorder	O Ring 26 (Alt.)	£1.03 £0.86
6	MK210042-8 Available to backorder	Ball Bearing 629Llb	£3.12 £2.60
7	MK226861-2 Available to backorder	Spiral Bevel Gear 10 S	£2.83 £2.36
8	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
9	MK417771-6 In stock	Pin Cap	£0.52 £0.43
10	MK233072-2 Available to backorder	Compression Spring 8	£0.48 £0.40
10	MK233376-2 Available to backorder	Compression Spring 8 (Alt.)	£0.48 £0.40
11	MK265B70-0 Available to backorder	Tapping Screw 4x30 (Alt.)	£0.48 £0.40
11	MK266361-0 Available to backorder	Tapping Screw 4x30	£0.48 £0.40
13	MK256546-6 Available to backorder	Shoulder Pin 4	£0.70 £0.58
14	MK319213-5 Available to backorder	Gear Housing	£10.44 £8.70
15	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
16	MK210006-2 Available to backorder	Ball Bearing 696Zz	£3.12 £2.60
17	MK233950-6 Available to backorder	Ring Spring 11	£1.03 £0.86
18	MK226862-0 Available to backorder	Spiral Bevel Gear 37 S	£5.52 £4.60
19	MK962151-6 Available to backorder	Retaining Ring R-32	£0.70 £0.58
20	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.72 £8.10
21	MK262153-5 Available to backorder	Felt Ring 16	£1.39 £1.16
22	MK213622-9 Available to backorder	O Ring 45 (Alt.)	£0.48 £0.40
23	MK319399-5 Available to backorder	Bearing Box	£6.00 £5.00
24	MK911121-2 Available to backorder	Pan Head Screw M4x14	£0.48 £0.40
26	MK326672-6 Available to backorder	Spindle	£8.40 £7.00
27	MK213009-5 Available to backorder	O Ring 4 (Alt.) (C10)	£0.48 £0.40
27	MK8050A1-8 Available to backorder	Caution Label (C30)	£1.49 £1.24
27	MK123144-0 Available to backorder	Toolless Wheelcover	£12.72 £10.60
28	MK224447-6 Available to backorder	Inner Flange 42B	£7.68 £6.40
29	MK224554-5 In stock	Lock Nut 14-45	£5.47 £4.56
30	MK851Y70-0 Available to backorder	Dga456 Name Plate	£0.48 £0.40
31	MK265B67-9 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
31	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
32	MK455450-8 Available to backorder	Dust Cover R	£4.32 £3.60
33	MK187998-9 Available to backorder	Motor Housing Set (INC. 41 *)	£15.84 £13.20
33	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
33	MK183J39-9 Available to backorder	Motor Housing Set < (INC. 41)	£14.04 £11.70
34	MK455447-7 Available to backorder	Switch Knob	£0.48 £0.40
35	MK455446-9 Available to backorder	Switch Lever	£0.48 £0.40
36	MK455448-5 Available to backorder	Lever	£0.48 £0.40
37	MK231679-8 Available to backorder	Torsion Spring 2	£0.48 £0.40
38	MK268330-7 Available to backorder	Pin 2	£0.48 £0.40
39	MK142901-7 Available to backorder	Indicator Panel Complete	£1.22 £1.02
40	MK650579-7 Available to backorder	Switch 1246.3223	£9.72 £8.10
42	MK455449-3 Available to backorder	Dust Cover L	£4.32 £3.60
43	MK643899-6 Available to backorder	Terminal	£4.20 £3.50
46	MK851Y75-0 Available to backorder	Dga456 Serial No. Label	£0.48 £0.40
47	MK310514-4 Available to backorder	Lead Flange	£13.92 £11.60
48	MK620L30-3 Available to backorder	Controller S	£125.88 £104.90
49	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
901	MKA-80640 Available to backorder	Depressed Center Wheel 115x36 (A01)	£1.84 £1.53
902	MK158237-4 Available to backorder	Grip 36 Complete (A02)	£5.04 £4.20
902	MK194514-0 Available to backorder	Vibration Proof Grip Set (Alt.) (F02-1)	£24.24 £20.20
903	MK782423-1 In stock	Lock Nut Wrench 35 (A03)	£1.94 £1.62
905	MK197280-8 In stock	Battery Bl1850B Set (A05)	£76.24 £63.53
905	MK197600-6 Available to backorder	Battery Bl1830B Set < (A05-1)	£197.76 £164.80
905	MK197265-4 Available to backorder	Battery Bl1840B Set (A05)	£229.42 £191.18
906	MK450128-8 Available to backorder	Battery Cover (A06)	£0.77 £0.64
907	MK821551-8 Available to backorder	Connector Plastic Case (A07)	£64.68 £53.90
907	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
908	MK838175-3 Available to backorder	Inner Tray (A08)	£11.52 £9.60
909	MK808R83-0 Available to backorder	Dga456Rtj Indication Label (A09)	£0.70 £0.58
913	MK199709-0 Available to backorder	Cutting W.C.A. 115 Set (A13)	£12.00 £10.00
916	MK743130-1 Available to backorder	Brush B (C20)	£24.84 £20.70
916	MK743129-6 Available to backorder	Brush A (C10)	£26.28 £21.90
