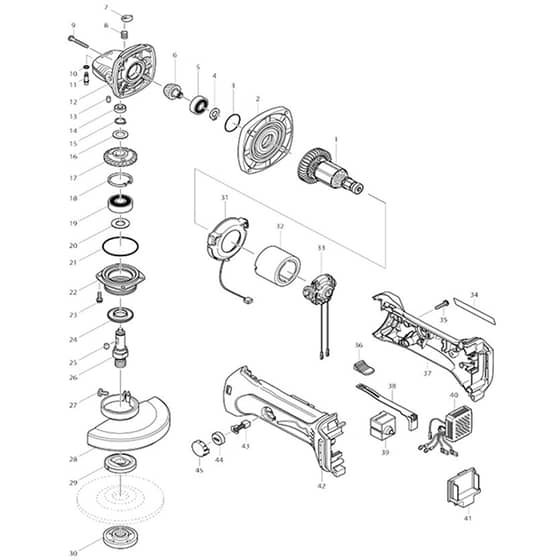

Makita DGA450 - Cordless Grinder 115mm - Power Tool Diagram

Description

Model No. DGA450

Cordless Grinder 115mm

Power Tool Parts Diagrams

	Part No.	Details
1	MK421977-0 Available to backorder	Rubber Ring 13 (C10)	£1.03 £0.86
1	MK619217-0 Available to backorder	Armature	£14.52 £12.10
2	MK317821-6 Available to backorder	Gear Housing Cover	£3.60 £3.00
3	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
4	MK961005-4 Available to backorder	Retaining Ring (Ext) S-9	£0.48 £0.40
5	MK210042-8 Available to backorder	Ball Bearing 629Llb	£3.12 £2.60
6	MK227501-5 Available to backorder	Spiral Bevel Gear 19	£6.84 £5.70
7	MK417771-6 In stock	Pin Cap	£0.52 £0.43
8	MK233072-2 Available to backorder	Compression Spring 8	£0.48 £0.40
9	MK266361-0 Available to backorder	Binding Head Tapping Screw 4x30	£0.48 £0.40
11	MK256496-5 Available to backorder	Shoulder Pin 4	£2.21 £1.84
12	MK318051-2 Available to backorder	Gear Housing	£6.84 £5.70
13	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
14	MK210033-9 Available to backorder	Ball Bearing 696Zz	£1.73 £1.44
15	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
16	MK253744-3 Available to backorder	Flat Washer 12	£0.70 £0.58
17	MK227960-3 Available to backorder	Spiral Bevel Gear 39 S	£7.68 £6.40
18	MK962151-6 Available to backorder	Retaining Ring (Int) R-32	£0.70 £0.58
19	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.72 £8.10
20	MK267238-2 Available to backorder	Flat Washer 12	£0.48 £0.40
21	MK213622-9 Available to backorder	O-Ring 45	£0.48 £0.40
22	MK318331-6 Available to backorder	Bearing Box	£3.48 £2.90
23	MK911121-2 Available to backorder	Pan Head Screw M4x14 W	£0.48 £0.40
24	MK345464-4 Available to backorder	Labyrinth Ring	£0.70 £0.58
25	MK254011-9 Available to backorder	Woodruff Key 4	£0.89 £0.74
26	MK324489-1 Available to backorder	Spindle	£3.12 £2.60
28	MK123098-1 Available to backorder	Wheel Cover 115Ak Assembly (INC. 27)	£7.80 £6.50
28	MK213009-5 Available to backorder	O-Ring 4 (C10)	£0.48 £0.40
29	MK224490-5 In stock	Inner Flange 14-45 (Alt.)	£1.97 £1.64
30	MK224554-5 In stock	Lock Nut 14-45	£5.47 £4.56
31	MK631714-6 Available to backorder	Led Circuit	£9.84 £8.20
32	MK638627-2 Available to backorder	Yoke Unit	£27.12 £22.60
33	MK638921-2 In stock	End Bell Complete	£4.61 £3.84
34	MK815V56-0 Available to backorder	Name Plate Dga450	£0.48 £0.40
35	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
36	MK419566-3 Available to backorder	Switch Knob	£0.48 £0.40
37	MK187928-0 Available to backorder	Housing Set (INC. 42)	£18.96 £15.80
37	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
38	MK419519-2 Available to backorder	Switch Lever	£1.73 £1.44
39	MK650579-7 Available to backorder	Switch 1246.3223	£9.72 £8.10
40	MK620242-6 Available to backorder	Controller	£48.96 £40.80
41	MK643867-9 Available to backorder	Terminal	£5.88 £4.90
43	MK191971-3 In stock	Carbon Brush Set Cb-430	£5.72 £4.77
44	MK643954-4 In stock	Holder Cap	£1.39 £1.16
901	MK192227-7 Available to backorder	Inner Flange 47 Set (F01)	£23.40 £19.50
901	MK153489-2 In stock	Grip 36 Complete (A01)	£1.73 £1.44
901	MK805459-4 Available to backorder	Safety Instruction Label (E01)	£0.48 £0.40
902	MK782423-1 In stock	Lock Nut Wrench 35 (A02)	£1.94 £1.62
906	MK804H67-6 Available to backorder	Carton Label Dga450Z (A06)	£0.48 £0.40
