Makita DDF492 - Cordless Driver Drill - Power Tool Diagram

Description

Model No. DDF492

Cordless Driver Drill

Power Tool Parts Diagrams

	Part No.	Details
2	MK266130-9 Available to backorder	Binding Head Tapping Screw 3x16	£0.48 £0.40
3	MK252126-6 Available to backorder	Hex. Lock Nut M4-7 (C20)	£1.03 £0.86
3	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
4	MK232493-5 Available to backorder	Leaf Spring	£0.48 £0.40
6	MK251468-5 In stock	Slotted Flat Head Screw M6x22	£0.70 £0.58
8	MK265B67-9 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
10	MK619656-4 Available to backorder	Rotor	£30.96 £25.80
12	MK413405-9 Available to backorder	Rear Cover	£1.94 £1.62
14	MK620549-0 Available to backorder	Led Circuit	£4.44 £3.70
15	MK419041-9 Available to backorder	F/R Change Lever	£1.03 £0.86

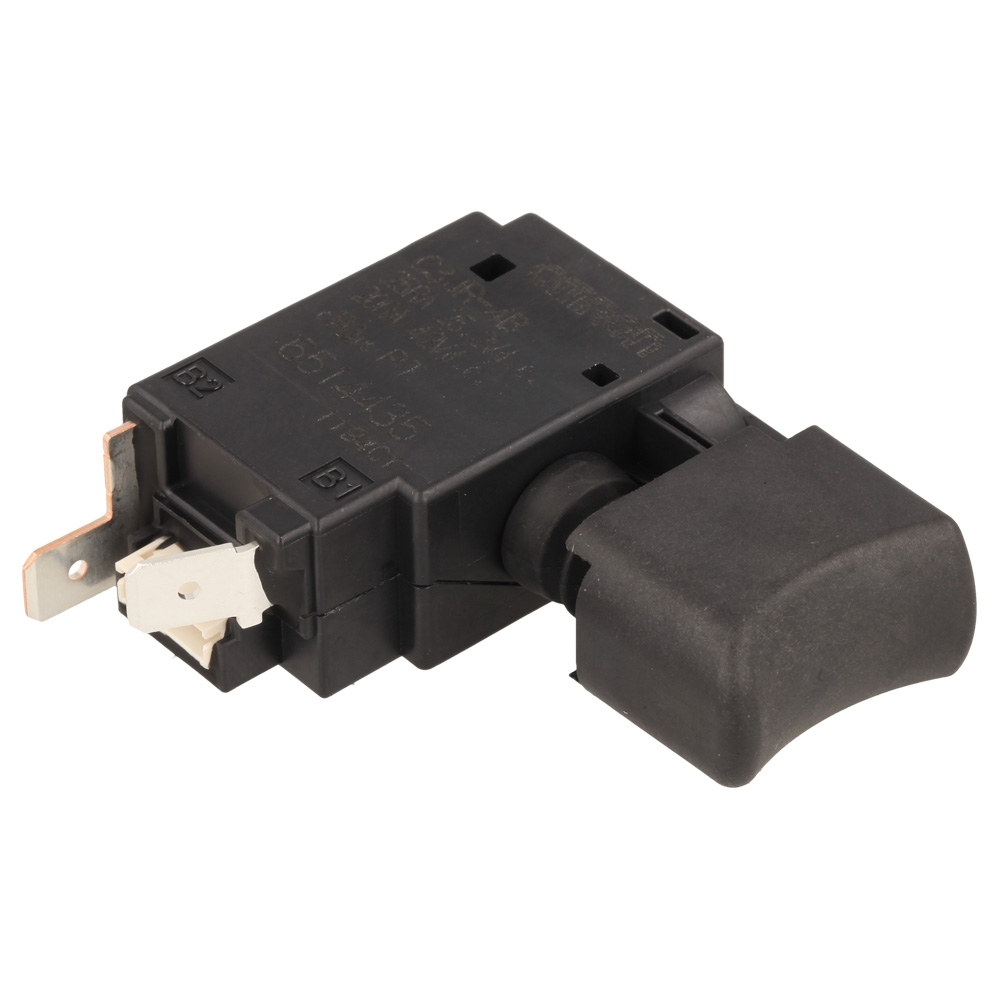

16	MK651443-5 Available to backorder	Switch C3Jr-4B	£26.28 £21.90
17	MK643874-2 Available to backorder	Terminal	£4.32 £3.60
901	MK266886-4 Available to backorder	Hex. Head Bolt M8x65 (C30)	£1.39 £1.16
901	MK312C73-2 Available to backorder	Arm L (C40)	£6.24 £5.20
901	MK962055-2 Available to backorder	Retaining Ring (Int) R-15 (C50)	£0.48 £0.40
902	MK251314-2 Available to backorder	Truss Head Screw M4x12 (A02)	£0.70 £0.58
903	MK346317-0 Available to backorder	Hook (A03)	£2.00 £1.67
904	MK452947-8 Available to backorder	Bit Holder (A04)	£0.98 £0.82
905	MK784637-8 Available to backorder	Phillips Slotted Bit 2-45 (A05)	£4.44 £3.70
906	MK821550-0 Available to backorder	Connector Plastic Case (Type 2) (A06B)	£56.16 £46.80
906	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
907	MK837916-4 Available to backorder	Inner Tray (A07B)	£11.52 £9.60
909	MK450128-8 Available to backorder	Battery Cover (A09B)	£0.77 £0.64
910	MK197280-8 In stock	Battery Bl1850B Set (A10B)	£76.24 £63.53
