Makita DDF484 - Cordless Driver Drill - Power Tool Diagram

Description

Model No. DDF484

Cordless Driver Drill

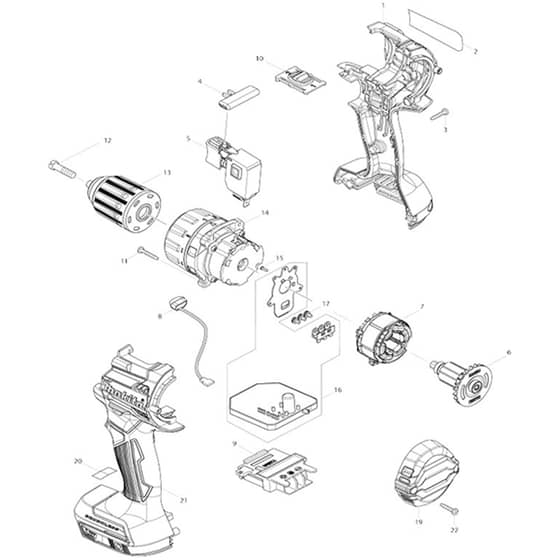

Power Tool Parts Diagrams

	Part No.	Details
1	MK252126-6 Available to backorder	Hex. Lock Nut M4-7 (C20)	£1.03 £0.86
1	MK183L79-9 Available to backorder	Housing Set < (INC. 21)	£15.72 £13.10
1	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
2	MK852M14-1 Available to backorder	Name Plate Ddf484	£0.48 £0.40
3	MK266130-9 Available to backorder	Binding Head Tapping Screw 3x16	£0.48 £0.40
3	MK266429-2 Available to backorder	Binding Head Tapping Screw 3x16	£0.48 £0.40
4	MK419041-9 Available to backorder	F/R Change Lever	£1.03 £0.86
5	MK650006-4 Available to backorder	Switch Tgrk2-1 (Alt.)	£16.44 £13.70
5	MK650710-5 Available to backorder	Switch C3Jw-4B	£21.12 £17.60
6	MK619406-7 Available to backorder	Rotor	£26.52 £22.10
7	MK629225-3 Available to backorder	Stator	£12.60 £10.50
8	MK620549-0 Available to backorder	Led Circuit	£4.44 £3.70
9	MK643874-2 Available to backorder	Terminal	£4.32 £3.60
10	MK233438-6 Available to backorder	Compression Spring 4 (C10)	£0.70 £0.58
10	MK123738-1 Available to backorder	Speed Change Lever Assembly	£2.53 £2.11
11	MK251497-8 Available to backorder	Binding Head Tapping Screw 3x20	£0.48 £0.40
11	MK265D32-0 Available to backorder	Tapping Screw 3x20 (Alt.)	£0.48 £0.40
12	MK251468-5 In stock	Slotted Flat Head Screw M6x22	£0.70 £0.58
13	MK766027-7 Available to backorder	Keyless Drill Chuck 13	£21.72 £18.10
14	MK123737-3 Available to backorder	Gear Assembly	£63.12 £52.60
14	MK127500-6 Available to backorder	Gear Assembly <	£66.84 £55.70
15	MK266490-9 Available to backorder	Pan Head Tapping Screw 2x6	£0.48 £0.40
15	MK265C47-1 Available to backorder	Pan Head Tapping Screw 2x6 (Alt.)	£0.48 £0.40
16	MK620548-2 Available to backorder	Controller	£98.28 £81.90
17	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
19	MK456967-4 Available to backorder	Rear Cover	£2.05 £1.71
901	MK251314-2 Available to backorder	Truss Head Screw M4x12 (A01)	£0.70 £0.58
902	MK346317-0 Available to backorder	Hook (A02)	£2.00 £1.67
902	MK346449-3 Available to backorder	Hook (A02E)	£2.05 £1.71
903	MK784637-8 Available to backorder	Phillips Slotted Bit 2-45 (A03)	£4.44 £3.70
904	MK417724-5 Available to backorder	Latch (C20)	£0.82 £0.68
904	MK141331-9 Available to backorder	Plastic Case Complete (A04I)	£57.60 £48.00
904	MK324667-3 Available to backorder	Shaft (C10)	£2.21 £1.84
904	MK419216-0 Available to backorder	Handle (C30)	£1.74 £1.45
904	MK821550-0 Available to backorder	Connector Plastic Case (Type 2) (A04)	£56.16 £46.80
904	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
905	MK450128-8 Available to backorder	Battery Cover (A05)	£0.77 £0.64
905	MK191E41-8 Available to backorder	Grip Assembly Set (F05)	£41.40 £34.50
907	MK197600-6 Available to backorder	Battery Bl1830B Set (A07B) (Refs A07 \| A11)	£197.76 £164.80
907	MK197280-8 In stock	Battery Bl1850B Set (A07)	£76.24 £63.53
907	MK197265-4 Available to backorder	Battery Bl1840B Set (A07)	£229.42 £191.18
907	MK196235-0 Available to backorder	Battery Bl1815N Set (A07E)	£179.88 £149.90
908	MK837916-4 Available to backorder	Inner Tray (A08)	£11.52 £9.60
909	MK810B93-9 Available to backorder	Indication Label Ddf484Rtj (A09D)	£0.70 £0.58
910	MK810B94-7 Available to backorder	Plastic Case Label Ddf484Rtj (A10D)	£0.48 £0.40
