Makita DDF458 - Cordless Driver Drill - Power Tool Diagram

Description

Model No. DDF458

Cordless Driver Drill

Power Tool Parts Diagrams

	Part No.	Details
1	MK814Y91-3 Available to backorder	Name Plate Ddf458	£0.48 £0.40
2	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
2	MK252126-6 Available to backorder	Hex. Lock Nut M4-7 (C20)	£1.03 £0.86
2	MK187430-3 Available to backorder	Housing Set (INC. 28 *)	£18.48 £15.40
3	MK266130-9 Available to backorder	Binding Head Tapping Screw 3x16	£0.48 £0.40
4	MK233438-6 Available to backorder	Compression Spring 4 (C10)	£0.70 £0.58
4	MK126100-9 Available to backorder	Speed Change Lever Assembly	£1.22 £1.02
5	MK419250-0 Available to backorder	F/R Change Lever	£1.03 £0.86
6	MK650724-4 Available to backorder	Switch Tg573Fsb-3 <	£48.72 £40.60
7	MK620138-1 Available to backorder	Light Circuit	£32.16 £26.80
8	MK232220-0 Available to backorder	Leaf Spring	£0.48 £0.40
9	MK140963-9 Available to backorder	Switch Plate Complete	£1.74 £1.45
10	MK424476-1 Available to backorder	Cushion	£0.70 £0.58
11	MK251468-5 In stock	Slotted Flat Head Screw M6x22	£0.70 £0.58
12	MK763248-2 Available to backorder	Keyless Drill Chuck 13 <	£36.96 £30.80
13	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
13	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
14	MK126098-0 Available to backorder	Gear Assembly	£98.28 £81.90
15	MK638989-8 Available to backorder	Yoke Unit	£23.76 £19.80

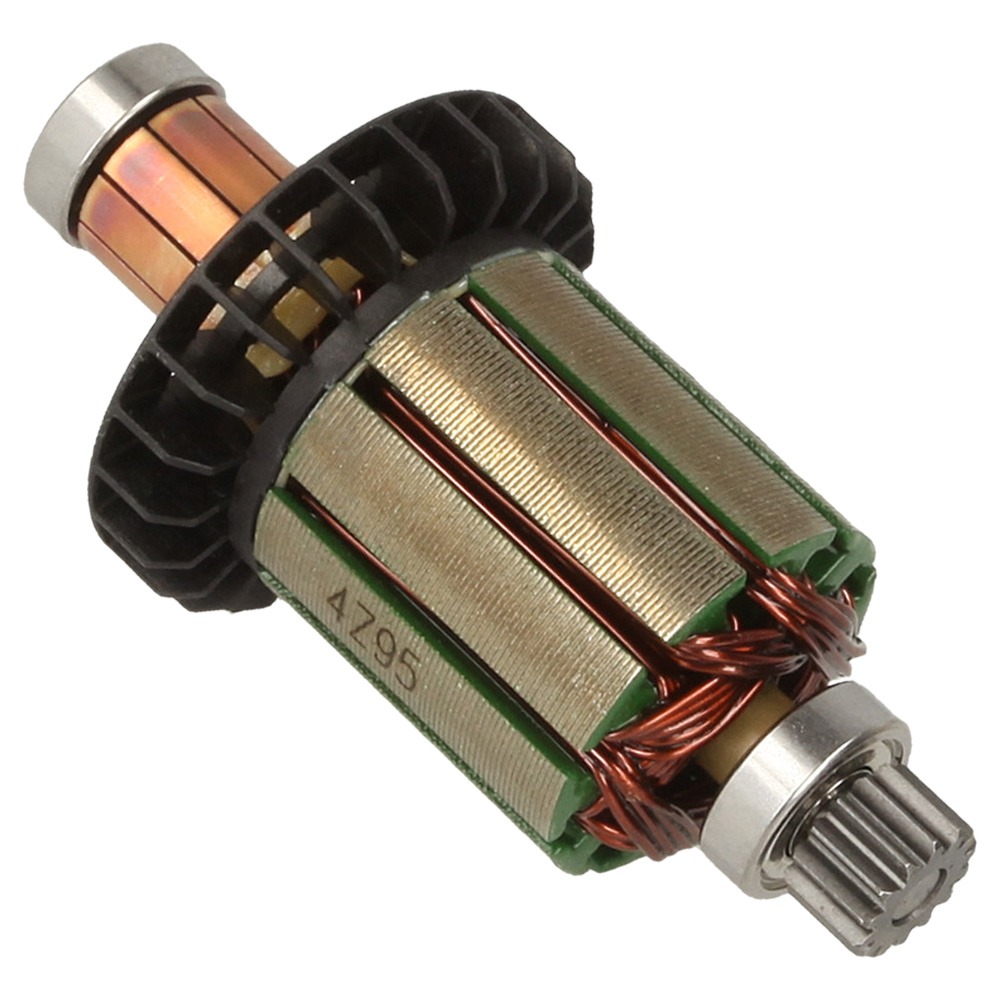

16	MK619496-0 In stock	Armature <	£22.87 £19.06
17	MK688172-7 Available to backorder	Line Filter (C10)	£1.03 £0.86

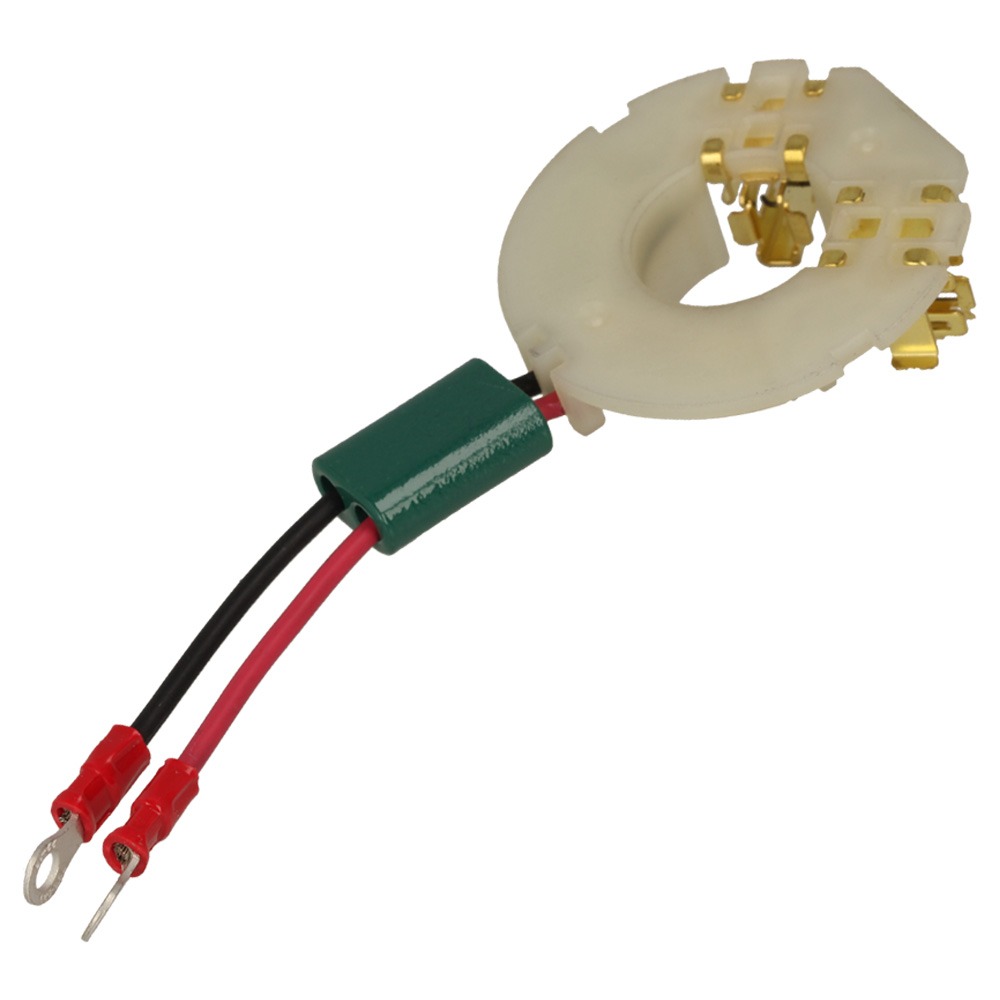

17	MK632K64-8 In stock	Brush Holder Complete <	£7.09 £5.91

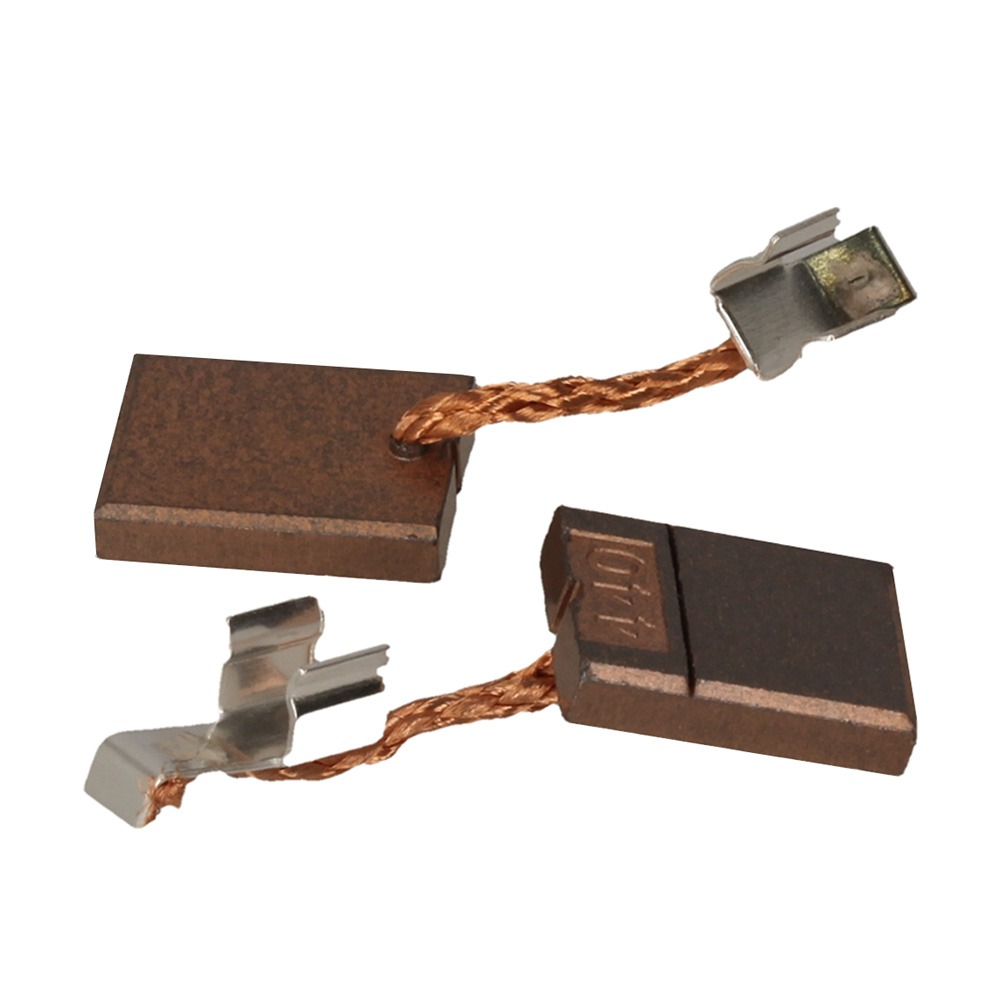

18	MK195021-6 In stock	Carbon Brush Set Cb-440 (Alt.)	£5.47 £4.56
19	MK263032-0 Available to backorder	Rubber Pin 4	£0.48 £0.40
20	MK453394-6 Available to backorder	Rear Cover	£2.38 £1.98

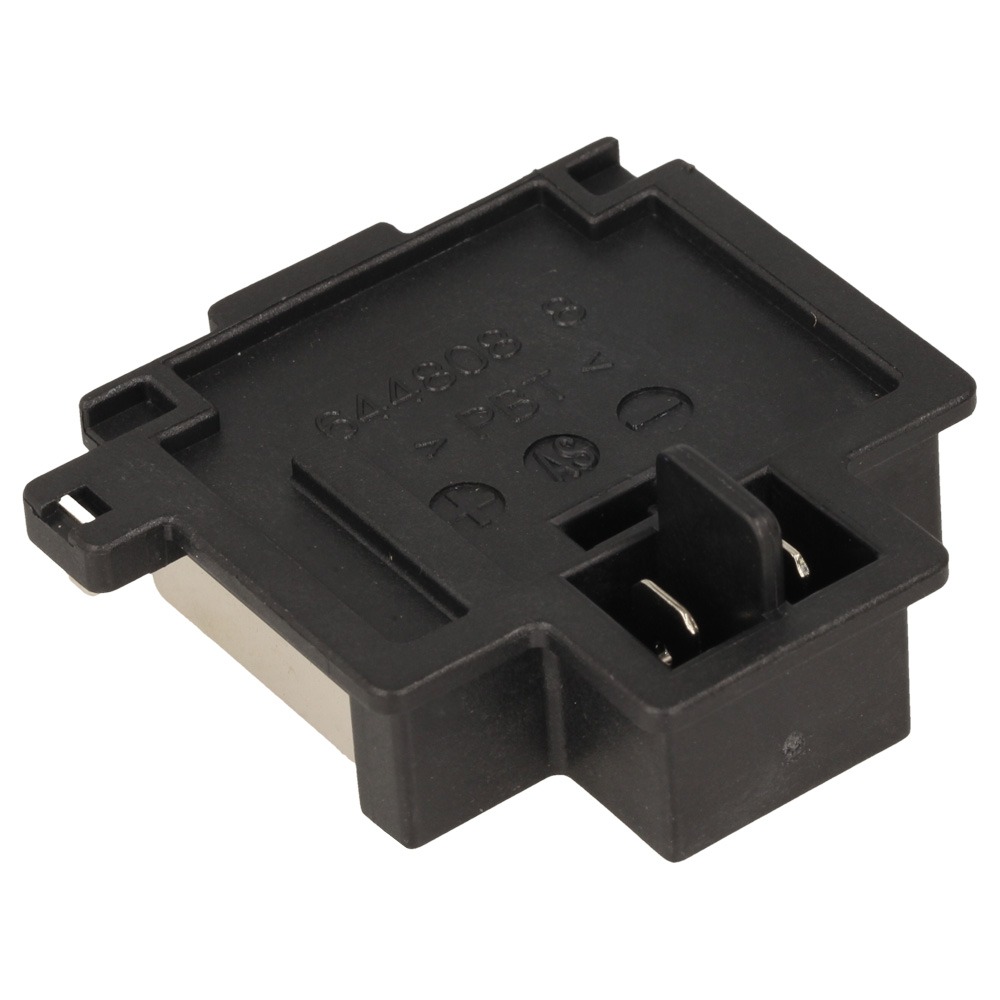

22	MK644808-8 In stock	Terminal	£3.98 £3.32
23	MK424430-5 Available to backorder	Seal	£0.70 £0.58
24	MK423422-1 Available to backorder	Sponge A	£0.48 £0.40
25	MK911013-5 Available to backorder	Pan Head Screw M3x10 Wr	£0.48 £0.40
26	MK423423-9 Available to backorder	Sponge B	£0.48 £0.40
27	MK689176-2 Available to backorder	Heat Sink	£3.84 £3.20
901	MK346566-9 Available to backorder	Grip Spring 60 (C30)	£3.01 £2.51
901	MK455189-3 Available to backorder	Grip Base 60 (C40)	£1.66 £1.38
901	MK266750-9 Available to backorder	Square Bolt M8x100 (C20)	£3.01 £2.51
901	MK266899-5 Available to backorder	Square Bolt M8x140 (C20)	£3.36 £2.80
901	MK154935-8 Available to backorder	Grip 36 Complete (C10)	£4.20 £3.50
901	MK123258-5 Available to backorder	Grip Assembly < (A01-1)	£11.88 £9.90
901	MK453584-1 Available to backorder	Grip Base 60 (C40)	£2.69 £2.24
902	MK251314-2 Available to backorder	Truss Head Screw M4x12 (A02)	£0.70 £0.58
903	MK346317-0 Available to backorder	Hook (A03)	£2.00 £1.67
903	MK346449-3 Available to backorder	Hook (A03U)	£2.05 £1.71
904	MK452947-8 Available to backorder	Bit Holder (A04)	£0.98 £0.82
905	MK784637-8 Available to backorder	Phillips Slotted Bit 2-45 (A05)	£4.44 £3.70
905	MK195798-3 Available to backorder	Battery Protector Set (F05)	£88.68 £73.90
906	MK821550-0 Available to backorder	Connector Plastic Case (Type 2) (A06)	£56.16 £46.80
906	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
907	MK197606-4 Available to backorder	Battery Bl1830B Set (2 Pcs) (Alt.) (F07-3)	£421.68 £351.40
907	MK197265-4 Available to backorder	Battery Bl1840B Set < (A07-2)	£229.42 £191.18
907	MK197280-8 In stock	Battery Bl1850B Set (A07-2V)	£76.24 £63.53
907	MK197600-6 Available to backorder	Battery Bl1830B Set < (A07-2)	£197.76 £164.80
907	MK837916-4 Available to backorder	Inner Tray < (A07-1Q)	£11.52 £9.60
908	MK802J80-0 Available to backorder	Indication Label Ddf458Zj (A08Q)	£1.74 £1.45
908	MK450128-8 Available to backorder	Battery Cover (A08)	£0.77 £0.64
909	MK821524-1 Available to backorder	Plastic Case (A09)	£57.36 £47.80
909	MK802J84-2 Available to backorder	Plastic Case Label Ddf458Zj (A09Q)	£1.74 £1.45
909	MK162302-3 Available to backorder	Latch (C10)	£1.73 £1.44
909	MK821551-8 Available to backorder	Connector Plastic Case (Type 3) (A09T)	£64.68 £53.90
909	MK453473-0 Available to backorder	Plastic Case Lid (C40)	£10.68 £8.90
909	MK325809-2 Available to backorder	Shaft (C20)	£4.20 £3.50
909	MK451749-9 Available to backorder	Handle (C30)	£1.90 £1.58
910	MK196235-0 Available to backorder	Battery Bl1815N Set (A10U) (Refs A10 \| F14)	£179.88 £149.90
910	MK837893-0 Available to backorder	Inner Tray < (A10-1T)	£11.52 £9.60
911	MK802J79-5 Available to backorder	Indication Label Ddf458Rfj (A11P)	£1.74 £1.45
912	MK802J87-6 Available to backorder	Plastic Case Label Ddf458Rmj (A12S)	£1.74 £1.45
912	MK802J83-4 Available to backorder	Plastic Case Label Ddf458Rfj (A12P)	£1.74 £1.45
913	MK345261-8 Available to backorder	Hook Plate (A13T)	£0.77 £0.64
914	MK417926-3 Available to backorder	Strap (A14T)	£14.28 £11.90
