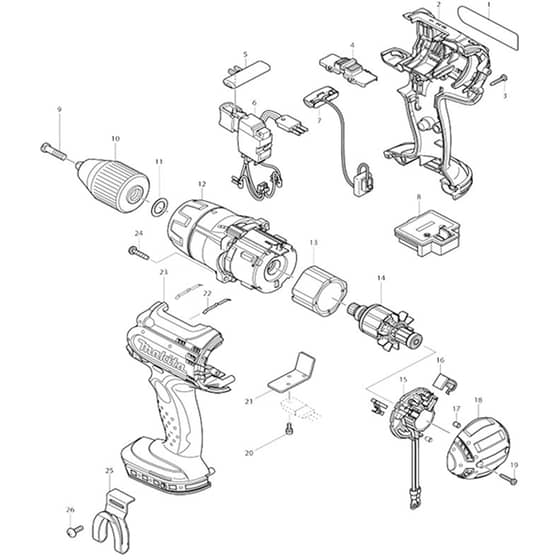

Makita DDF451 - Cordless Driver Drill 13mm - Power Tool Diagram

Description

Model No. DDF451

Cordless Driver Drill 13mm

Power Tool Parts Diagrams

	Part No.	Details
2	MK183G51-1 Available to backorder	Housing Set <	£28.56 £23.80
2	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
2	MK187142-8 Available to backorder	Housing Set	£55.92 £46.60
3	MK266130-9 Available to backorder	Tapping Screw Bind Pt 3x16	£0.48 £0.40
4	MK233438-6 Available to backorder	Compression Spring 4 (C10)	£0.70 £0.58
4	MK125435-5 Available to backorder	Speed Change Lever Ass'y	£1.03 £0.86
5	MK419250-0 Available to backorder	F/R Change Lever	£1.03 £0.86
6	MK650653-1 Available to backorder	Switch Tg553Fsb-4B	£43.08 £35.90
7	MK631692-0 Available to backorder	Light Circuit	£22.68 £18.90
8	MK644808-8 In stock	Terminal	£3.98 £3.32
9	MK251468-5 In stock	- Flat Head Screw M6x22	£0.70 £0.58
10	MK763196-5 Available to backorder	Keyless Drill Chuck 13	£43.20 £36.00
11	MK253798-0 Available to backorder	Flat Washer 13	£0.48 £0.40
12	MK450385-8 Available to backorder	Change Lever (C30)	£0.89 £0.74
12	MK419558-2 Available to backorder	Speed Change Ring (C10)	£1.58 £1.32
12	MK125433-9 Available to backorder	Gear Ass'y	£99.96 £83.30
12	MK268199-9 Available to backorder	Pin 1.4 (C20)	£0.98 £0.82
13	MK632J71-5 Available to backorder	Yoke Unit <	£21.48 £17.90
14	MK619165-3 Available to backorder	Armature	£24.48 £20.40
15	MK638849-4 Available to backorder	Brush Holder Complete	£5.52 £4.60
15	MK231697-6 Available to backorder	Torsion Spring L (C20)	£0.48 £0.40
15	MK231696-8 Available to backorder	Torsion Spring R (C10)	£0.48 £0.40
16	MK195021-6 In stock	Carbon Brush Set Cb-440 (Alt.)	£5.47 £4.56
17	MK263032-0 Available to backorder	Rubber Pin 4	£0.48 £0.40
18	MK419642-3 Available to backorder	Rear Cover	£6.84 £5.70
20	MK652066-2 Available to backorder	+Pan Head Screw M3x9	£0.48 £0.40
21	MK689145-3 Available to backorder	Heatsink	£0.70 £0.58
22	MK232220-0 Available to backorder	Leaf Spring	£0.48 £0.40
24	MK266045-0 Available to backorder	Tapping Screw 4x20	£0.48 £0.40
25	MK346317-0 Available to backorder	Hook	£2.00 £1.67
26	MK251314-2 Available to backorder	+ Screw M4x12 (Refs A02 \| C10)	£0.70 £0.58
901	MK123254-3 Available to backorder	Grip Assembly < (A01-1)	£18.72 £15.60
901	MK154835-2 Available to backorder	Grip36 Complete (C10)	£10.92 £9.10
901	MK453037-0 Available to backorder	Grip Base 60 (C40)	£7.44 £6.20
901	MK266750-9 Available to backorder	Square Bolt M8x100 (C20)	£3.01 £2.51
901	MK154935-8 Available to backorder	Grip 36 Complete (C10)	£4.20 £3.50
901	MK453584-1 Available to backorder	Grip Base 60 (C40)	£2.69 £2.24
901	MK345463-6 Available to backorder	Grip Spring 60 (C30)	£1.74 £1.45
903	MK452947-8 Available to backorder	Bit Holder (A03)	£0.98 £0.82
904	MK784637-8 Available to backorder	+- Bit 2-45 (A04)	£4.44 £3.70
905	MK419216-0 Available to backorder	Handle (C10)	£1.74 £1.45
905	MK419269-9 Available to backorder	Plate (C40)	£0.89 £0.74
905	MK821550-0 Available to backorder	Connector Plastic Case (A05)	£56.16 £46.80
905	MK140354-4 Available to backorder	Plastic Case Complete (A05)	£54.60 £45.50
905	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
905	MK324667-3 Available to backorder	Shaft (C50)	£2.21 £1.84
905	MK417724-5 Available to backorder	Latch (C20)	£0.82 £0.68
905	MK419268-1 Available to backorder	Plastic Case Lid (C30)	£8.04 £6.70
906	MK450128-8 Available to backorder	Battery Cover (A06)	£0.77 £0.64
908	MK197265-4 Available to backorder	Battery Bl1840B Set < (A08-2)	£229.42 £191.18
908	MK197600-6 Available to backorder	Battery Bl1830B Set < (A08-2)	£197.76 £164.80
909	MK837916-4 Available to backorder	Inner Tray (A09)	£11.52 £9.60
911	MK324705-1 Available to backorder	Hook (C20)	£2.05 £1.71
911	MK194654-4 Available to backorder	Hook Set (F11)	£8.40 £7.00
912	MK194649-7 Available to backorder	Battery Protector (F12)	£18.48 £15.40
913	MK197606-4 Available to backorder	Battery Bl1830B Set (2Pieces) (Alt.) (F13-3)	£421.68 £351.40
917	MK197599-5 Available to backorder	Battery Bl1830B Set (Alt.) (F17-4)	£86.28 £71.90
918	MK196235-0 Available to backorder	Battery Bl1815N Set (Alt.) (F18-2)	£179.88 £149.90
