Makita DCS553 - 150mm Cordless Metal Cutter - Power Tool Diagram

Description

Model No. DCS553

150mm Cordless Metal Cutter

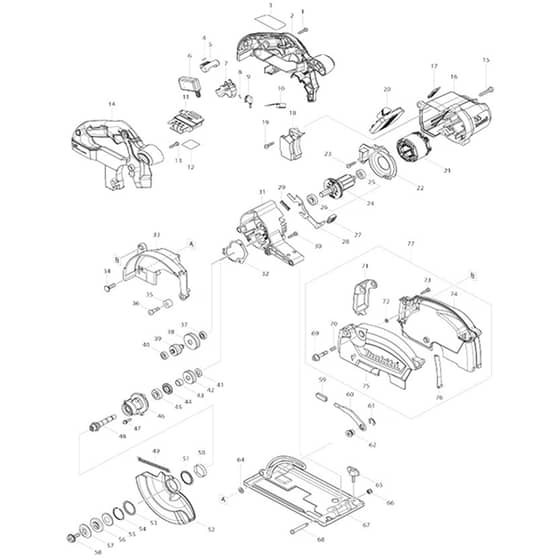

Power Tool Parts Diagrams

	Part No.	Details
1	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 013 \| 019 \| 023 \| 030 \| 073)	£0.48 £0.40
2	MK183K13-3 Available to backorder	Handle Set (INC. 14 *)	£25.32 £21.10
2	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
3	MK854S64-8 Available to backorder	Name Plate Dcs553	£0.48 £0.40
4	MK231433-0 Available to backorder	Compression Spring 4	£0.48 £0.40
5	MK419704-7 Available to backorder	Lock Off Button	£1.58 £1.32
6	MK651083-9 Available to backorder	Switch C3xa-1Pspm	£28.56 £23.80
7	MK458594-3 Available to backorder	Switch Lever	£0.98 £0.82
9	MK632M68-2 Available to backorder	Switch Unit	£15.36 £12.80
10	MK620936-3 Available to backorder	Led Circuit	£9.72 £8.10
11	MK643874-2 Available to backorder	Terminal	£4.32 £3.60
12	MK854S72-9 Available to backorder	Serial No. Label Dcs553	£0.48 £0.40
15	MK911253-5 Available to backorder	Pan Head Screw M5x30 Wr	£0.70 £0.58
16	MK458656-7 Available to backorder	Motor Housing	£9.72 £8.10
17	MK144251-6 Available to backorder	Indication Plate Complete	£4.68 £3.90
18	MK458657-5 Available to backorder	Motor Housing Cover	£2.10 £1.75
20	MK620L75-1 Available to backorder	Controller S	£116.40 £97.00
20	MK620938-9 Available to backorder	Controller	£99.72 £83.10
21	MK629C04-7 Available to backorder	Stator S	£19.92 £16.60
21	MK629368-1 Available to backorder	Stator	£42.24 £35.20
22	MK458658-3 Available to backorder	Baffle Plate	£2.24 £1.87
24	MK510437-8 Available to backorder	Rotor Assembly < (INC. 25 26 *)	£46.56 £38.80
25	MK210022-4 Available to backorder	Ball Bearing 626Ddw	£3.48 £2.90
26	MK210069-8 Available to backorder	Ball Bearing 6900Ddw	£6.00 £5.00
26	MK210214-5 Available to backorder	Ball Bearing 6900Ddw <	£3.96 £3.30
27	MK286039-9 Available to backorder	Cap	£0.70 £0.58
28	MK346885-3 Available to backorder	Shaft Lock	£1.73 £1.44
29	MK233117-6 Available to backorder	Compression Spring 6	£0.70 £0.58
31	MK140D79-4 Available to backorder	Gear Housing Complete	£45.36 £37.80
31	MK213961-7 Available to backorder	O-Ring 22 (C10)	£0.48 £0.40
32	MK424715-9 Available to backorder	Gasket	£1.74 £1.45
33	MK458661-4 Available to backorder	Blade Case	£5.28 £4.40
34	MK266737-1 Available to backorder	Flat Head Square Neck Bolt M6x20	£0.48 £0.40
35	MK262511-5 Available to backorder	Rubber Sleeve 6	£0.70 £0.58
36	MK265115-2 Available to backorder	Pan Head Shoulder Screw M5x19	£1.73 £1.44
37	MK210065-6 Available to backorder	Ball Bearing 625Zz	£2.38 £1.98
38	MK227809-7 Available to backorder	Helical Gear 30	£5.64 £4.70
39	MK227807-1 Available to backorder	Helical Gear 17	£6.00 £5.00
40	MK210033-9 Available to backorder	Ball Bearing 696Zz	£1.73 £1.44
41	MK961005-4 Available to backorder	Retaining Ring (Ext) S-9	£0.48 £0.40
42	MK227808-9 Available to backorder	Helical Gear 24	£5.52 £4.60
43	MK257728-3 Available to backorder	Sleeve 10	£1.22 £1.02
44	MK285847-5 Available to backorder	Bearing Retainer 14-23	£4.44 £3.70
46	MK143228-8 Available to backorder	Bearing Box Complete	£15.24 £12.70
46	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
47	MK911128-8 In stock	Pan Head Screw M4x16 Wr	£0.54 £0.45
48	MK326540-3 Available to backorder	Spindle	£4.44 £3.70
49	MK231792-2 Available to backorder	Tension Spring 3	£2.83 £2.36
50	MK345470-9 Available to backorder	Thickness Ring	£0.89 £0.74
51	MK345739-1 Available to backorder	Spacer	£0.48 £0.40
52	MK140C92-6 Available to backorder	Safety Cover Complete	£9.36 £7.80
54	MK257938-2 Available to backorder	Retaining Ring (Ext) Wr-26	£0.89 £0.74
55	MK267802-9 Available to backorder	Cup Washer 13	£2.21 £1.84
56	MK224391-7 Available to backorder	Inner Flange 30	£1.73 £1.44
57	MK224404-4 Available to backorder	Outer Flange 30	£3.12 £2.60
59	MK286036-5 Available to backorder	Cap	£0.70 £0.58
60	MK347418-7 Available to backorder	Lever Plate	£1.63 £1.36
61	MK257982-9 Available to backorder	Bow Stop Ring (Ext) E-8	£0.70 £0.58
62	MK252265-2 Available to backorder	Hex. Nut M6	£1.15 £0.96
64	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
65	MK251896-4 Available to backorder	Thumb Screw M5x20	£2.38 £1.98
66	MK252103-8 Available to backorder	Hex. Lock Nut M5-8	£0.48 £0.40
67	MK162468-9 Available to backorder	Base	£24.48 £20.40
68	MK265056-2 Available to backorder	Pan Head Shoulder Screw M5	£1.22 £1.02
69	MK265676-2 Available to backorder	Hex. Socket Head Bolt M6x29	£0.84 £0.70
70	MK233267-7 Available to backorder	Compression Spring 7	£1.58 £1.32
71	MK458652-5 Available to backorder	Dust Cap	£1.39 £1.16
72	MK213005-3 Available to backorder	O-Ring 5	£0.48 £0.40
74	MK458659-1 Available to backorder	Dust Box L	£10.56 £8.80
75	MK458660-6 Available to backorder	Dust Box R	£10.68 £8.90
76	MK347417-9 Available to backorder	Plate	£1.32 £1.10
77	MK136069-9 Available to backorder	Dust Box Assembly (Alt.) (INC. 69-76)	£28.44 £23.70
78	MK620K37-3 Available to backorder	Controller B S	£15.00 £12.50
79	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
901	MK192219-6 Available to backorder	Safety Goggle Set (A01)	£3.84 £3.20
902	MK783217-7 Available to backorder	Hex. Wrench 5 (Alt.) (A02-1)	£0.67 £0.56
902	MK783203-8 Available to backorder	Hex. Wrench 5 (A02)	£0.86 £0.72
904	MK164095-8 In stock	Guide Rule (A04)	£4.61 £3.84
906	MK197280-8 In stock	Battery Bl1850B Set (A06B)	£76.24 £63.53
907	MK450128-8 Available to backorder	Battery Cover (A07B)	£0.77 £0.64
907	MK127482-2 Available to backorder	Dust Cap Assembly (F07)	£32.76 £27.30
908	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
908	MK821551-8 Available to backorder	Connector Plastic Case (Type 3) (A08B)	£64.68 £53.90
909	MK839751-6 Available to backorder	Inner Tray (A09B)	£10.92 £9.10
